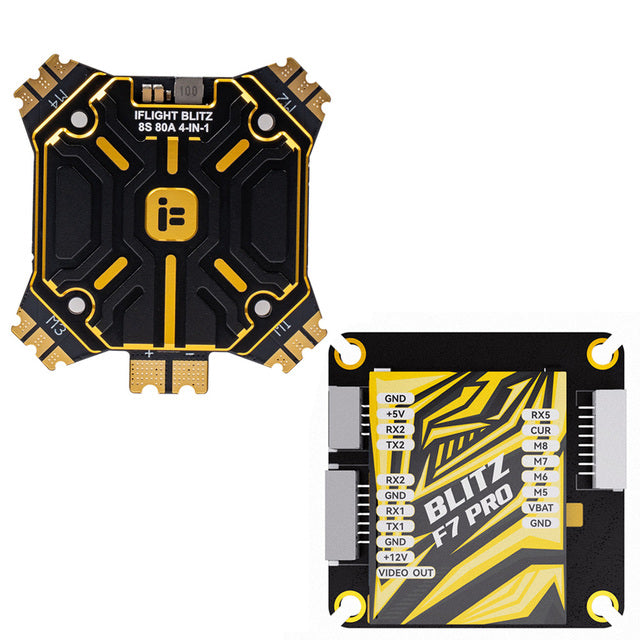

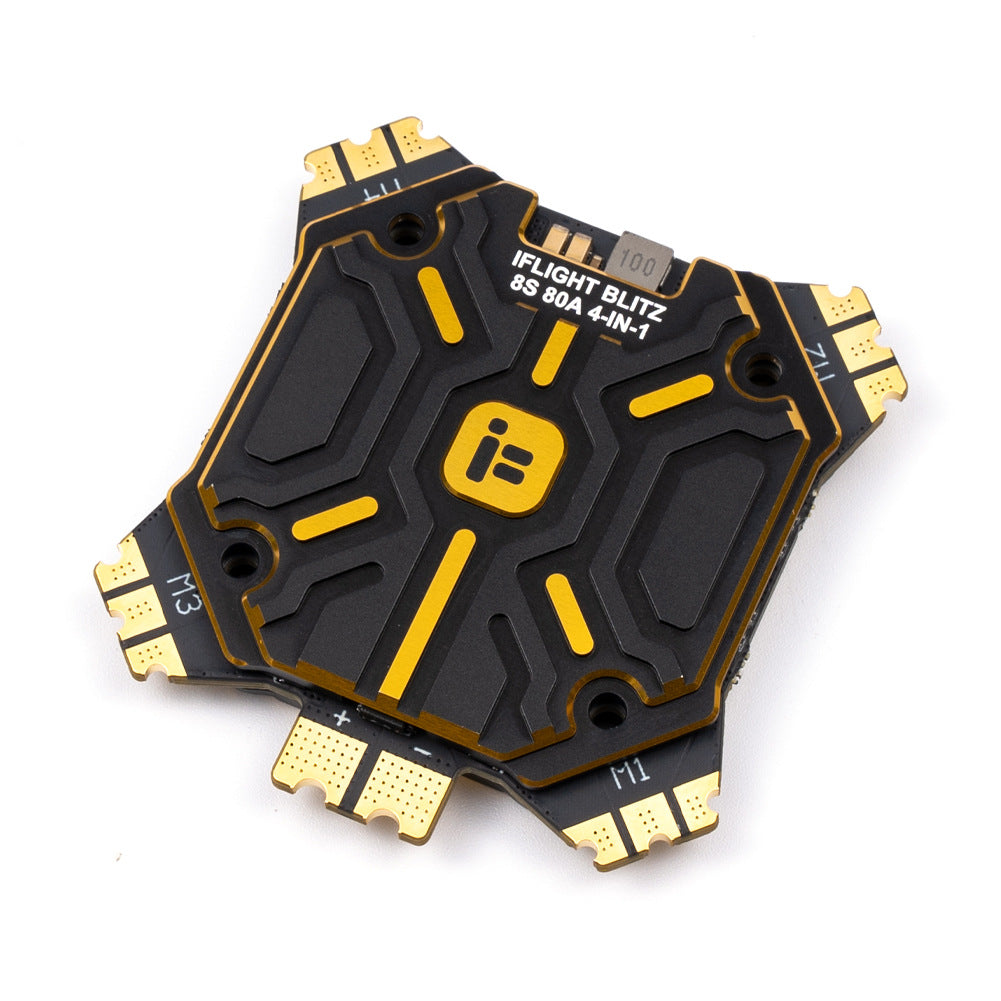

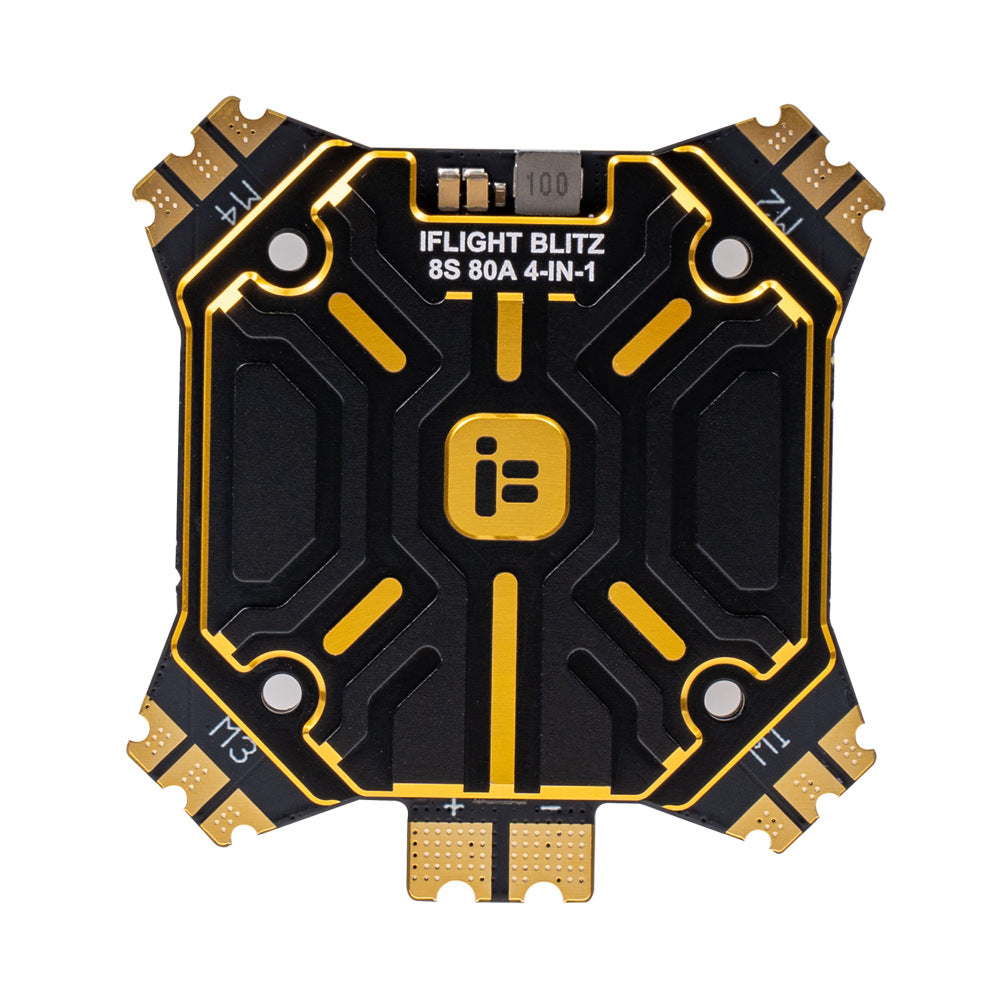

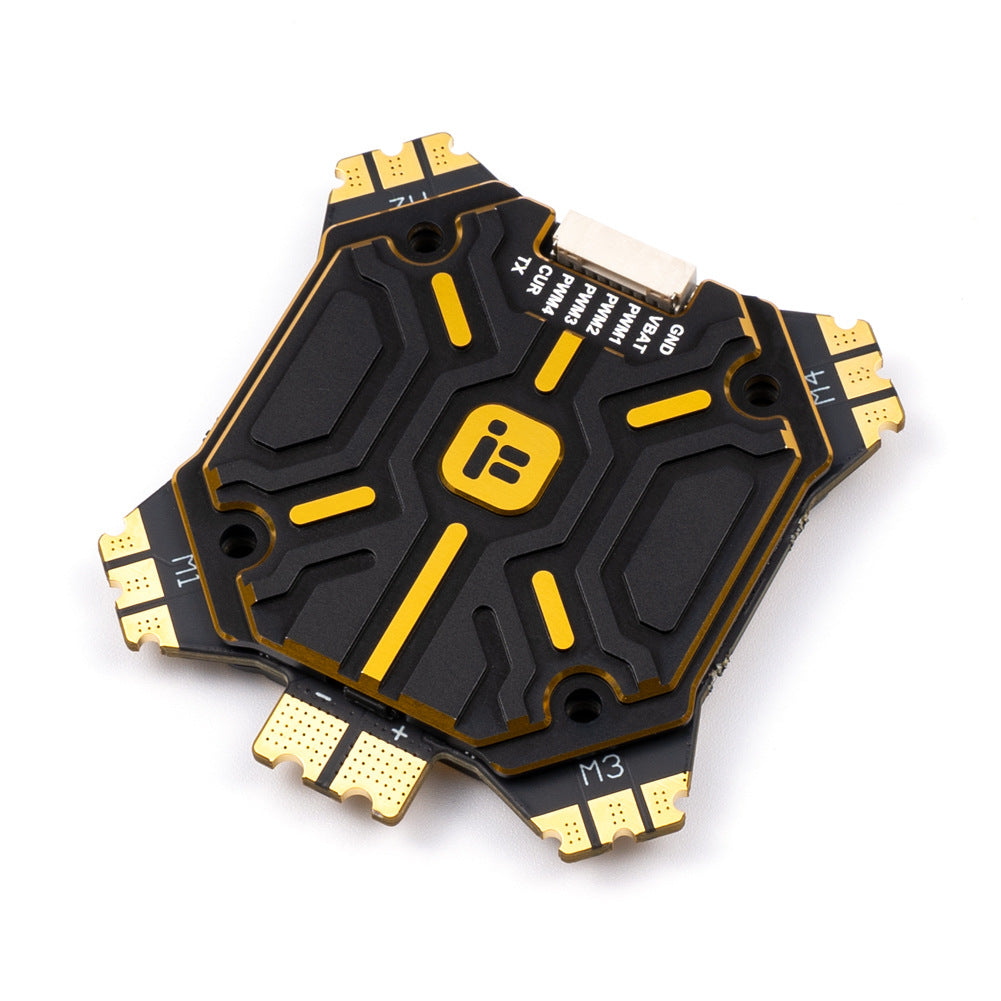

BLITZ E80 4-IN-1 Pro ESC (G2）：

     The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

     The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

     Features:

     Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

     G071 MCU, 48mHz maximum clock speed;

     TDK MLCC Low ESR ceramic capacitors;

     Top grade PSMN1R0-40YLD MOSFET;

     8 layers double-sided PCB board

     Specification:

     BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases

     Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

     Constant current：80A，100A（Burst）

     Mounting Holes: 35*35mm/Φ3mm

     Current sensor: Yes, scale 100

     Firmware: IFLIGHT_BLITZ_G2

     Telemetry: Supported

     Weight:65g(±10)

     Volts input: 2-8S

     BEC: No

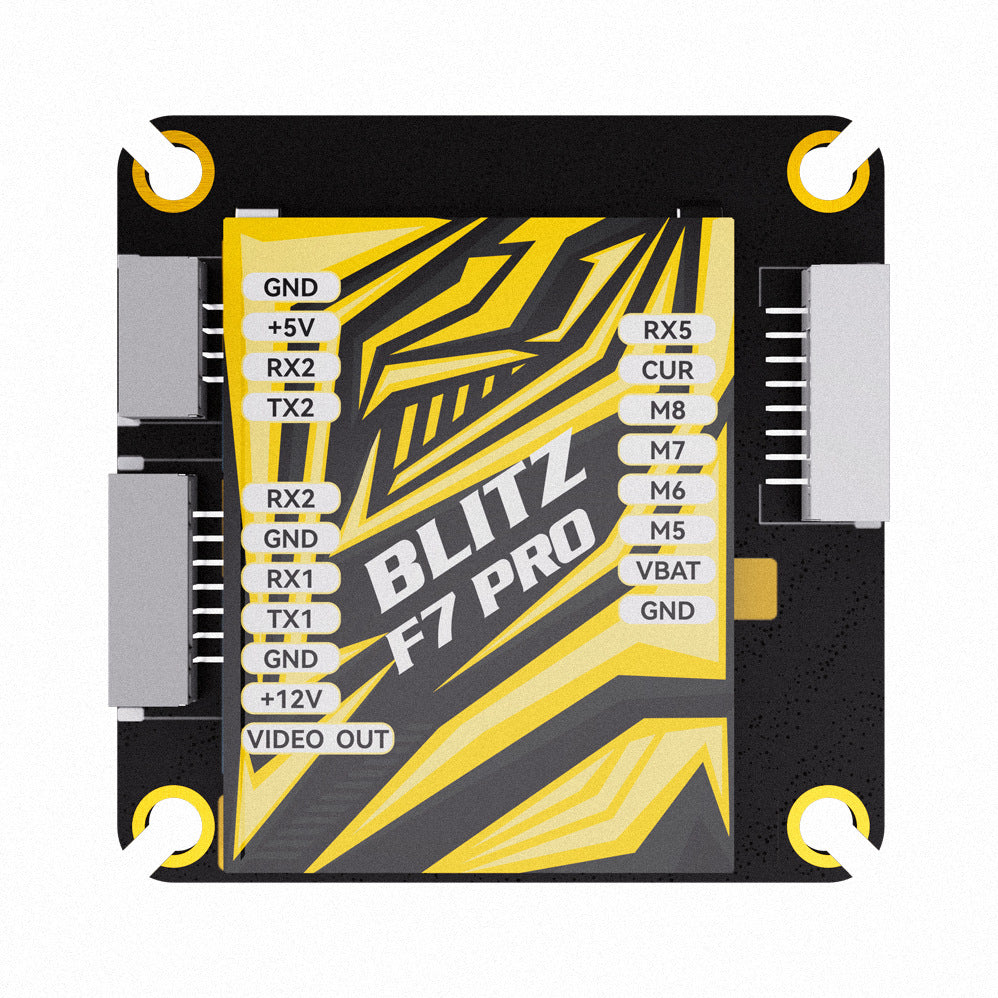

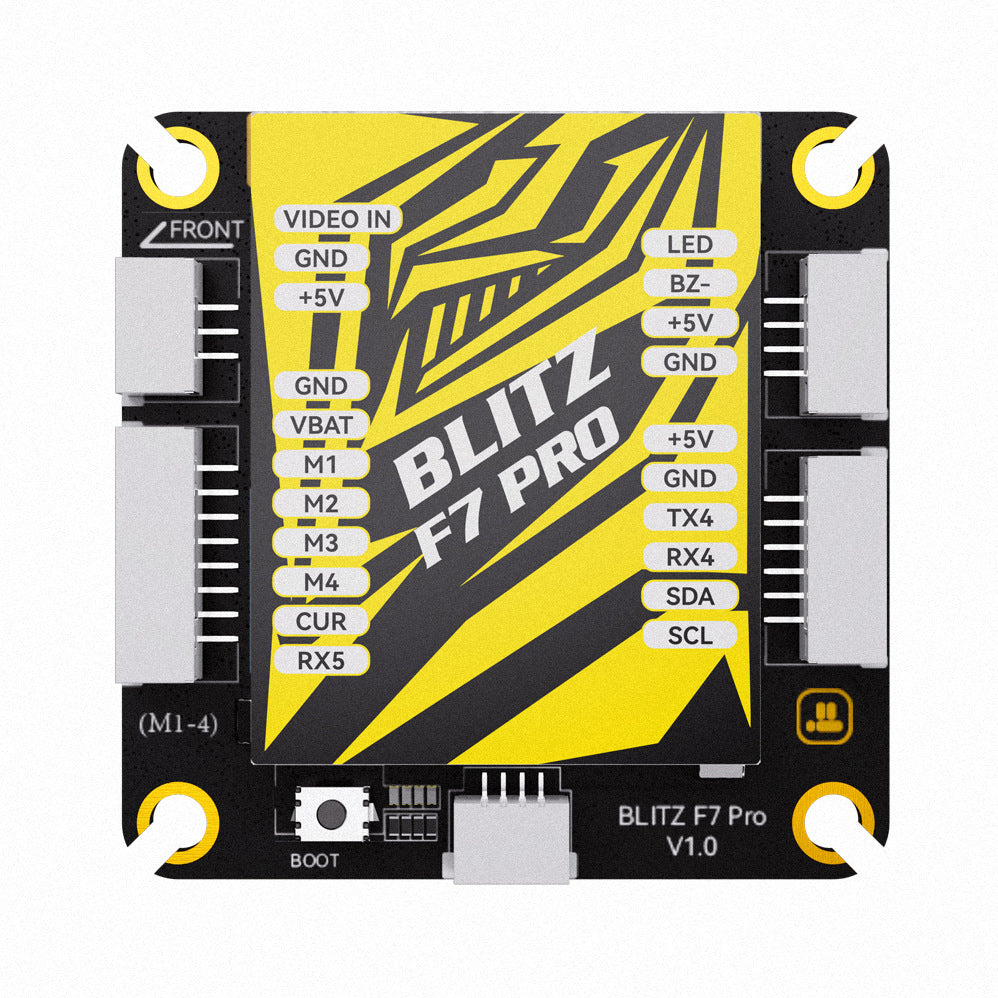

     BLITZ F7 Pro Flight Controller

     - Improved circuit design, better components, and lower electrical noise!

     - DJI HD VTX Connector (Plug-and-Play / No soldering required)

     - FC indicator LEDs for visual debugging

     - 512MB BlackBox

     - With LC filter

     Specifications:

     Mount pattern: 35*35mm/ 4mm PCB hole diameter

     Smartaudio / IRC Tramp VTX protocol supported

     Firmware target: IFLIGHT_BLITZ_F7_PRO

     Input Voltage: 14.8V-34V (4S-8S LIPO)

     Motor outputs: 4x (SH1.25 connector)

     Flash: 512MB (Blackbox flash)

     I2C serial: SDA / SLA pads

     Dimensions: 41*41.5mm

     Barometer: DPS310

     OSD Chip: AT7456E

     LED controller: Yes

     MCU: STM32 F722

     Weight: 17g (±2)

     Beeper pad: Yes

     Gyro: BMI270

     UARTS: 6

     Wiring suggestion:

     - UART1 for VTX HD/Analog

     - UART2 for Receiver

     - UART4 for GPS

     - UART5 for ESC Telemetry

     - 8×Dshot/PWM outputs

     - 1×I2C for GPS Mag

     Tips

     1. F722 MCU has an inner inverter.

     2. SBUS,CRSF,ELRS,IBUS,DSM ETC... can be connected to any unused UART_RX, we suggest you connect to Uart_RX2

     3. Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1

     4. F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2
