PRODUCT DESCRIPTION

    Let's introduce our new iFlight Taurus X8, our heavy-duty gear to lift those big cams!

    Engineered with professionals for professionals, a BNF that's aimed for carrying big payloads offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC,  etc) ready for DJI's FPV HD transmission system or any analog VTX. Redundant ESC mounts and motor setup for maximum performance but also a safety factor. Even in case of an overload or failure, one remaining ESC and 4 motors will be able to carry your expensive camera back to you. In case you get troubles with signal interference, radio signal loss, or complete FPV transmission fails the additional GPS rescue feature (if GPS installed and activated with the rescue feature) will automatically take over control, climb to max flight altitude, and descent towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrain and offers some protection on harder landings.

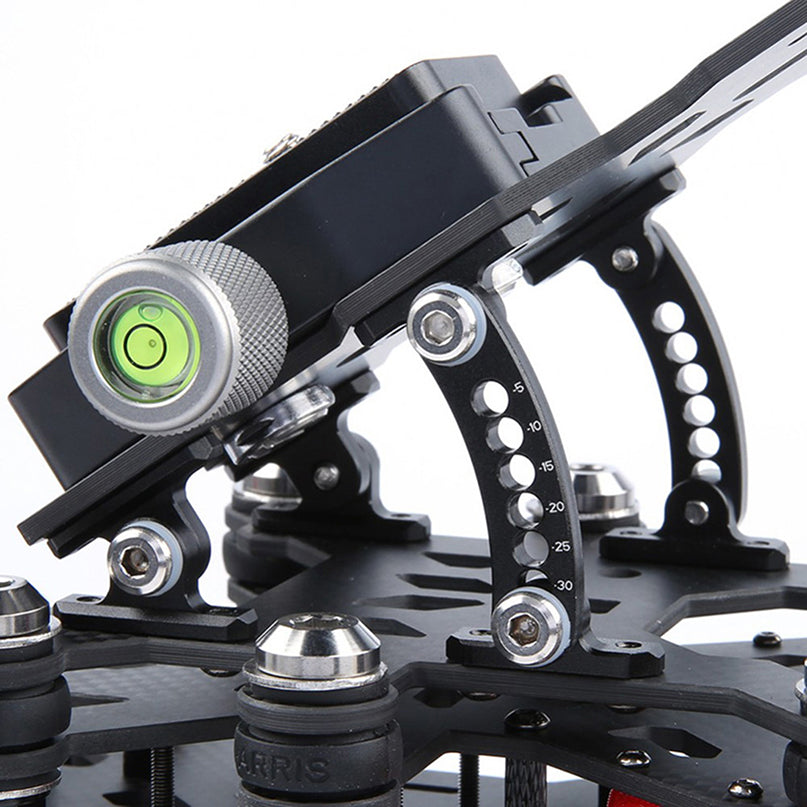

    2kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The underslung battery acts as a power source as well as a counterweight to strategically slide the weight more front or back to counter camera lenses of different weight or length. The adjustable CNC aluminum mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello, no jitter, no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot we recommend and additional software stabilization in the post or a hardware module (for example SteadXP).

    The estimated flight time with 6S 4500mAh and attached cinema camera is about 4-6min, depending on speed and wind conditions! (no battery included with the frame kit)

    Features:

         Redundant ESC and motor mount configuration

     Stable silicon-ball decoupled camera CNC mount

     GPS module ready (additional item, not included)

     2kg max payload for various cinema and DSLR cameras

     Optimized CG through the adjustable camera and battery mount

    FRAME // ：Taurus X8

    - Wheelbase: 400mm

    - Main body dimension: 283*283mm

    - Top and bottom plate spacing: 20-31mm (aluminum standoff height)

    - Arm thickness: 8mm

    - Bottom plate thickness: 3mm

    - Top plate thickness: 3mm

    - Upper(middle) plate thickness: 3mm

    Recommended Parts (not included):

         SucceX-D F7 TwinG V2.1 Stack (LINK)

     SucceX 80A 2-8S 4in1

     XING 2806.5 Motor 1300KV

     Albatross LHCP 5.8GHz SMA FPV Antenna

     HQ 8X4X3 propeller (Set of 2- Color May Vary)

    Package included:

    - 1 x Taurus X8 HD Cinelifter frame (carbon and tooling)

    - 1 x DJI Air unit mount TPU

    - 1 x Camera quick release

    - 1 x LED mount

    - 1 x CNC Aluminum alloy cam mount

- 2 x Battery Anti-slip pads

- 4 x 20*250mm battery strap (Color May Vary)

- 4 x 20*250mm battery strap (Color May Vary)
