Features:

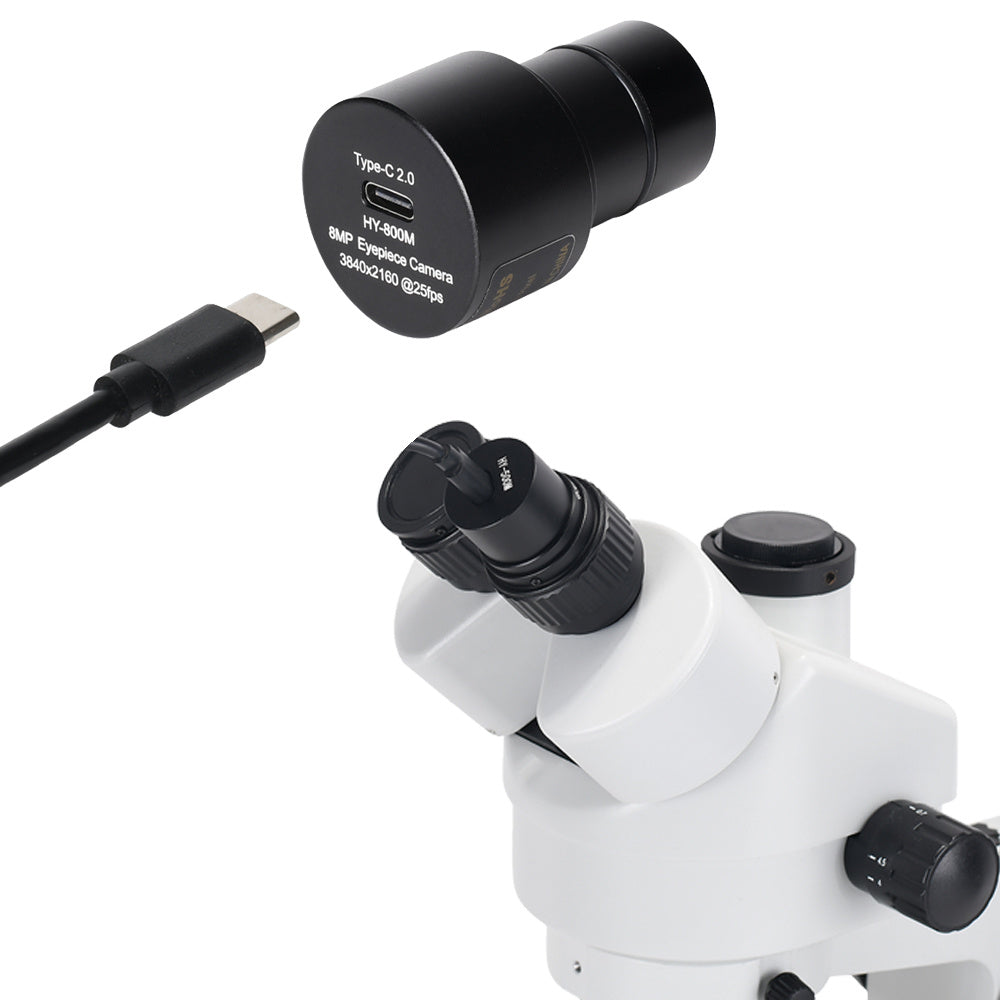

Easy Connection: Eyepiece interface (adapter), designed for the microscope. The under mouth is the 23.2mm, 30mm and 30.5mm or 31.7mm straight inserted, can be installed directly in the biological or stereo eyepiece camera.

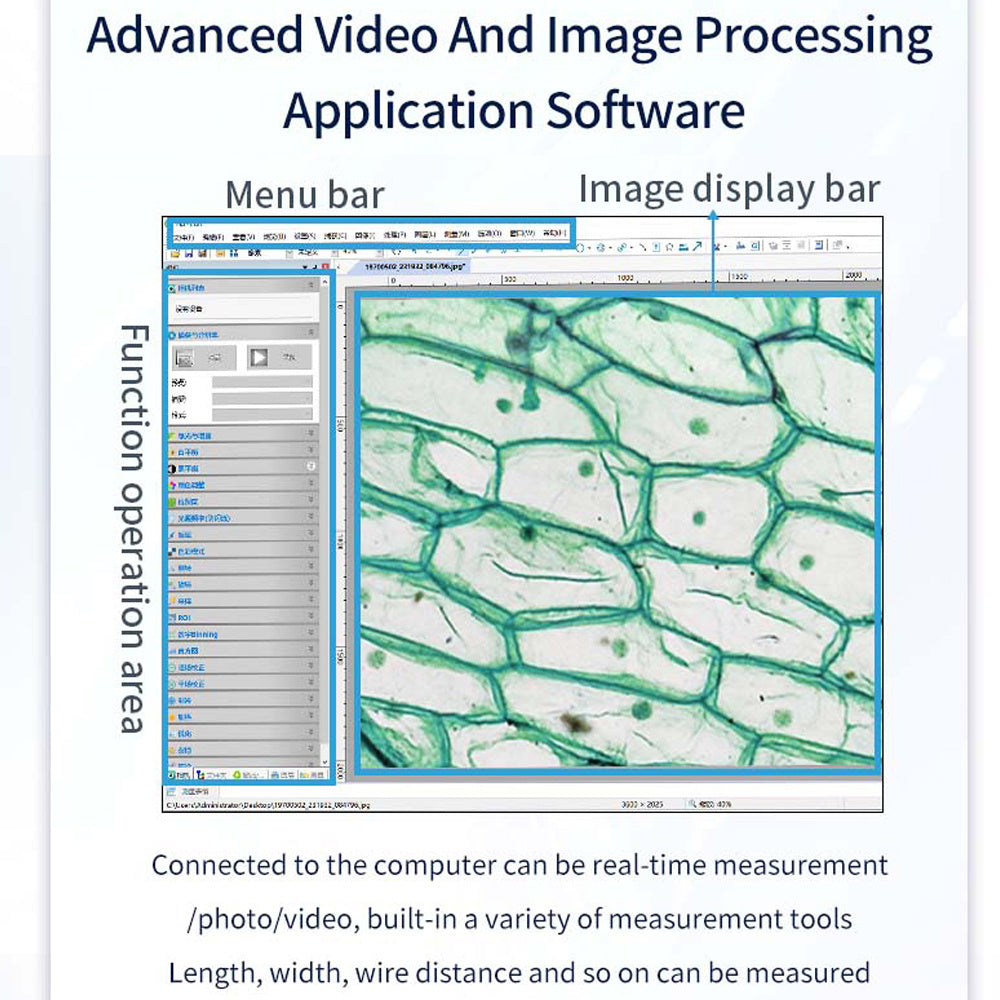

Computer Imaging Capture Video Recording:
Multiple Measurements:
More Features:
Compact Size:

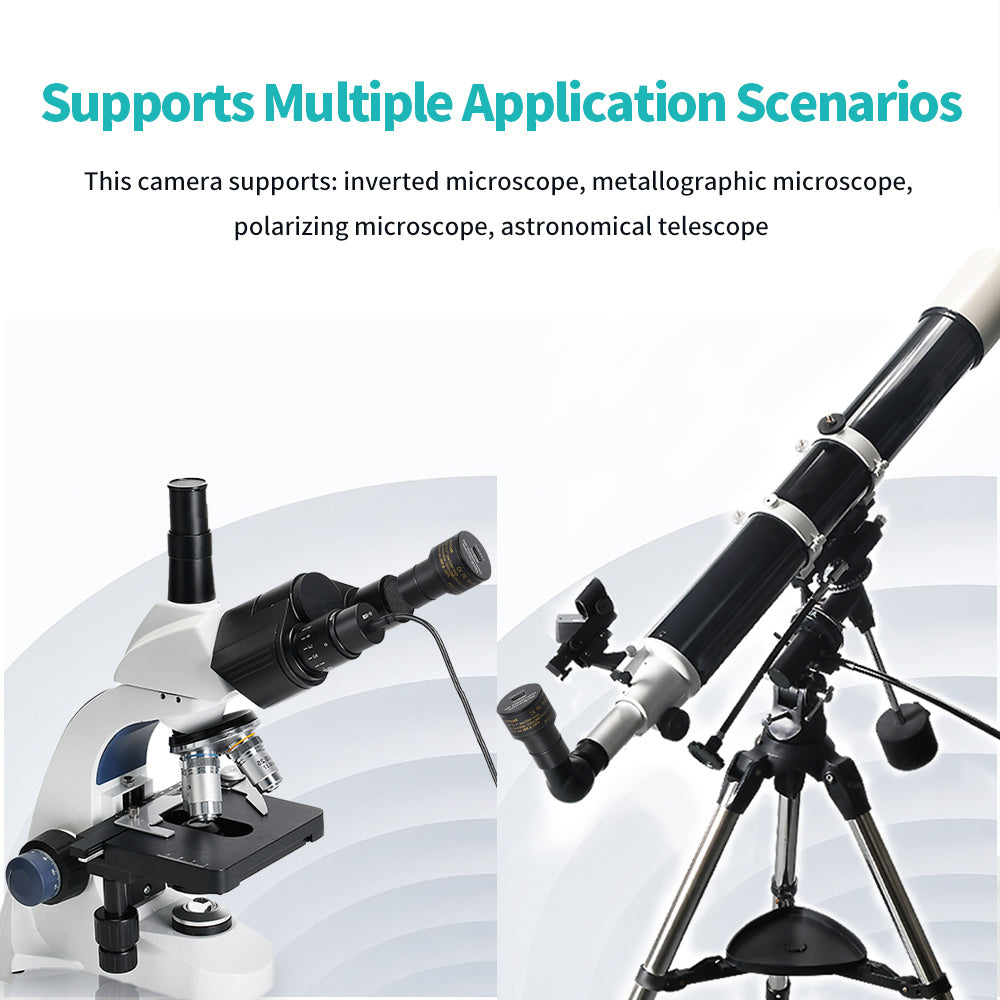

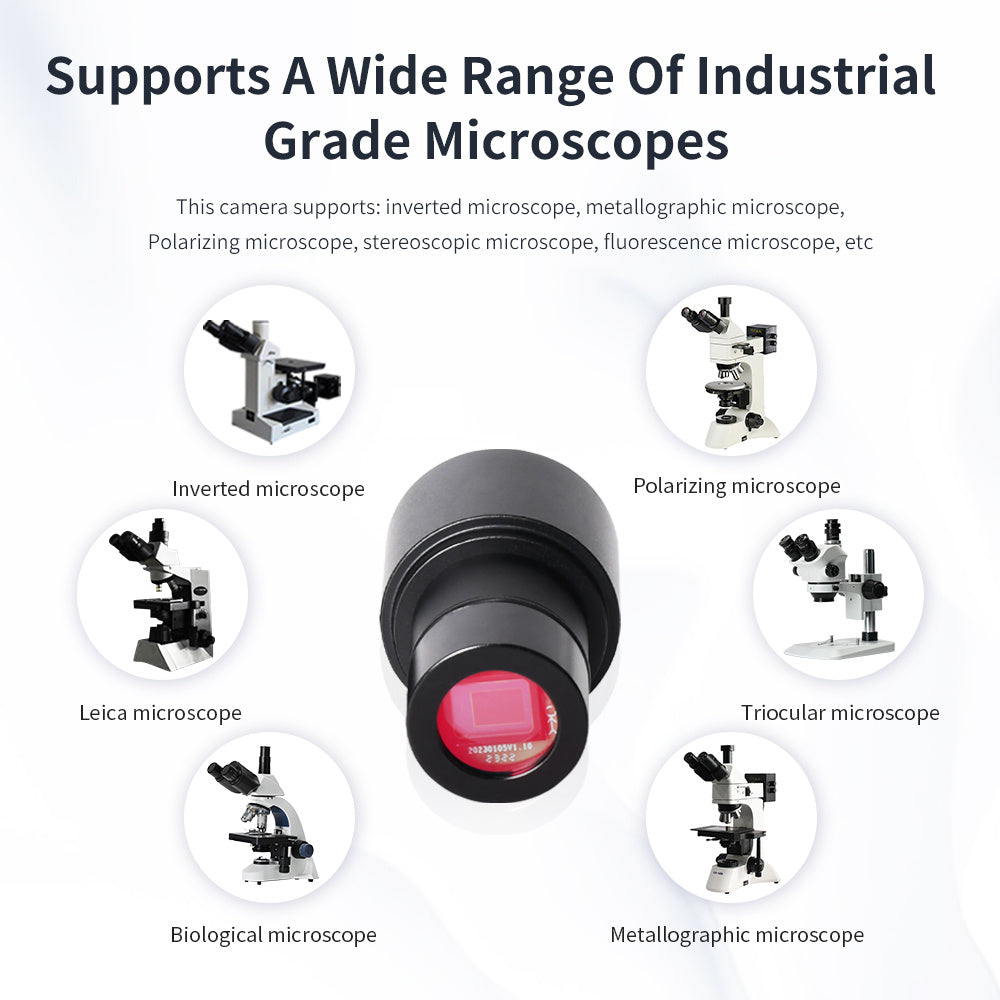

Application Areas:
Specifications:
Name: Digital Electronic Eyepiece
Material: plastics
Name: 4K USB2.0 color 8MP Digital Camera
Imaging Sensor: 1/2.3" Color IMX377 CMOS Imaging sensor
Pixel Size: 1.55μm(H)x1.55μm (V)
USB output: Type-C 2.0480Mb/s
Resolution: 3840*2160; 2592*1944; 2084*1536; 1920*1080; 1280*720; 640*480
Frame rate: @25FPS Spectral response: 400nm-700nm
Dynamic Range: 74 dB (Linear) to 85 dB (HDR)
Sensitivity: 2400 mV/Lux-sec SNR: 39dB
UVC protocol: USB Video Class (UVC)

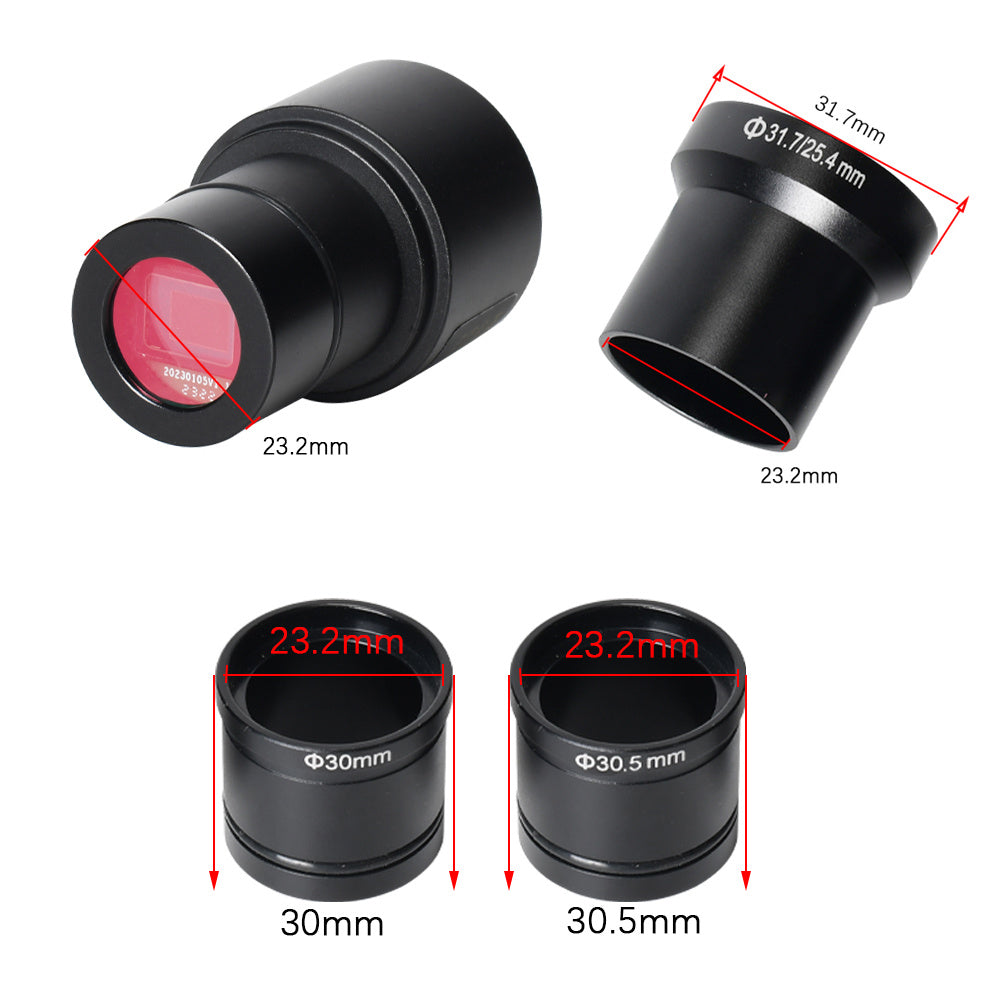

Eyepiece: Support 23.2mm/ 30.0mm/30.5mm/31.7mm diameter
White balance: Auto/Manual One-click white balance:Support
Support OTG protocol: USB2.0 OTG
Supports output formats: 12-/10-bit Red,Green,Blue; ISP clock up to 240MHz; supports 2*2 binning
Package size: 160 * 100 * 80mm / 6.30 * 3.94 * 3.15in
Package weight: 650g / 1.43lb

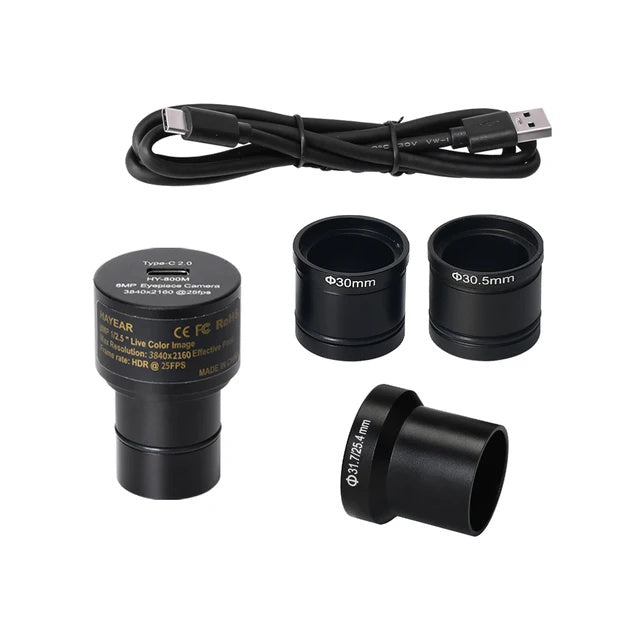

Packing List:
1 * 4K Eyepiece Camera (23.2mm)
1 * USB Type-C Cable
1 * 23.2mm to 30mm Adapter
1 * 23.2mm to 30.5mm Adapter
1 * 23.2mm to 31.7mm Adapter
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
