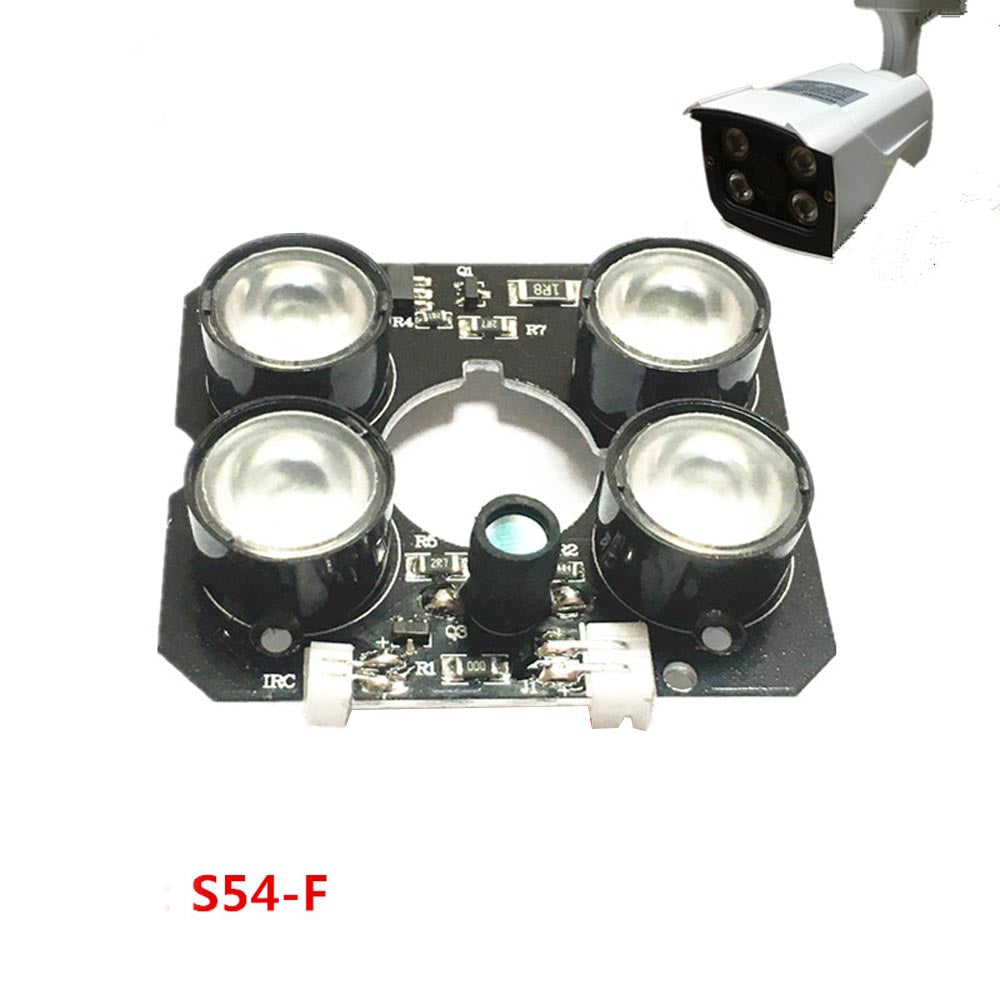

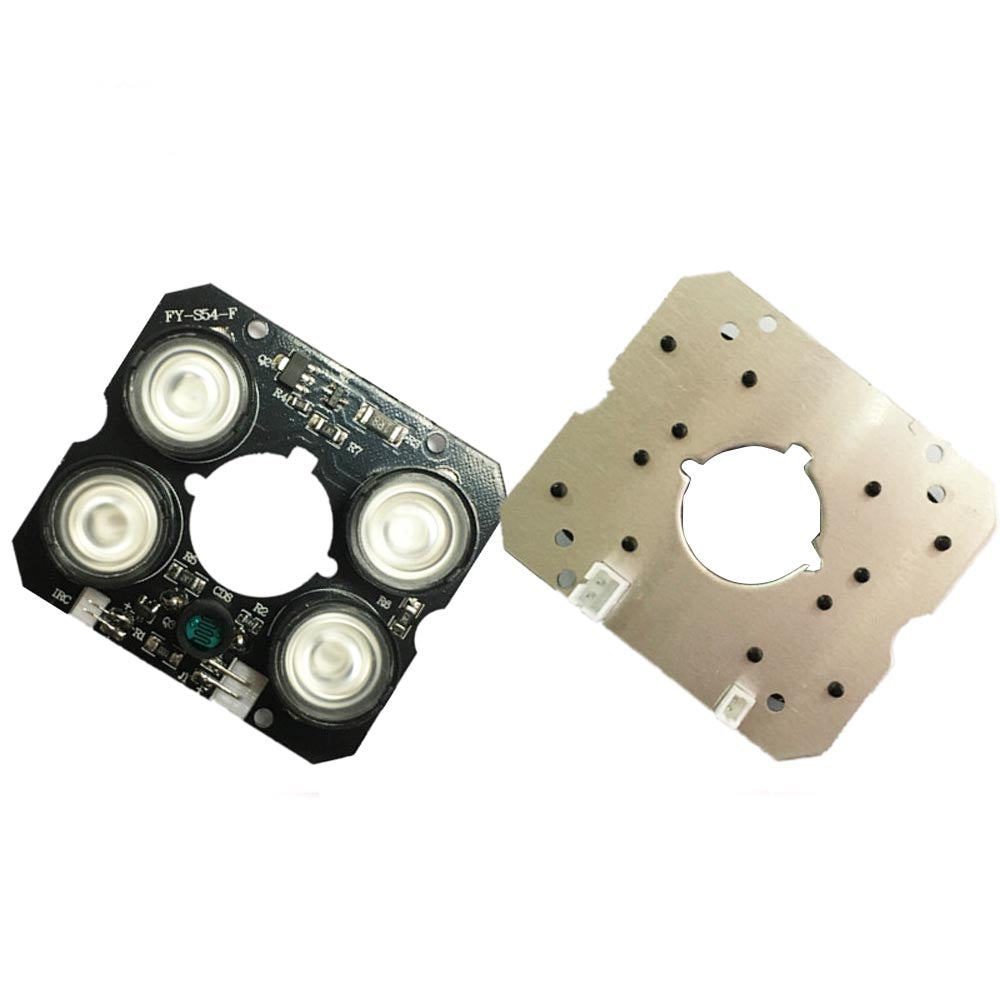

Product model: JRT-FYS54-F

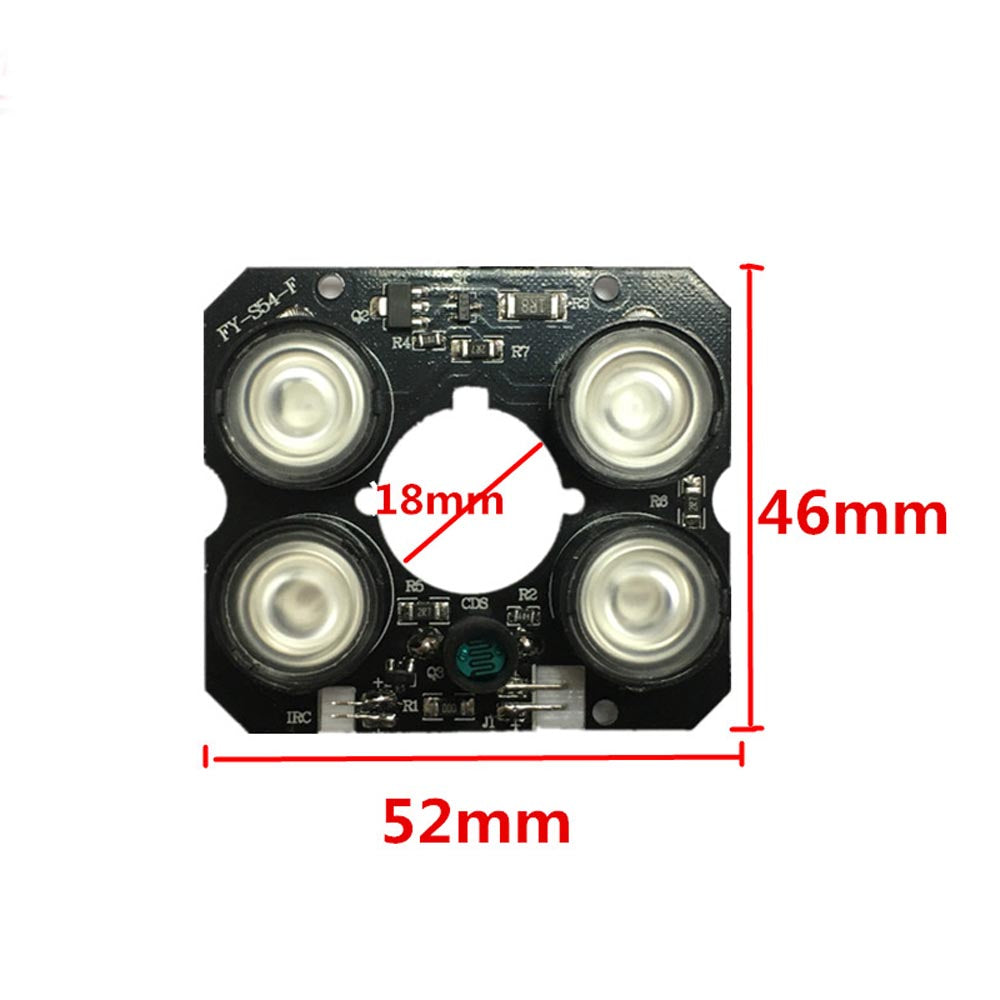

Product size: 52mm (length) 46mm (width) 18mm (inner) mm
Luminous light: infrared
Infrared power: 3W
Whether it is waterproof: no
Input voltage: DC12V
Through current: 360mA
Product structure: PC board
Light angle: 45-60-90 degrees / optional
Night vision distance: 20-30 meters
Wavelength range: 850nm
Adapter lens: 3.6mm, 6mm, 8mm, small lens for single-board computer
Lamp cup angle: 45, 60, 90 degrees
Compatible shell: 60 bolt
application
1. Various commonly used electronic police capture systems
2. Freeway snapshot fill light
3. Public security bayonet systems such as toll stations
4. Parking lot
5. Road monitoring in large, medium and small cities
6. Other traffic intersections
7. License plate fill light recognition system
It integrates multiple low-power LEDs in a small area, and performs "thermoelectric separation" treatment, so that the entire part can be placed on a heat sink of any size and shape, thus solving the problem of heat dissipation, and it will no longer be caused by high temperature. damage to other electronic components. And because the packaging materials used are not broken, the light attenuation is greatly reduced, and the lifespan is 5-10 times longer than that of traditional LEDs. but:
When a lens is used to reduce the light delivery angle in order to match the angle of the camera lens, it is inevitable that many light-emitting points deviate from the center of the lens (commonly known as eccentricity), resulting in poor light delivery efficiency. For traditional LEDs, "not bright enough" is its disadvantage.
The opening of the white light is automatically controlled by CDS. After the power is turned on, it will automatically turn on when the ambient illuminance is lower than 10LUX. Otherwise, it will automatically turn off, with high sensitivity and good energy saving efficiency.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
