Infrared Power Meter Solar Power Intensity V-KOOL Energy Tester

Linshang LS122 Portable IR power Meter 1000-1700nm IR Rejection

I．IR Power Meter Introduction

Linshang LS122 infrared power meter is the same model of Weigu energy tester, also called infrared energy receiver. This is an instrument with a wide receiving range. It is mainly used to measure the infrared blocking rate of materials. It is suitable for the display of thermal insulation effects of thermal insulation glass, solar film and other materials. It can also be used to measure the radiant energy power density of various light sources, that is, the radiant energy power per square meter, the unit is W / m².

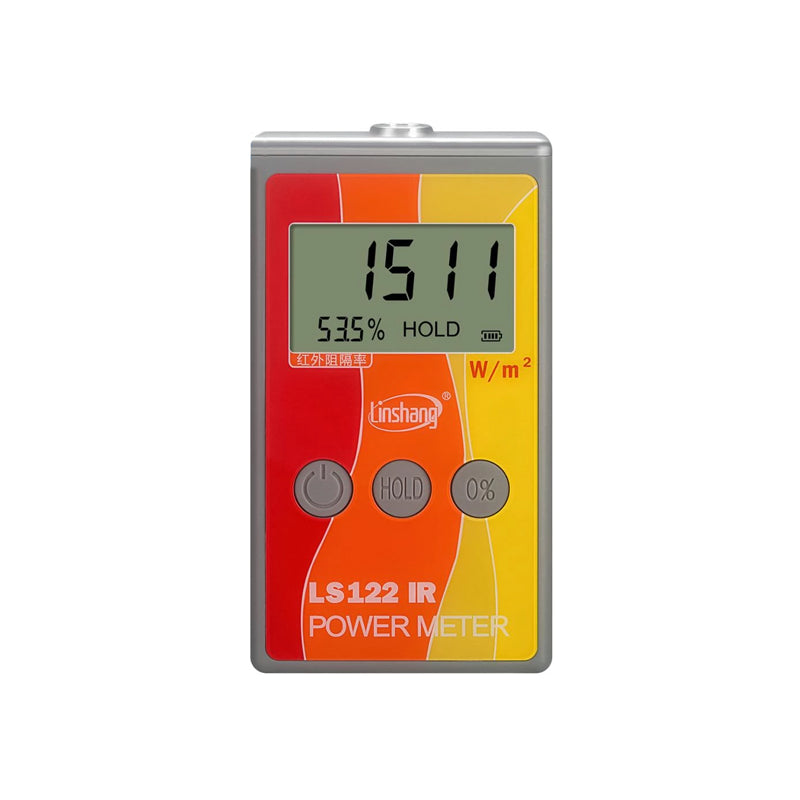

          LS122 infrared power meter function display

      II．IR Power Meter Parameters

                         Power range

       0-40000 W / m²

                   Measurement accuracy

       ± 10%

                   Infrared rejection rate

       -999%-100%

                   Spectral response

       1000nm-1700nm

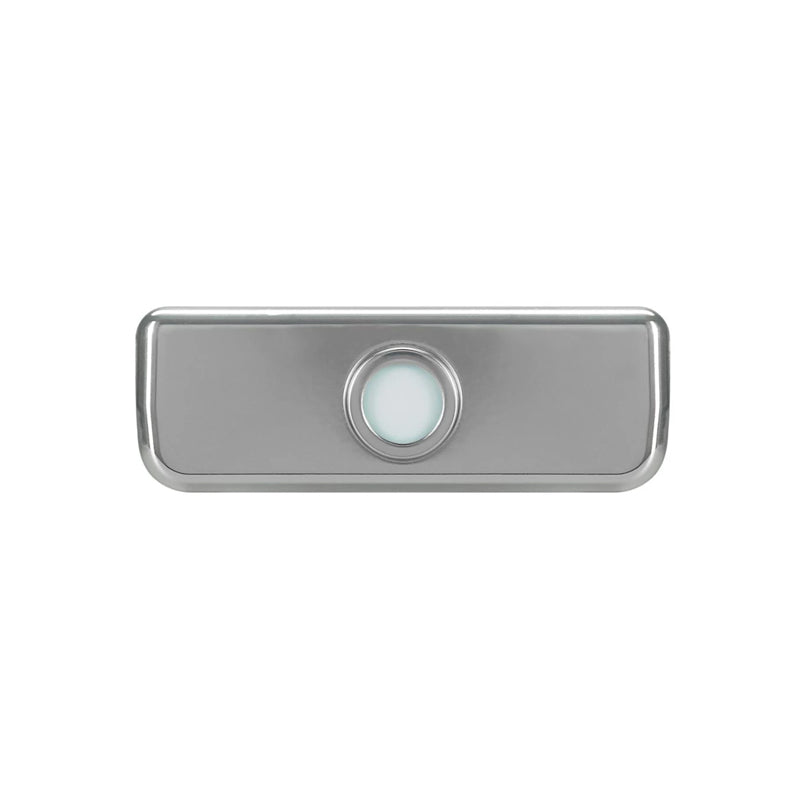

                   Photosensitive aperture

       10mm

                   Dimension

       125mm × 69mm × 24.5mm (L*W*H)

                   Weight

       about 140 g (including battery)

                   Working temperature

       -20 ° C-+ 70 ° C

                   Power supply

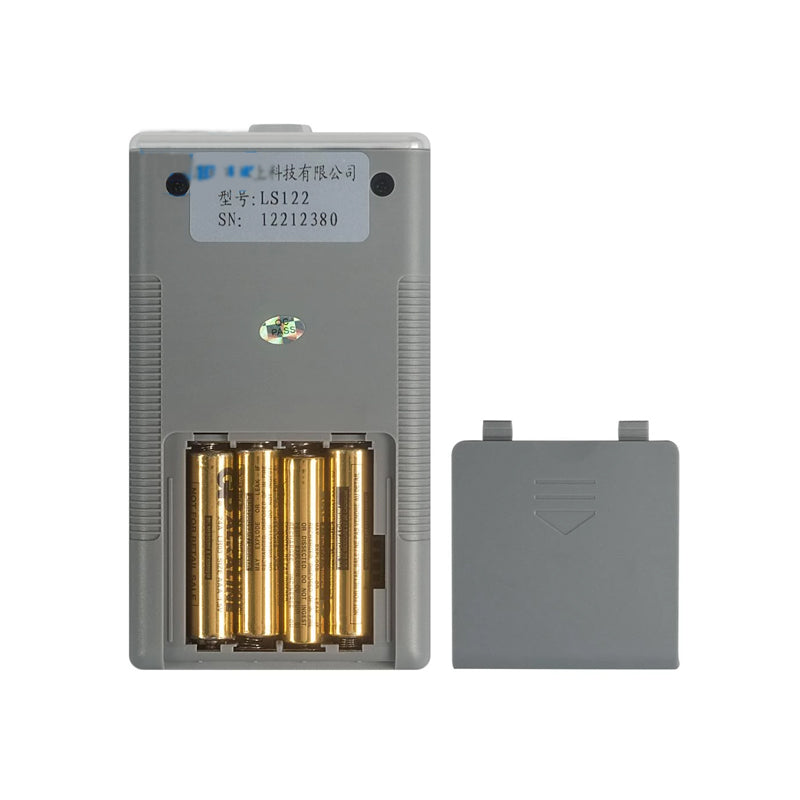

       AAA alkaline dry batteries

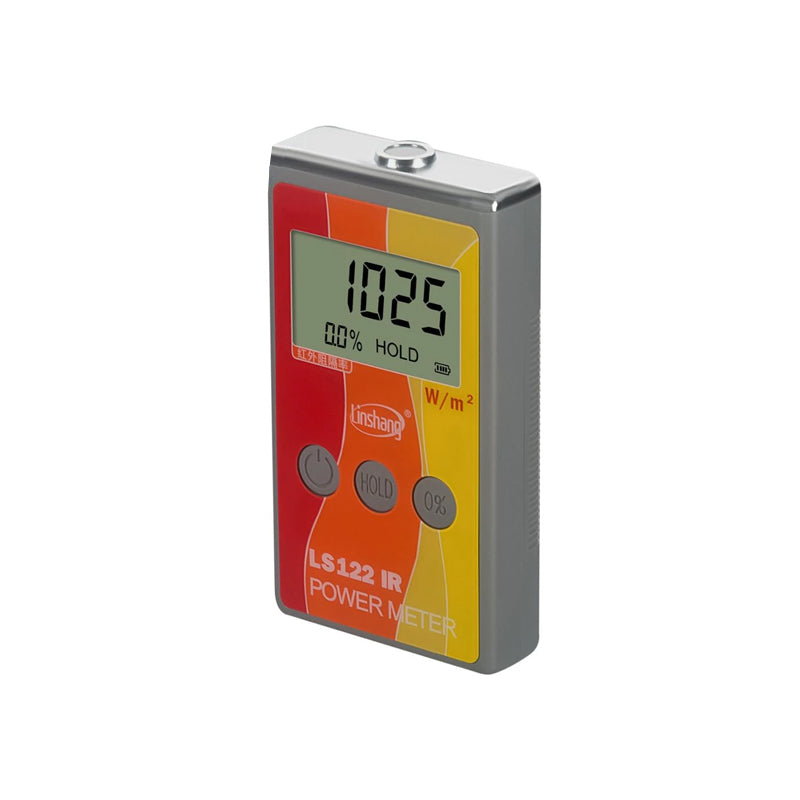

      LS122 solar power meter appearance

      III．IR Power Meter Characteristics

   1. The LS122 solar power meter is suitable for testing the infrared rejection performance of architectural film, automobile thermal insulation film, solar film, thermal insulation glass and solar equipment.

   2. It can be used to measure the radiation intensity (infrared power density) of infrared light sources (sun, infrared lamps, etc.).

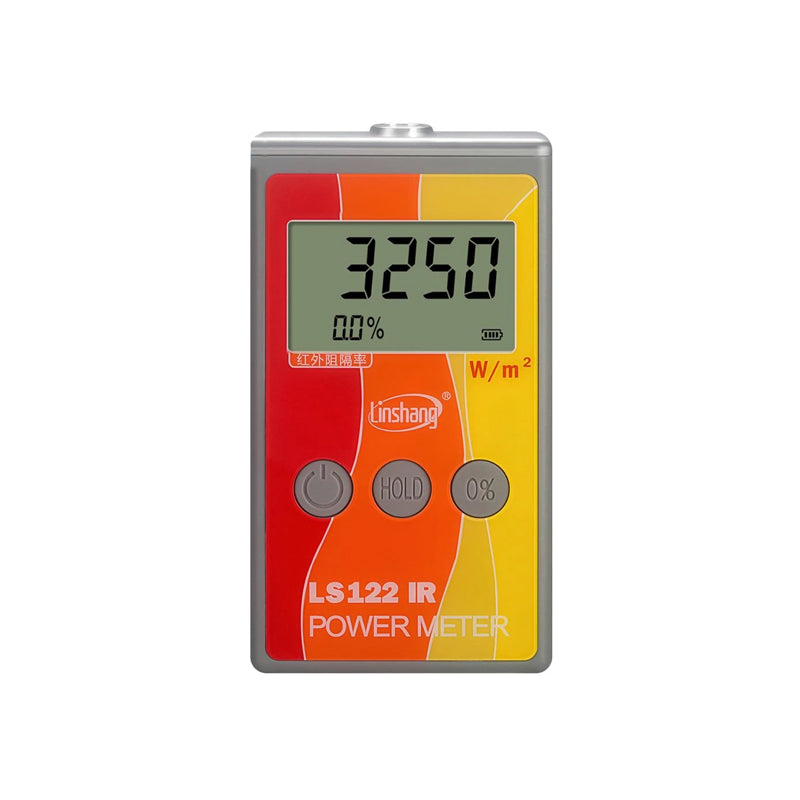

                         LS122 infrared power meter measure light intensity

                  3. The infrared power meter has a fast measurement speed which can automatically convert the infrared rejection rate of the material. The rejection rate will be displayed on the interface directly for easy reading.

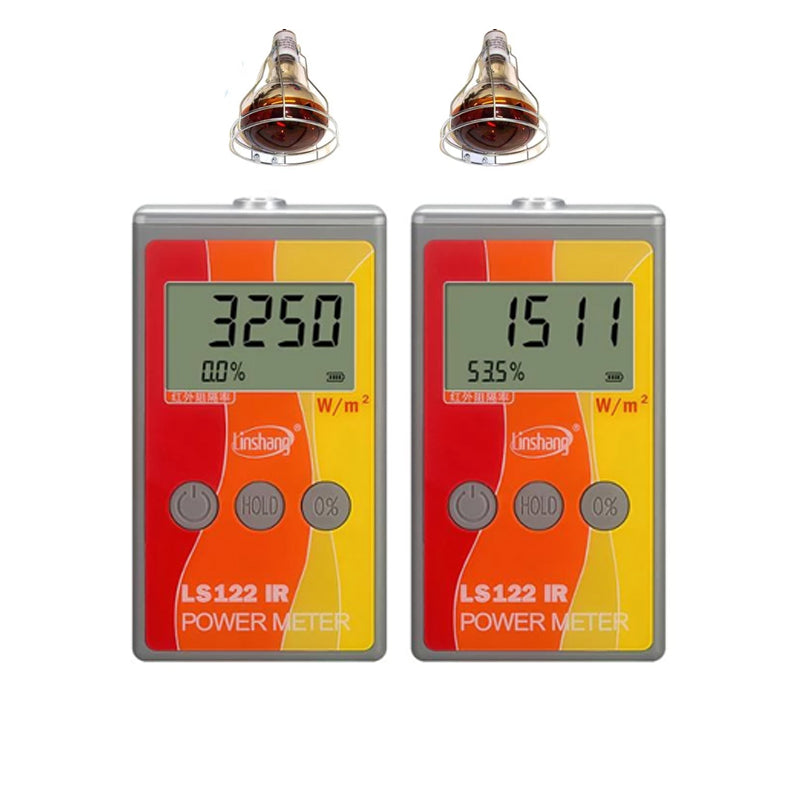

                                        LS122 infrared power meter measure rejection rate

                              4． The solar power meter has wide spectral response which can test the infrared intensity from 1000nm-1700nm wavelength.

                                        LS122 infrared power meter spectral response curve

                     IV．IR Power Meter Packing Details

                                                  No.

            Description

            Quantity

            Unit

                                  1

            LS122 Infrared Power  Meter

            1

            pcs

                                  2

            AAA battery

            4

            pcs

                                  3

            User Manual

            1

            pcs

                                  4

            Certificate / warranty card

            1

            pcs

                                  5

            Packing box dimension21*13*6 cm（L*W*H）

            1

            pcs
