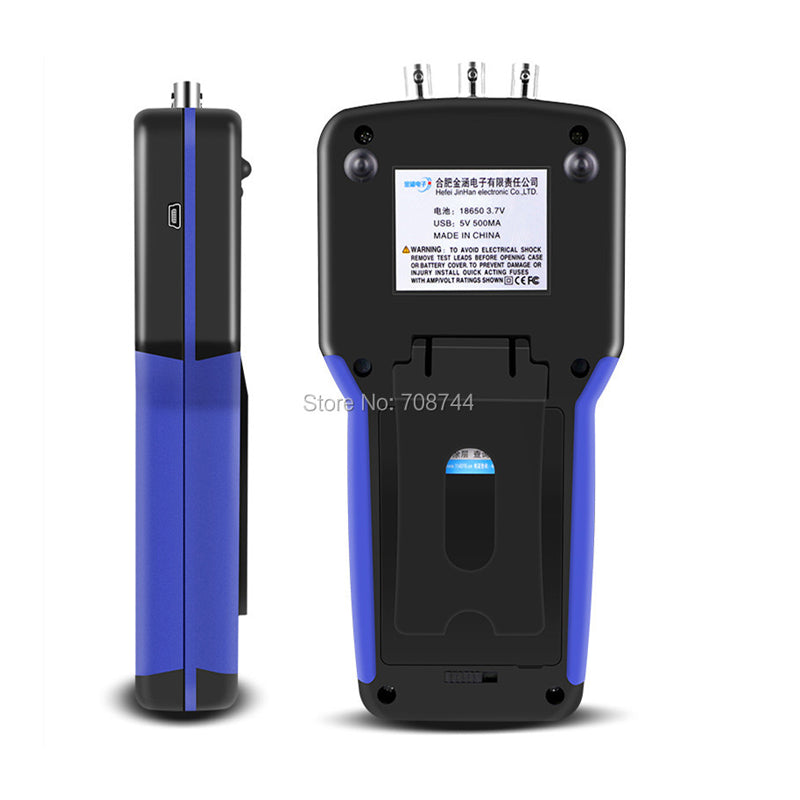

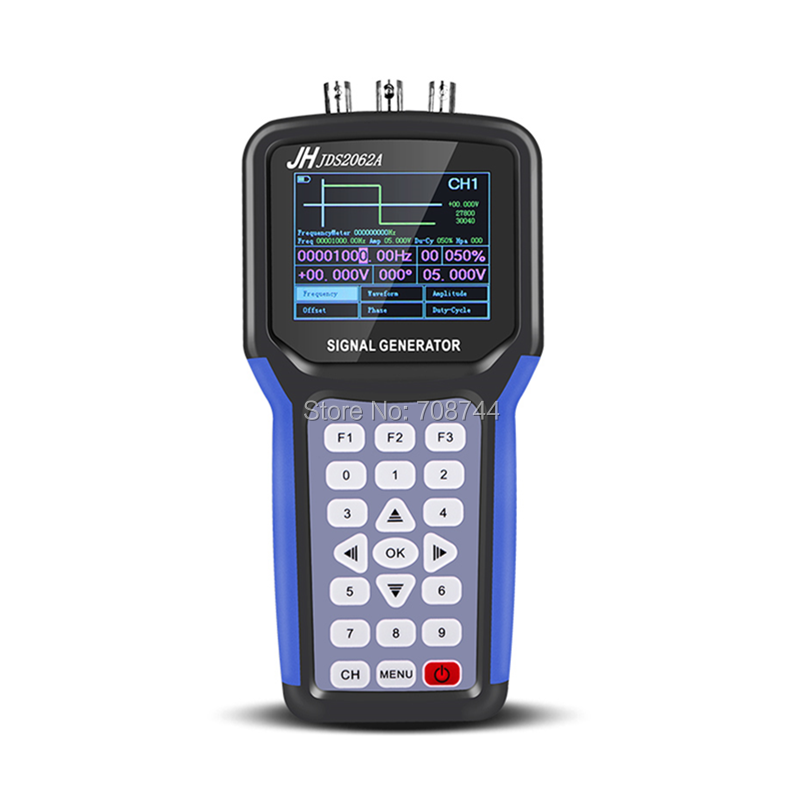

JDS2062A Handheld 30MHz 2 Channel Digital Signal Generator Multimeter Frequency Meter S4R2 AC110-220V Wholesale
Features:
Professional digital signal generator with 2CH(double channel).
Maximum 30MHz output and 100M frequency meter.
form type(Comes with): square , sine , triangle , trapezoidal , exponential , half-sine , positive and negative triangular , ringing , etc.
Colorful 3.2" LCD display with 320*240 pixels resolution, easy and clear for reading.
Powered by 1*18650 3.7V lithium battery(not included), with battery charger for convenient charging.
Can also use USB cable to connect to other mobile devices for power supply
Specifications:
Model:JDS2062A
Voltage: AC110-220V
Plug Type(Optional): US plug, EU plug,AU plug,UK plug
Display: Full Color TFT LCD Display(320*240 pixels)
Channel: 2
Sine : 0.01Hz - 30MHz (minimum resolution 0.01Hz)
Square : 0.01Hz - 25Mhz (minimum resolution 0.01Hz)
Triangle : 0.01Hz - 25Mhz (minimum resolution 0.01Hz)
Other form: 0.01Hz - 6MHz (minimum resolution 0.01Hz)
Custom form: 1Hz - 6MHz (minimum resolution 1Hz)
Square Rise Time: ≤10ns
Custom form: 98 (the form drawn by the user himself)
Number of form Points: 2048 (maximum)
Vertical Resolution: 14 bits
Square Overshoot: ≤5%
Square Duty Cycle: 0%-100%
Output Signal Amplitude Range: ≤5MHz (2mV - 20V),≥5MHz≤10MHz (2mV - 10V),≥10MHz≤30MHz (2mV - 5V)
Minimum Amplitude: 2mV
Minimum Amplitude Increment: 1mV
Output Signal Offset Range: ≤500mV (±1V (total maximum)),＞500mV (±10V (total maximum))
Minimum Offset Increment: 1mV
Adjustable Phase: 0°- 360°
Minimum Phase Increment: 1°
Frequency Sweep Channel: CH1 CH2 (can be simultaneously)
Frequency Meter: Input 1Hz - 100MHz (input voltage range 200mV-20V)
Power Supply: 1 * 18650 3.7V 3600mAh Battery(Not Included Package)
Size:218*100*34mm/8.6*3.9*1.3in
Weight: Approx.765g/27oz
Package list:
1 * Signal Generator
1 * Signal Source Output cable
1 * BNC Connecting cable
1 * Battery Charger
1 * USB Cable
