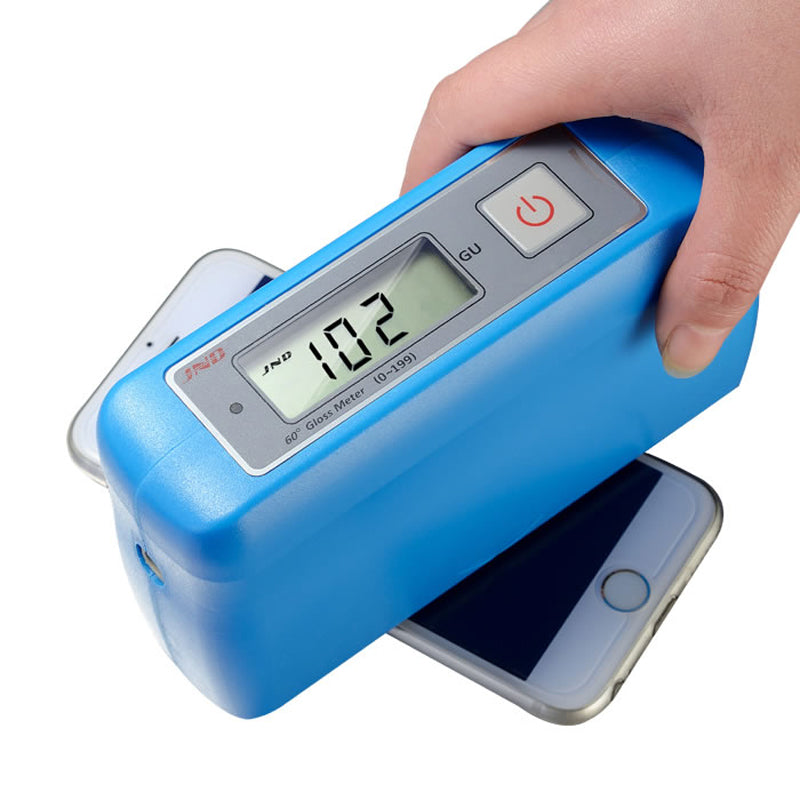

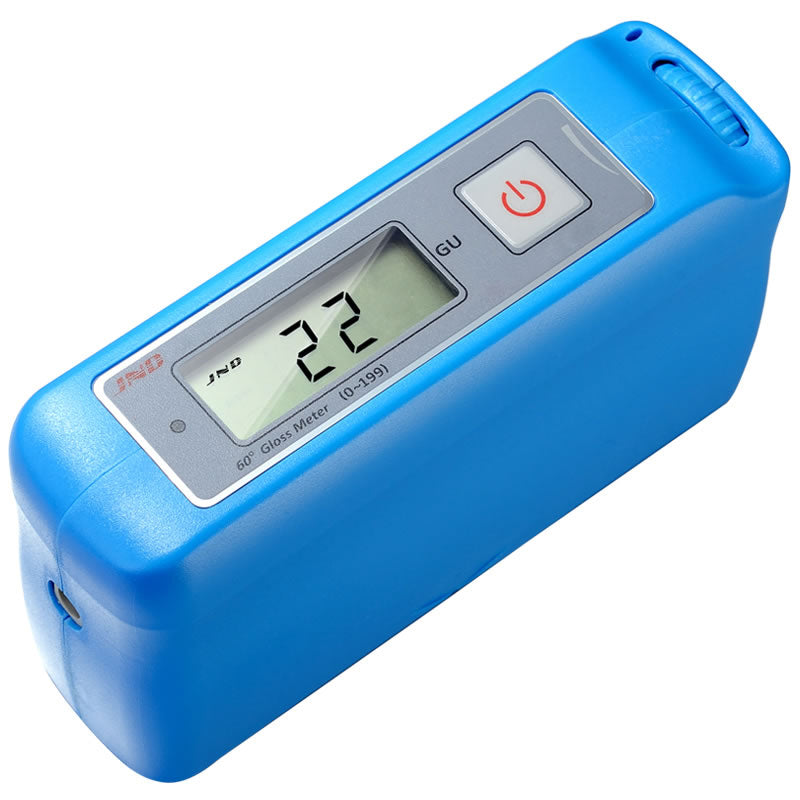

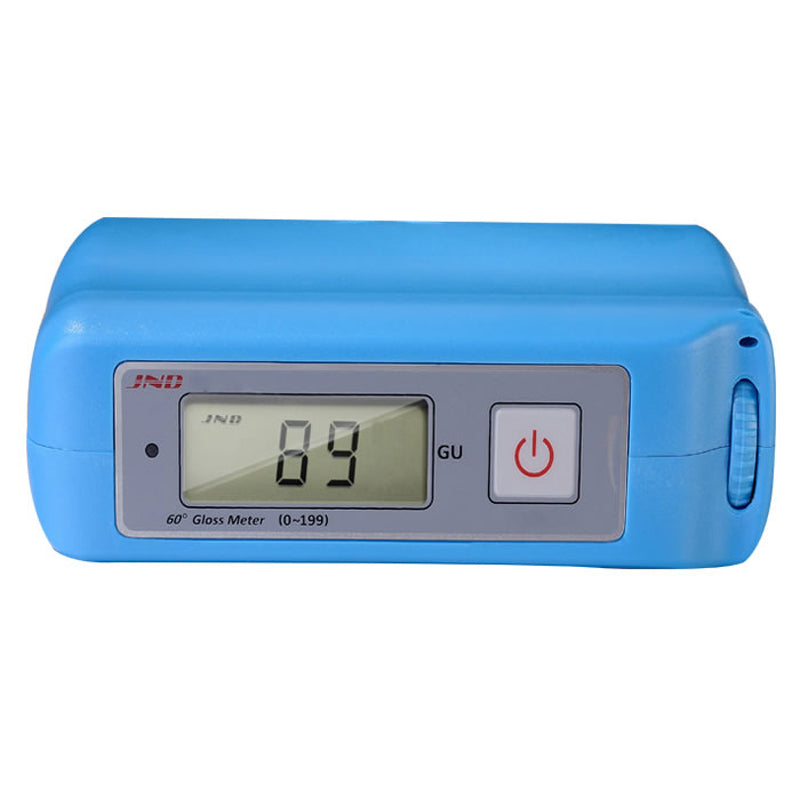

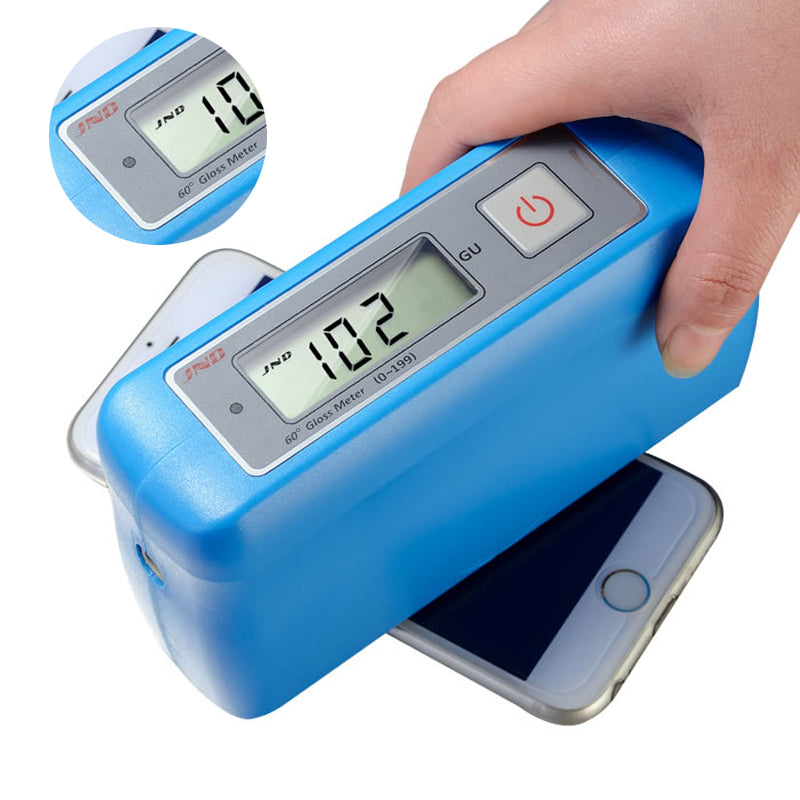

JND-S60 Digital Surface Portable Granite Marble Terrazzo Sandstone Slate Gloss Meter

 Product description:

 JND-S60 Stone Gloss Meter Is in accordance with International standard ISO2813 and the Chinese national standard GB/T13891 Design and manufacture Gloss Measuring instruments.The performance indicators have reached the national JJG696-2002<<Specular gloss meter And gloss plate>>Metrology and Verification The requirements of a working machine.

 The gloss values can be traced  to the those of the National Primary Standards in SIMT in the P.R.China.

 Main Applications:

 Granite, marble, terrazzo, sandstone, slate, artificial stone,polyester coagulation and many other stone products stone surface gloss measurement.

 Advantages

 1.All intelligent high-precision、high stability、boot can be measured, simple operation.

 2.Measurement data for five consecutive years by the certification authority，Traceable to the "SIMT" national verification center.

 3.Unique national level standard black (H) white (L) calibration plate, in line with national standards，by metrology.

 4.The use of advanced optical design,Stable and reliable measurement data.

 5.Patented ergonomic housing design,using high-end one-time molding mold,anti-slip,lightweight,and resistant to a variety of solvents.

 6.Focus on the safe use of high-end non-conductive housing,high safety factor,to avoid electric shock occurs.

 7.Built-in rechargeable battery pack，the use of imported high-end power management chip, a single charge can achieve continuous measurement of 30h,achieve the industry's lowest power consumption.

 8.The use of imported non-mechanical three anti-power switch, long life, feel good.

 9.Oval corner,soft surface probe designed to prevent scratching the surface.

Technical parameters

      Technicalparameters

   Unit

   JND-S60

       Measuring Range

   GU

   0~199

       Zero-pointDeviation

   GU

   0

       Deviation

   GU

   ±2

       Stability

   GU

   1

       DifferentiateAccuracy

   GU

   1

       Measuring Area

   mm

   36×18

       Projection angle

   DEG

   60°

       Adapter Power

   V

   AC110~240(50/60Hz)

       Charging time

   H

   12~16h

       Life time

   H

   ＞30h

       Instrument power

   NI-MH built-in battery

       Main size

   mm

   148(L)×46(W)×86(H)

       Main Weight

   g

   381

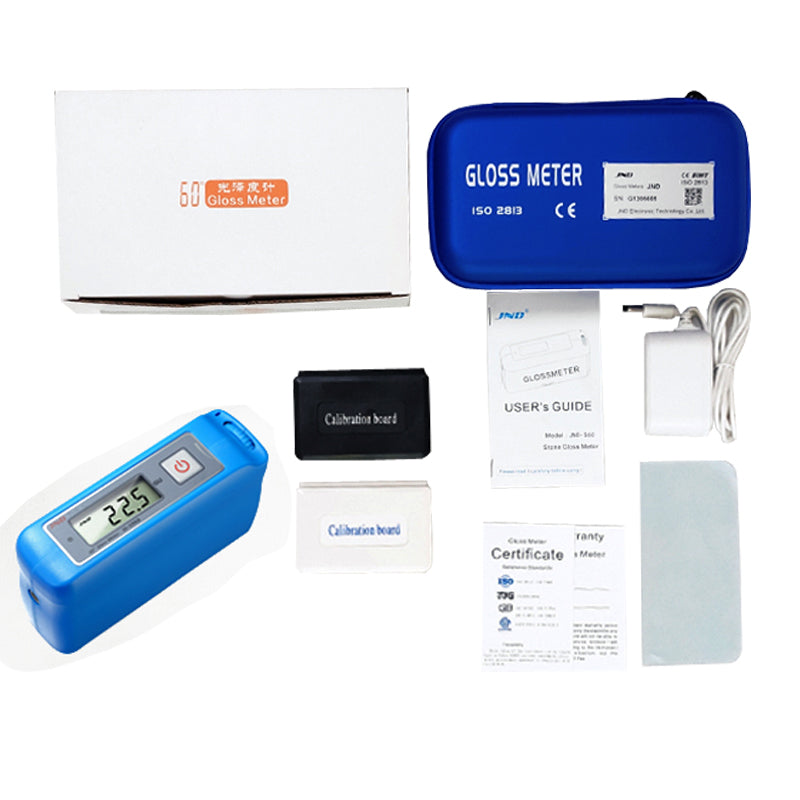

Configuration Checklist

 ◆Main  Model:JND-S60*1 Unit

 ◆Shockproof Instrument Package*1 Piece

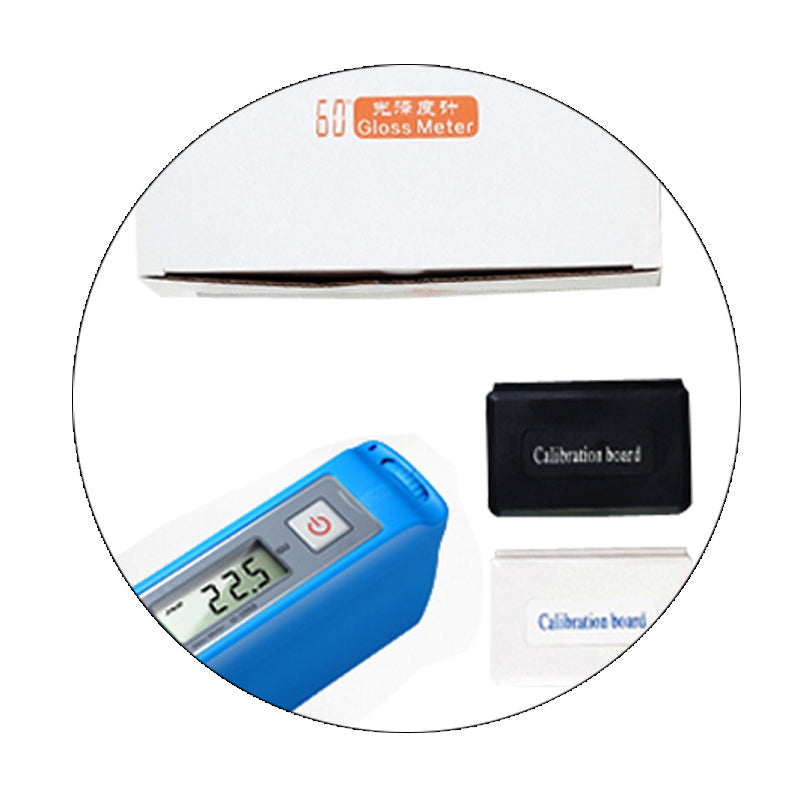

 ◆Calibration board (black)*1 piece

 ◆Calibration board (White)*1 Piece

 ◆Power Adapter *1 Piece

 ◆User's Guide*1 Piece

 ◆Certification Card*1 Piece

 ◆Warranty card*1 Piece

 ◆Lens cleaning cloth*1 Piece
