Since the battery is highly pollutant and cannot be shipped by air, this product does not contain a battery. If you need a tool kit with a battery, please do not buy it. Thank you very much for your support! ! ! !

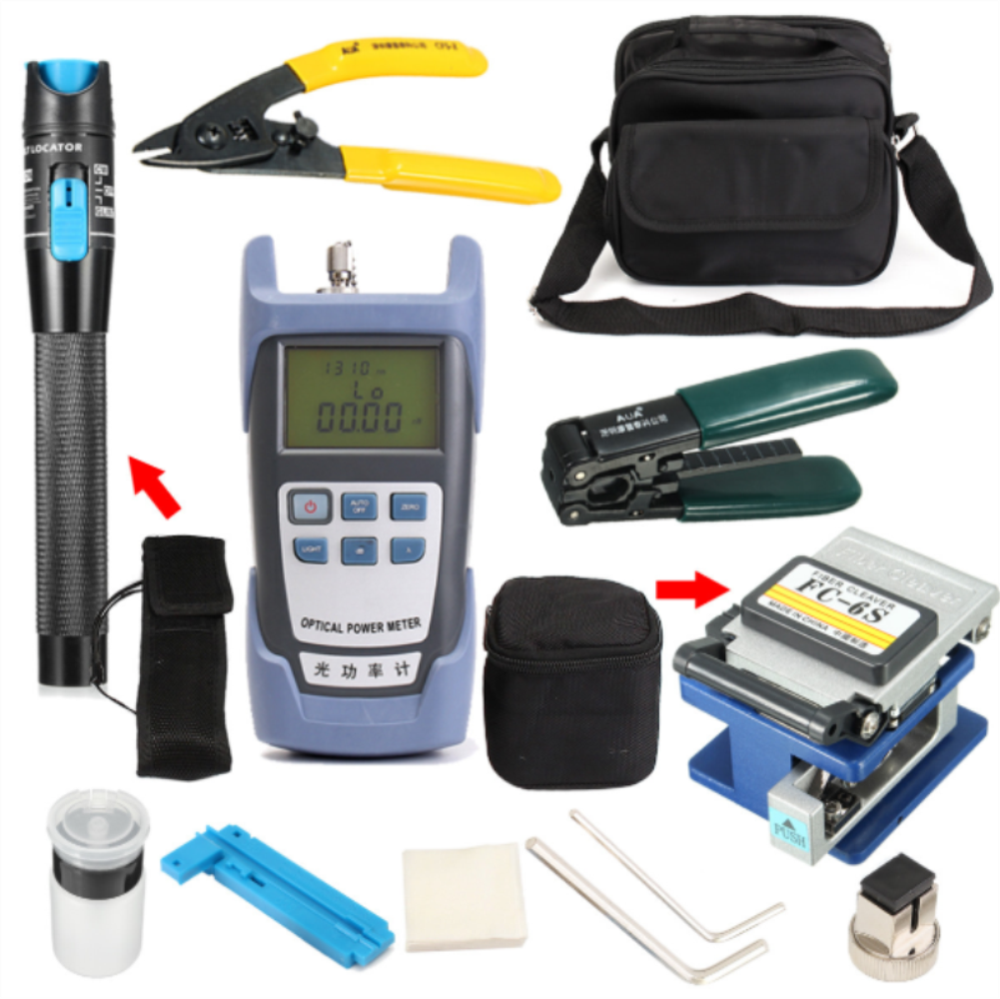

FTTHToolKitsAccessoriesList
No.
Quantity（pcs）
Product
1
1

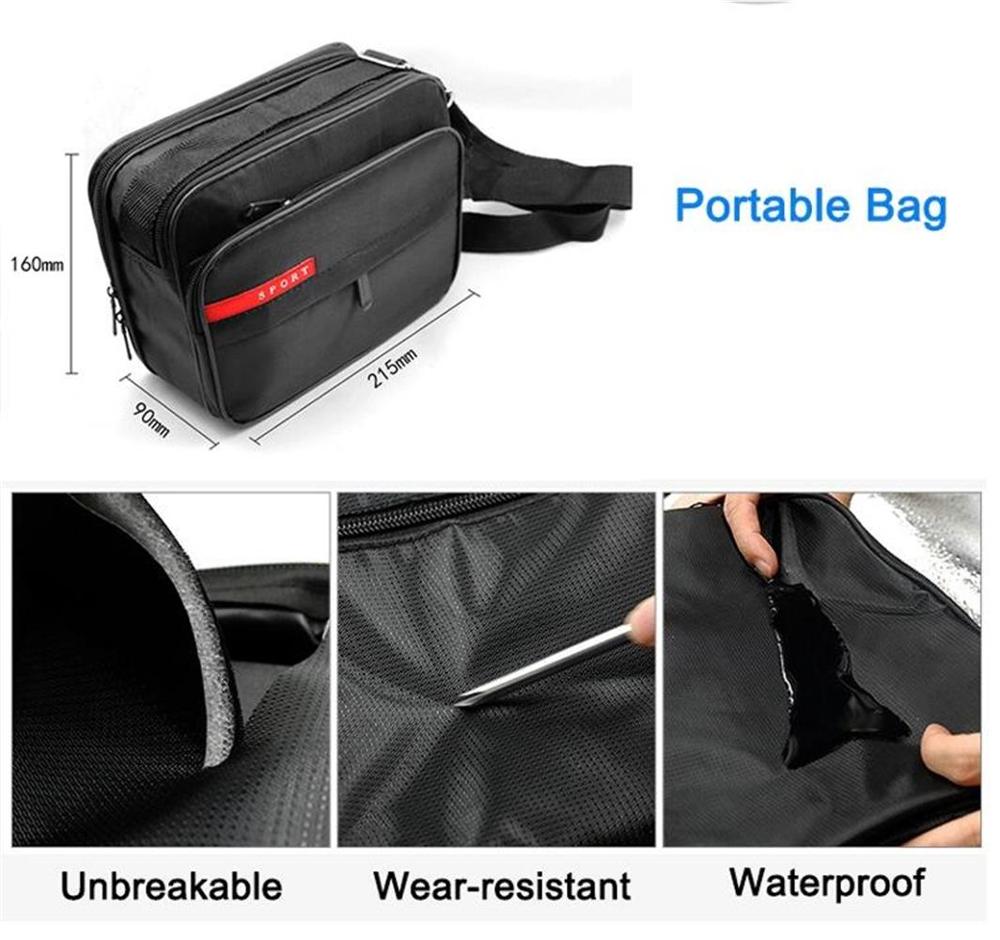

Carrying Bag of whole kits
2
1

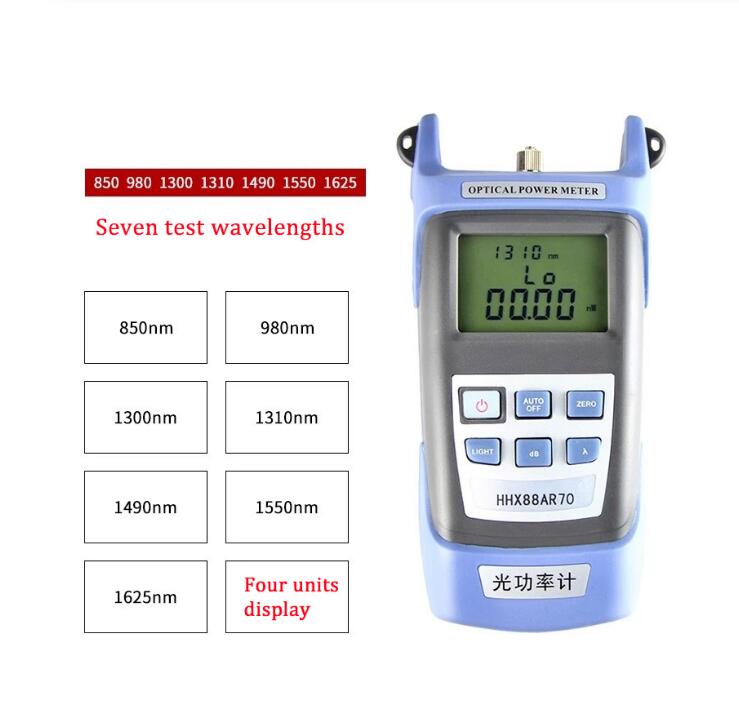

Optical Power Meter
3
1
SC transfer connector for power meter
4
1
Protected Bag for Locator
5
1
1mw Laser pointer Visual Fault Locator 5km
6
1
Fiber Cleaver FC-6S
7
1
Bag for cleaver
8
1

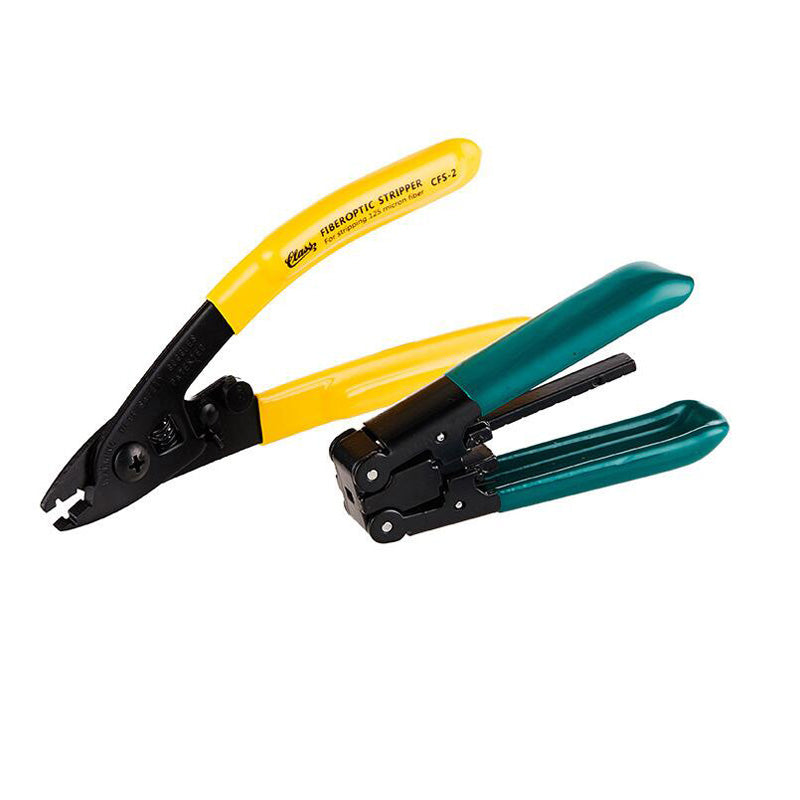

CFS-2 Fiber Optic Cable Stripper
9
1
FTTH Drop Cable Stripper
10
1

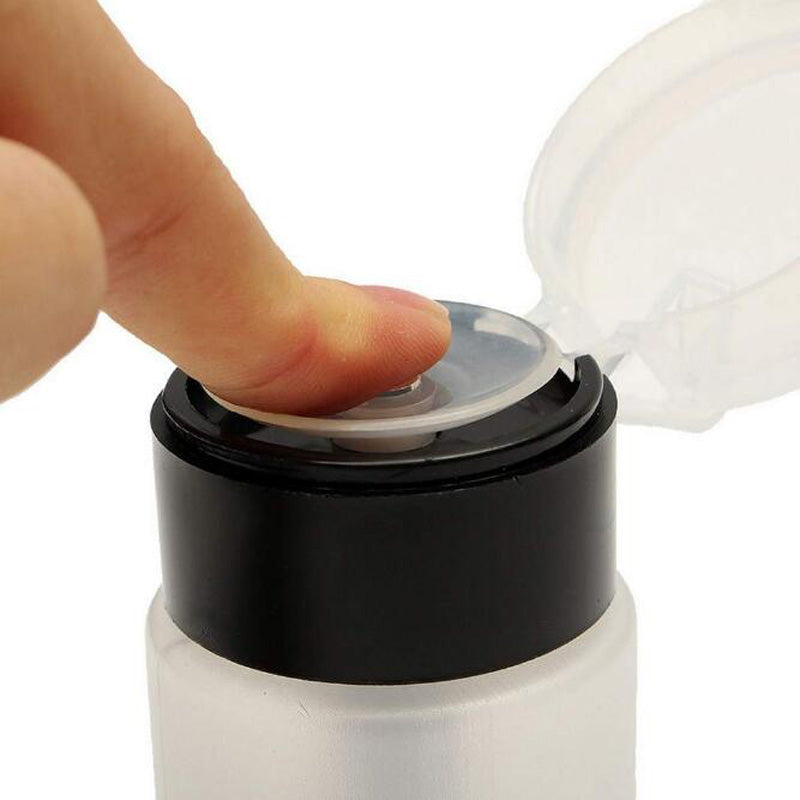

Alcohol bottle
11
1
Fixed length rail
12
3
Small Allen Wrench
Visual Fault Locator Specification
Type
Data
Output Power
>1mW 5KM
Wavlength
650nm
2Hz
Yes
Connetor
Universal Connector
Battery
AA2
Storage Temperature
-20---+70
Working Temperature
-10---+60
Laser Type
LD
Weight
178g
Dimensions
168mm27mm
Model
FC-6S Optical Fiber Cleaver
Applicable fibers
Singlemode
Fiber Diameter
125um
Coating Diameter
250um ~ 900um
Typical Cleave Angle
Within 1 Degrees
Cleave Length
9 - 18mm (Single Fiber - 0.25mm Coating)
10 - 18mm (Single Fiber - 0.9mm Coating)
Blade Life Time
36,000 cleaves (3,000 per blade position)
Cleaver Dimensions
63 x 68x 63mm
Weight
380g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
