Bluetooth Wireless Stereo Receiver for High-Performance Stereo Audio Broadcasting

   Product Features

 Stereo receiver to wirelessly stream Bluetooth* to any audio system

 Perfect for hospitality and event spaces, retail and home audio, etc.

 High headroom design offers superior sound quality

 Maximum wireless range 100 feet (30 m)

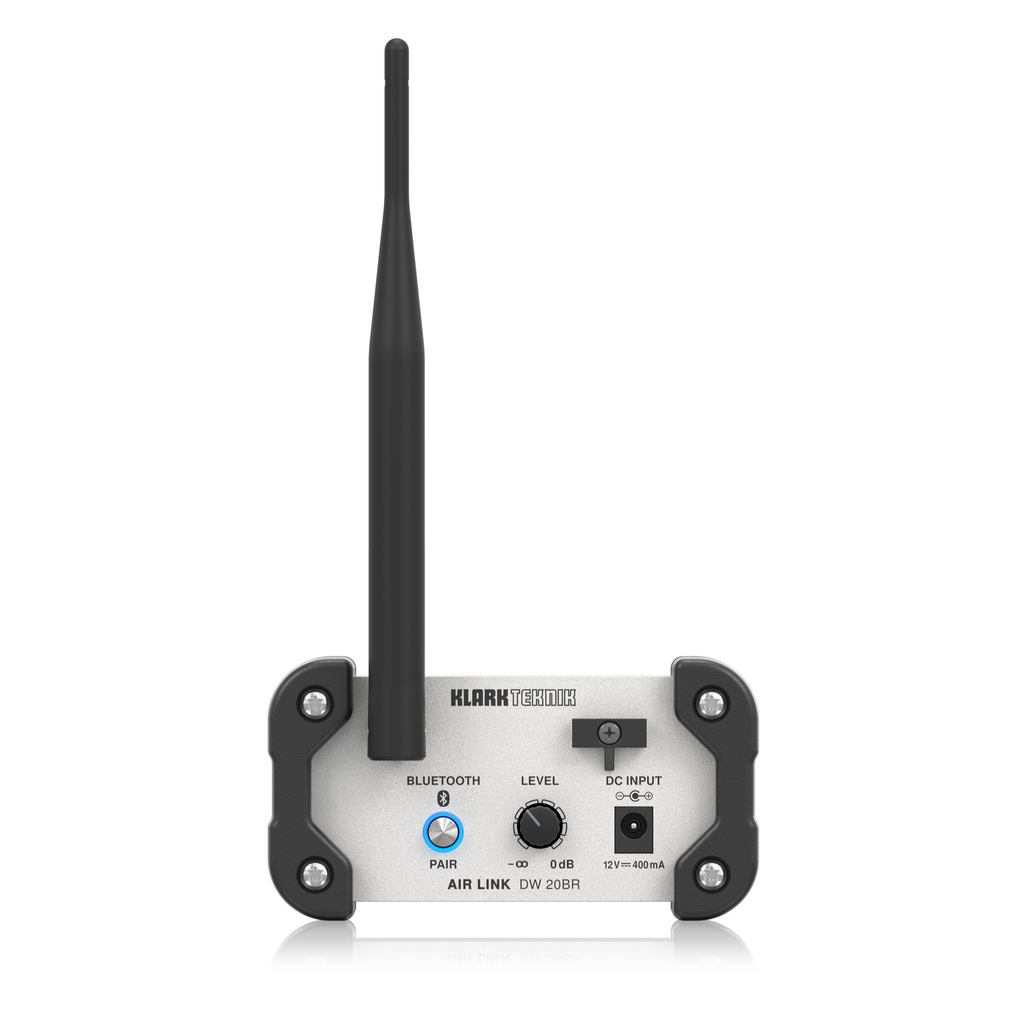

 External, articulating antenna ensures optimum transmission and reception

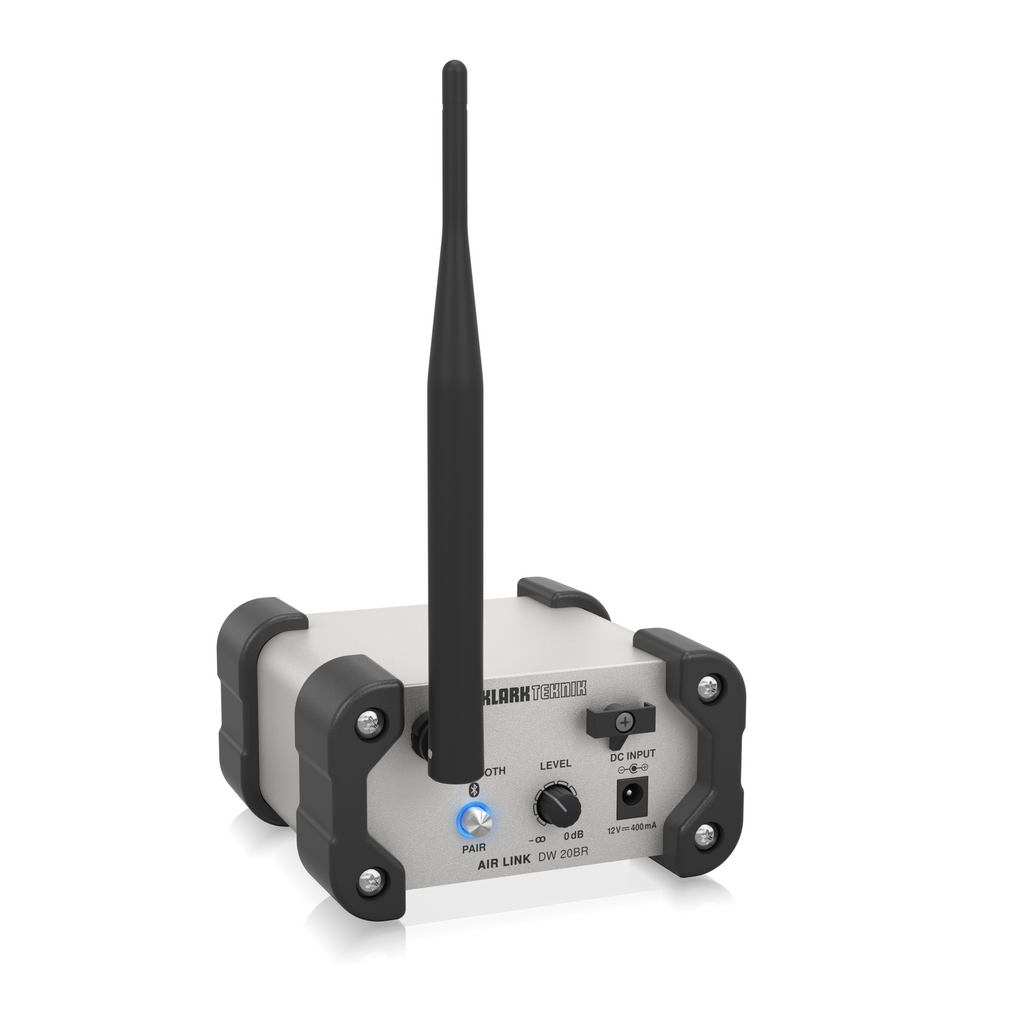

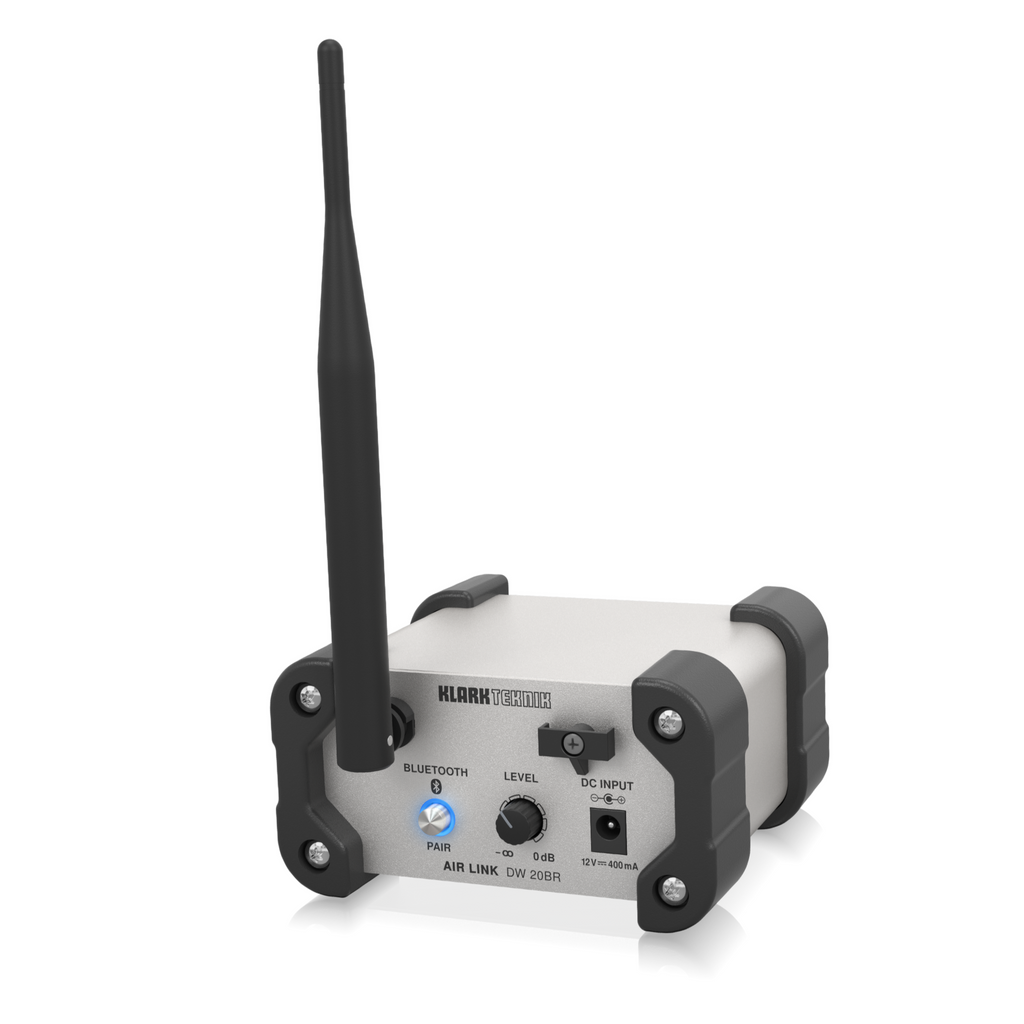

 Aluminium extrusion casing with protective rubber corners

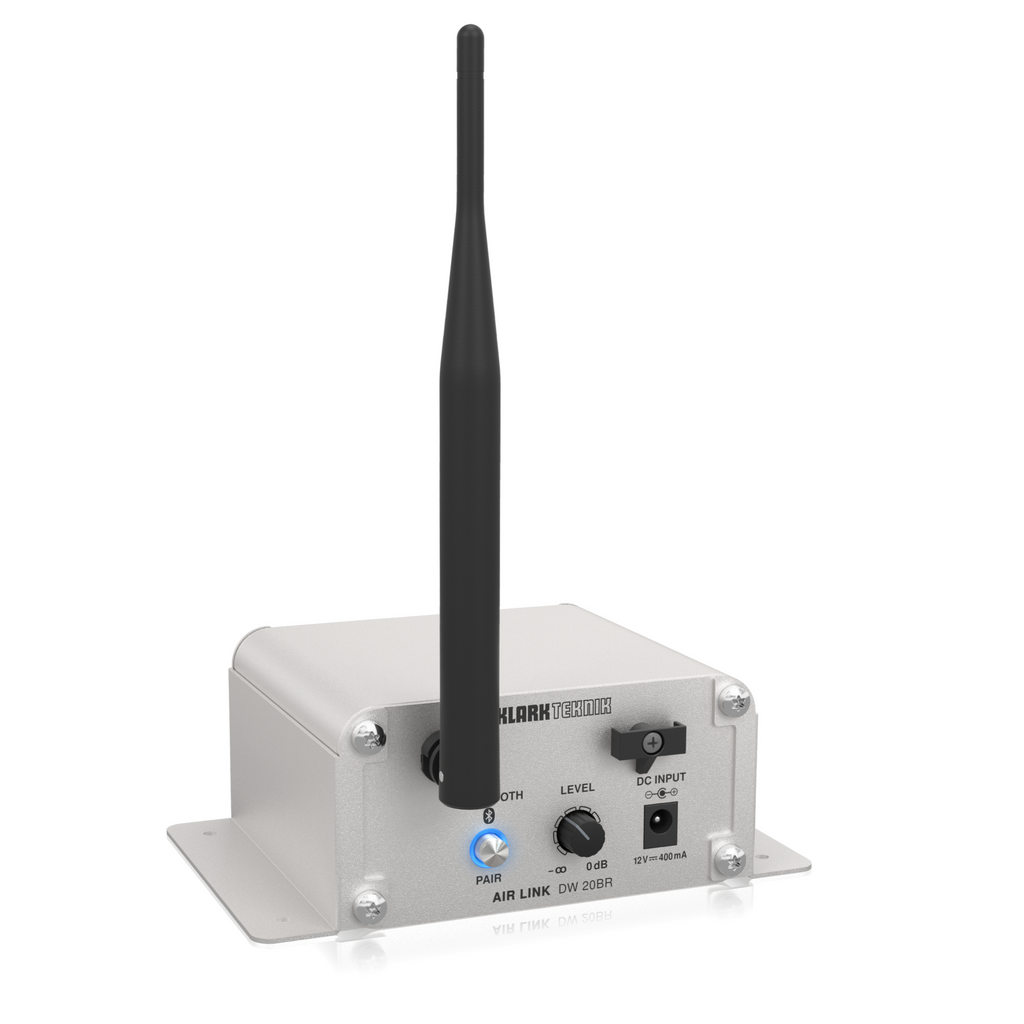

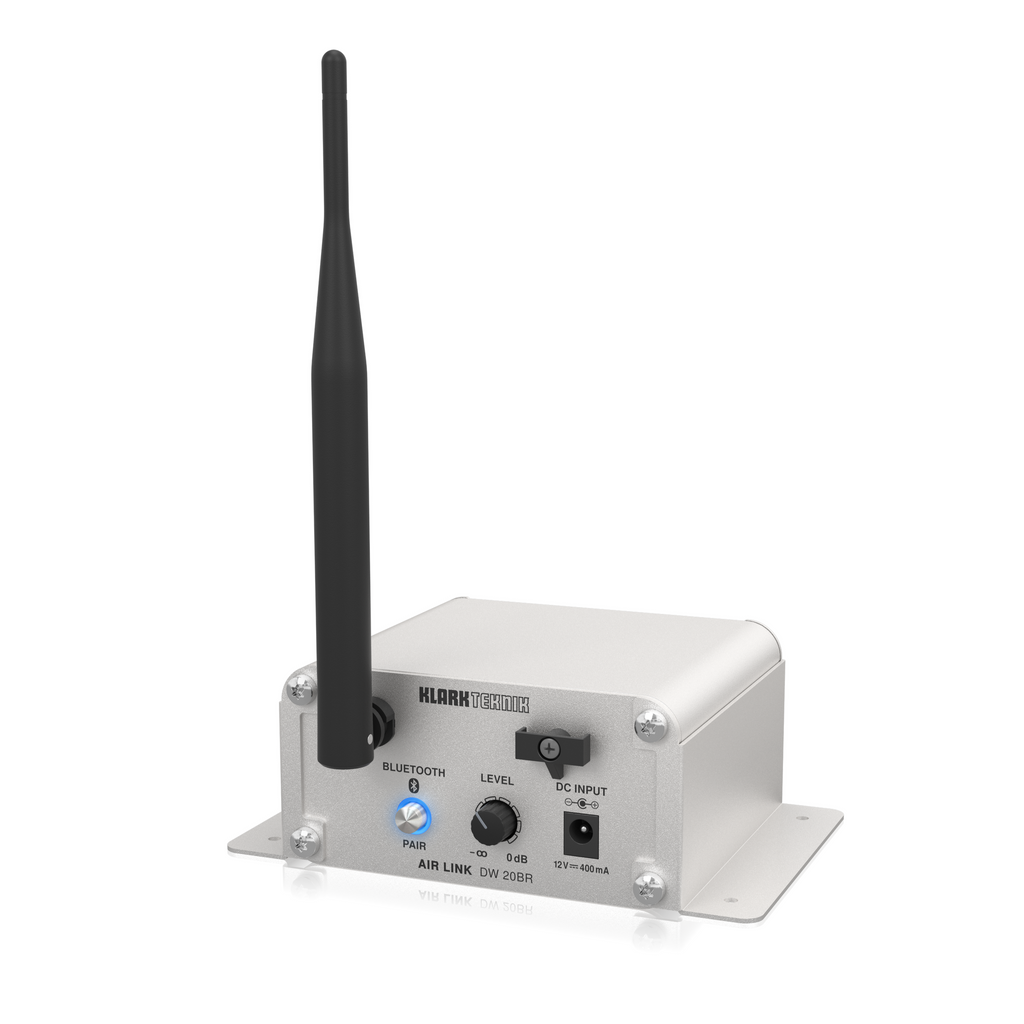

 Floor and wall mount brackets for fixed installation (included)

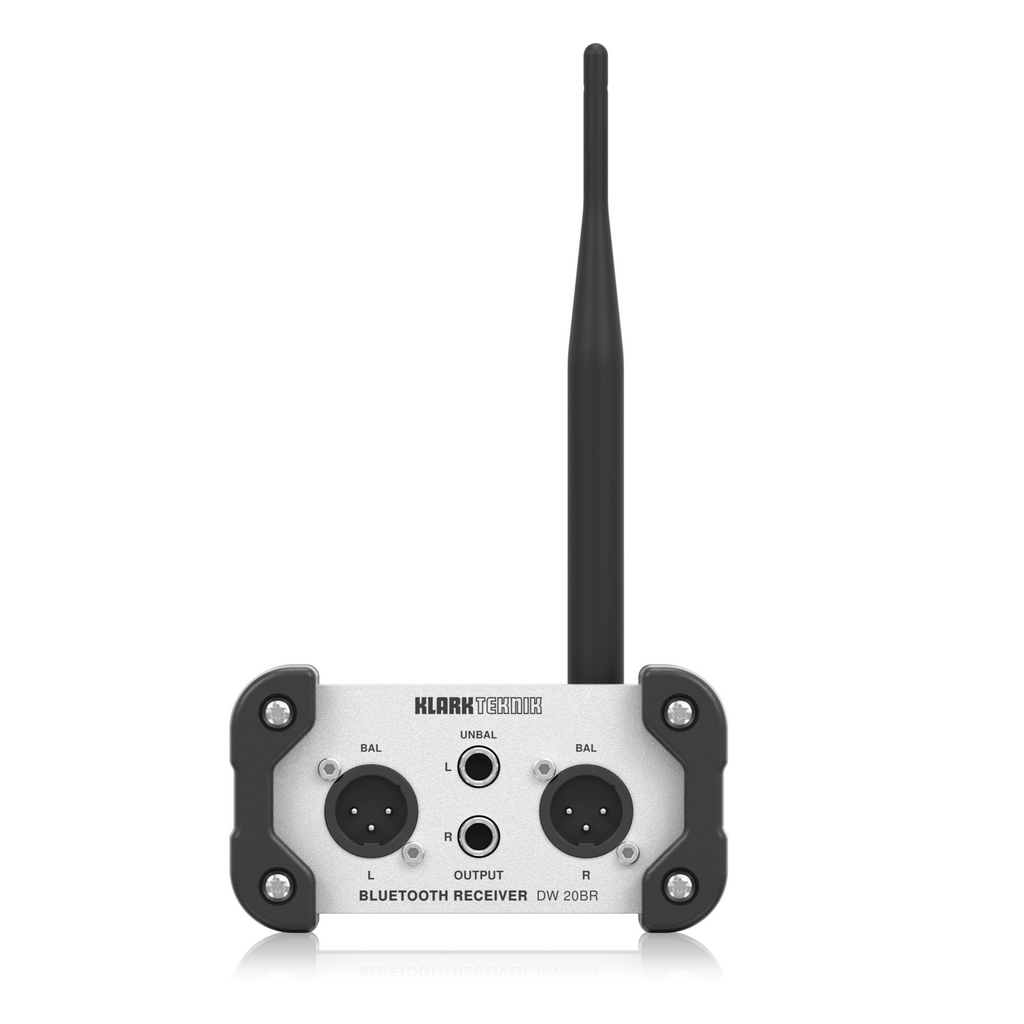

 High quality Neutrik* XLR and 1/4" TRS connectors

 Compact and rugged design

 10-Year Warranty Program*

 Designed and engineered in the U.K.

AIR LINK DW 20BR

The AIR LINK DW 20BR Bluetooth Wireless Stereo Receiver brings the convenience of high-performance audio-streaming to any installed or portable sound system, making it ideal for hospitality and event spaces, as well as retail, home audio, and much more. Featuring a maximum wireless range of 100 feet (30 m), DW 20BR is easy to use and utilises premium-grade Neutrik balanced XLR and unbalanced 1/4" TRS connectors to cover a wide range of audio applications.

Superior Performance

Thanks to its high headroom design, the DW 20BR receiver provides pristine audio streaming that is far superior to competing products. Care has been taken in both the design process and component selection to ensure the highest-quality performance in its class.

Maximum Range and Flexibility

Aided by an external articulated antenna, the DW 20BR is designed to provide dependable reception over an astounding range of up to 100 feet (30 m). Multiple receivers can be deployed to provide targeted zone broadcasting, as long as each DW 20BR is paired with only one Bluetooth streaming device at a time – allowing unique content to be streamed concurrently across each of the individual zones.

Robust Construction

Housed in a compact and rugged aluminium extrusion enclosure, the DW 20BR receiver can be permanently installed via the included floor/wall mount brackets, or placed securely on a shelf thanks to its corner protectors. Connectivity options include high quality Neutrik* XLR and 1/4" TRS output sockets, ensuring a crystal-clear signal path to professional mixers, amplifiers, or powered loudspeakers.

Single Streaming Solution

Engineered by the Award-winning KLARK TEKNIK design team, the DW 20BR is sublimely easy to use – and is the single audio streaming solution for a broad variety of applications.

Specification

 Outputs

               Connectors

      Balanced XLR, unbalanced ¼"

             Impedance

     240 Ω

             Max. output level

     4 dBu @ 1 kHz

 Bluetooth

               Frequency range

     2402 - 2480 MHz

             Channel number

     79

             Bluetooth version

     4.2

             Receiver range

     Up to 30 m (100 ft)

             Output power

     Class 2, <10 dBm

             Supported codec

     SBC, aptX

             Supported profiles

     AVRCP 1.4, A2DP 1.2

 System

               Frequency response

     20 Hz to 20 kHz (+0/-2 dB)

             THD + N (distortion)

     0.1% @ 1 kHz

             Signal-to-noise ratio

     >90 dB

             Power adaptor

     12 V DC, 400 mA, center positive

 Physical

               Dimensions (H x W x D)

             Without bumpers or antenna

      54 x 108 x 103 mm (2.1 x 4.3 x 4.1")

             With bumpers, without antenna

     63 x 118 x 112 mm (2.5 x 4.6 x 4.4")

             With bumpers, upright antenna

      212 x 118 x 126 mm (8.3 x 4.6 x 5.0")

             Weight incl. bumpers and antenna

     0.6 kg (1.3 lbs)

 Note: The ¼" output level is 6 dB lower than the XLR outputs Operation Ambient Temperature up to 45°C
