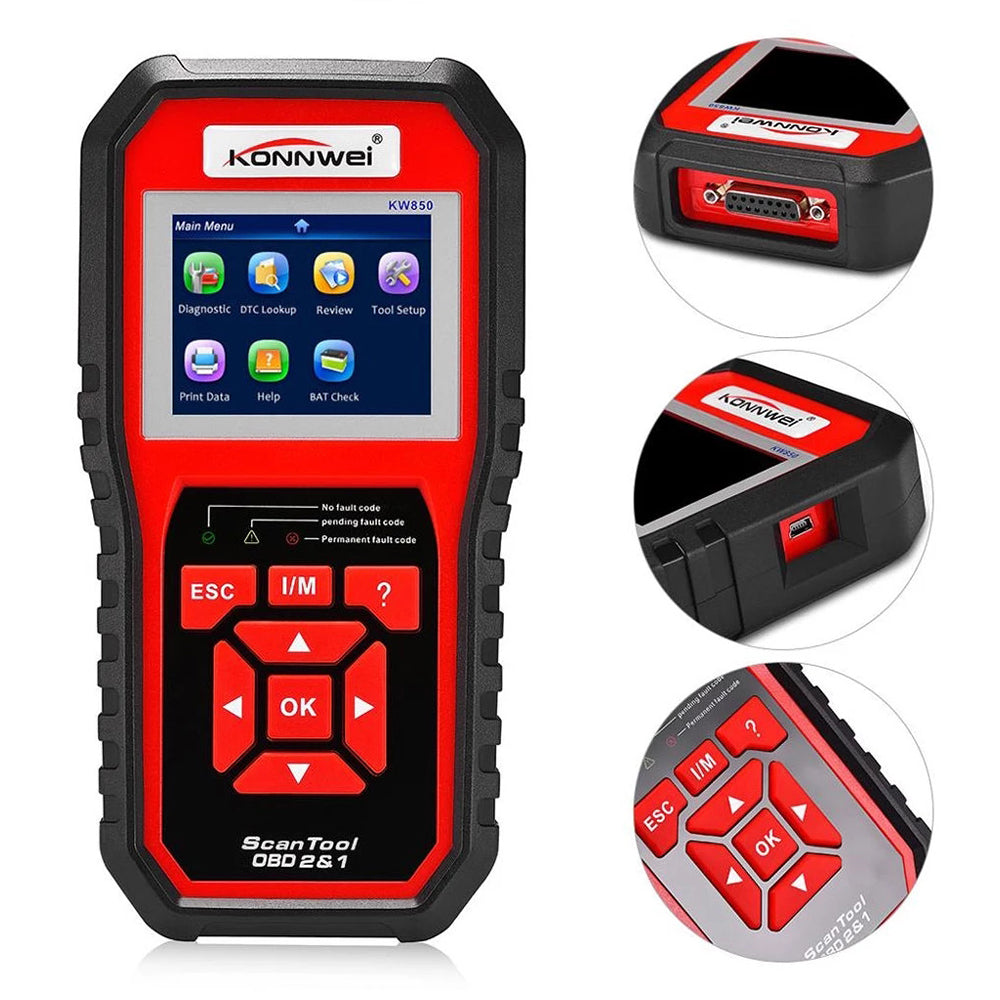

Car Diagnosis Universal OBD Engine Code Reader ODB2 Scanner Auto Diagnostic Tools KONNWEI KW850

     The KONNWEI KW850 OBD2 / EOBD / CAN Car Diagnostic Scanner supports all 10 OBDII test modes on all OBDII compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KONNWEI KW850 is truly the ultimate in power and affordability, allowing users to do their jobs faster.

 In addition, thousands of troubleshooter code tips help technicians and home DIY users to accurately diagnose even the toughest problems. With the newest friendly diagnostic interface, KW850 will be the most useful car diagnostic tool for every family and professional mechanic technician! KW850 is the best engine code reader better than for AUTEL AL519 with unique design and widest compatibility!

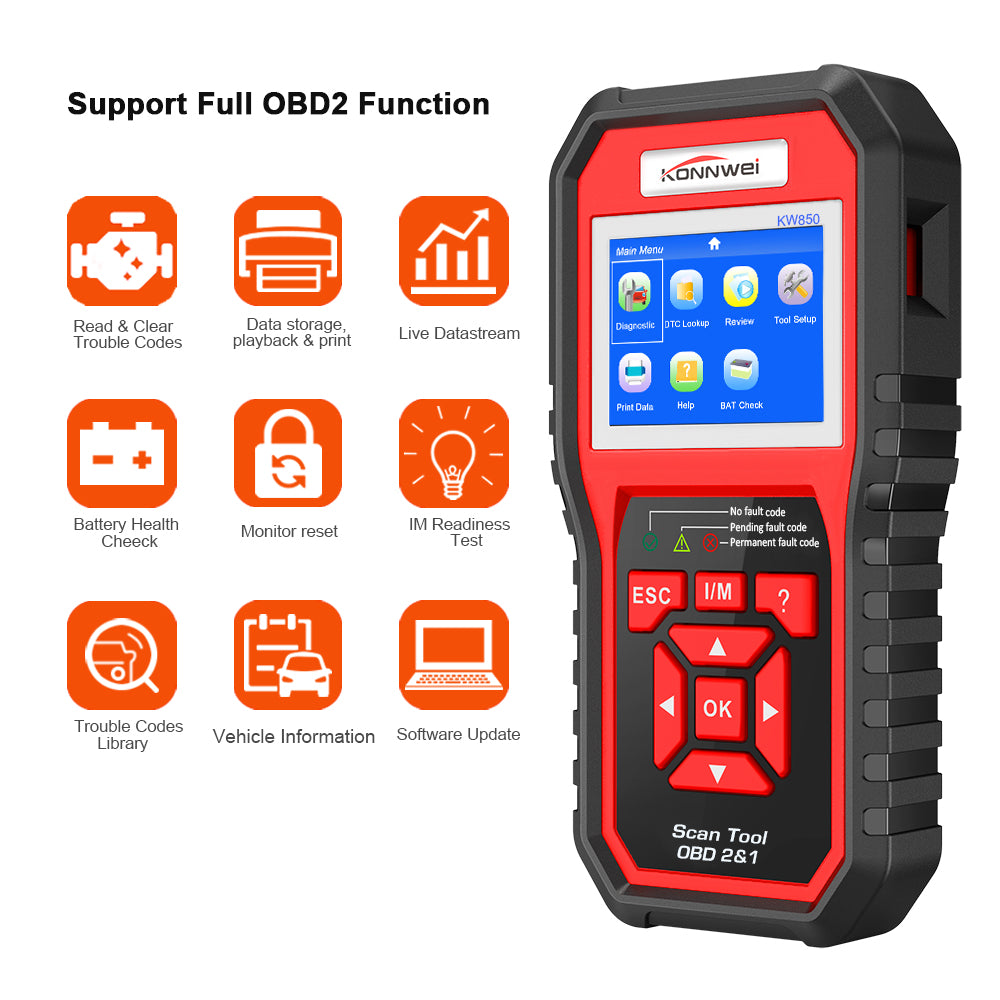

                 KW850 Function and Features :

            1. Works on ALL OBD II Enabled vehicles, both Gasoline and Diesel cars - domestic and imported.

            2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.

            3. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification

            4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes

            5. Easily determines the cause of the Check Engine Light(MIL)

            6. Turns off Check Engine Light (MIL), clears codes and resets monitors

            7. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.

            8. Views freeze frame data

            9. Displays monitor and I/M readiness status (emissions)

            10. Reads live PCM datastream

            11. Displays live O2 sensor test data

            12. For EVAP System test data

            13. Live sensor data in text mode and graph mode (1996 and newer vehicles)

            14. Reads, stores and playbacks live sensor data

            15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time

            16. Battery Voltage real time monitoring,better than for autel AL519.

            17. Built-in DTC look-up library and display definition.

            18. Retrieves vehicle information (for VIN, for CIN and for CVN)

            19. Internet updateable and upgradeable

            20. Prints data via PC.

          Top 10 Reasons to Choose KW850 OBD 2 Scanner

 1. Multilingual diagnostic interface:

 KW850 Supports to 8 different languages user interface, including   English, Spanish, Portuguese, French, Russian, German, Dutch, Italian

           2. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.

      3. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.

      4. Patented appearance design & Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for car repairing.

      5. Featured 24-hr battery real-time monitoring during diagnostics, keep your car battery in healthy status.

      6. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when away from the vehicles.

            7. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification

            8. Universal scanners works on ALL 1996 and newer vehicles (for OBDII & CAN) in USA, Most 2003 after EU (for EOBD), 2006 after Asia car brand vehicles, suitable both diesel and gasoline 12V cars.

      9. Data printable through USB cable, allows modify and print-out storaged data.

      10. Internet upgradable via usb port, adapted to Windows XP- Windows10 ,other scanners only work for windows 7)

                    KW850 Life-time Free  Update software:

              1. Please press the scanner and hold, then connect the scanner to PC with USB cable included in the package, the screen will be turned to "UPDATE MODE"

       Notice: Please turn off anti-virus software when installing the update tool, otherwise it will not be able to install the driver properly. the Update tool can be found from official website (refer to user manual)

       2. download and Install the "uplink" program to your PC( Windows xp- 7 only), you will find the below page, All you need is one-click, the program will search the update from our server, download and upgrade it by itself. No need any other operation, save the time and money.

       3. Wait for the update process finished, the scanner KW850 will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while.

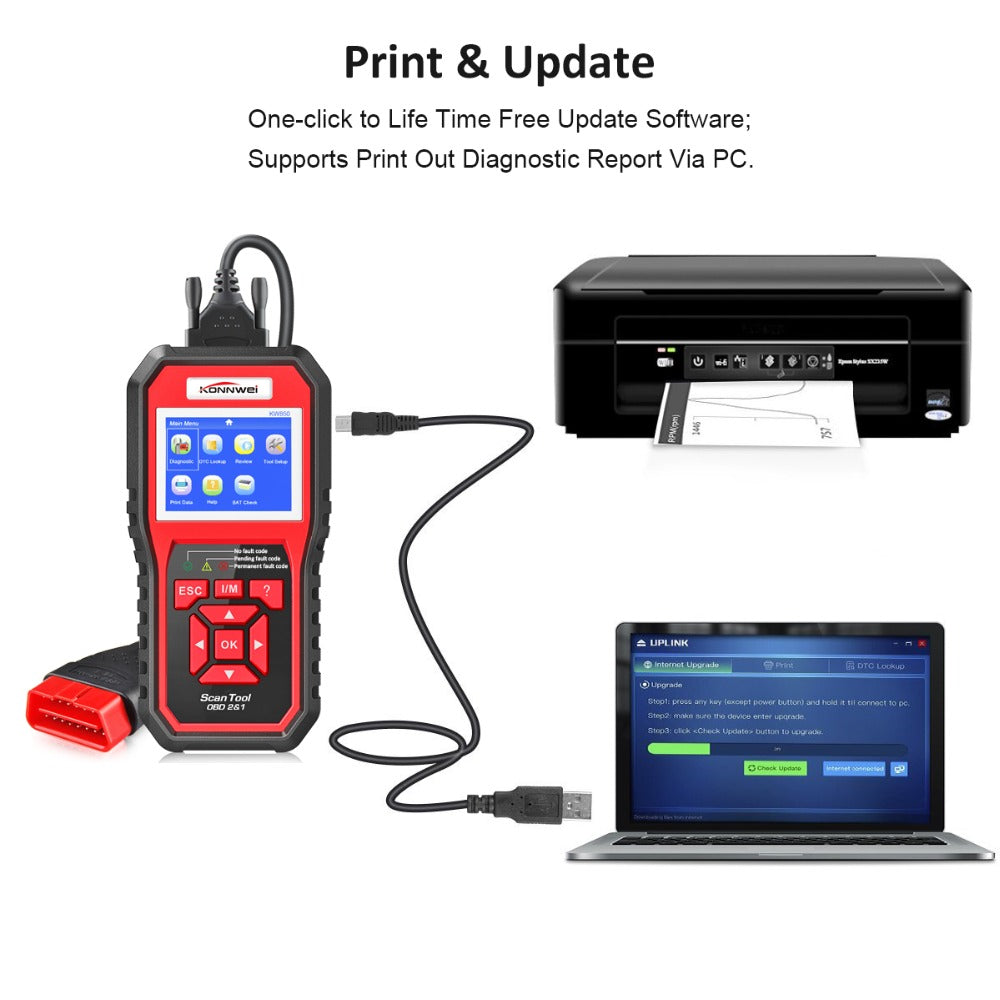

       KW850 Auto Diagnostic Scanner Data Printing Guides

       1. After install the "uplink" program on PC, connect the scanner to PC with USB cable. (No need to press any buttons)

       2. Launch the program"uplink" ,  Select "Print" option.

       3. Operation on scanner:  go to main menu, select " Print Data" ; Select the data option that you want to print to PC,

       4. After select the "print data", the data stream that storaged in the scanner will be sent to PC software, you may modify them before printing them out from PC's printer.

              KONNWEI KW850 Specification:

              Display:  2.8'' Wide TFT color screen

              Operating Temperature: 0 to 60 ℃ (32 to 140 ℉)

              Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉)

              Power: 8 to 18 V provided via vehicle

              Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network  ISO 11898)

              Device Dimensions: 19.5cm (7.68'') x 10cm (3.94'') x 3.5mm (1.38'')

              Weight: 0.6KG

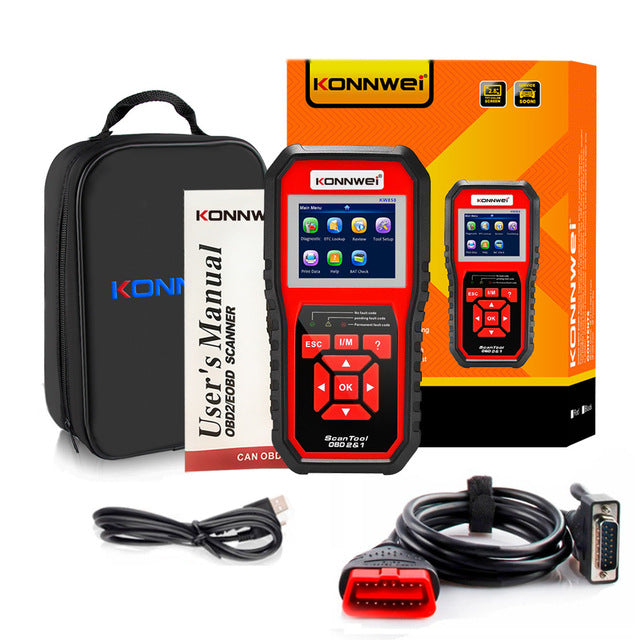

     Packing List:

     1*KONNWEI KW850 Auto Diagnostic Scanner

     1*User's Manual in English

     1*OBD2 Cable

     1*USB Cable

     1*protective nylon bag
