KPS3010D Adjustable High Precision Double LED Display Switch DC Power Supply
Protection Function 30V10A 110V-230V
Summary：
KPS series is a single set of output, high precision double display switch dc power
supply.Machines have complete operating protection function, with high performance,
low ripple, high stability , light weight and small volume etc. Current limiting protection
can make KPS power supply and load against accidental damage.
KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Special point：
1, have complete operating protection function
2, highly efficient, low ripple, small volume, light weight
3, double display voltage, current, and high precision
4, voltage stabilization, current limiting, simple operation
5, dual voltage input and convenient choice
6, temperature control fan heat dissipation, low noise
7, Double potentiometer more precise adjustment
Technical indicators：
Input voltage:AC 110V/220V,50/60Hz
Output voltage:0 ~ 30V
Output current:0 ~ 3A/5A/10A
Voltage resolution:10/100mV
Current resolution:1/10mA
Power effect:CV≤1%+10mV
Effect of load:CV≤1%+10mV
Ripple and noise:Vp-p≤1%
Voltage display precision:±1%+1digits
Current display precision:±1%+2digits
Net/gross Weight (KG):1.4/1.7
Volume (mm):81W×165H×220L
Operating environment:(-10~45)Rh<90%
Working time:a long time

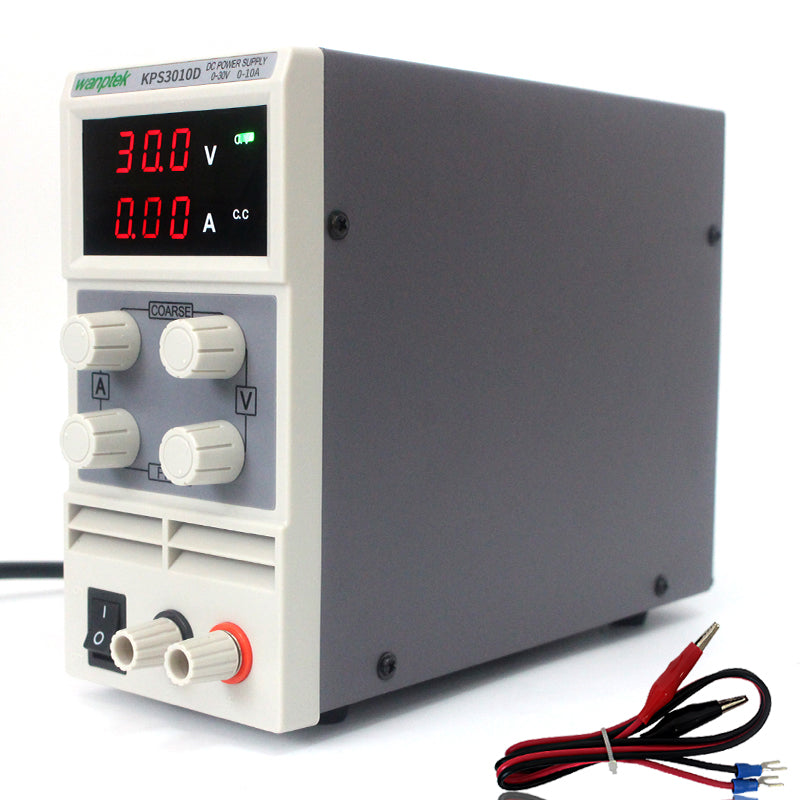

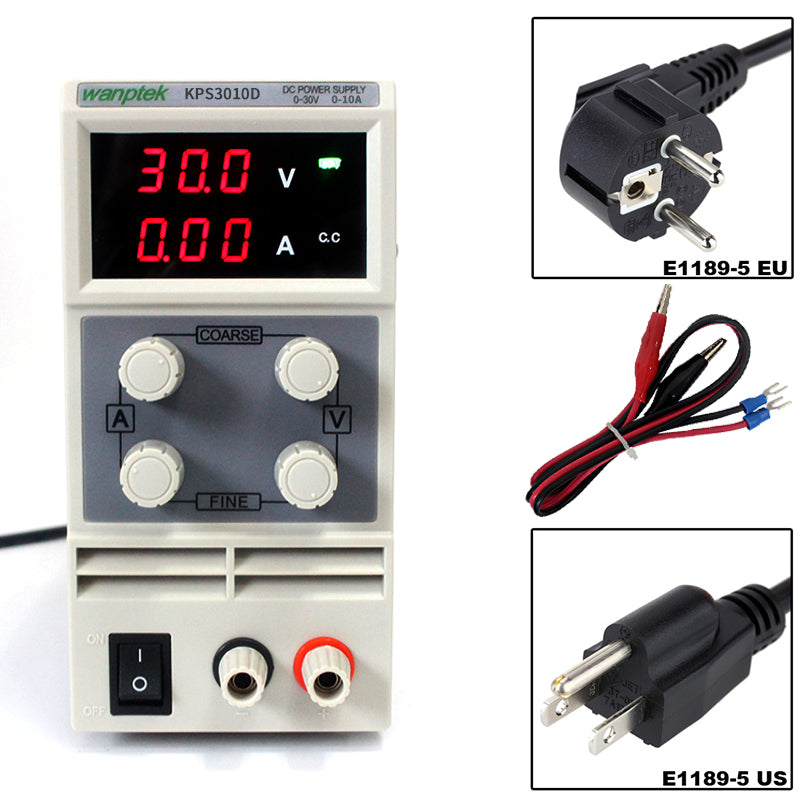

Standard Accessories:Power cord×1 output line×1
instruction book×1 Warranty card certification×1
Model
Output voltage
Output current
resolution(V)
resolution(A)
KPS303D/F
0-30V
0-3A
0.1/0.01V
0.01/0.001A
KPS305D/F
0-30V
0-5A
0.1/0.01V
0.01/0.001A
KPS3010D/F
0-30V
0-10A
0.1/0.01V
0.01/0.001A
