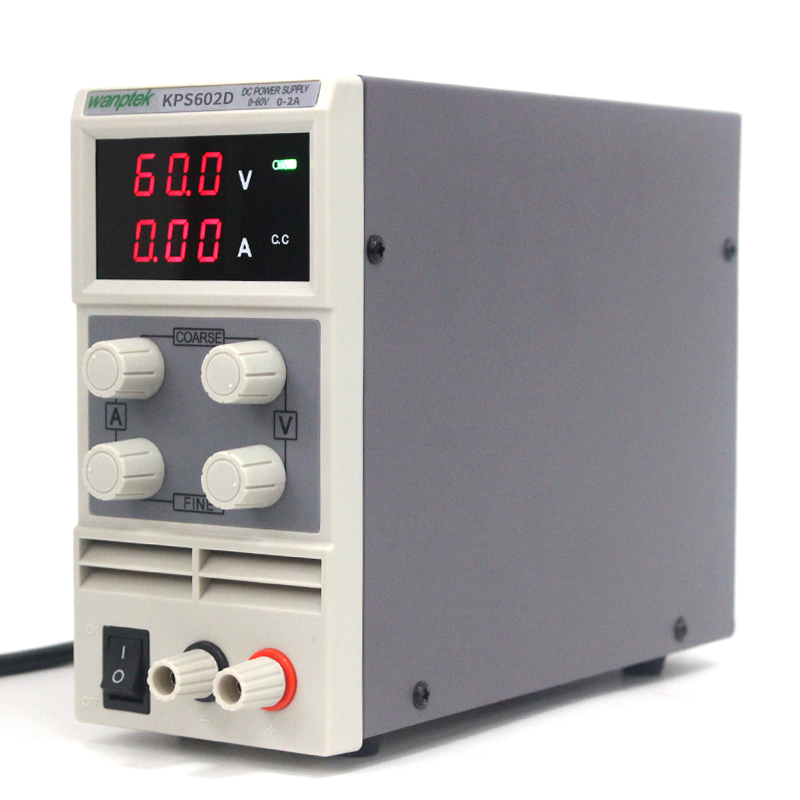

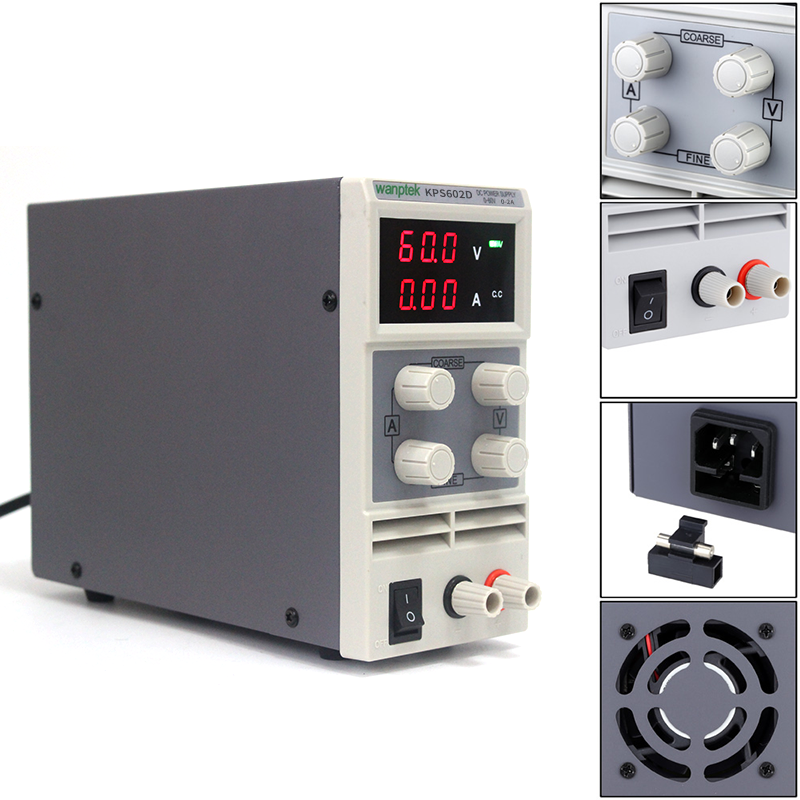

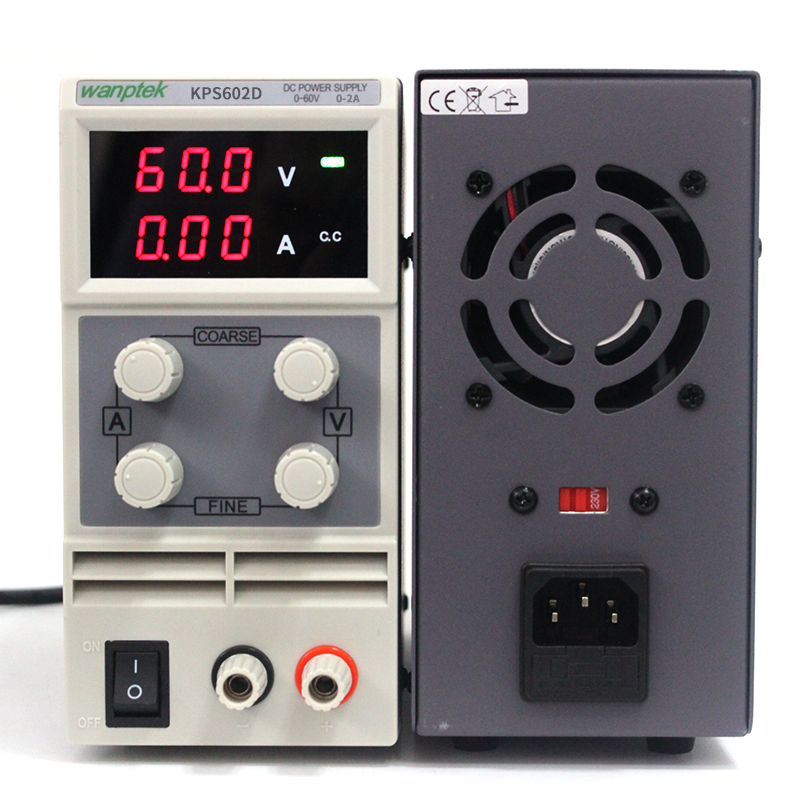

KPS602D Adjustable High Precision Double LED Display Switch DC Power Supply Protection Function 60V2A 110V-230V 0.1V/0.01A EU
Summary:
KPS series is a single set of output, high precision double display switch dc power
supply.
Machines have complete operating protection function, with high performance,
low ripple, high stability, light weight and small volume etc..
Current limiting protection can make KPS power supply and load against accidental damage.
KPS series power supply with low temperature control circuit, a cooling fan noise is low.
Special point:
1, have complete operating protection function
2, highly efficient, low ripple, small volume, light weight
3, double display voltage, current, and high precision
4, voltage stabilization, current limiting, simple operation

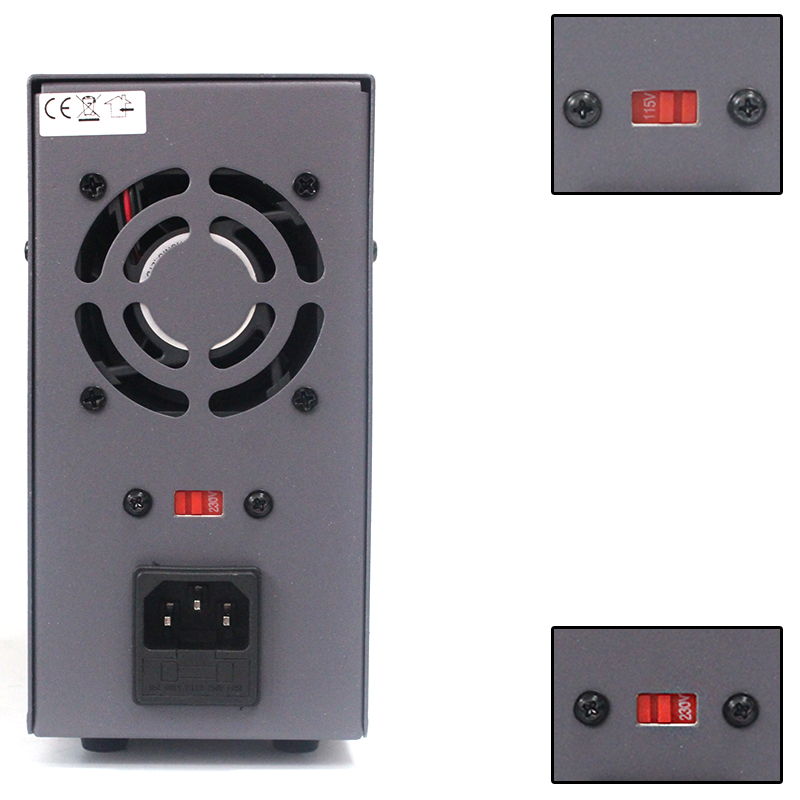

5, dual voltage input and convenient choice
6, temperature control fan heat dissipation, low noise
7, Double potentiometer more precise adjustment
Technical indicators:
Input voltage:AC 110V/220V/50/60Hz
Output voltage:0 - 60V
Output current:0 - 2A
Voltage resolution:100mV
Current resolution:10mA
Power effect:CV≤1%+10mV
Effect of load:CV≤1%+10mV
Ripple and noise:Vp-p≤1%
Voltage display precision:±1%+1digits
Current display precision:±1%+2digits
Net/gross Weight (KG):1.9

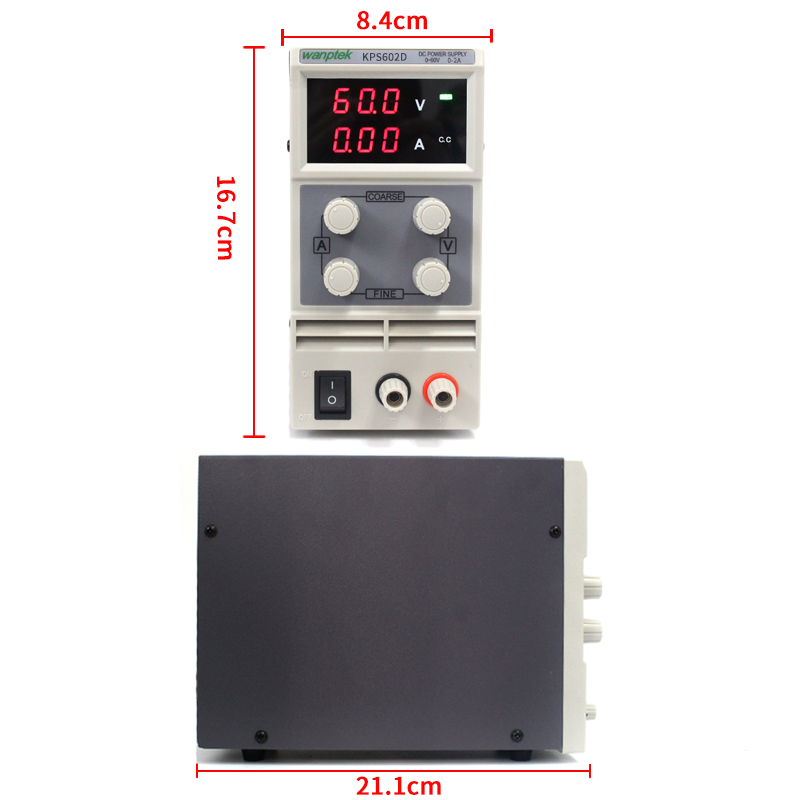

Volume (mm):81WX165HX220L
Operating environment:(-10-45) Rh<90%
Working time:a long time

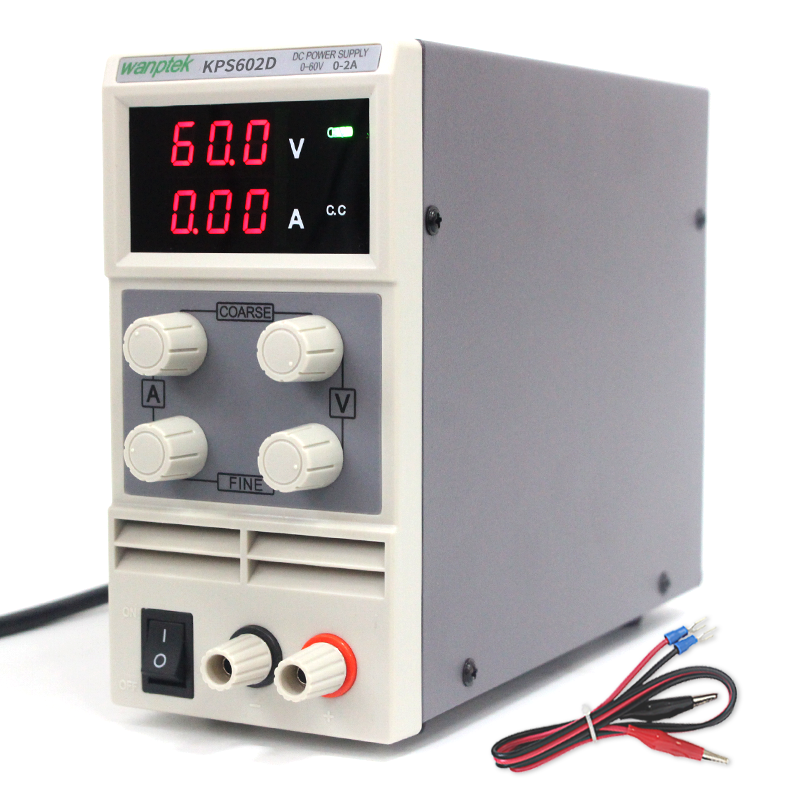

Standard Accessories:Power cordX1 output lineX1
instruction bookX1 Warranty card certificationX1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
