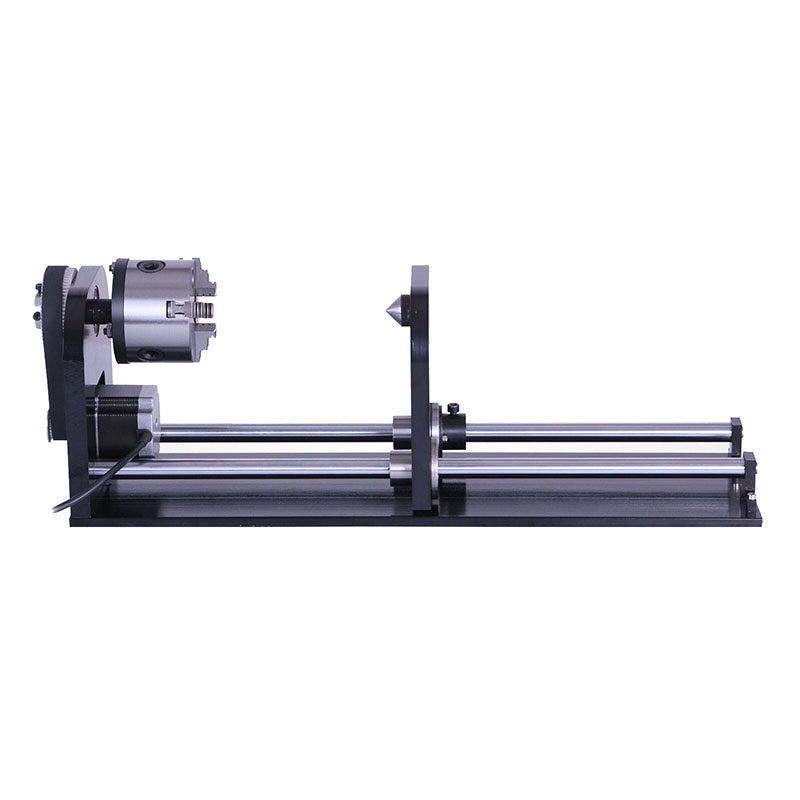

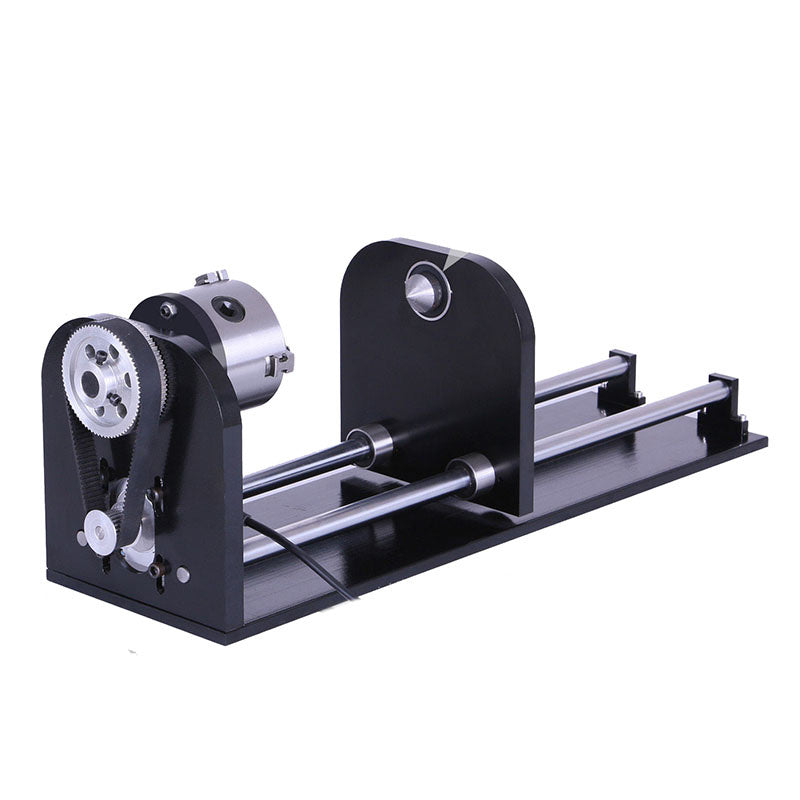

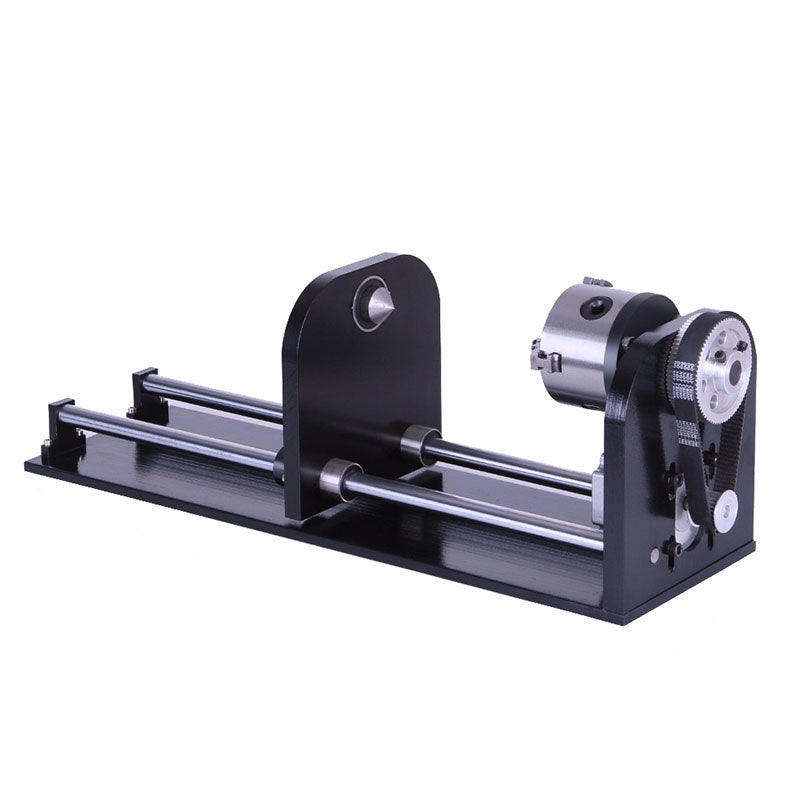

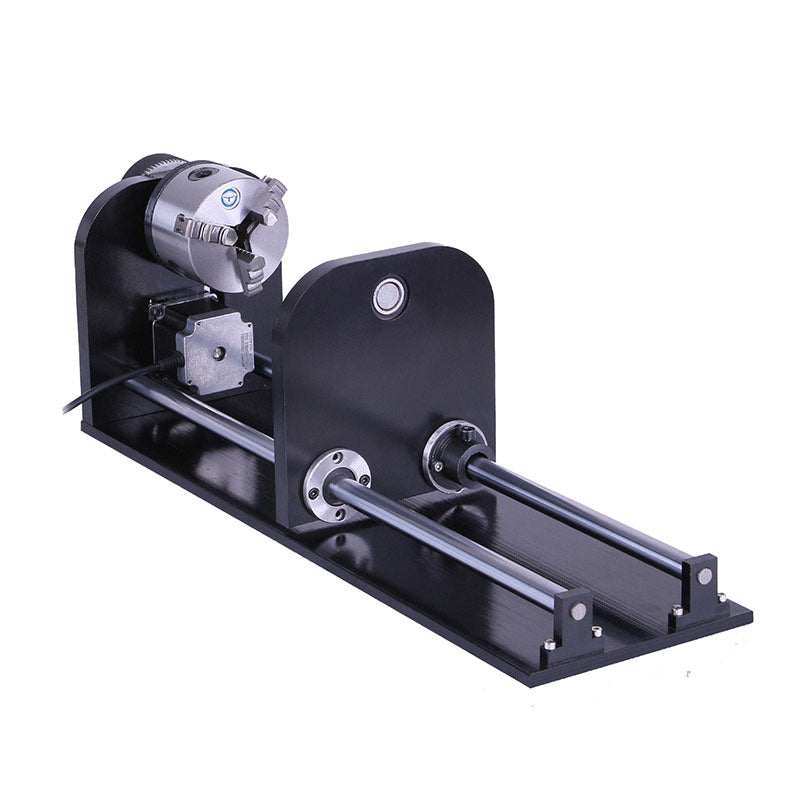

Maximum clamp diameter: 8 cm
Maximum clamping length: 36cm
Maximum clamping weight: 15kg

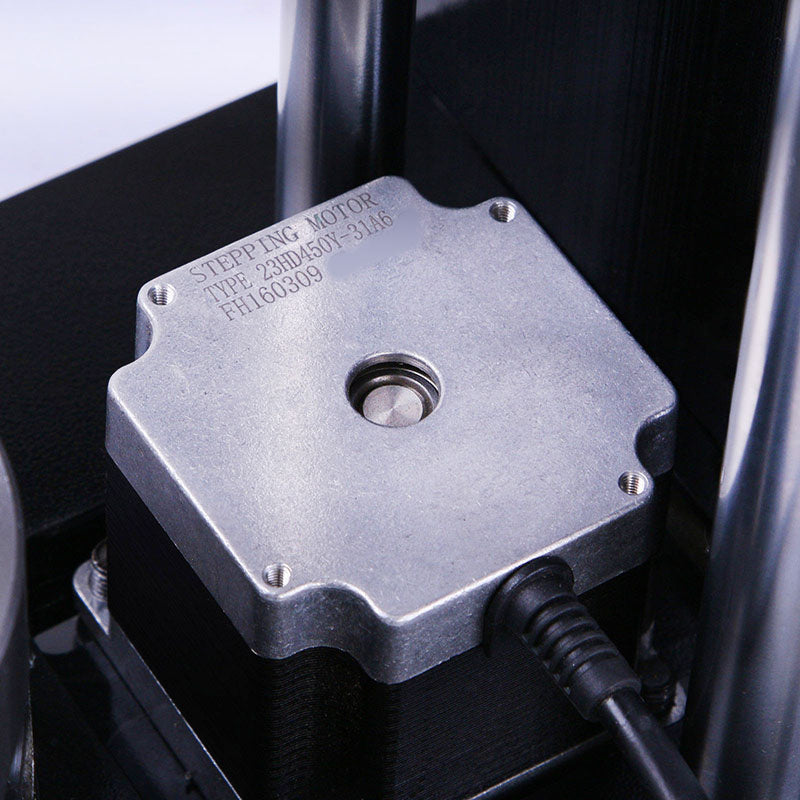

Rated voltage: 2.07v DC
Phase resistance (20℃): 1.38×(1±15%)ω/phase
Maximum static torque: ≥780mn.M
Oscillation (axis view): A-Ab-B-clockwise
Maximum no-load operating frequency: ≥2500pps
Electrical strength: Ac600v/1ma/1s
Rotor inertia: 220g.
Step angle:1.8°±0.09°
Rated current: DC 1a/phase
Inductance (1khz):30×(1±20%)Mh/phase
Braking torque:320g.Cm Ref.
Maximum no-load starting frequency: ≥1500 Pps
Insulation resistance: ≥100mω (DC 500v)
Insulation grade:B

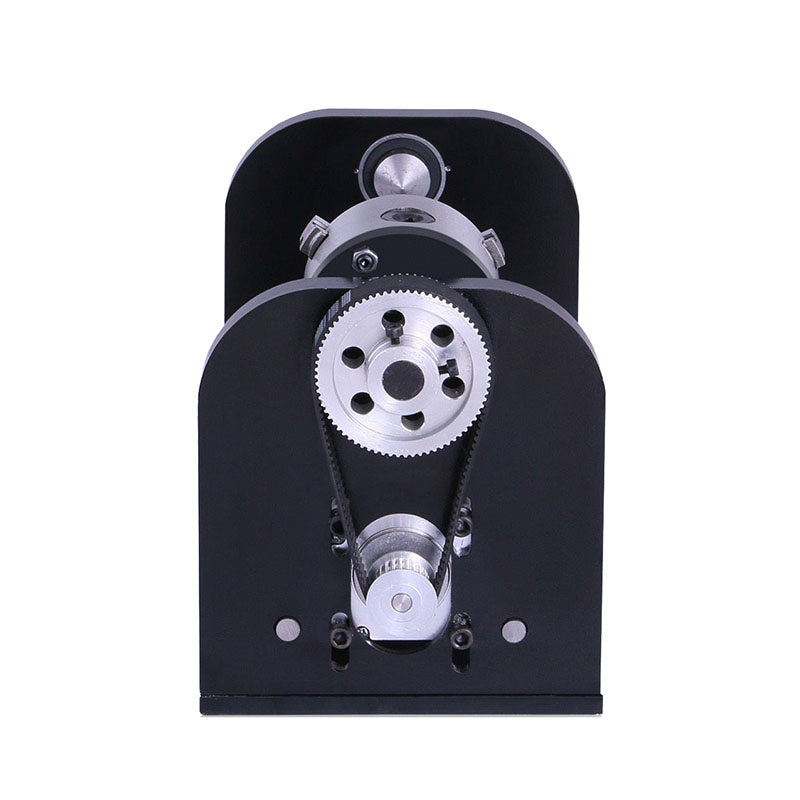

Pulley material: H62
Tooth shape:Mxl
Number of teeth: Z=20
Tooth pitch:P=2.032
Pitch circle:φ12.936
Outer circle:φ12.428±0.003
Product size: H152×L4500×W178 (mm)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
