Features:
1. Auto-saving: when power off, the electric energy will be saved. The saved electric energy will be accumulated continue when the meter power-on next time.

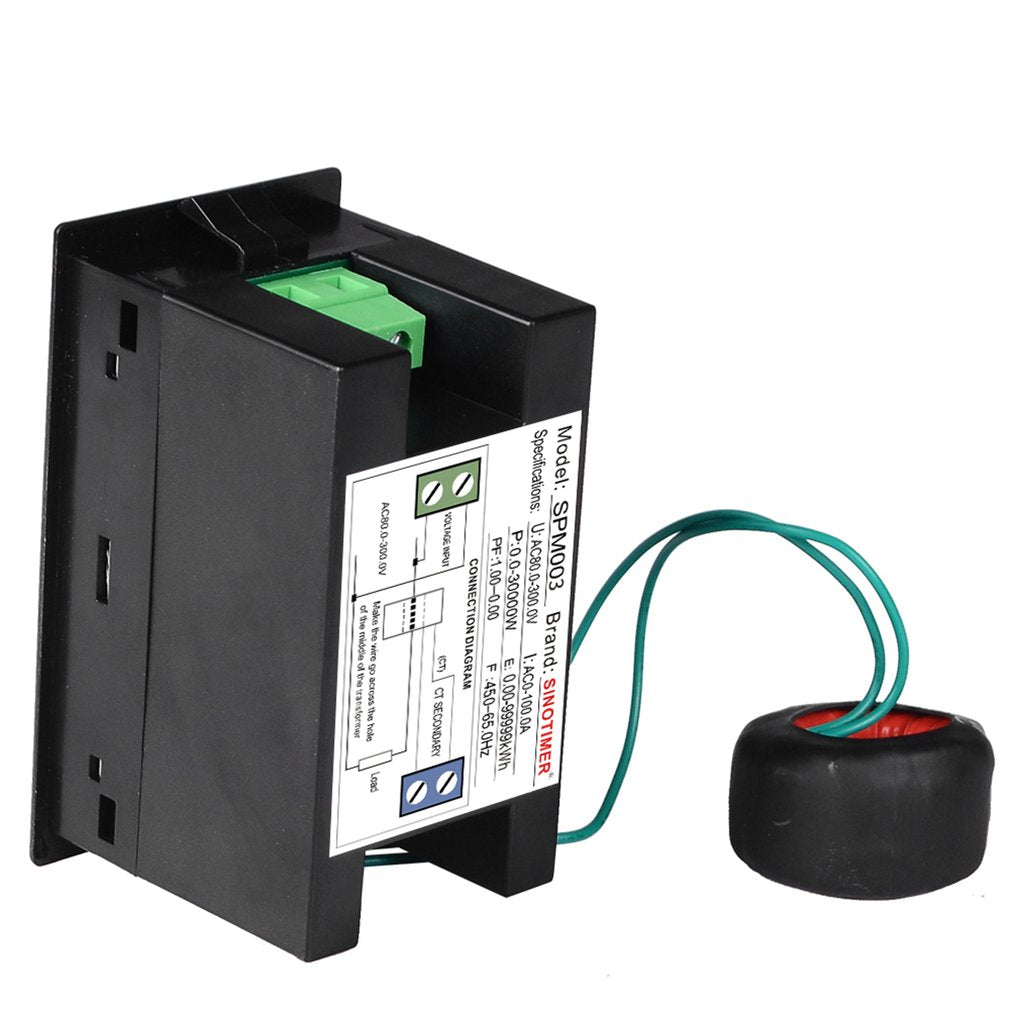

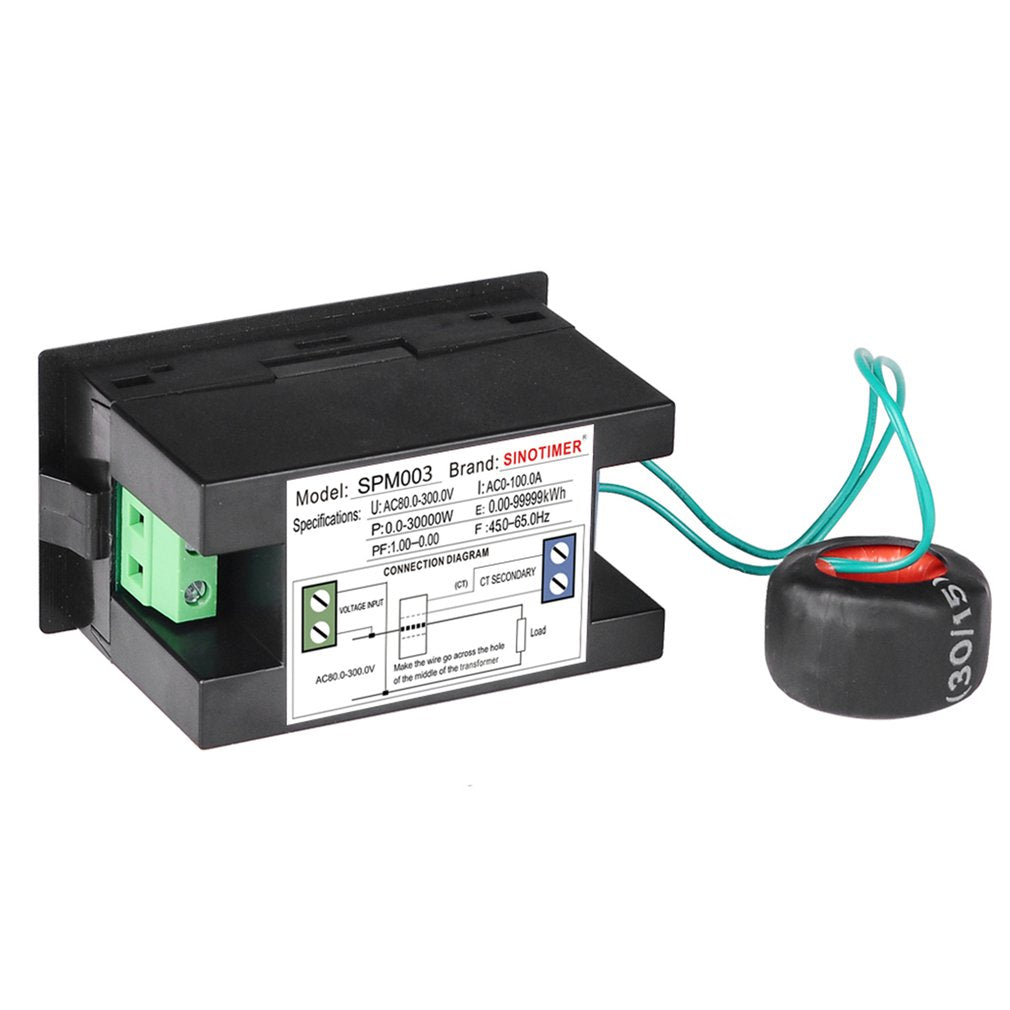

2. According to connection graph, connect the green wire of secondary current transformer to the blueterminal of meter and make the wire of measurement circuit through the hole in the current transformer.
3. Supply power and start to measure and display the result.
4. Press down the button last for 5 second, the electric energy will to be zero.
5. Caution:
(1)The meter will be destroyed when you make wrong connection method with voltage input(green terminal) and secondary current transformer (blue terminal).
(2) The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave.
Description:

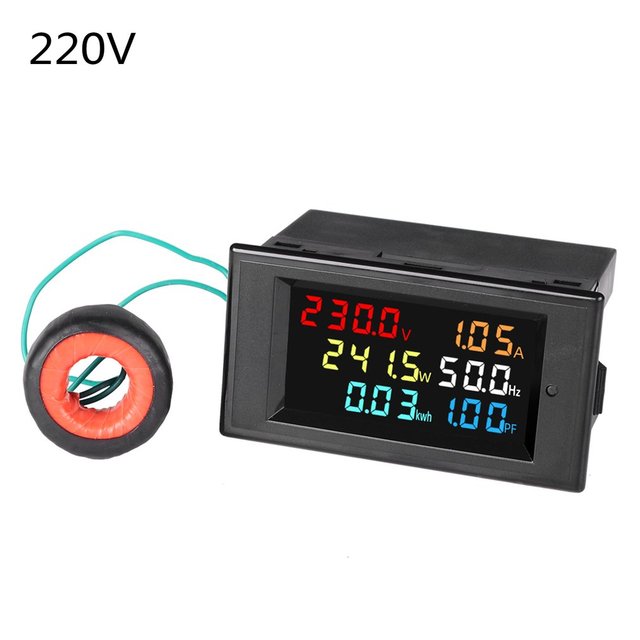

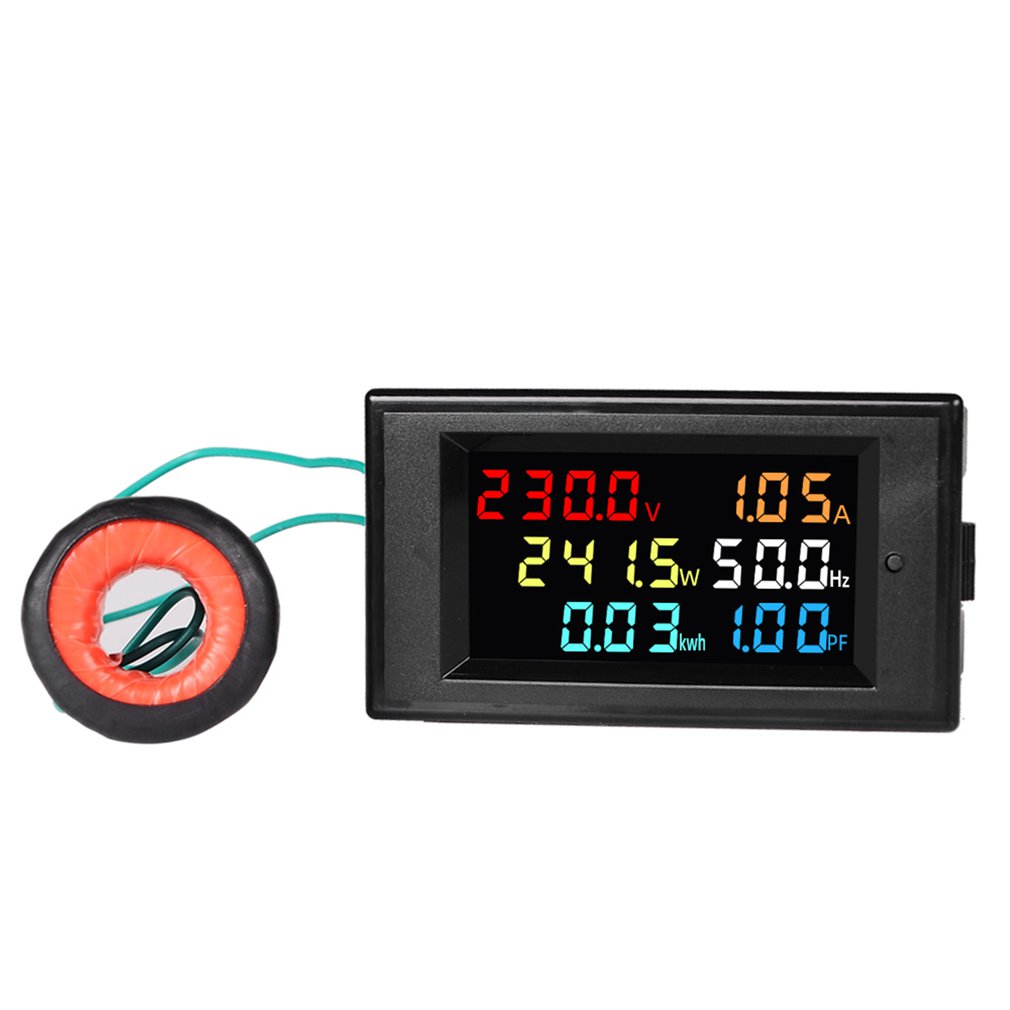

Wattmeter energy power meter with high definition LCD digital display screen, easy to read clearly and accurately.
Specifications:
Brand: SINOTIMER
Model: SPM003

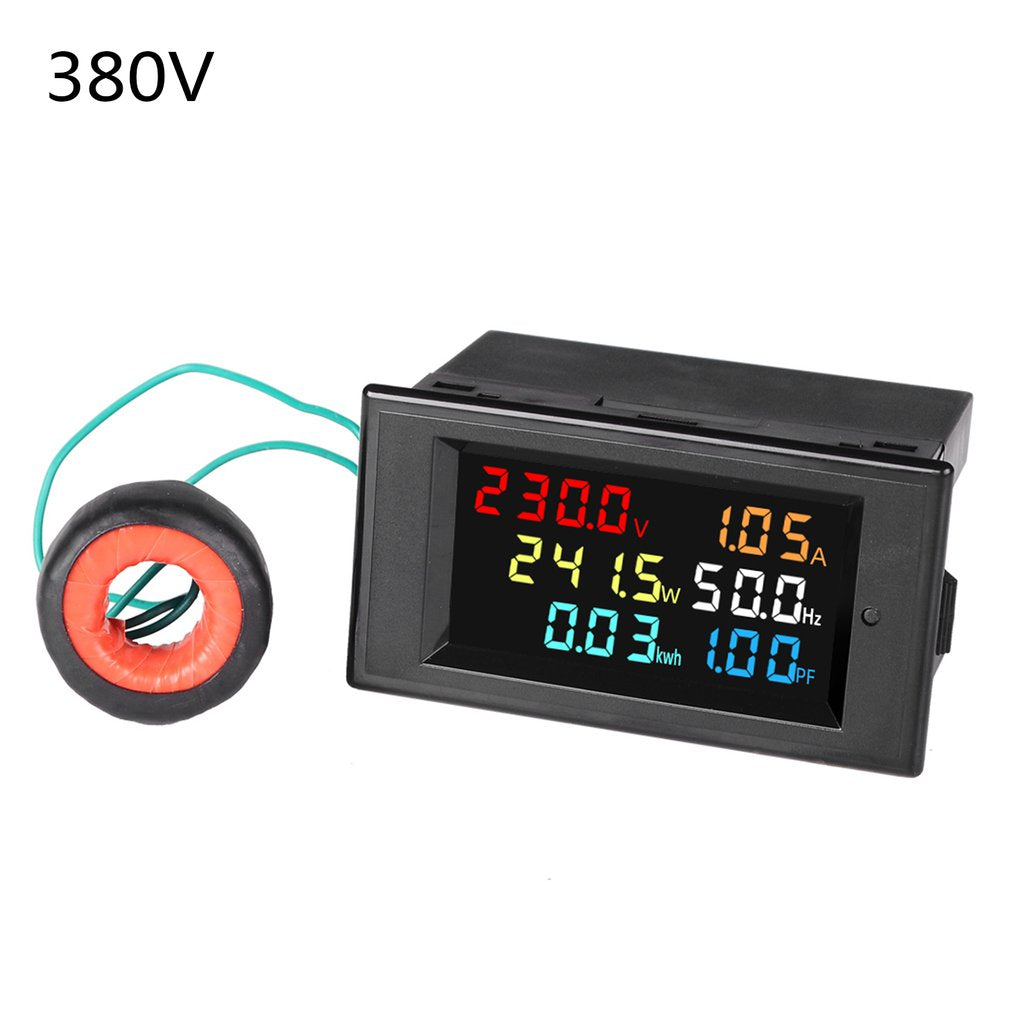

AC voltage: AC 80.0-300.0V/300.0-450.0V
AC current: AC 0-99.99A, minimum resolution is 0.01A
AC current: AC 0-40.00A, minimum resolution is 0.01A
Accuracy: 1% 2 words
Active power: 0-45000W
Electric energy 0.000-99999kwh
Power factor: 0.00-1.00PF
Frequency: 45-65Hz

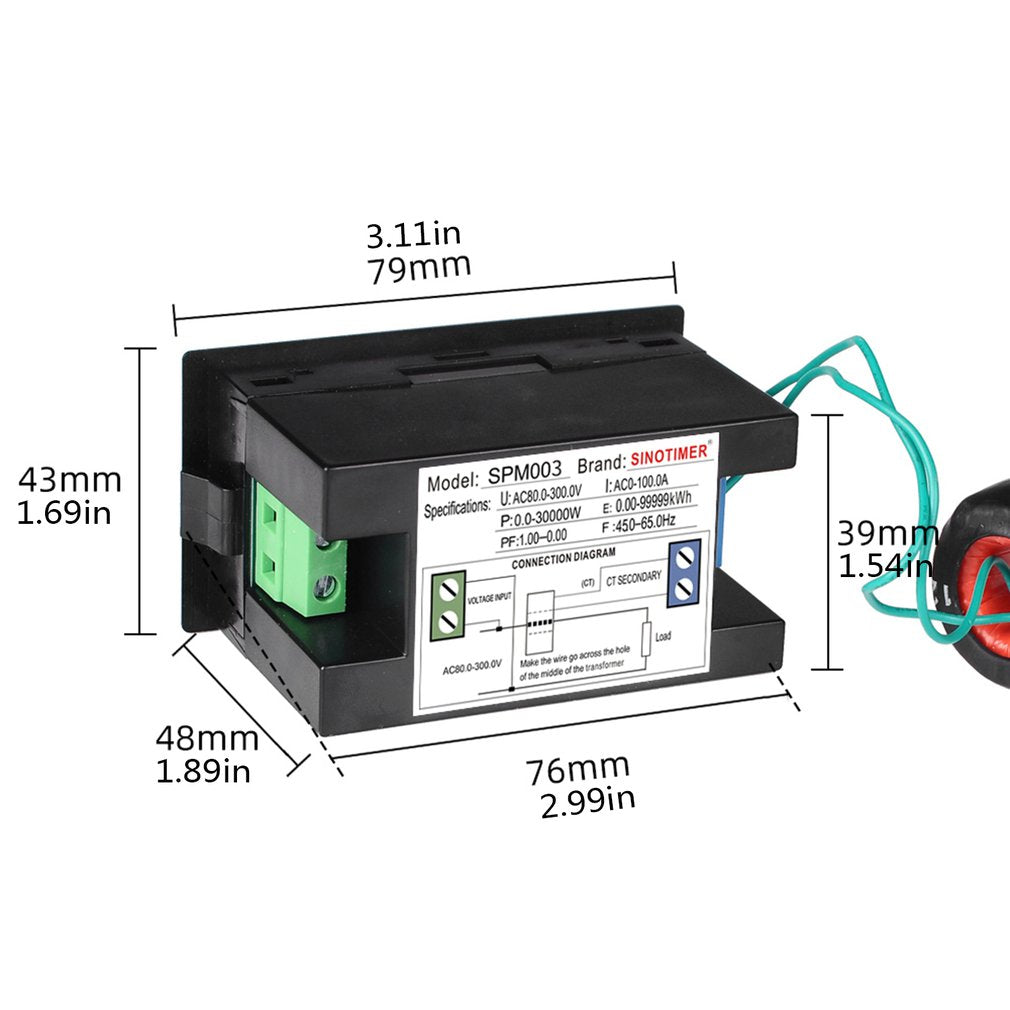

Size: 79*43*48mm
Installation Size: 76*39mm
Package Included:
1 * Power Energy Frequency Meter
1 * CT Current Transformer
