Features:

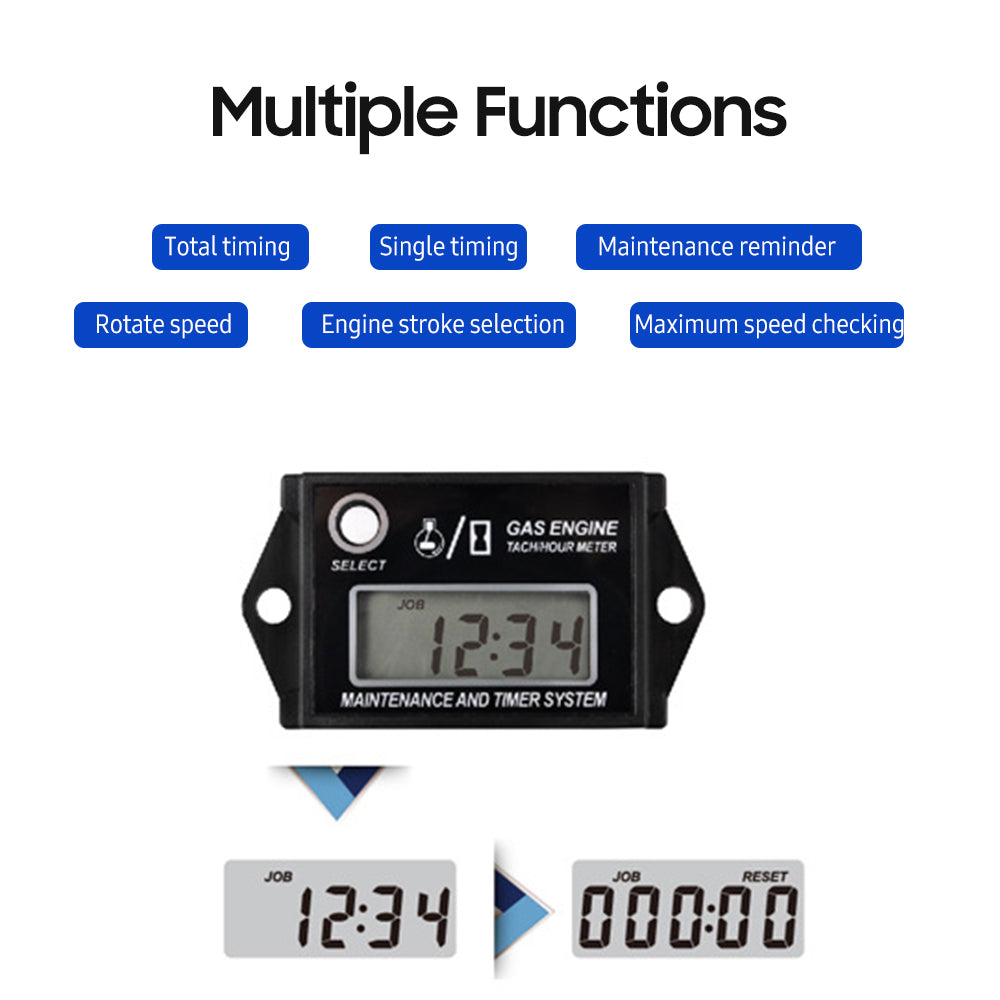

Multiple Functions: including functions of total timing, single timing, maintenance reminder, rotate speed, engine stroke selection, maximum speed checking, etc.
Maintenance reminder function: the maintenance time can be set manually according to the maintenance requirements of the engine. The maintenance time is displayed in countdown. Two groups of maintenance time can be set, with the setting range of 5-50H and 10-250H respectively.
Total Timing & Single Timing Function: total timing can record the total running time of the engine, and the total timing cannot be reset. And the Single timing can record the time of single operation of the engine, which can be reset by pressing the key.
Rotate Speed Function: after continuously detecting the engine ignition signal, the main interface displays the current engine speed. Rotate speed range is 0-30000rpm. You can view the maximum speed when the engine is working and reset it.
Easy to Install: just fix it with screws or double-sided paste.
No Power Connection Required: powered-up by the built-in CR2430 button battery, and the normal service life is 5 years. When the engine stops working, the total operating hours of the engine can be displayed normally.
Good Waterproof Effect: the waterproof grade up to IP67.
Suitable for gasoline engines with different ignition modes, 7 engine strokes can be selected(1P1R, 1P2R, 2P1R, 3P1R, 4P1R, 6P1R, 8P1R, the default is 1P1R).
Common Applications: 2/4 Stroke Engines, RC Toys, PWC, ATV, Motorcycles, Marine Engines, Chain Saws, Tractors, Lawnmowers, and gas powered tools.

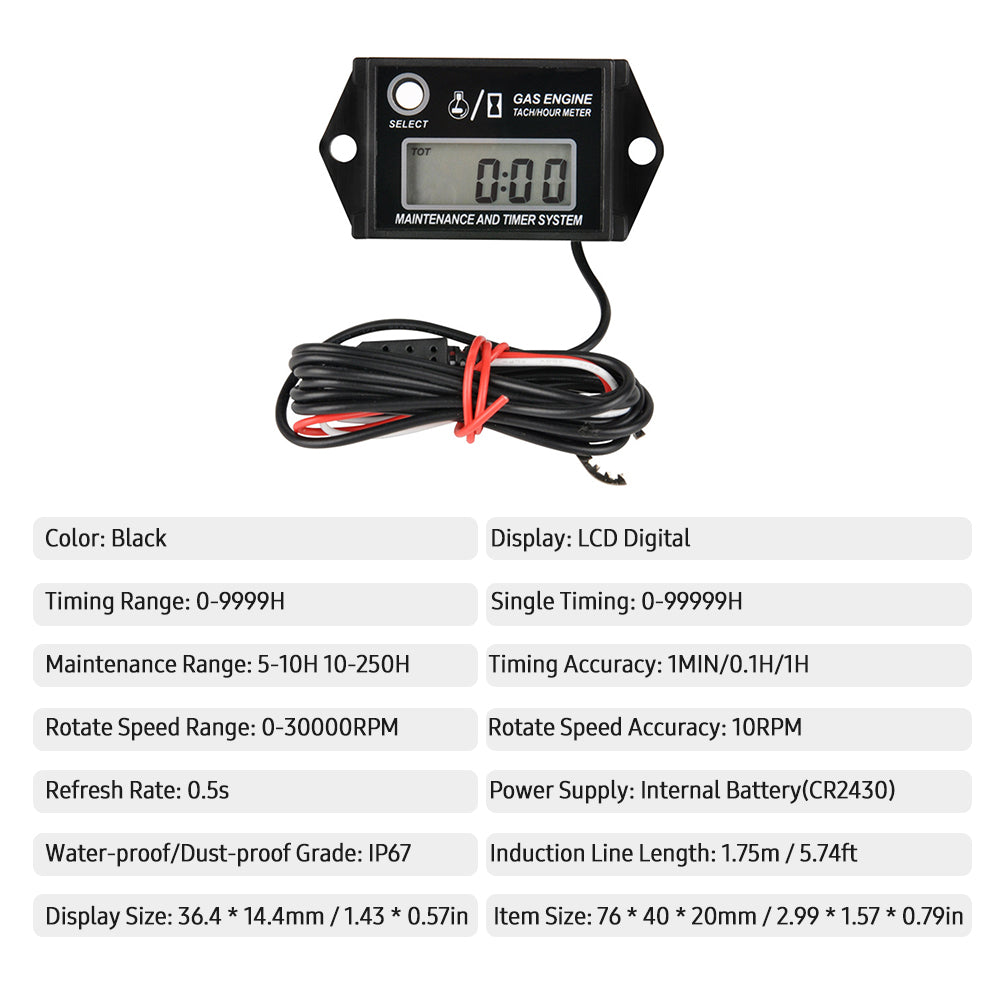

Specifications:
Color: Black
Display: LCD digital
Timing Range: 0-9999H
Single Timing: 0-99999H
Maintenance Range: 5-10H 10-250H
Timing Accuracy: 1MIN/0.1H/1H
Rotate Speed Range: 0-30000RPM
Rotate Speed Accuracy: 10RPM
Refresh Rate: 0.5s
Power Supply: Internal Battery(CR2430)
Water-proof/Dust-proof Grade: IP67
Induction Line Length: 1.75m / 5.74ft
Display Size: 36.4 * 14.4mm / 1.43 * 0.57in
Item Size: 76 * 40 * 20mm / 2.99 * 1.57 * 0.79in
Item Weight: 65g / 2.31oz
Package Weight: 82g / 2.89oz
Package Size: 19 * 11.3 * 2.5cm / 7.48 * 4.45 * 0.98in
Packing List:

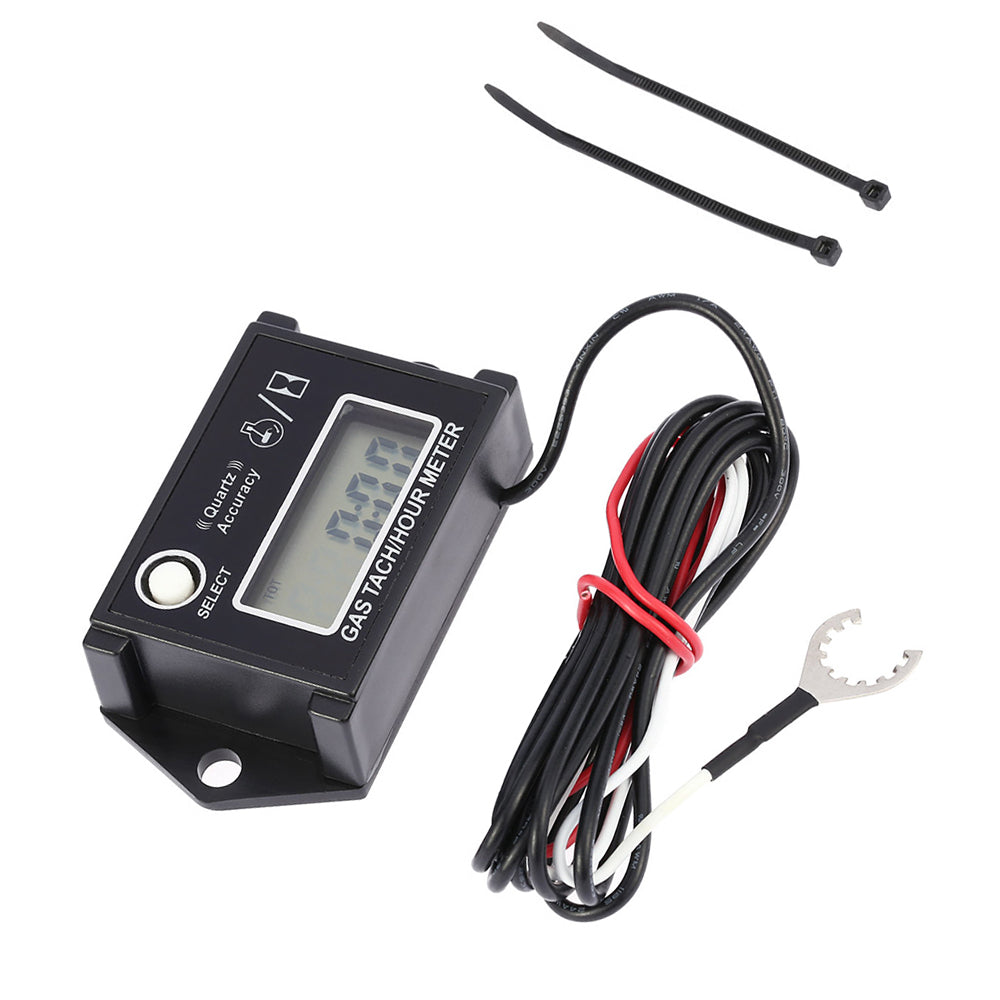

1 * Digital Tachometer
