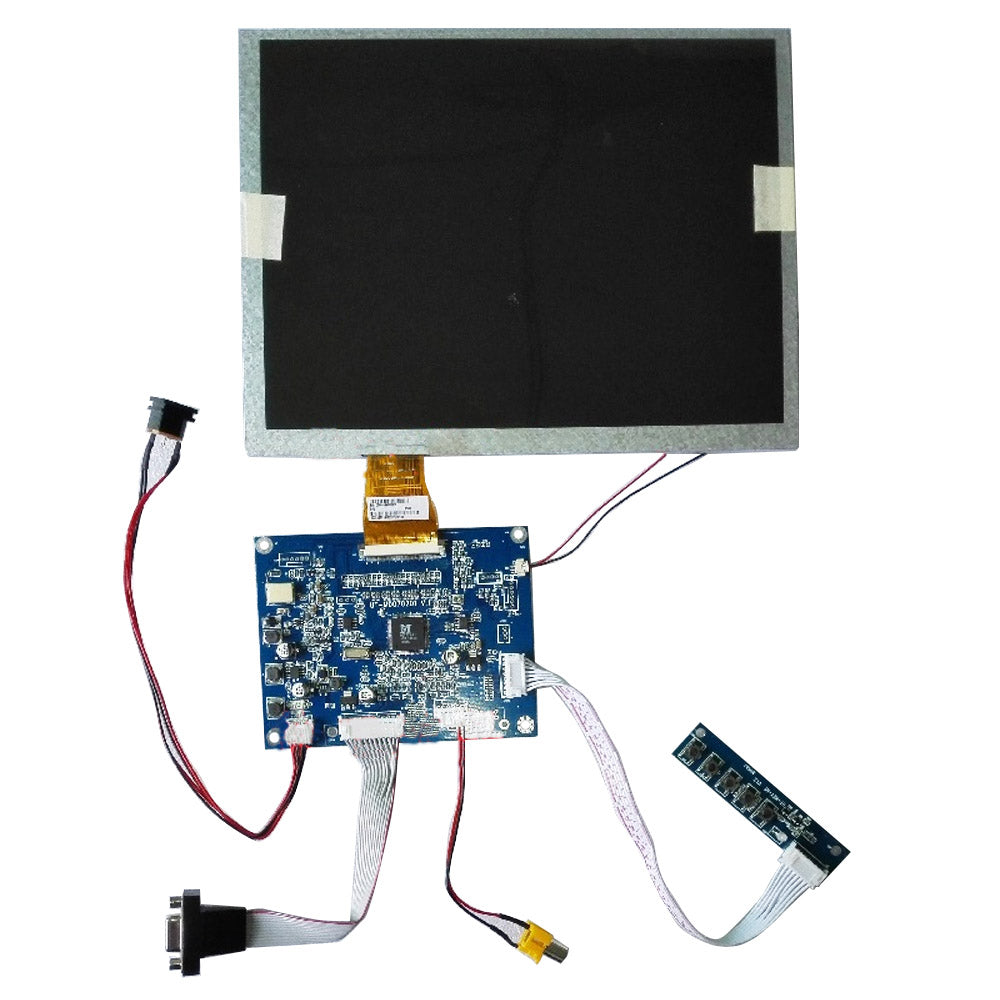

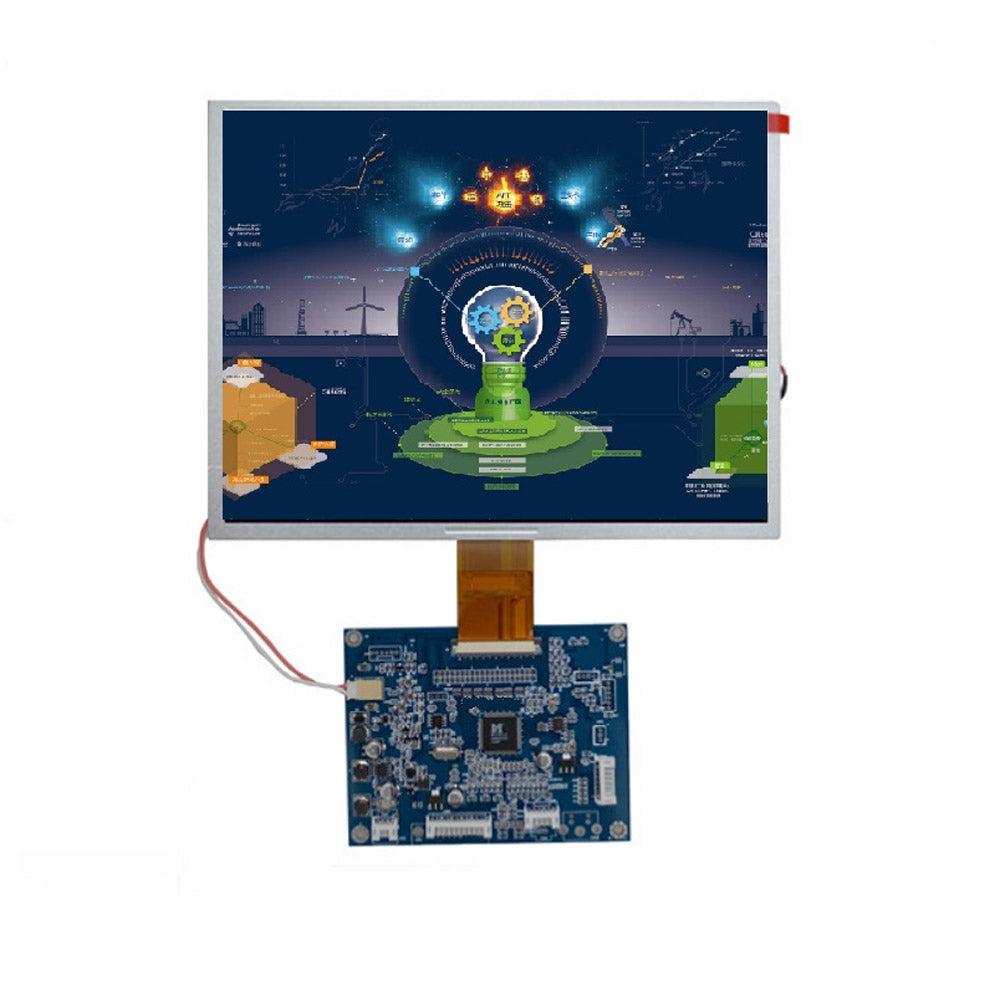

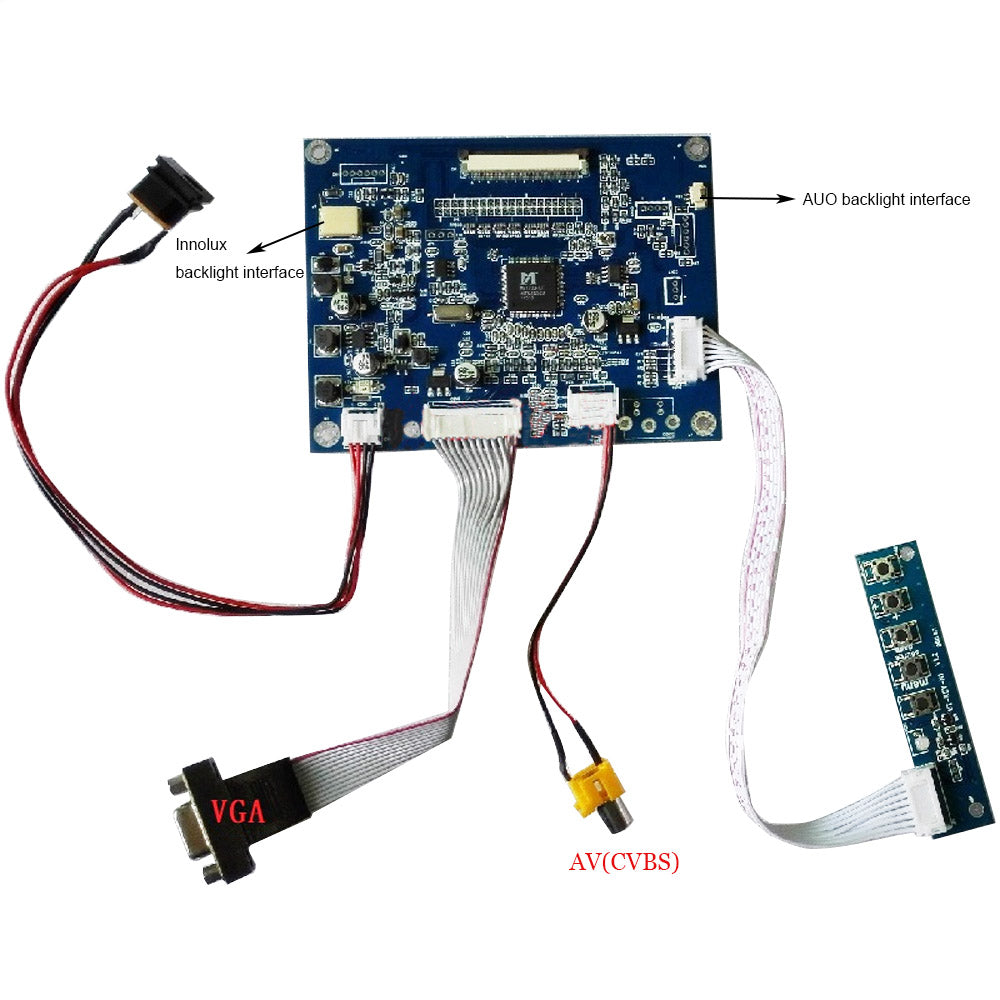

Driver board parameters:
Product function description
1 VGA, CVBS (AV) video signal input (default)
2 Power input: DC 12V
3 Multi-function 5-key OSD operation
Signal input standard
3.1 CVBS: 1.0Vp-p75Ω
3.2 VGA: 800*600 640*480
working environment
4.1 Working temperature: -20℃～+60℃
4.2 Working humidity: 90%RH (no condensation)
save environment
5.1 Storage temperature: -25℃～+75℃
5.2 Storage humidity: 90%RH (no condensation)
Plate structure size: 114MM*86.4MM*9MM
The LCD driver board adopts the mature MSTAR solution, with realistic display effect and stable mass production performance.
Multi-function OSD operation
Power-on and power-off status indication (green is power-on, red is power-off)

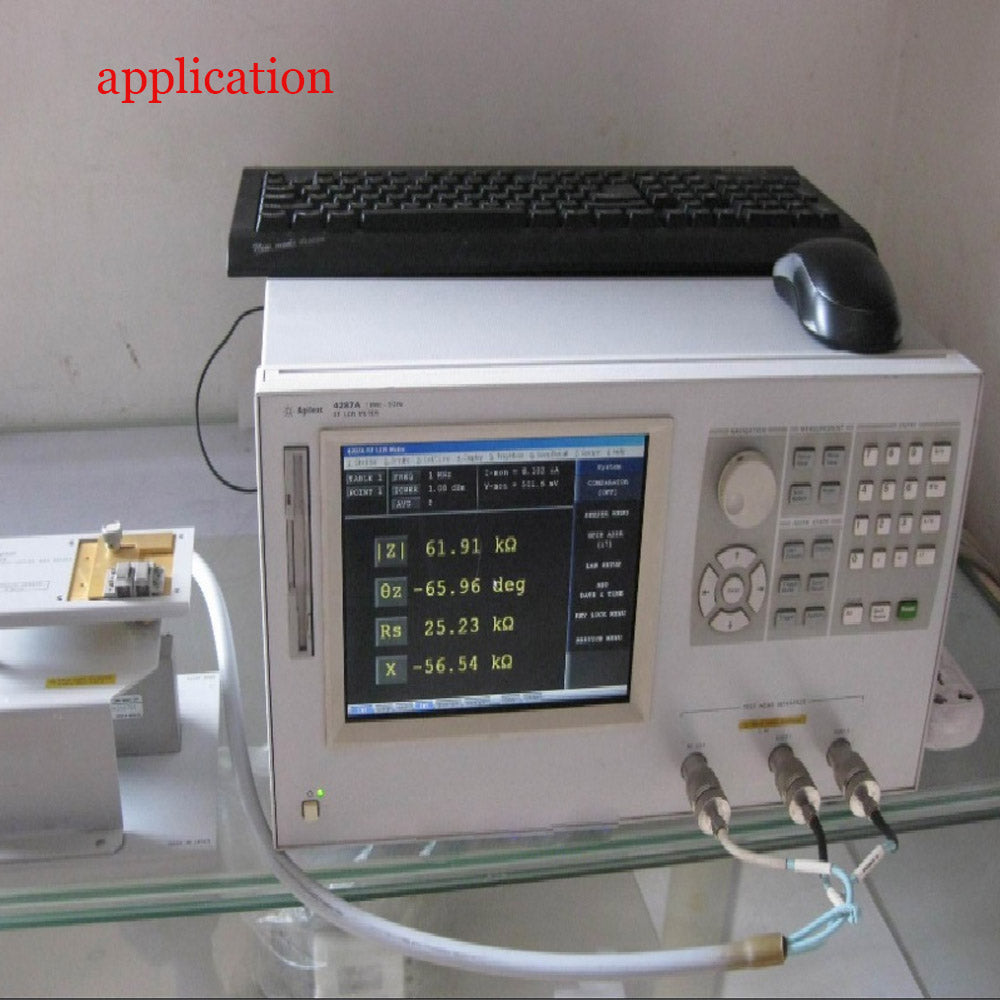

Widely used in instrumentation, industrial control medical equipment, video intercom, security monitoring, textile machinery, vehicle display, bank bill acceptance instrument, supermarket cashier and many other occasions.
specification:

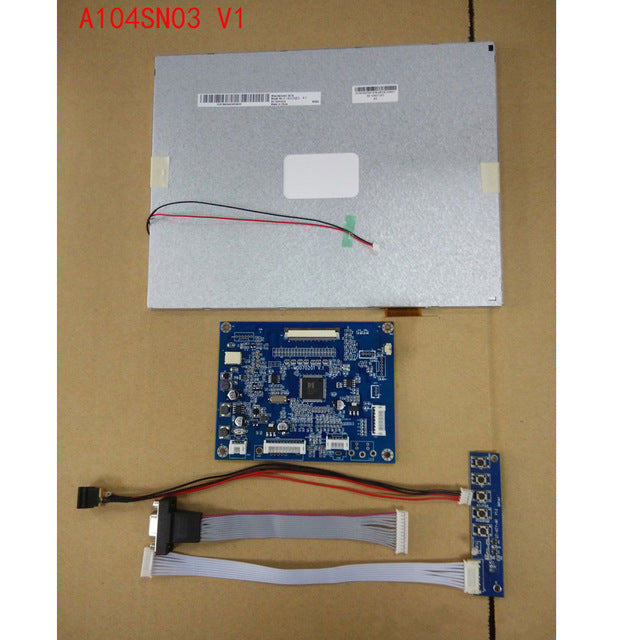

TFT-LCD: A104SN03 V1
Display Size: 10.4"
Aspect ratio: 4:3
Viewing angle: 65/65/60/65
Resolution: 800RGB(H)×600(V)
Contrast ratio: 500:1
Brightness: 250cd/m2
Interface Type: Single 60 PIN TTL
Backlight: LEDs
Response time: 10ms
Working temperature: -20℃～70℃

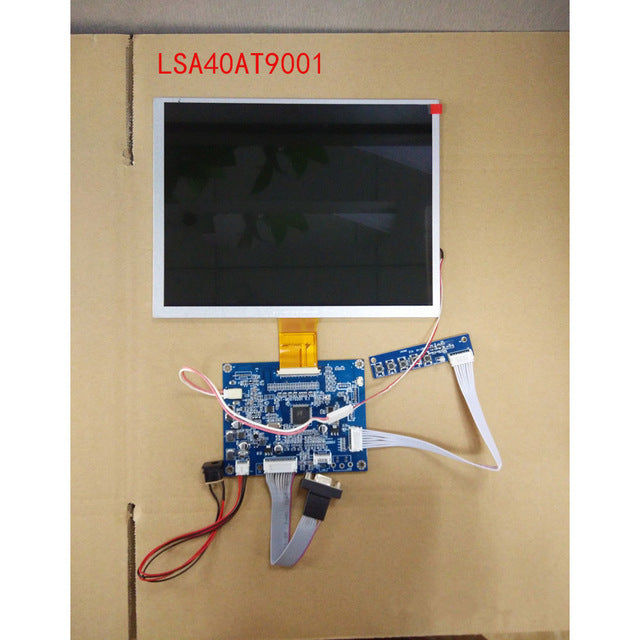

LSA40AT9001 common parameters
Product Model: LSA40AT9001
(Size) :10.4"
(Resolution) 800×600
(Display scale) 4:3
(Response) 10/15 (Tr/Td) ms
(Luminance) 250 nits
(Contrast Ratio) 500:1
(Color) 262K/16.2M
LSA40AT9001 engineering parameters
(Technology) a-Si TFT-LCD
(Interface) Parallel
(Drive-screen voltage) 3.3/10.5V (VCC/AVDD)
(Backlight) WLED
(Active Area) 211.2×158.4 mm
(Outline) 228.40× 175.40×5.90 mm-
(Viewing Angle) 50/60/70/70(Up/Down/Left/Right)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
