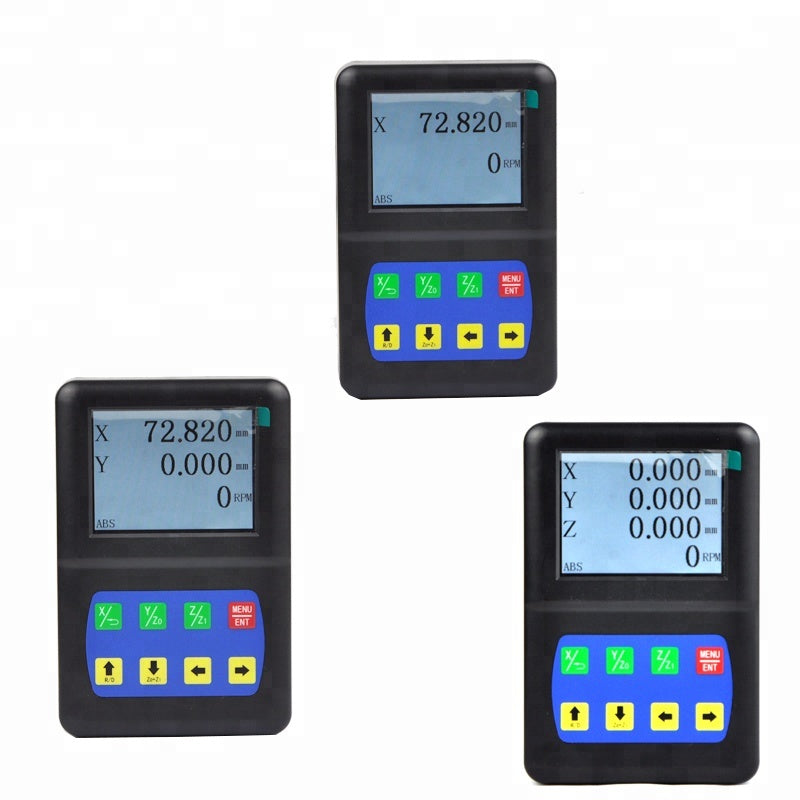

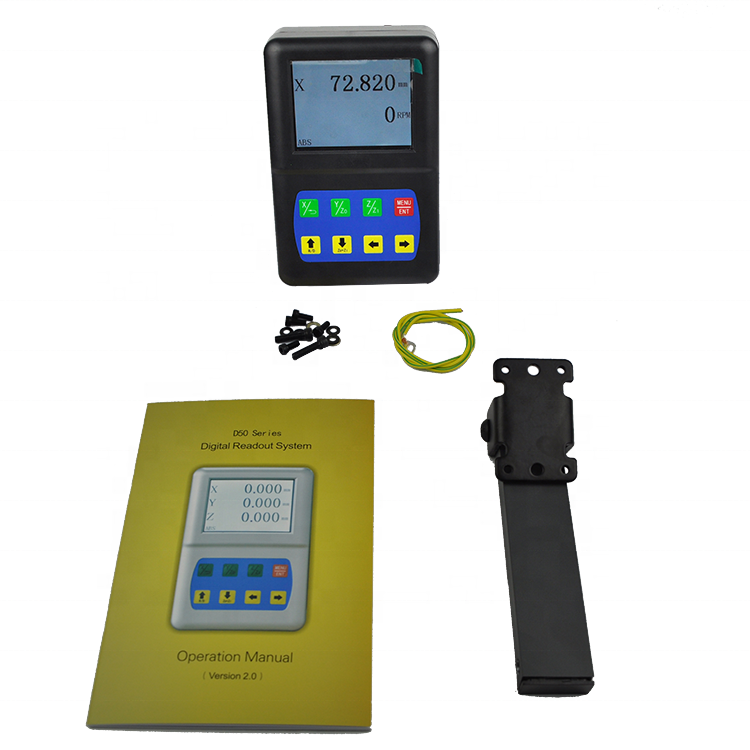

Features :
1) 3.5'' true color LCD screen . 2) Optional RPM function . 3) Optional RS232 port . 4) Lathe Z+Z1 ,Radius/Diameters conversion. 5) Smart checking the inner date and power supply. 6) Supports both linear & rotary encoders .
Technical Parameters
D50 digital readout Technical Parameters :
Voltage range
AC80V-260V / 50HZ-60HZ
Power dissipation
15W
Working temperature
-10℃-60℃
Coordinates
1/2/3 axis
Times frequency
4X
Input signal
5V TTL / 5V EIA-422-A
Input frequency
≤4MHZ
Operating keypad
Mechanical keypad
Resolution
0.1μm,0.2μm,0.5μm,1μm,5μm,10μm
Function
Function list :
Zeroing ,date recovery Input coordinates Metric / British units Power off memory Encoder selection Resolution setting Linear compensation Counting direction setting ABS/INC coordinate REF Calculator Non-linear compensation 1/2 function Radius / Diameters conversion Y + Z function Axes summing Rotational Speed Measurement / RPM (optional ) RS232 port (optional ) Linear measuring basing rotary encoder (optional )
Installation Draw
The installation drawing :

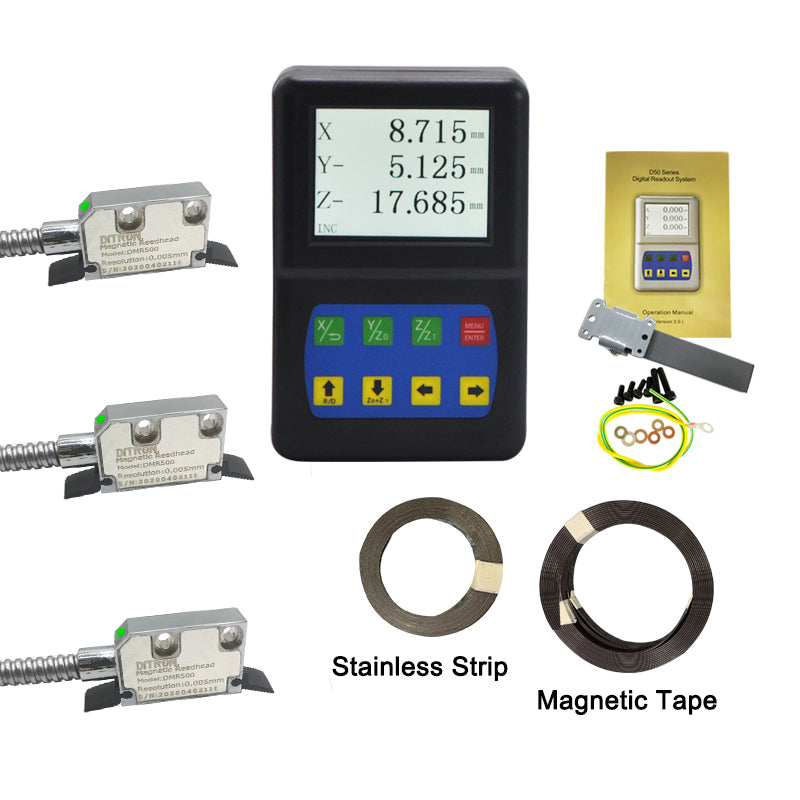

Related Products

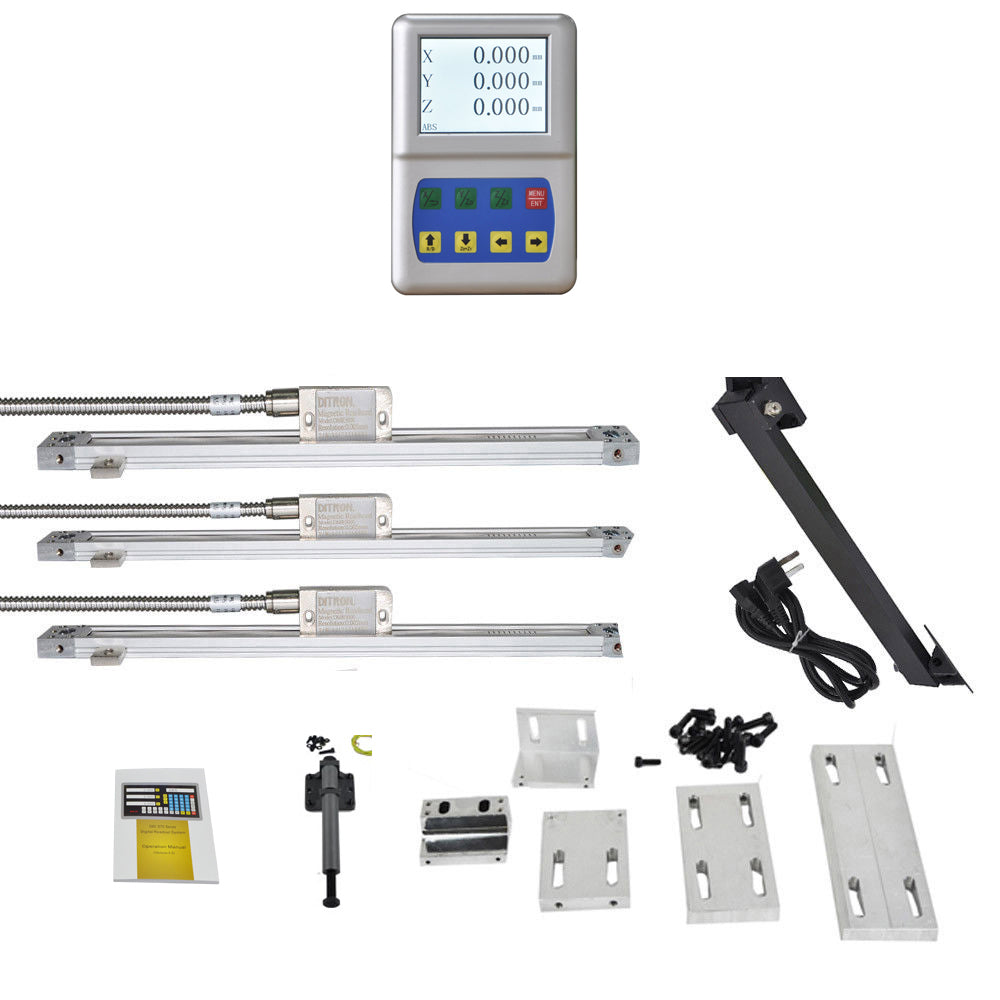

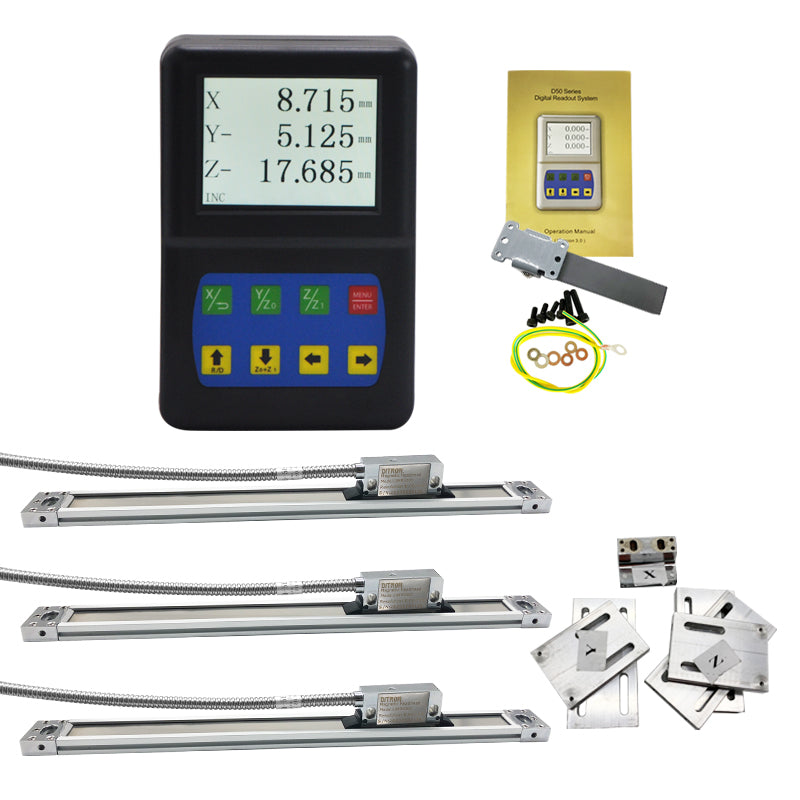

Related Linear Scale
Comparison of various parameters of DC10, DC10F, DC20:
DC10F
DC10
DC20
Measuring Length
50-600mm
50-1100mm
50-3000mm
Resolution
0.5μm,1μm, 5μm,10μm
0.1μm,0.5μm,1μm, 5μm,10μm
Output Signal
5V TTL,5V RS422
Cross Section
18*23mm
20.5*31mm
27*44mm
Accuracy
±5μ, ±10μm/M
±3μm, ±5μ, ±10μm/M
Working Temperature
-10℃-60℃
Sealing Protection
lP55
Max.Moving Speed
60M/Min
Reference Point
Every 50mm
