Specification:
- Video size: PAL(720*576); NTSC(720*480)
- Backlit type: LED dynamic video, MP4, single audio
- Storage: Flash 128MB, Mini SD(TF)card, Max.support 32GB
- Wireless receive: 5.8G 32CH -90dBm receive sensitivity
- Language: 5
- AV output: single track, video output
- AV input: single track, video input
- DC IN: 7-28V
- AAT interface: 2Pin data interface
- Antenna interface: RP SMA Inner Needle SMA Head
- Data output: 3.5mm
- USB communication: USB2.0

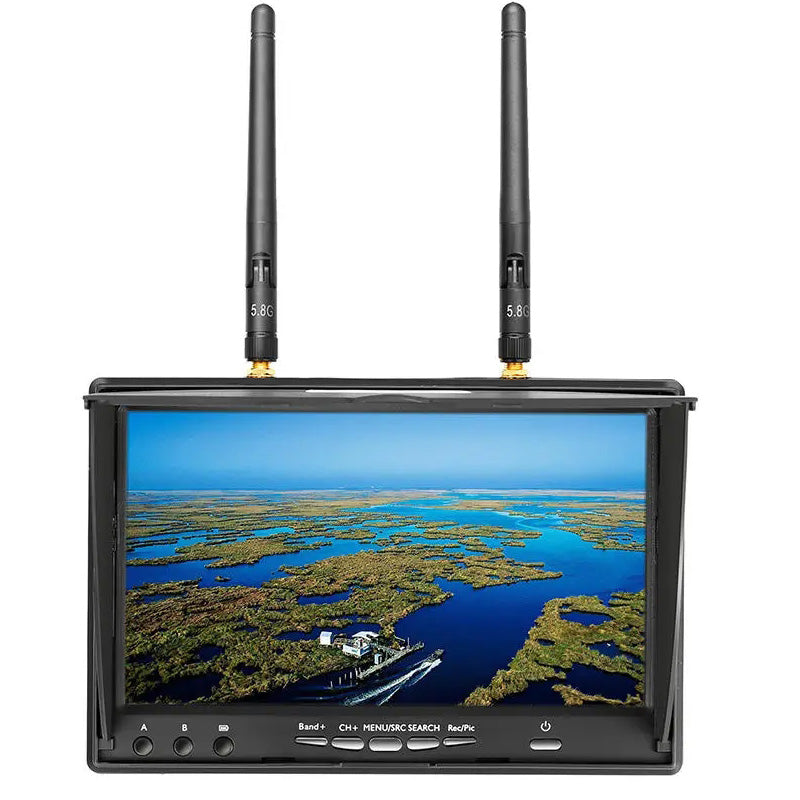

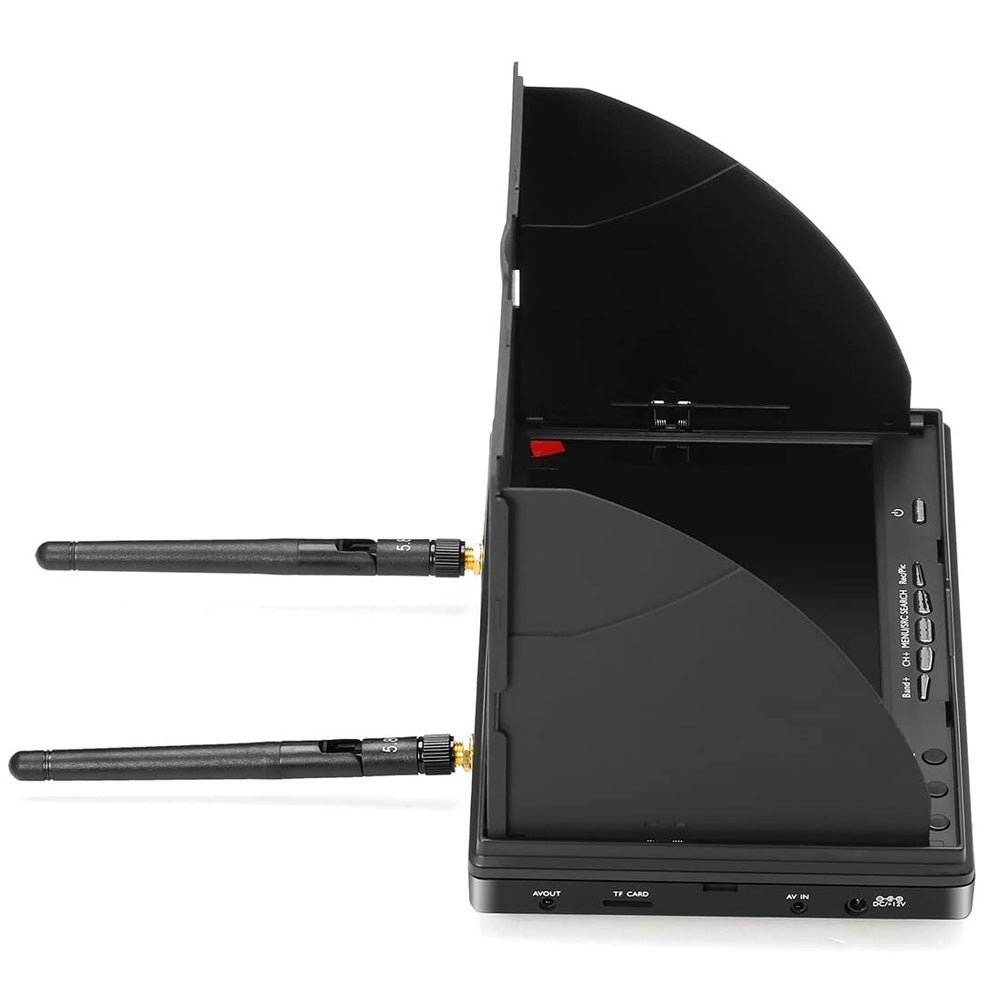

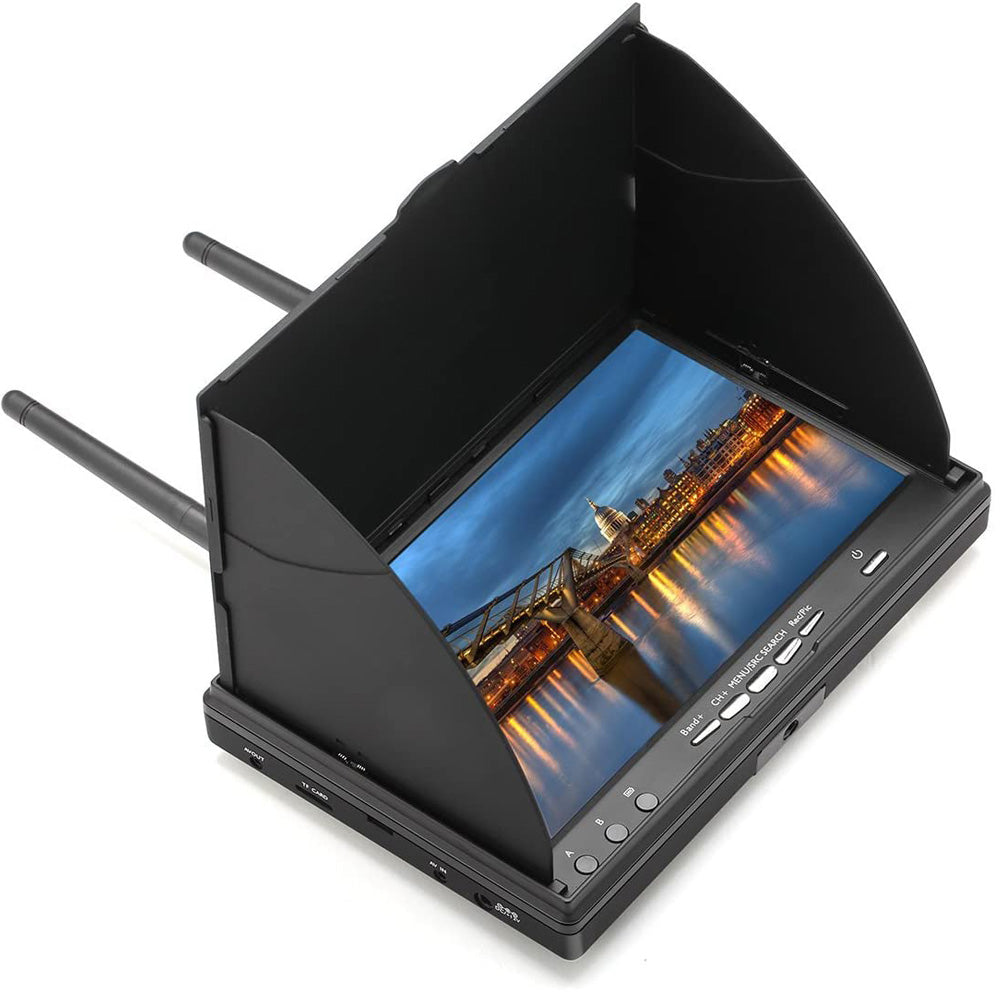

Item Name: LCD5802D Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Format: JPEG, AVI
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)
Support up to 32G , C10 SD Card.
Features:
With DVR function
Built-in Dual Receiver for best reception
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time
