Description:

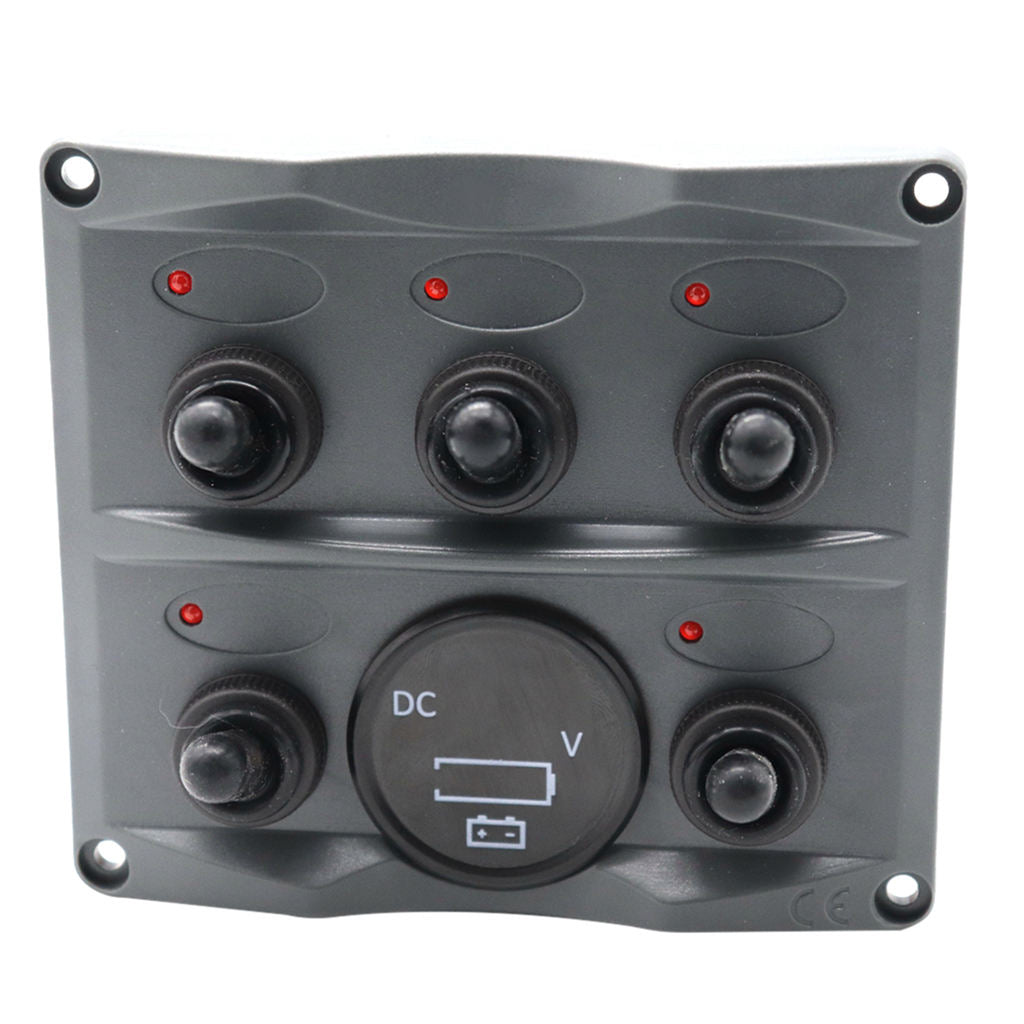

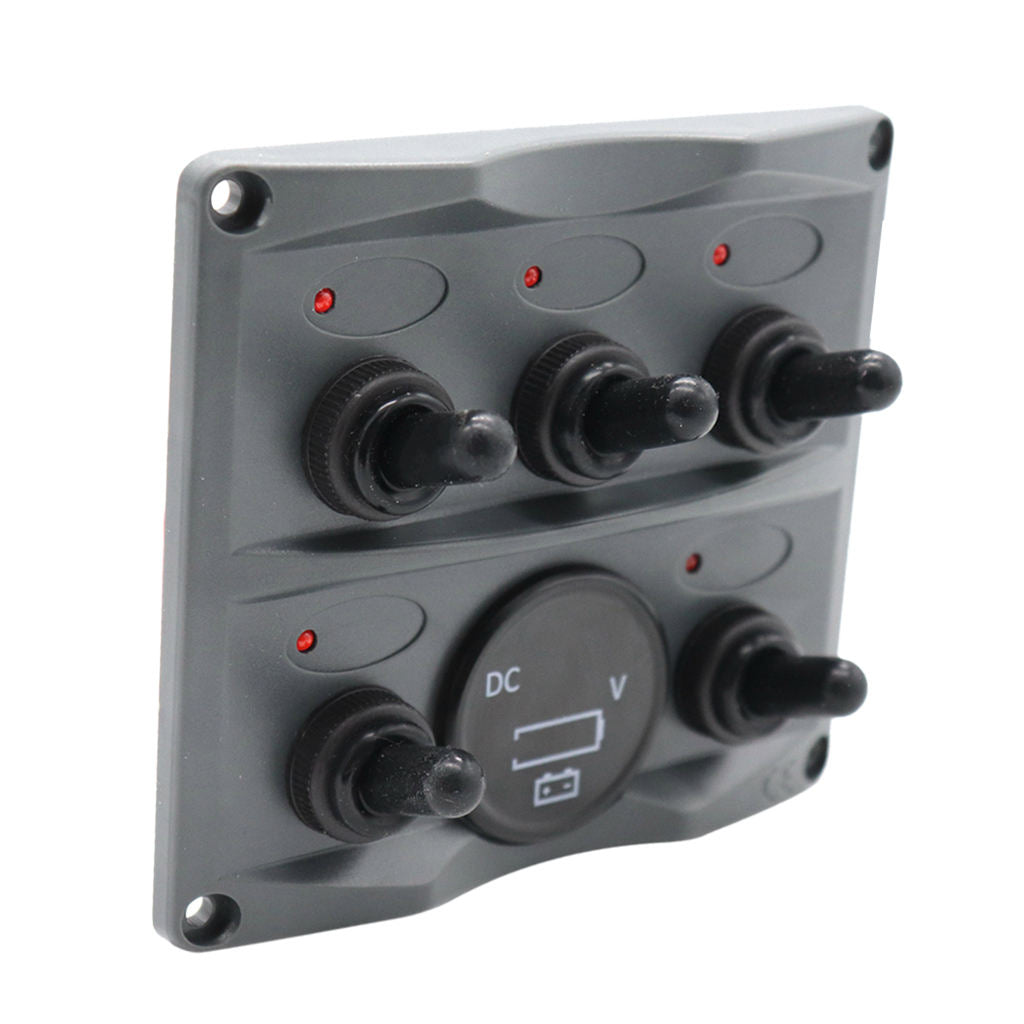

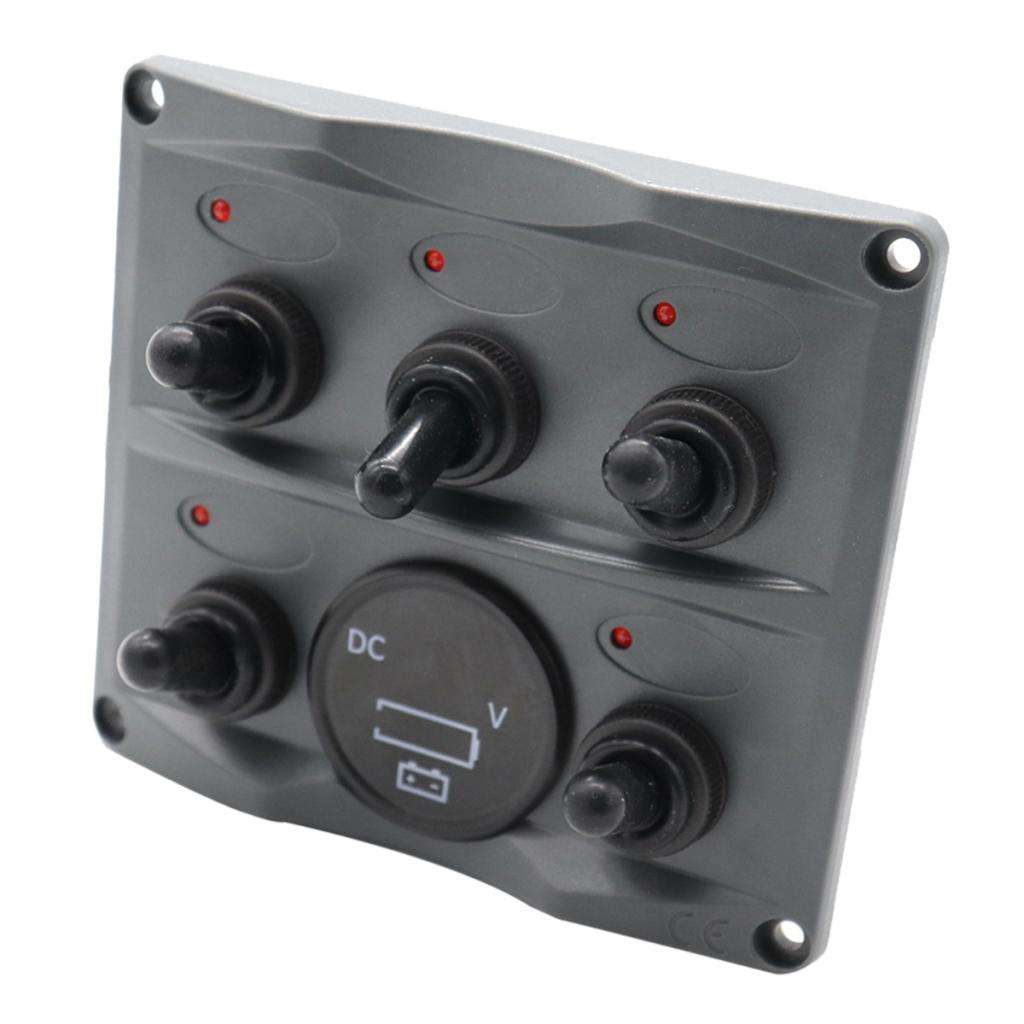

Modern Design Toggle Switch Panel with Digital Battery Gauge (Dark Gray) LED indication when switched on
LED indication when switched on IP66 rated – protected against power jets
IP66 rated – protected against power jets
Introducing the new design of heavy-duty toggle switch panels with compact panel size and competitive price. All switches and sockets are equipped with water-resistant PVC boots or caps. Hidden LED behind label stickers gives clear indication when the switches are turned on while maintaining the sleek design
Specification:
Features
Compact panel size
Unique trendy faceplate design
Heavy duty metal toggle switches with water-resistant PVC boot
Water-tight mounting gasket included
LED indication when device turned ON
28pcs assorted label stickers included
Compact Size with 3 digital LED display
Easily recognizable Battery Status LEDs
12 / 24V systems auto detect (compatible to both systems)
Completely sealed with no opening
Reverse polarity input protection
Self-powered from measuring DC voltage
Spray-proof in-line ATP/ATC fuse holders with fuses pre-installed
Specification
Faceplate: Sleek Design Plastic (ABS)
Circuit Protection: IIn-line 15A ATP fuses pre-installed (per 2 branches)
Switch Ratings: 15A @ DC 12V / 10A @ DC 24V (Dual Voltage)
Panel Rating: Max Cumulative Amp: 25A per 2 branches(Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
Product Dimensions (W x H): 107 x 95mm
Mounting Depth: 95mm
Panel Cut-out (W x L): 93 x 76mm
Certification: CE; IP66
Package Includes:
1 Piece Switch Panel
4 Pieces mounting screws
28 Pieces label stickers
