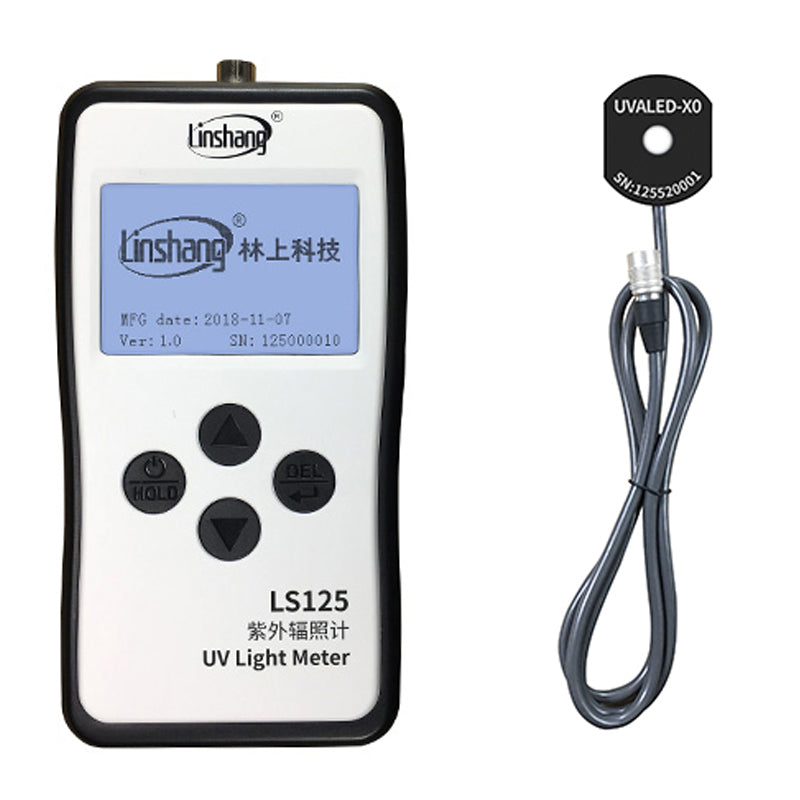

Linshang UVALED-X0 Probe Sensor for LS125 Ultraviolet Intensity Meter Test Power

Energy Of 365nm 395nm UV LED Of Curing Machine

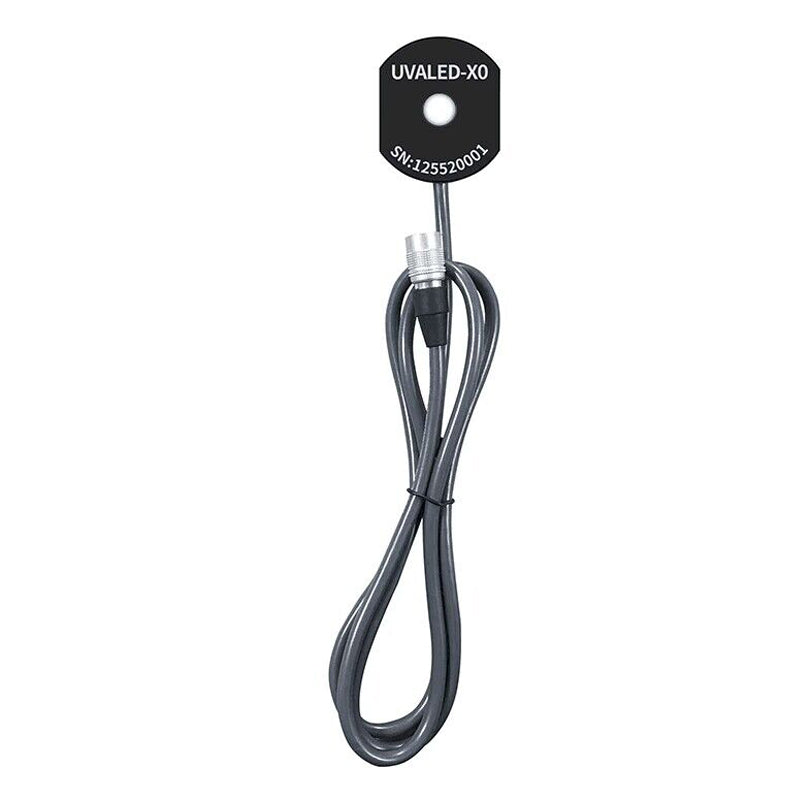

(Notes: This link only includes UVALED-X0 Probe )

 LS125 Product Features:

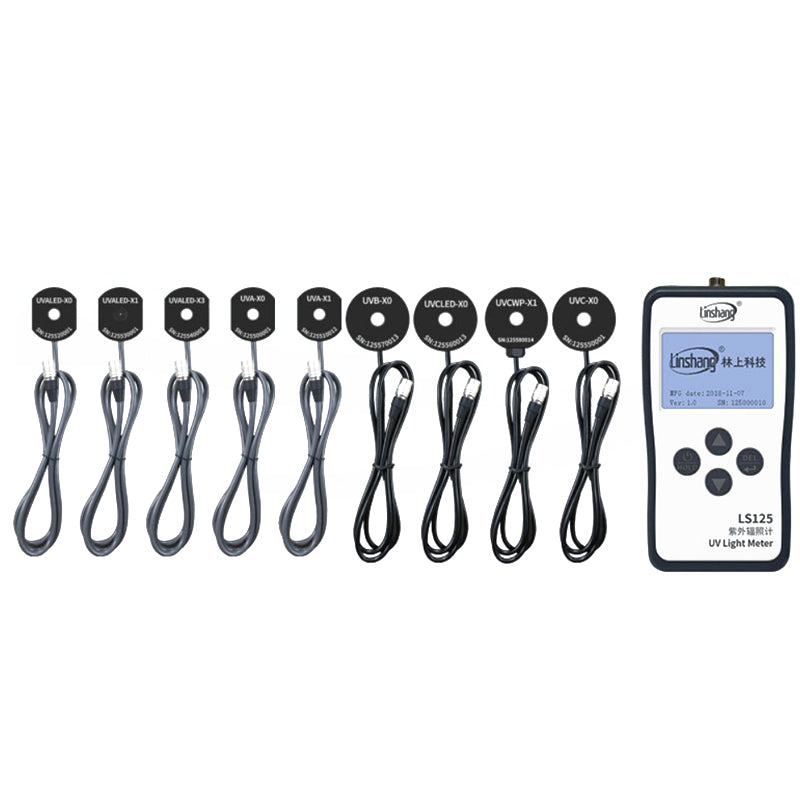

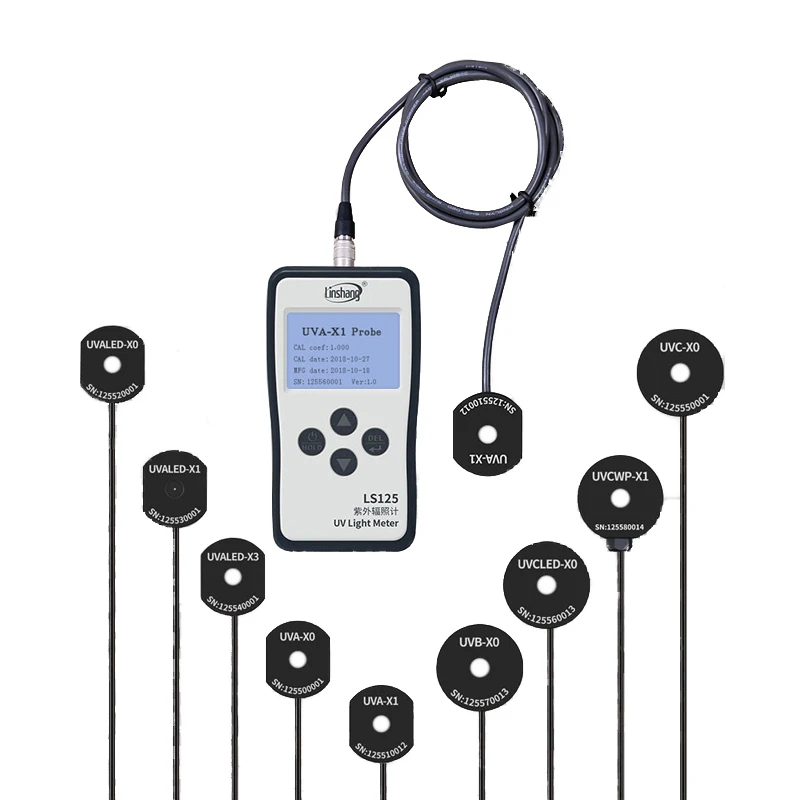

1.Replaceable probe design, support 9 UV probes.

 2.Advanced digital probe technology, it has high precision and good anti - jamming ability.

 3.Instrument intelligent recognize probe type and adjust the display interface intelligently.

 4.A variety of spectral range, measuring range, test hole size of the probe to adapt to different application industries.

 5.For LED point light source, 1mm test hole can make it more convenient to measure.

 6.Statistical functions, real-time value, maximum value, minimum value, average value, time, energy values are displayed at the same time.

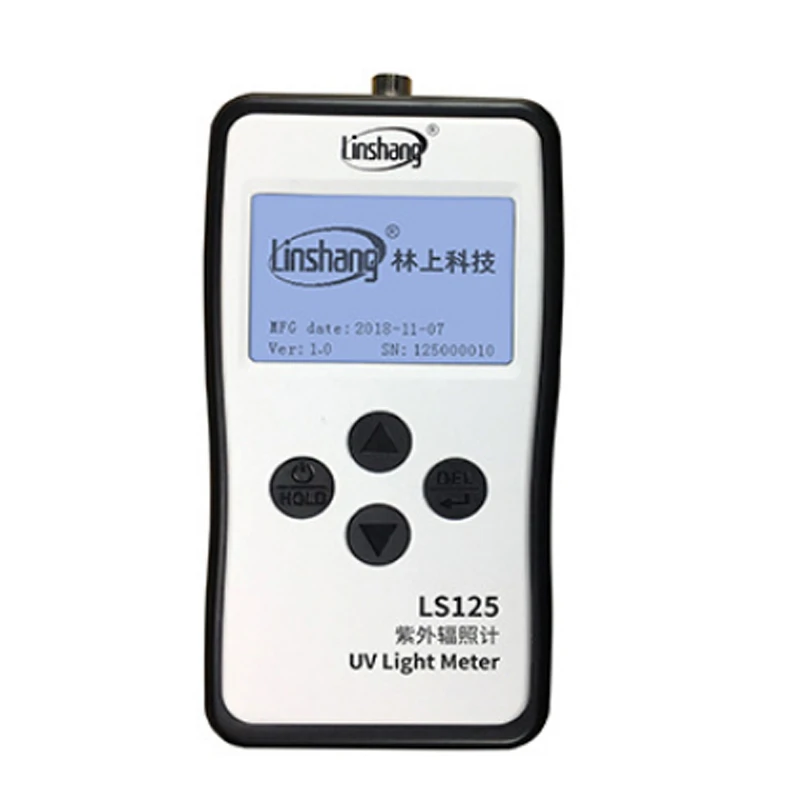

   Instrument Paramete LS125 UV Light Meter:

   weight About:194g

   Instrument size: 148mm*76mm*26mm (L*W*H)

   Display: 240*160 dot matrix LCD

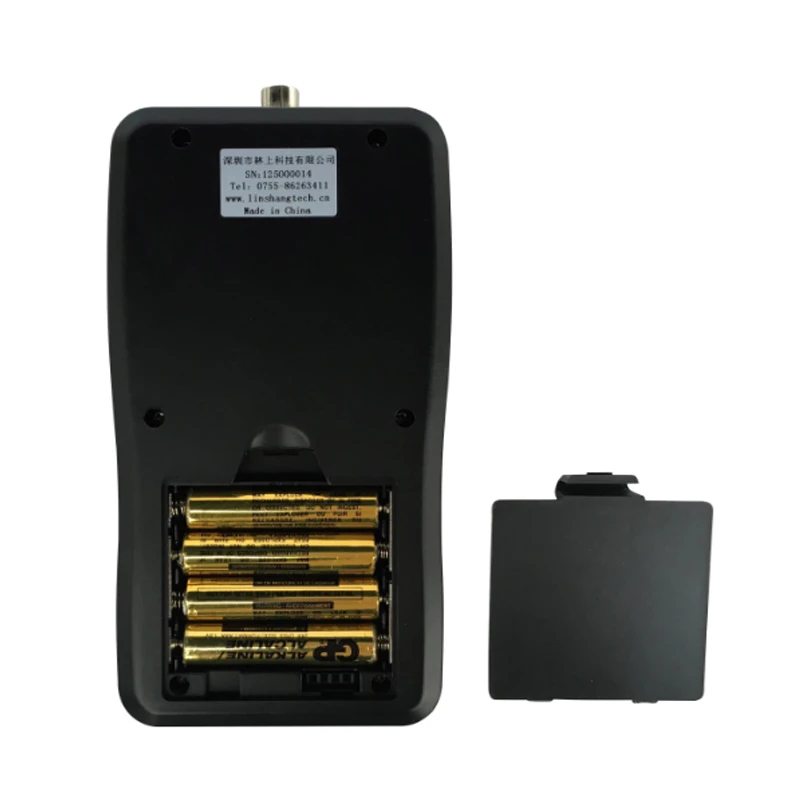

   Power supply: 4 AAA alkaline batteries (not include)

   Probe connection Push pull (Snap-in style)，Aviation socket

 Precautions:

 1. When not in use, please power off the instrument.

 2. Avoid contacting with corrosive materials and keep away from high humidity.

 3. After shutdown, store it in a special packing box and keep it in a safe place. Protect the photosensitive part of the probe from polluting.

 4. The recommended period of calibration is one year.

 5. Because the UV probe is sensitive to humidity changes, the environment in which it is stored is important. When not in use for a long time, be sure to store the instrument in a low humidity environment.

 6. When the instrument displays low battery, replace the battery.

Product selection and application：

      Number

   Probe model

   Band range

   Spectral response

   Application industry

       1

   UVC-X0

   UVC

   230nm-280nm

   Intensity and Energy Test of 254nm High Power Ultraviolet Germicidal Mercury Lamp

       2

   UVCWP-X1

   230nm-280nm

   Water treatment 254nm germicidal mercury lamp intensity and energy test, waterproof 1m deep

       3

   UVCLED-X0

   240nm-320nm

   Strength and energy test of 260nm-285nm LED germicidal lamp

       4

   UVB-X0

   UVB

   280nm-315nm

   Intensity and energy test of 297nm, 308nm, 313nm and other UVB light sources

       5

   UVA-X1

   UVA

   260nm-400nm

   Detection of ultraviolet intensity and energy in ultraviolet aging chamber and sunlight

       6

   UVA-X0

   315nm-400nm

   UV curing, high pressure mercury lamp intensity and energy test

       7

   UVALED-X0

   340nm-420nm

   UV curing, UVLED surface light intensity and energy test

       8

   UVALED-X1

   340nm-420nm

   UV curing, UVLED point light intensity and energy test

       9

   UVALED-X3

   340nm-420nm

   Intensity and energy test of low power UVLED light source

Model selection according to measuring range and size of test optical hole:

      Number

   Probe model

   Range

   Test aperture

       1

   UVC-X0

   0 - 20000μW/cm²

   Φ10mm

       2

   UVCWP-X1

       3

   UVCLED-X0

       4

   UVB-X0

       5

   UVA-X1

       6

   UVALED-X3

       7

   UVA-X0

   0- 2000mW/cm²

       8

   UVALED-X0

   0- 20000mW/cm²

       9

   UVALED-X1

   Φ1mm

Suggestions on probe collocation in typical application industries：

Universal UVA+UVB probe series：

      Probe model/

Parameter

UVB-X0 Probe

UVA-X1 Probe

UVA LED-X3 Probe

         Spectral response

   280nm-315nm

Calibrated at 297nm

   260nm-400nm

λp=365nm

   340nm-420nm

Calibrated at 395nm LD light source

       Power measurement range

   46mm×16.5mm

   39mm×32mm×15mm

       Power resolution

   0-200000μW/cm²

       Energy measurement range

   0.1μW/cm²

       Record time

   0-9999999μJ/cm²

       Measurement accuracy

   0-99999s

       Sampling speed

   ±10%

       Selectable unit

   6times/s

       Diameter of test optical hole

   μW/cm²(Default)，mW/cm²,W/m²

       Probe size

   Φ10mm
