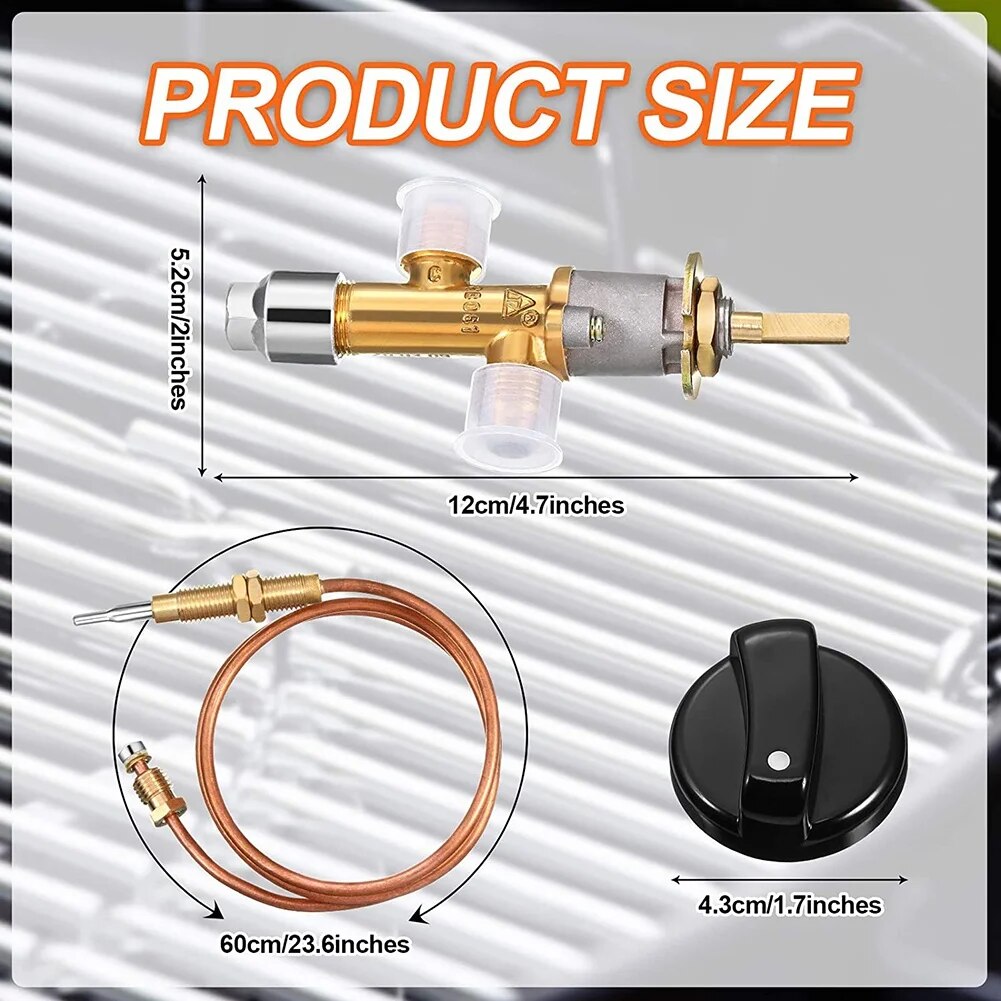

Specifications:

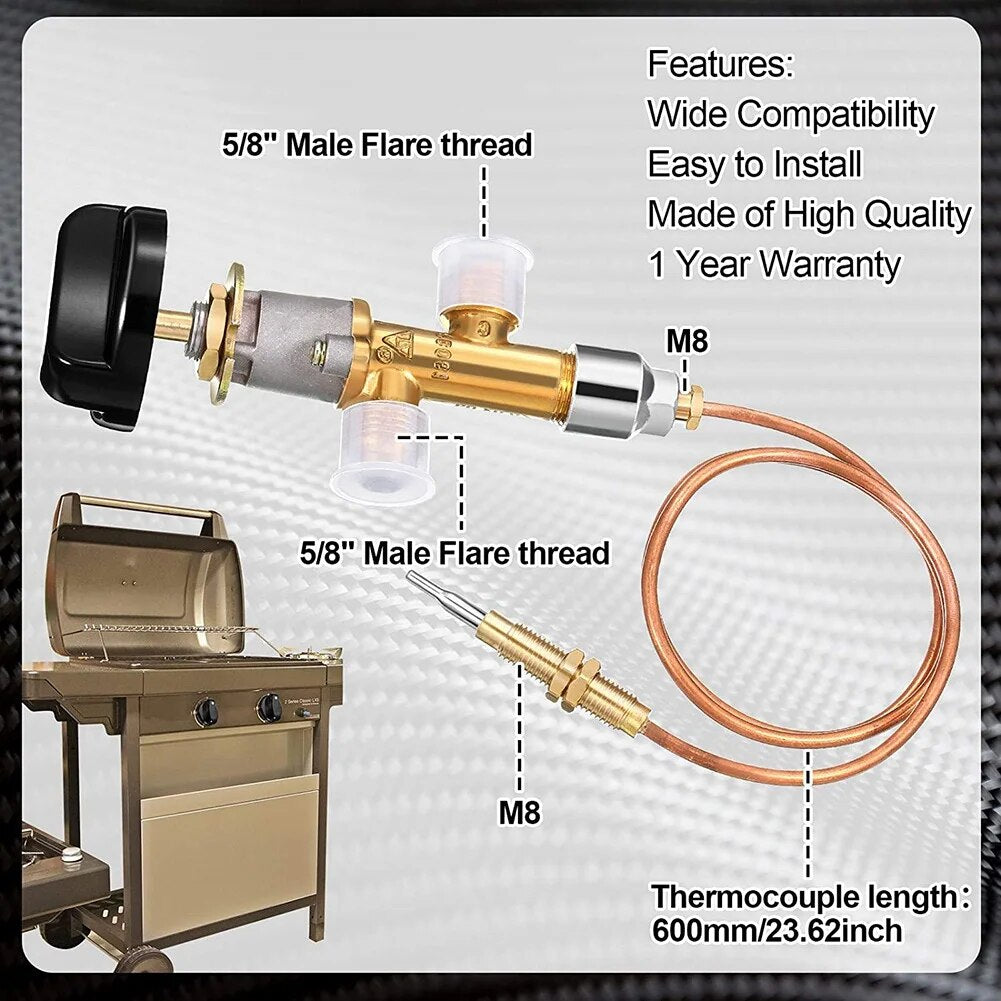

600mm thermocouple with M8*1 threaded head
Bakelite knob OD 38mm, D shaft 6.1mm
Operation Instructions
1. Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
2. Connect your inlet and outlet hose on inlet and outlet side. (fix it tightly enough in case of gas leakage)
3. Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy)
4. Connect thermocouple and end thread well
5. Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6. Release your hand and it work properly If when you release hand, gas valve shut off again, please check
If your thermocouple is always be heated on flame
If the thermocouple end is well connected with valve
If the inlet and outlet side well connect with hose you have
Colour: yellow
Material: copper
Package Contents:
1 x Gas Control Valve
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
