LS126C Uv Aging Tester Radiometer Uvc Ultraviolet Light Meter UV Meter
Overview
LS126C UV Light Meter (2nd)
LS126C UV light meter is a professional instrument for measuring the intensity of UVC lamps, that is, the power of ultraviolet radiation energy per unit area. The UV radiometer is delivered with a 1-meter test hook. The LS126C UVC light meter also has a wireless data transmission function. After connecting with the mobile phone APP, it can monitor the intensity of the UVC lamp in real time from a certain distance to avoid UV burns during the test.
uv aging testerradiometer uvcultraviolet light meter
Application
Parameters
Parameters
LS126C UV Light Meter
Spectral response
230nm-280nm, λp = 254nm
Measuring range
0 - 20000 μW / cm²
Resolution
0.1μW / cm²
Measuring accuracy
±10%
Power value storage interval
1s/10s/60s optional
Recording period
10 min / 100 min / 600 min
Wireless transmission distance
50 meters (open space)
Instrument size
148mm ×76mm ×26mm (L*W*H)
Probe size
Diameter 39mm × thickness 15mm
Probe wire length
1 meter
Weight
About 300 g
Display
240*160 dot matrix LCD
Battery
4 AAA alkaline dry batteries
Features
1. The LS126C UV intensity tester is based on the detection requirements of 1 meter distance specified in the " WST 367-2012 Regulation of disin fection technique in healthcare settings " and a 1 meter test hook is provided.
2. The UVC light meter comes with a wireless data transmission function. After connecting a dedicated mobile phone APP, the data can be wirelessly monitored from a certain distance to avoid being burned by ultraviolet rays when viewing the data on site.
3. LS126C UV irradiance meter has intelligent statistical data function, real-time statistics of real-time power value, maximum value, minimum value, average value in measurement data, measurement duration and test date.
The real-time clock function can be used to trace the test date of historical data.
4. The UV light meter can be set to automatically shut down within 0-10 minutes. The test data will be automatically saved when the instrument is turned off, enabling unattended measurement. The NO.1 data displayed on the screen when the machine is turned on is the latest test data. The instrument can record a total of 25 sets of data.
5. The UV radiometer uses high-precision UVC filters and professional UV sensors to eliminate the influence of light intensity in the UVA and UVB bands on the data. As shown below.

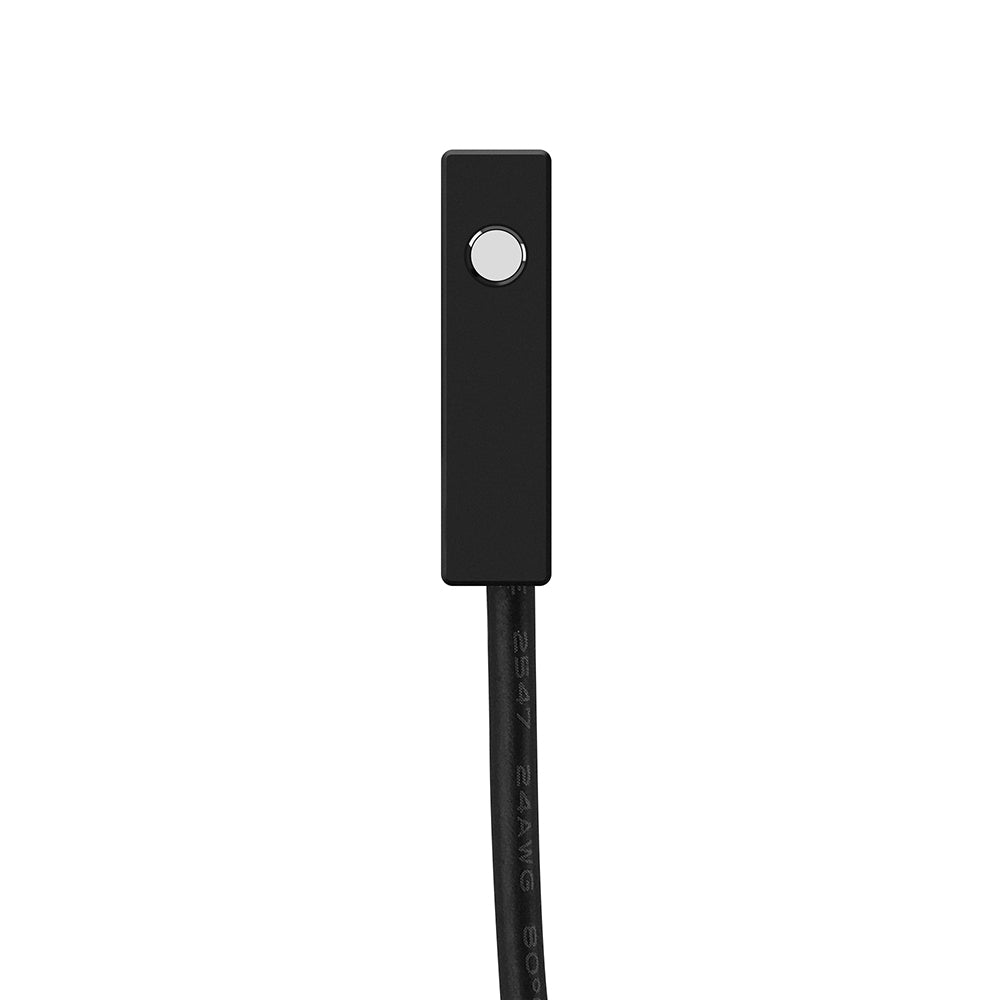

6. Using advanced digital probe technology, digital signal processing is done directly on the probe, the probe is not susceptible to interference and provides excellent test accuracy.
7. LS126C UV intensity detector is equipped with USB communication port and dedicated PC software. The test data can be exported to the EXCEL by computer software. The test report can also be generated and printed.
uv aging testerradiometer uvcultraviolet light meter
8. When the instrument is off, long press the power button to enter into the parameter setting mode. For detailed steps, please refer to the picture below.
(1) Set whether auto power off is required
(2)Setting the data storage interval or auto power off time
(3) Set whether to display the date / time
(4) Setting the date / time
Qualification and Standards
1. " WST 367-2012 Regulation of disin fection technique in healthcare settings " A.3 Monitoring of the Effect of Ultraviolet
(1) UV light meter measurement method
After turning on the UV lamp for 5min, place the UV light meter probe with a measuring wavelength of 253.7nm at the center of 1m
vertical distance under the tested UV lamp. The special UV lamp is measured at the recommended distance. After the meter is
stable, the displayed value is the irradiance value of the ultraviolet lamp.
(2) Judgment of results
For ordinary 30W straight tube UV lamps, the irradiation intensity of the new lamp should meet the requirements of GB 19258; the
use of ultraviolet lamp irradiation intensity ≥70μW / cm² is qualified; the 30W high-intensity ultraviolet lamp irradiation
intensity ≥180μW / cm² is qualified.
2. LS126C UV light meter meets national standards
JJG 879-2015 Verification Regulation of Ultraviolet Radiometers
Paramenters
Parameters
LS126C UV Light Meter
Spectral response
230nm-280nm, λp = 254nm
Measuring range
0 - 20000 μW / cm²
Resolution
0.1μW / cm²
Measuring accuracy
±10%
Power value storage interval
1s/10s/60s optional
Recording period
10 min / 100 min / 600 min
Wireless transmission distance
50 meters (open space)
Instrument size
148mm ×76mm ×26mm (L*W*H)
Probe size
Diameter 39mm × thickness 15mm
Probe wire length
1 meter
Weight
About 300 g
Display
240*160 dot matrix LCD
Battery
4 AAA alkaline dry batteries
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
