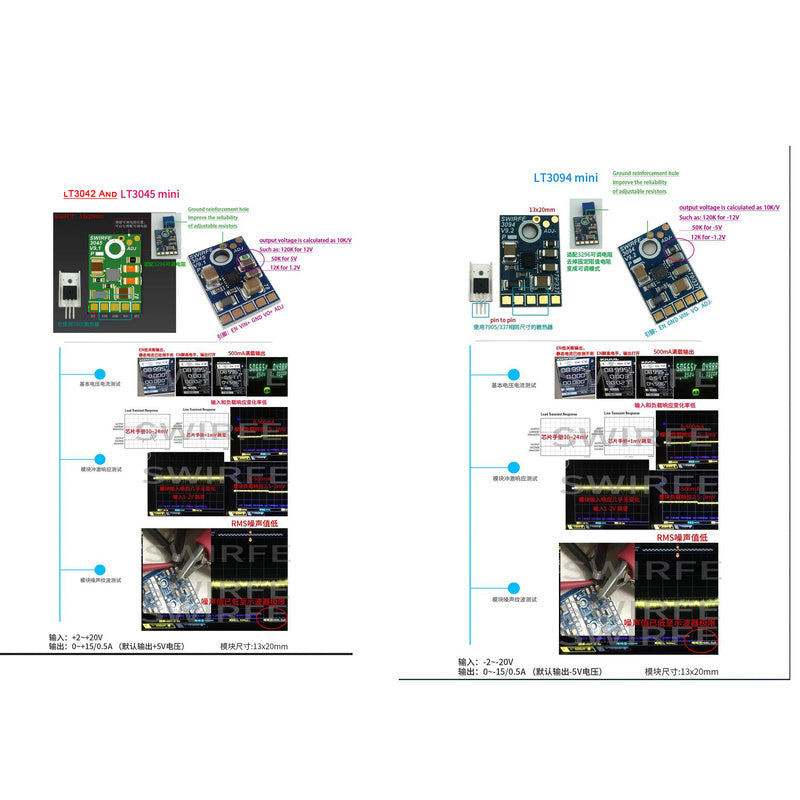

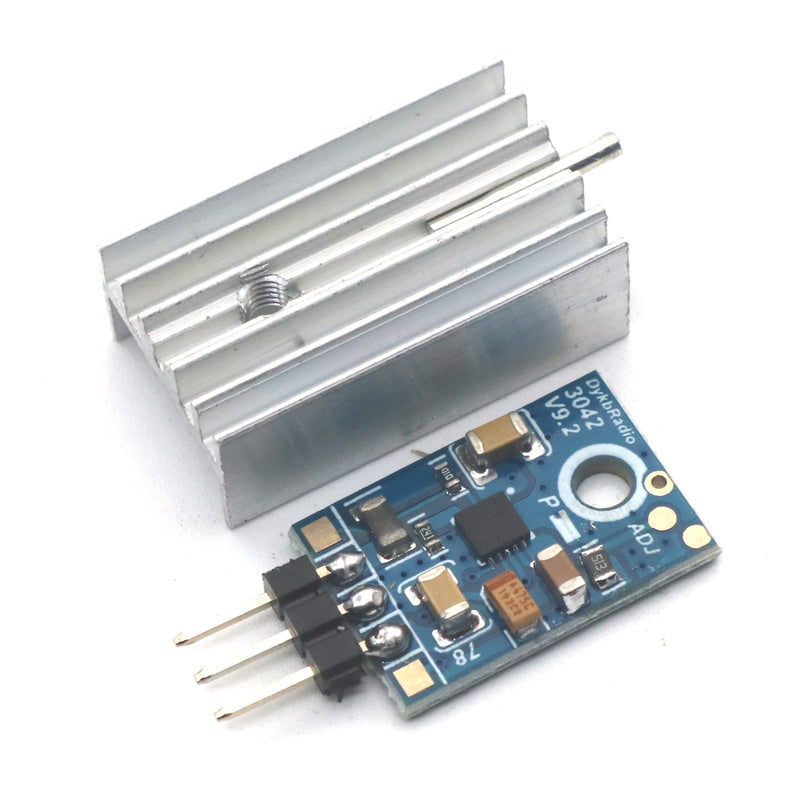

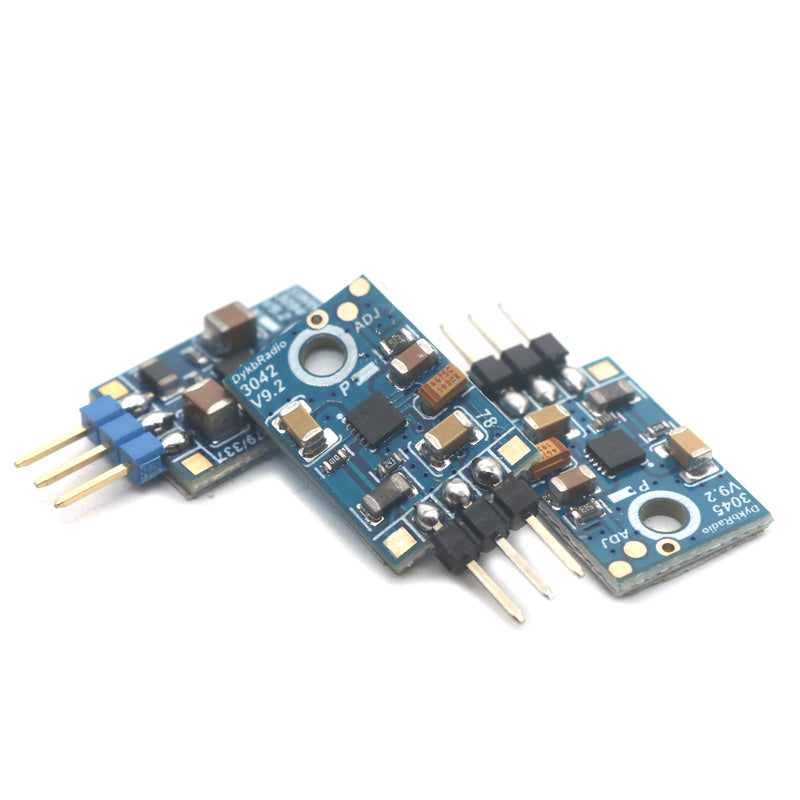

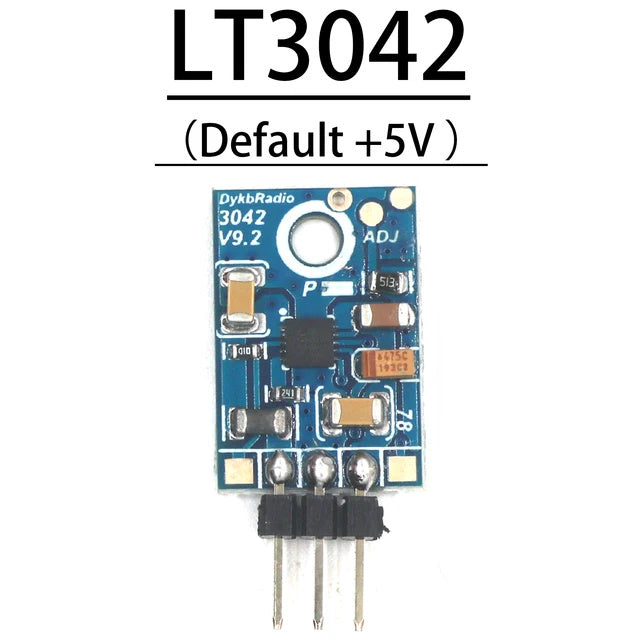

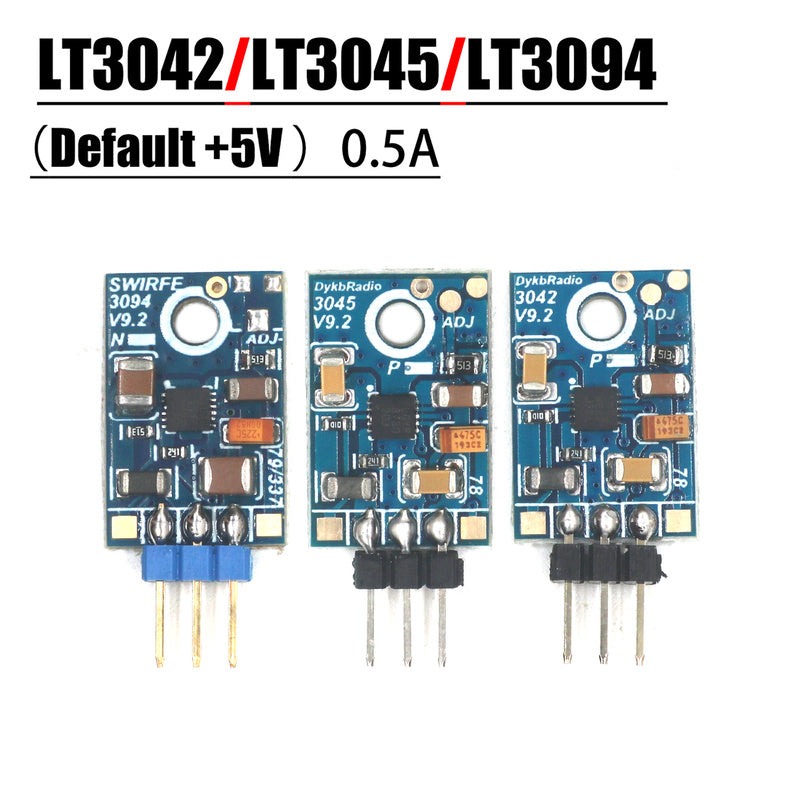

LT3042 Power module
Input : +1.8~ +20V
output : 0~ +15V/ 0.5A Default +5V
size : 13x20mm

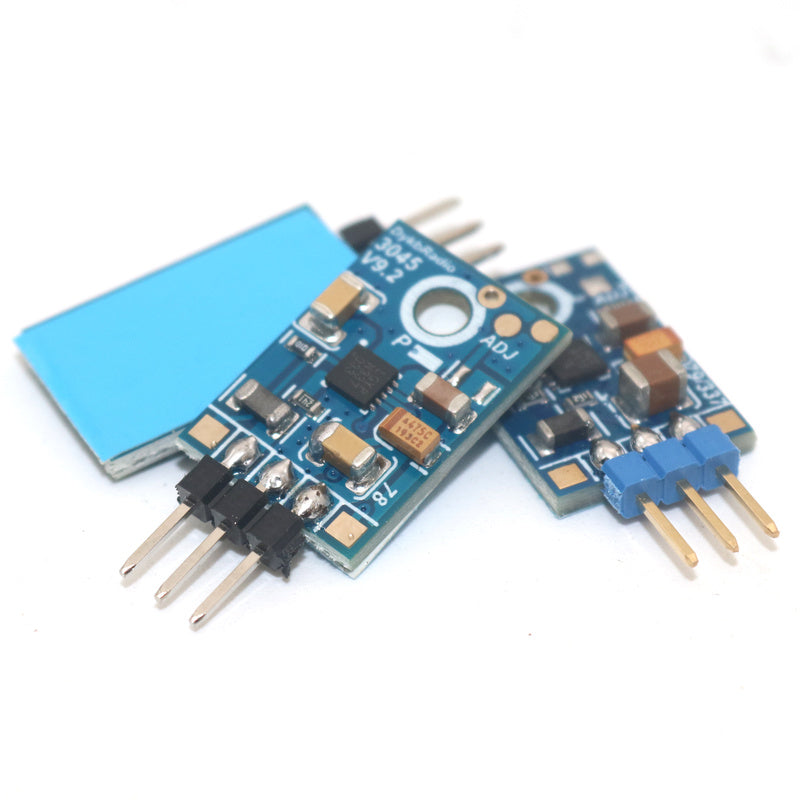

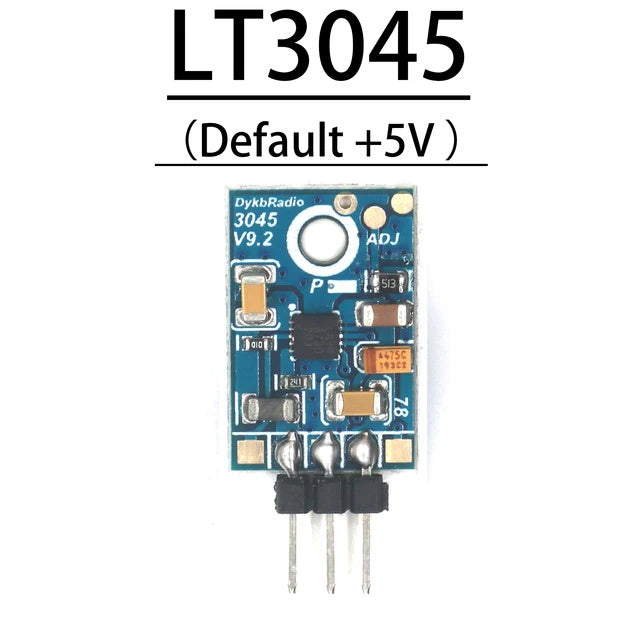

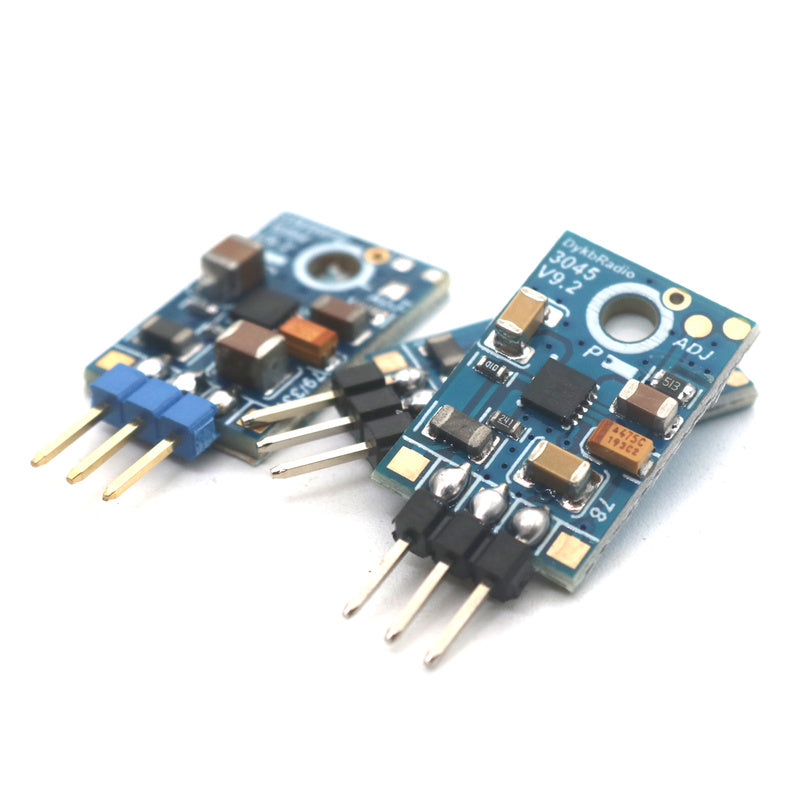

LT3045 Power module
Input : +2~ +20V
output : 0~ +15V/ 0.5A Default +5V
size : 13x20mm
Other voltages need to be modified by yourself
output voltage is calculated as 10K/V
Such as: 120K for 12V
50K for 5V
12K for 1.2V

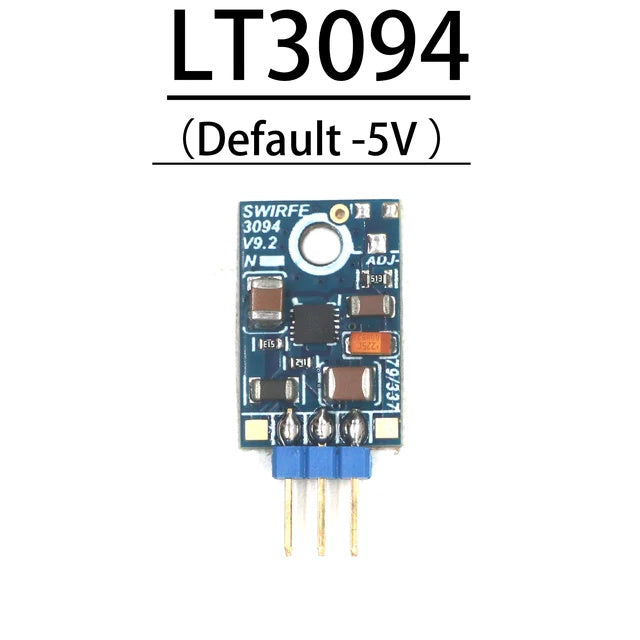

LT3094 Power module
Input :-2~ -20V
output : 0~-15V/ 0.5A Default -5V
size : 13x20mm
Other voltages need to be modified by yourself
output voltage is calculated as 10K/V
Such as: 120K for -12V
50K for -5V
12K for -1.2V
Pin description
VIN+ pin: power input, the maximum input voltage is 20V.
VIN-pin: power input, maximum -20V input voltage.
GND pin: power ground.
Vo+ pin: power output, range 0~+15V, default +5V output voltage.
Vo-pin: power output, range 0~-15V, default -5V output voltage.
EN pin: Not used by default. Ground to turn off the output, leave it open or connect to the input VIN+ to turn on the output. When in standby, the EN pin is grounded to reduce power consumption and power saving.
ADJ foot: Not used by default. Use this pin w
