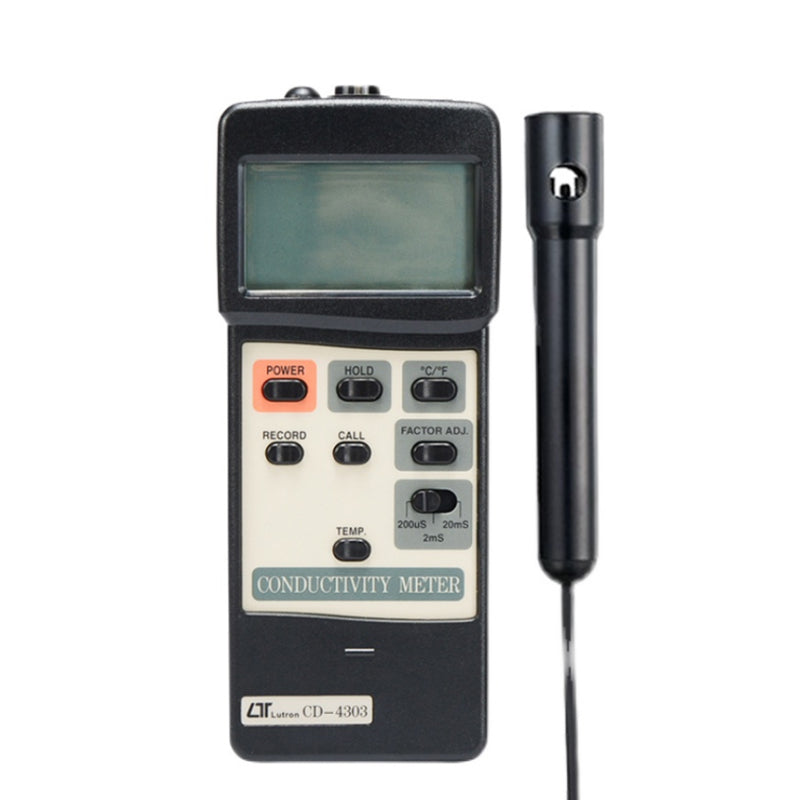

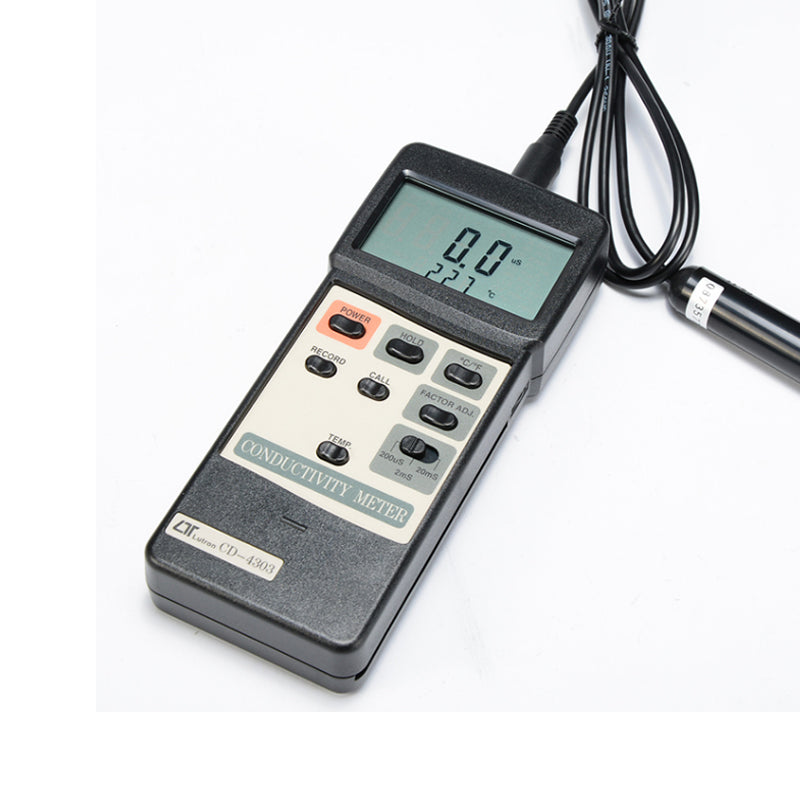

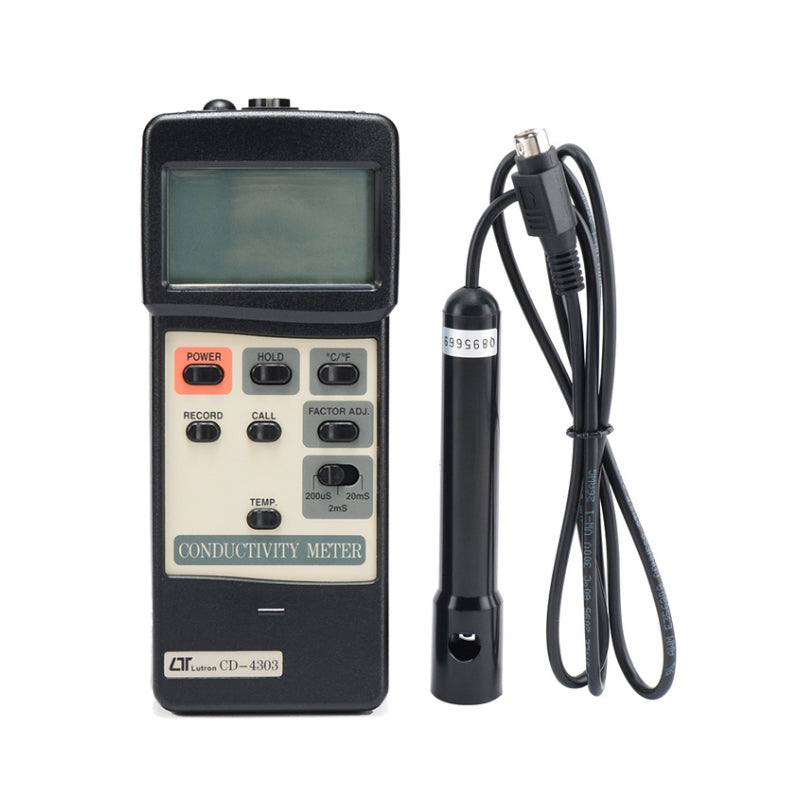

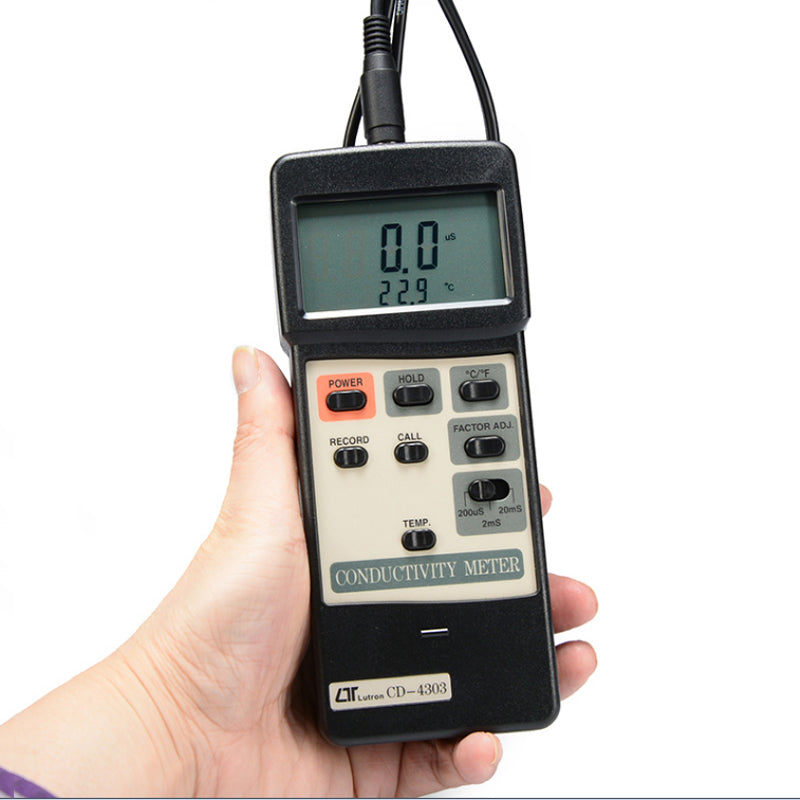

CD-4303 Portable Conductivity Meter With 200 uS/2 mS/20 mS, RS-232
Specification:
Circuit Single microprocessor LSI
integrated circuit
Monitor LCD display, font size 13mm
(0.5"), dual-view window display
Measurement function:
Conductivity: (3-segment test range) 199.9μS, 1.999mS, 19.99mS
temperature: 0~60℃/32~140℉
Temperature compensation
Automatic temperature compensation, range 0~60℃
The temperature compensation coefficient can be changed, between
0~5.0%, each ℃
Memory recall
Record the maximum value, minimum value and average value of the
measurement
Memory recall of recorded values:Automatic
shut-down
If no button is used, it will automatically
shut down after ten minutes
Data output :RS-232 computer output
interface
Overload indication :Indicate "─ ─ ─ ─"
Sampling time:About 0.8 seconds/time
Working environment temperature and
humidity
Temperature: host 0~50℃, measuring rod 0~60℃.
Humidity must be lower than 80%R.H
Current consumption:About 7.8 mA DC
Working power :006P 9 volt battery. High
capacity battery is recommended
Weight:350 g / 0.77 lb. (including battery)
Physical dimension
Host: 180*72*32 mm
Measuring rod: round diameter 22mm × 120mm long

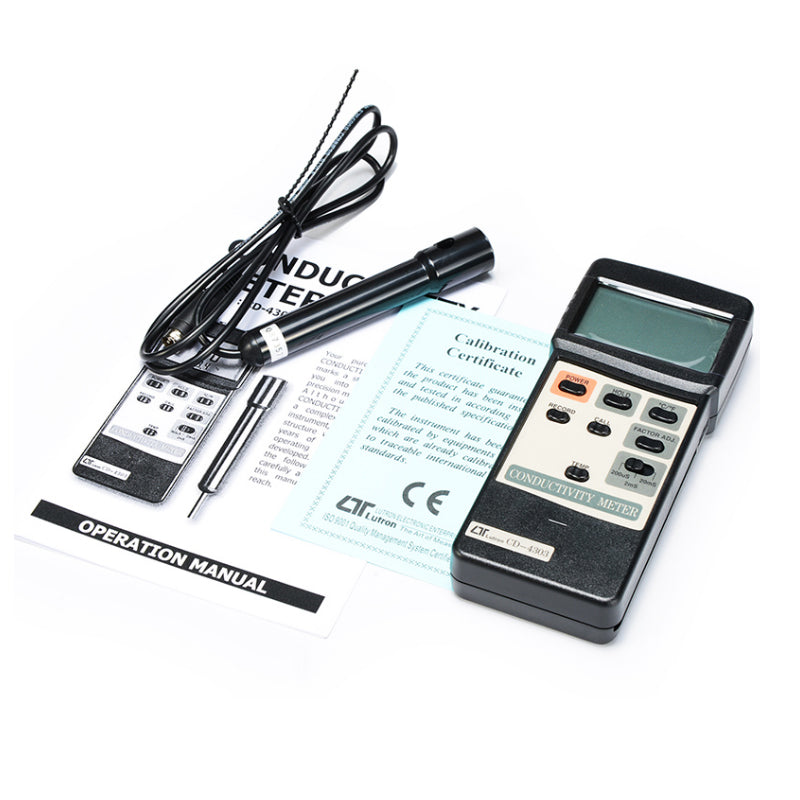

Standard accessories
Operation manual…………..1 copy
Conductivity probe……..1 piece

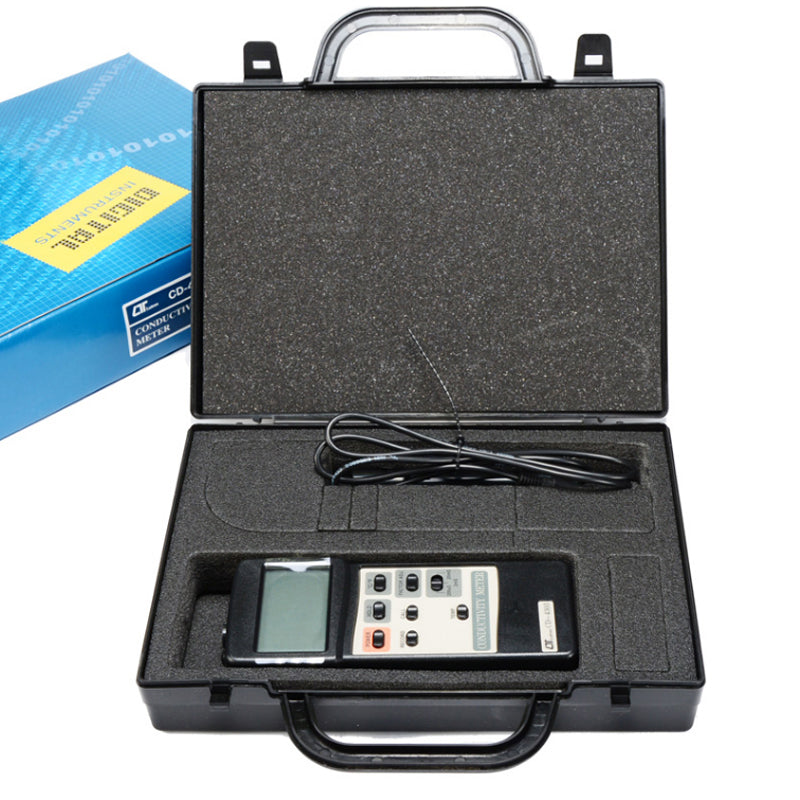

Carrying case…………..1pcs
Optional accessories
Application software……..SW-U801WIN RS-232
cable.... UPCB-01
The batteries not included package
