Description:

 SD card real time data recorder,

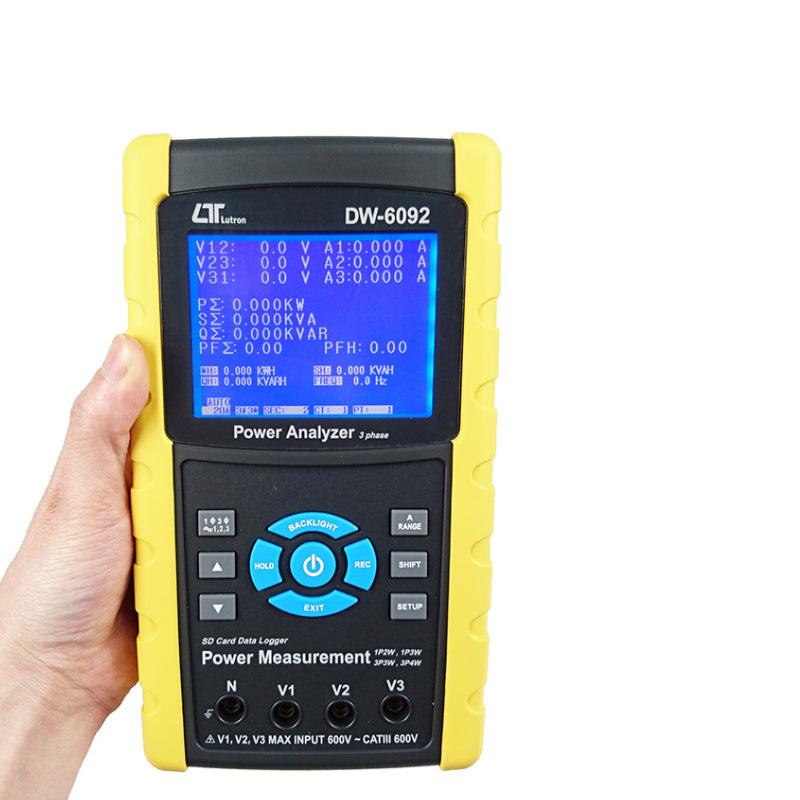

 3 PHASE POWER ANALYZER

Model : DW-6092

* 3 phase/4 wire, 3 phase/3 wire, 1 phase/2 wire, 1 phase/3 wire

* True rms measurement for ACA, ACV.

* True power : W, KW, MW.

* VA, KVA, MVA, VAR, KVAR, MVAR.

* PF (power factor), phase angle.

* KWH, KVAH, KVARH, PFH.

* ACA : 0.1 A to 2,000 A, ACV : 10.0 to 600.0 V.

* Real time data recorder with SD card.

* RS232/USB computer interface.

* Display all measuring electrical wave shape.

* Patent: Taiwan, China, Japan, Germany, USA pending.

   Specifications:

   1. AC voltage: 0.1V ~ 600.0V

   2. AC Current: 0.2A ~ 1200A

   3. Power factor: 0.01 to 1.00

   4. Phase angle: 180 degrees

   5. AC Watts: 1W ~ 9.999MW

   6. Frequency: 45 ~ 64Hz

   7. Now power: 0.1KVA ~ 9.999MVA

   8. virtual power: 0.1KVAR ~ 9.999MVAR

   9. watt hours: 0.1KVAH ~ 9.999MVAH

   10. Applicable phase three-wire, three-phase four-wire, single-phase two-wire, single-phase three-wire

   11. The three current sensors attached clip

   12. Available data storage memory SD card

   13.RS-232 / USB connection interface (software optional)

   14. Dimensions: 225 × 125 × 64mm

      Features:

   81.4 x 61mm LCD display digital display

   Operating temperature 0 to 50 (32 to 122 )

   Operating humidity less than 80% RH

   Power supply 1.5 V (AA) 3, 9 volt battery or power supply x8

   Weight 1049 grams

   Test hook: 522 grams

   Dimensions 255 x 125 x 64mm (8.86 x 4.92 x 2.52inch)

   Test hook: 210 x 64 x 33mm

   Standard accessories Operating Instructions

   Test bar

   Test alligator clips

   Test hook

   9 volt power supply

   Memory card (2G)

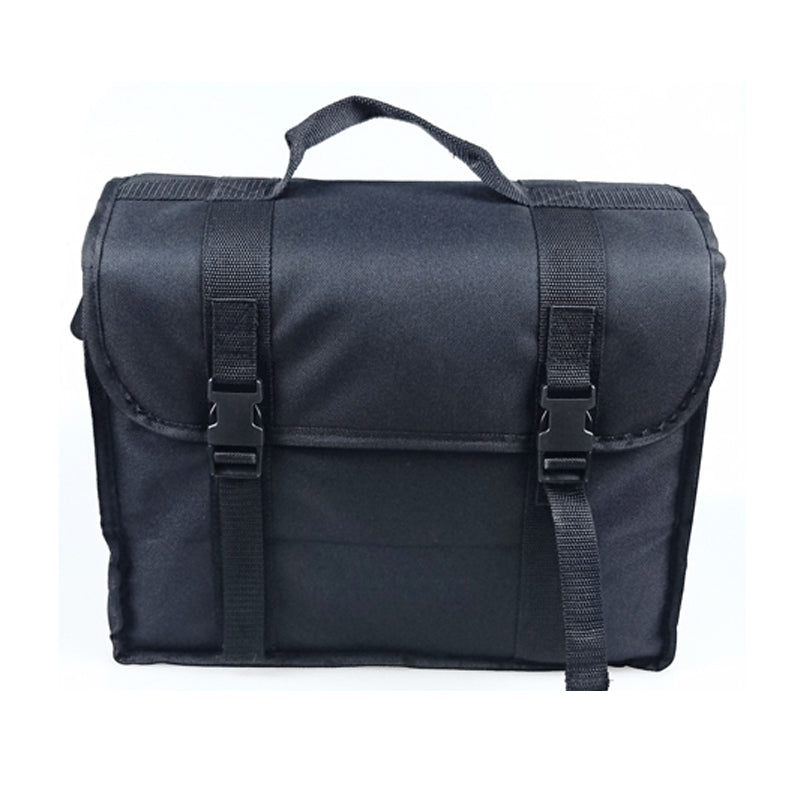

   Carried Bag

   Optional accessories RS232 cable UPCB-02

   USB interface transmission line USB-01

   Data record software SW-U801-WIN

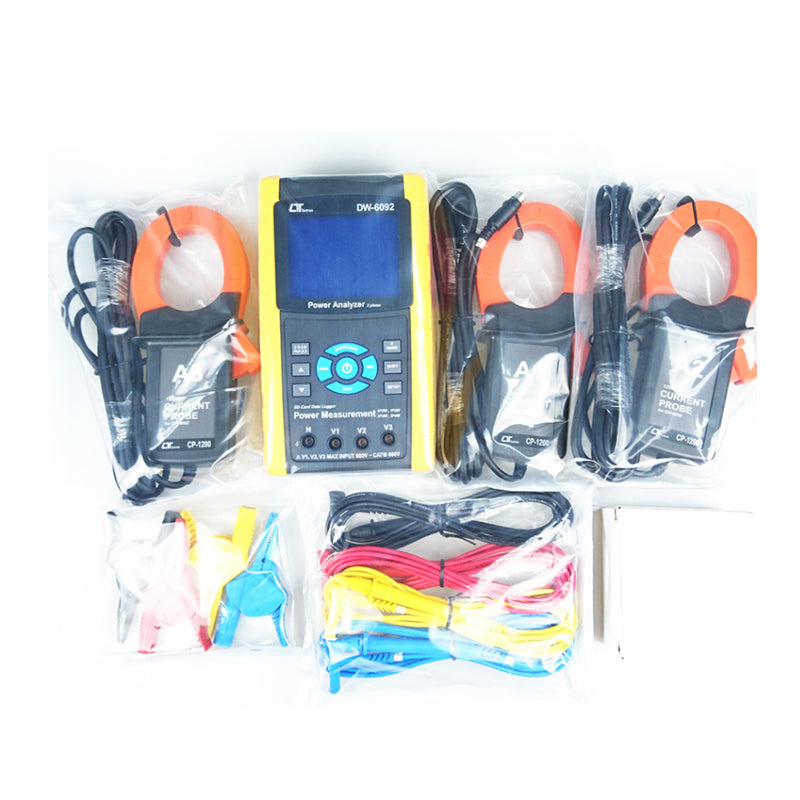

   Standard Accessories:

   * Instruction manual............... 1 PC

   * Test Leads (TL88-4AT)..........1 Set (4 PCs)

   * Alligator clips (TL88-4AC) 1 Set (4 PCs)

    * Clamp Probe ( CP-1200 ).......3 PCs

   * AC to DC 9V adapter............. 1 PC

   * SD card ( 2 G ).................... 1 PC

   * Carrying bag............... 1 PC

   Optional Accessories:

      * USB Cable , USB-01

     * RS232 cable, UPCB-02

     * Data Acquisition software,

        SW-U801-WIN
