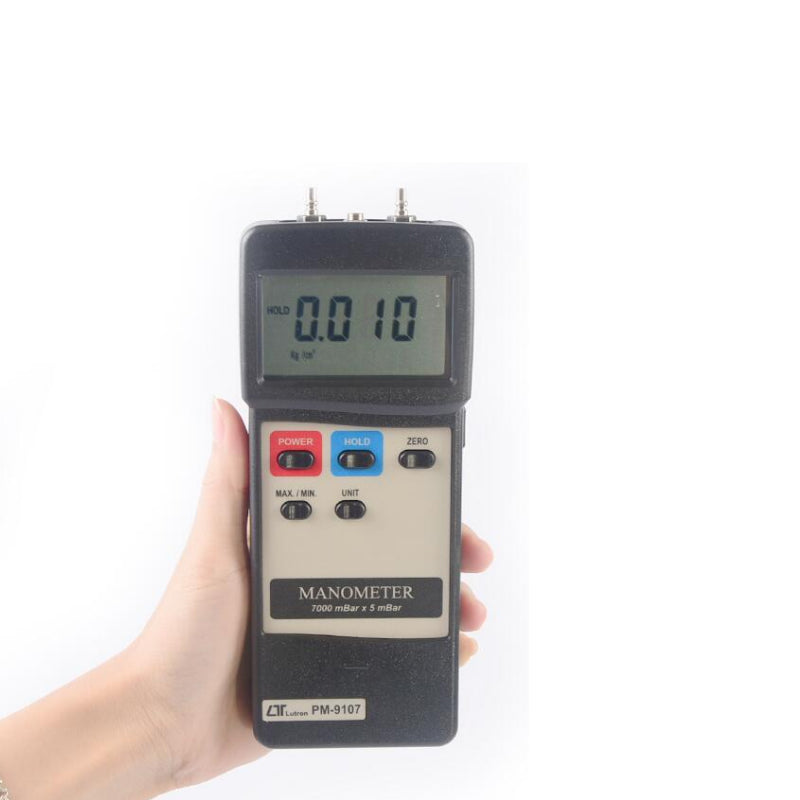

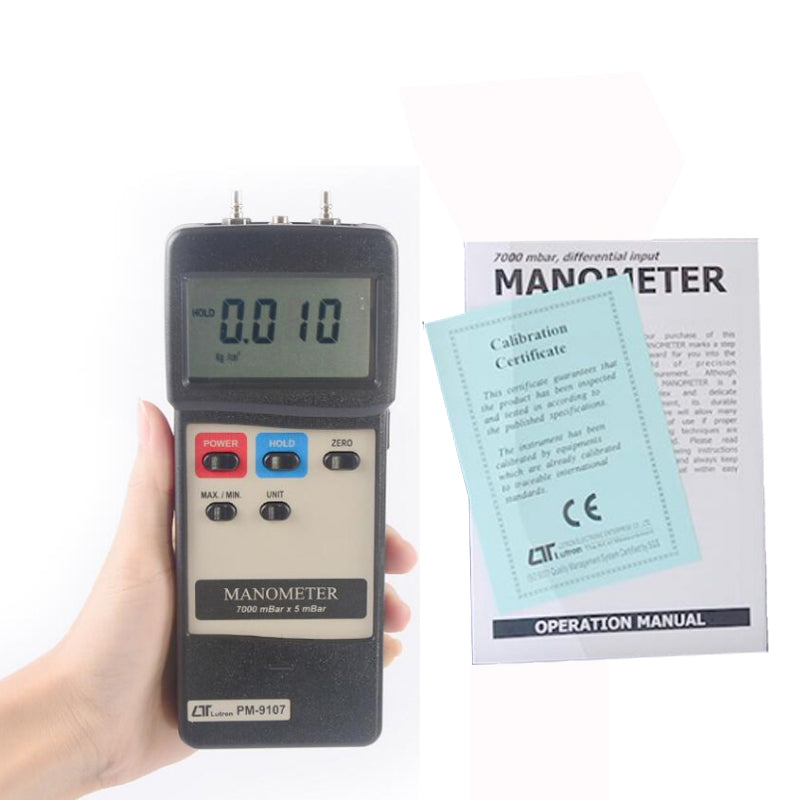

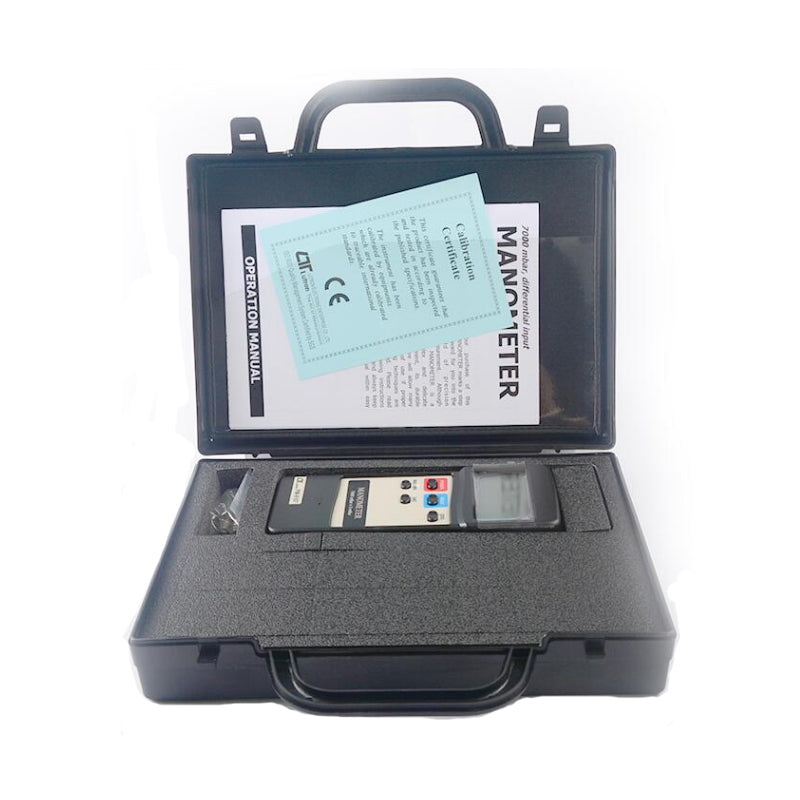

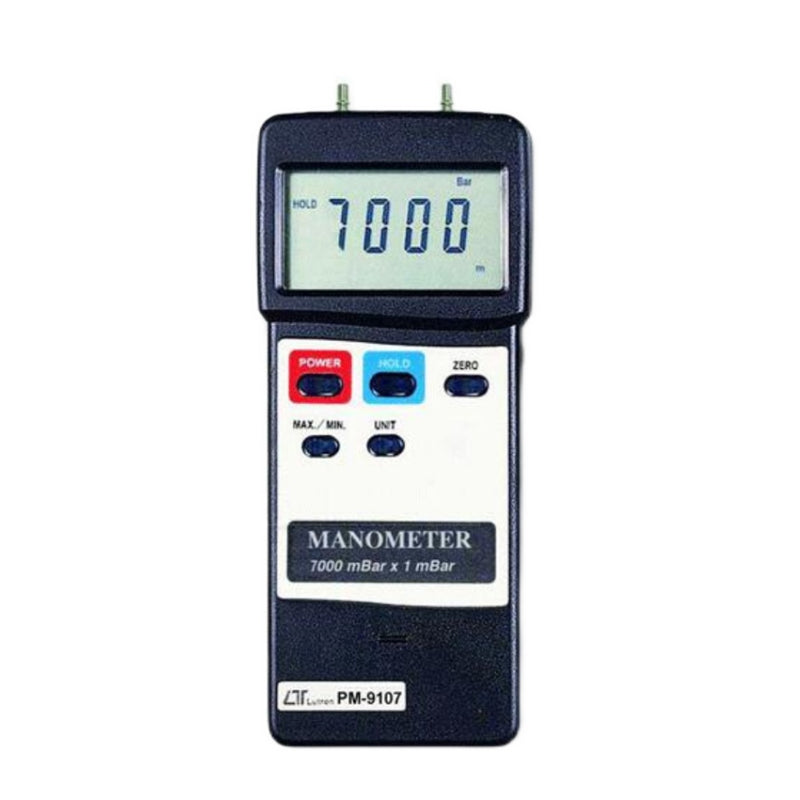

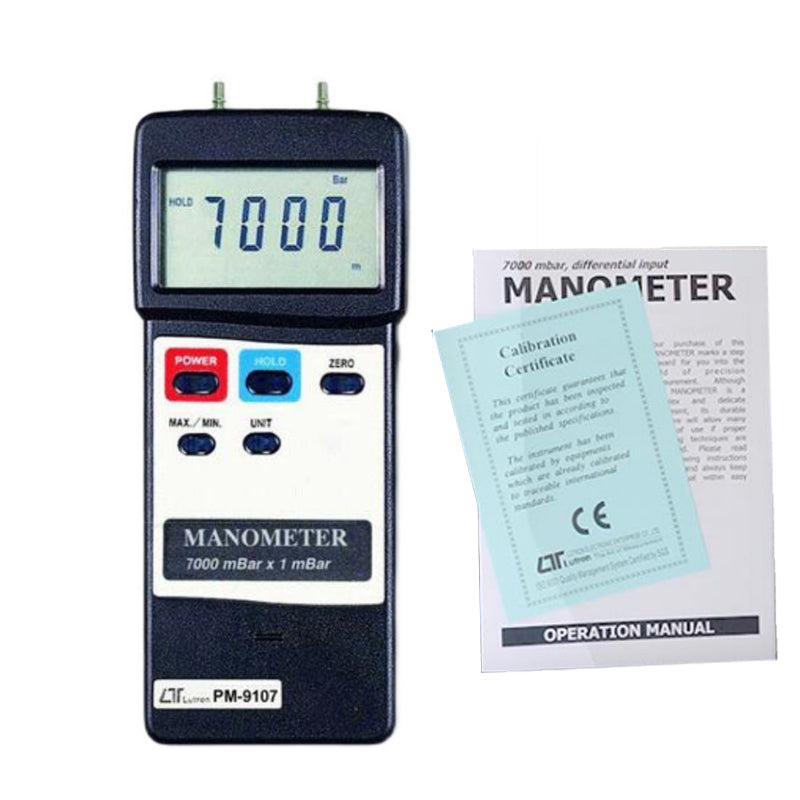

Gauge Pressure Difference Meter
Features:
1. Measuring range:
PM-9107: 0~7000mbar (mbar)
2. Dual pressure sensors, which can measure pressure and differential pressure
3. Accuracy: ±2%
4. Dual pressure sensors, which can measure pressure and differential pressure
5. Eight kinds of unit selection switch:
mbar,psi,Kg/cm?,mm/Hg,inch/Hg
meter/H2O,inch/H2O,Atmosphere
6. Lock the reading and record the maximum/minimum value in the measurement
7. RS-232/USB computer connection (optional)
8. Size: 180×72×32mm
Sepecifications:
Monitor
Character height 15mm (0.6") 61mm x 34mm LCD screen
Sampling time
about 0.8 seconds
Operating ambient temperature
0 to 50℃ (32 to 122℉)
Operating environment humidity
Below 80%RH
Working power
DC9V~30V
weight
345g/0.76lb
Size
180 x 72 x 32mm(7.1 x 2.8 x 1.3inch)
Unit
Maximum range
Resolution
Accuracy
mbar
7000 mbar
5 mbar
±2% full scale
psi
101.5psi
0.5psi
Kg/cm^2
7.135Kg/cm^2
0.005Kg/cm^2
mm/Hg
5250mm/Hg
5mm/Hg
inch/Hg
206.7inch/Hg
0.1inch/Hg
meter/H2O
71.35meter/H2O
0.05meter/H2O
inch/H2O
2810inch/H2O
2inch/H2O
Atmosphere
6.905Atmosphere
0.005Atmosphere
Notice:
