Medium |
No impurities, low viscosity, no strong corrosive liquid |
|

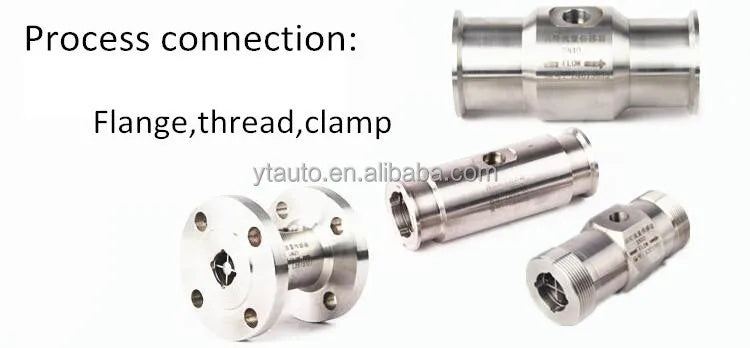

Installation type |
Flange connection type(DN20-DN200) |
|
Thread connection type (DN4-DN50) |
|
|
Clamp connection type (DN4-DN100) |
|
|
Insertion type (DN150-DN1100) |
|
|
Temperature |
-20-80℃ 80-150℃ |
|
Pressure |
6.3MPa |
|
Output signal |
Pulse output |
|
4-20mA output |
|
|

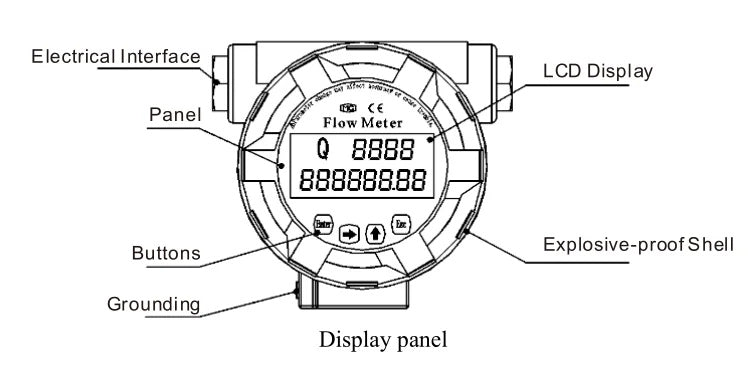

Display |
With LCD display |
|
Without LCD display |
|
|
Communication interface |
RS485 protocol |
|
HART protocol |
|
|
Power supply |
24VDC or battery |
|
Communication protocol |
Modbus |
|
Accuracy |
0.2%, 0.5%,1.0% |
|
Material |
304 Stainless steel |
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
