Introduction:

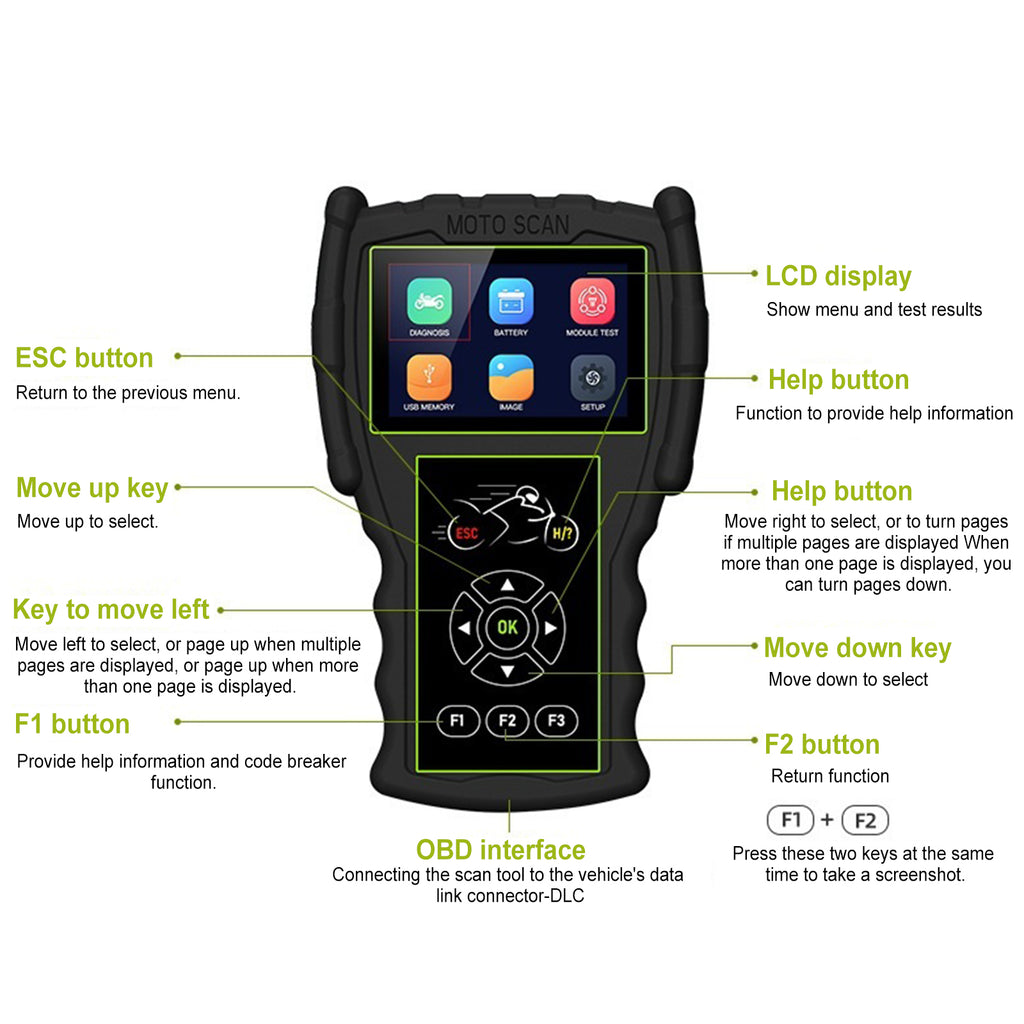

M100 Pro Moto Scanner is a new generation of handheld motorcycle diagnostic tools, covering almost all major manufacturers' diagnostic functions. It helps technicians diagnose problems and perform repairs faster; many common procedures are written into the tool, so technicians can follow them (injectors, igniters, coils, fuel pumps, etc.).

Allow technicians to perform factory service procedures, such as resetting service lights, unlocking anti-theft devices and configuring anti-theft devices/alarms, performing injection adjustments (CO Trimmer), adjusting throttle position sensors (TPS), resetting automatic adaptive parameters, and idling adjust.

Features:

Fitment: For ADIAV, For AEON, For BRIXTON, For Royal Enfield, For KTM, For Triumph, For APRILIA, For SUZUKI, For BAJAJ, For MODENAS, For ARCTIC CAT, For BRP, For BENELLI, For SYM, For HONDA, For YIBEN, For PGO, For VESPA, For PIAGGIO, For HYOSUNG, For KAWA, For YAMAHA, For KYMCO, For Indian, For HARTFORD. More...

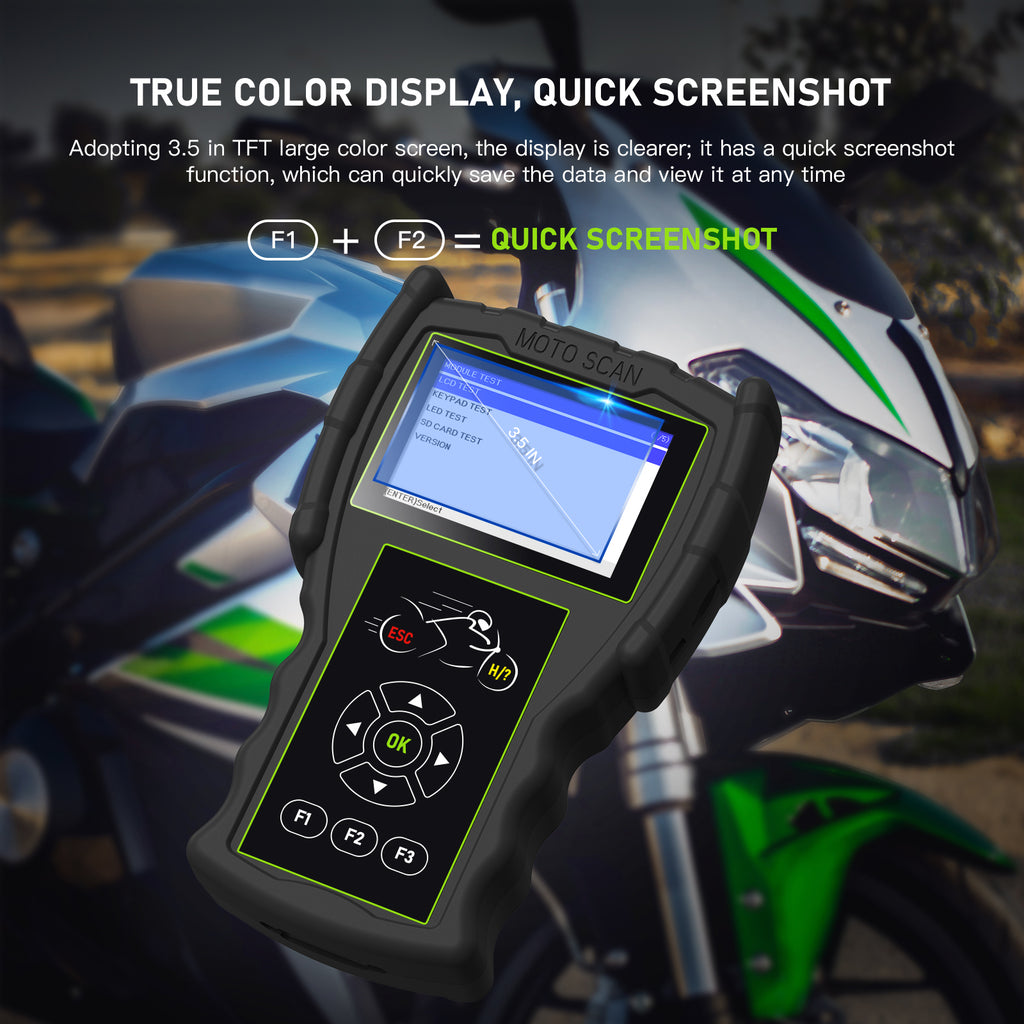

True color display, quick screenshot: Adopting 3.5 in TFT large color screen, the display is clearer; it has a quick screenshot function, which can quickly save the data and view it at any time.

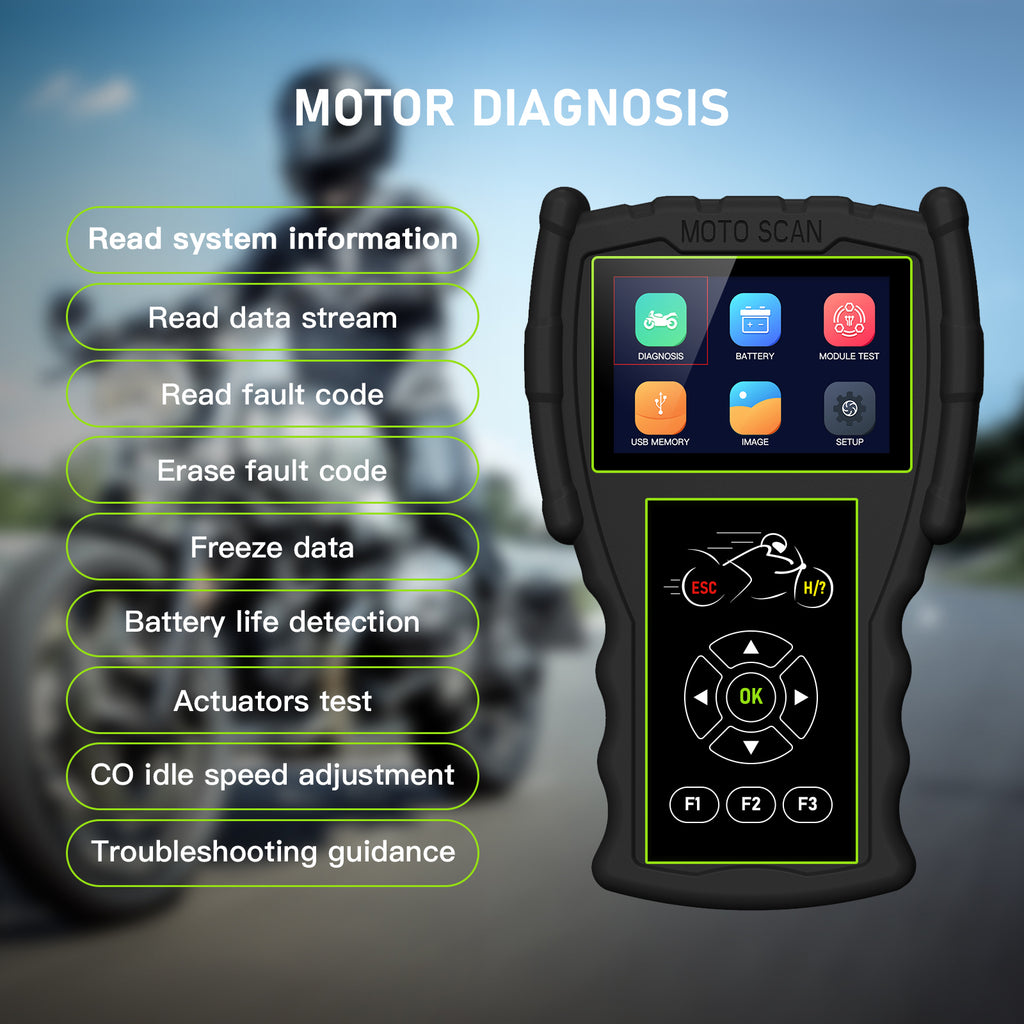

Functions: Read system information, Read data stream, Read fault code, Erase fault code, Freeze data, Battery life detection, Actuators test, CO idle speed adjustment, Troubleshooting guidance, ABS system test, Waveform display.

Multiple battery test methods: Multiple test methods for more professional testing of car batteries. Standard test, Startup test, Charging test, Battery waveform.

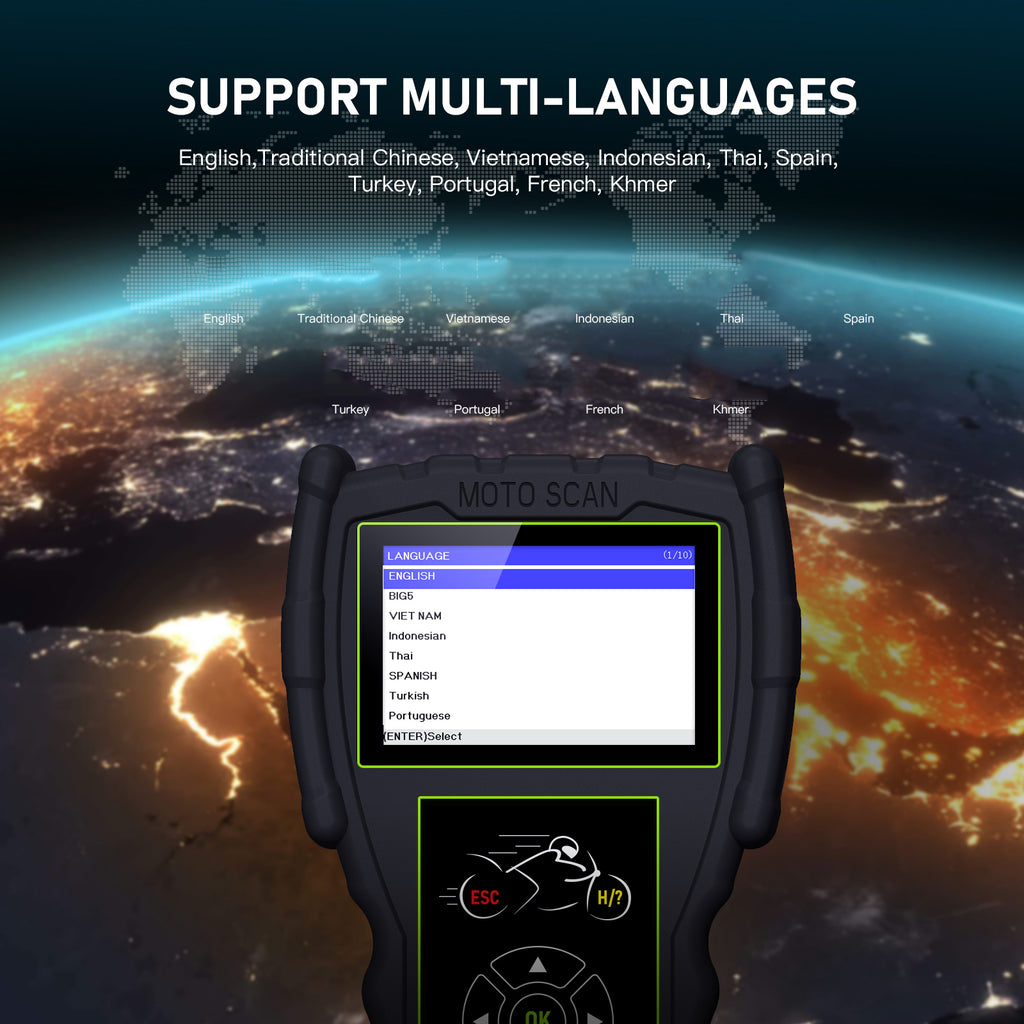

Support multi-languages: English,Traditional Chinese, French, Spain, Thai, Turkey, Indonesian, Vietnamese, Japan, Cambodian, Portugal, Korean, German.

Widely used for motorcycle repair: Suitable for motorcycle maintenance technicians and personal vehicle maintenance and repair. Hand-held operation, easy to use, simple and flexible, fast troubleshooting.

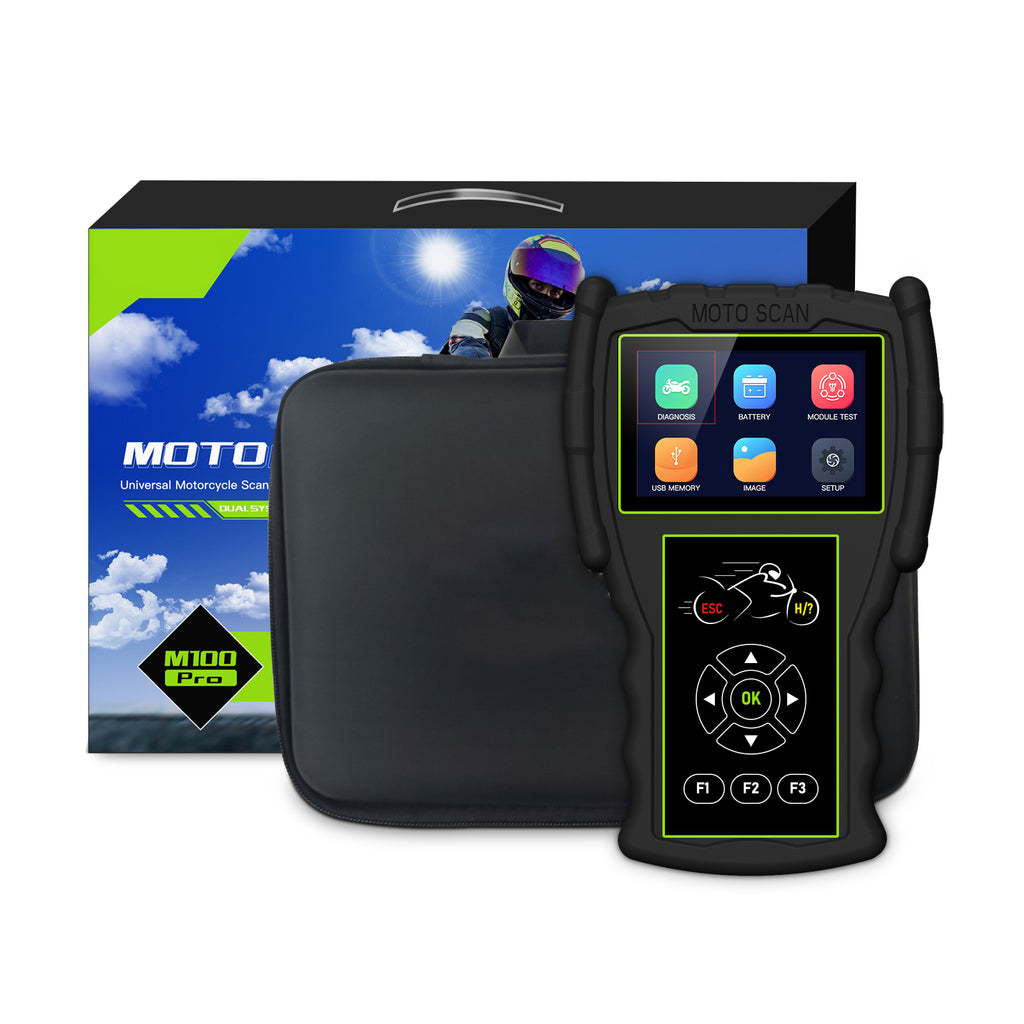

In the box: 1Pc*M100 Pro Motorcycle System Tester Host. 16Pcs*Cable. 1Pc*User Manual. 1Pc*Tool Box. 1Pc*Carton.

Specifications:

Item name: Motorcycle circuit tester

Model: M100 Pro Standard Version

Screen size: 3.5 inch TFT true color display

Operating temperature: -20 to 60°C(-4 to 140°F)

Storage temperature: -20 to 70°C(-4 to 158°F)

External power supply: DC10-15V

Working current: 250mA

Connect and update: Support

Communication port: COM port

Upgrade port: USB port

Specifications: 304*233*108 (mm) /11.96*9.17*4.25(in)

Weight: 1.94 (kg)/4.27(lb)
