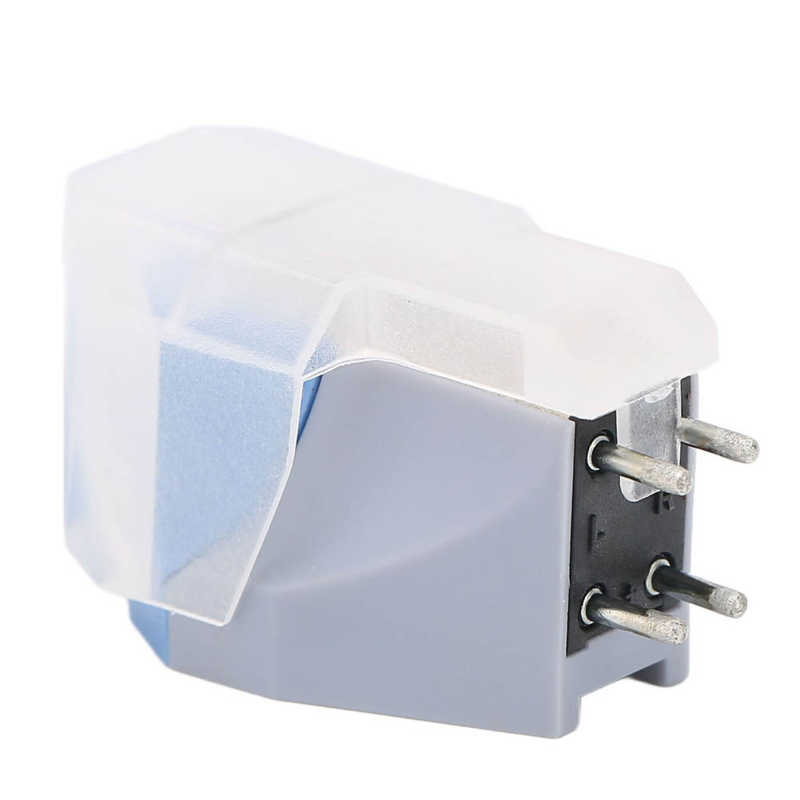

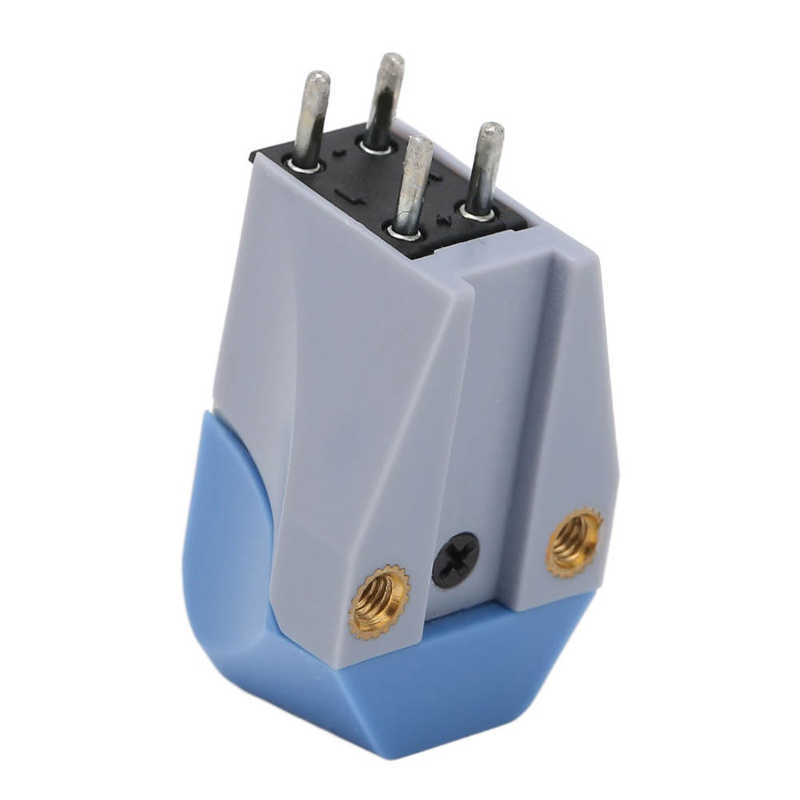

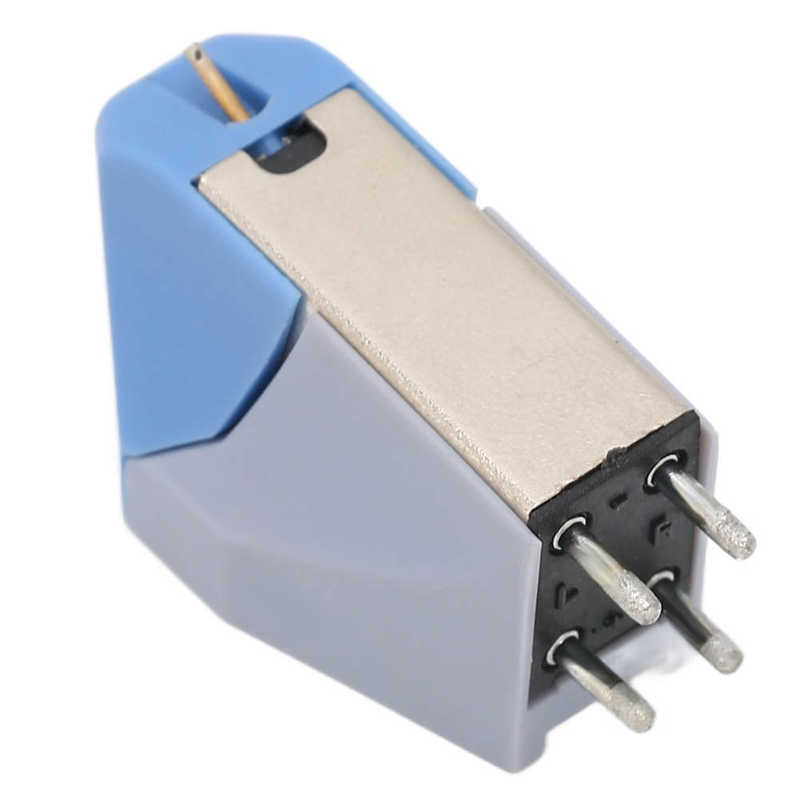

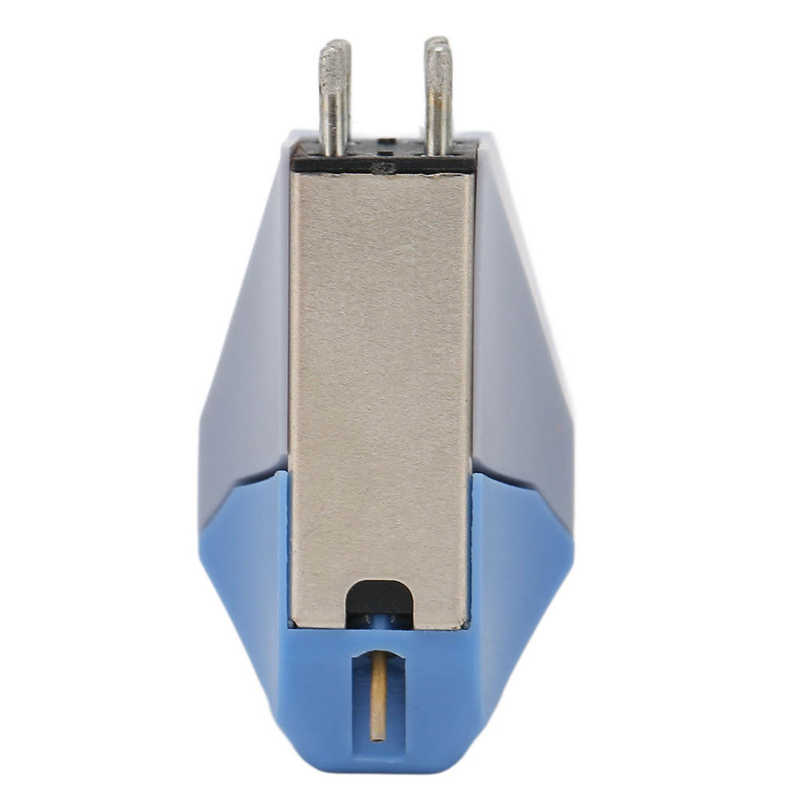

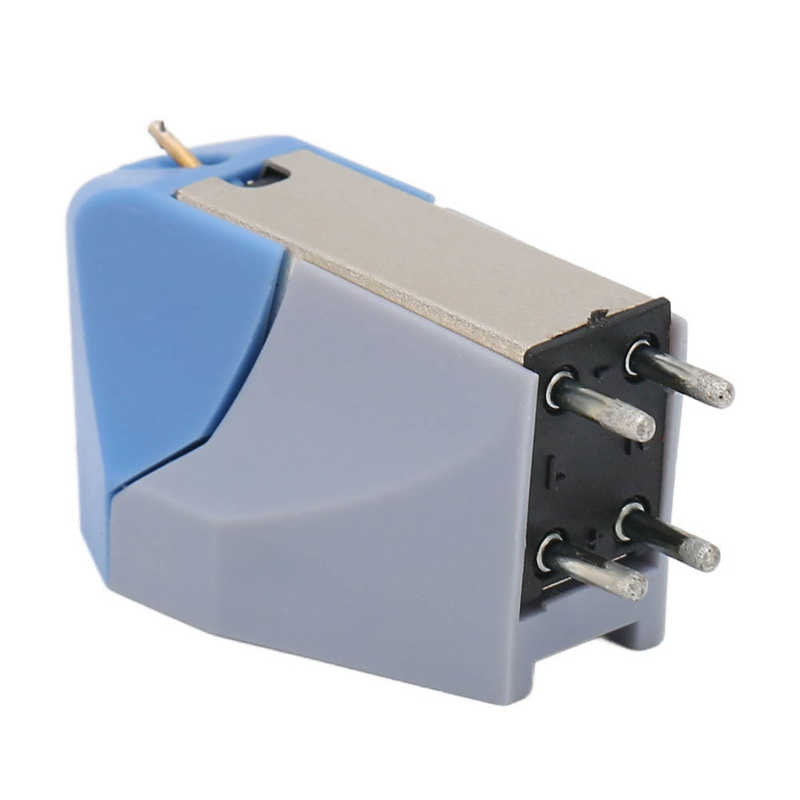

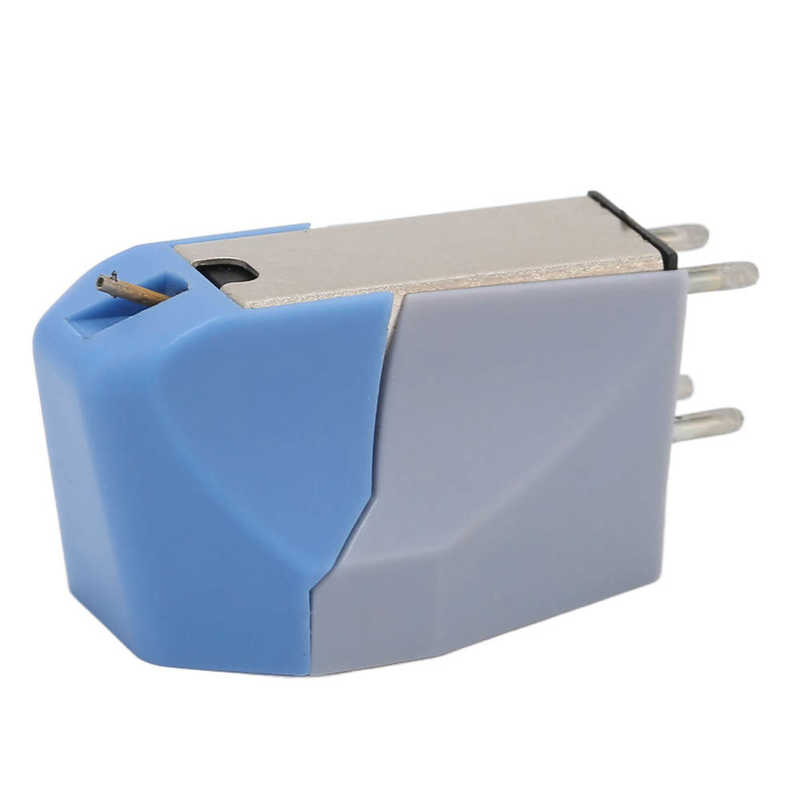

Magnetic Cartridge Replacement Accurate Phonograph Cartridge Stylus with LP Vinyl Needle for Record Player
Feature:
1. Standard MM moving magnet cartridge, with good and stable performance, providing excellent clarity and detail performance.
2. Used to upgrade mid to high end vinyl record players, the cartridge adopts strict quality standards, high quality ABS shell, durable.
3. This cartridge adopts diamond shape needles, which can pick up record information with high accuracy for a long time and portray better sound.
4. 13mm/0.5in hole pitch, commonly used in the cartridge of most vinyl record players, remove the old cartridge and replace it with a new one.
5. The adjustable needle pressure range of the moving magnet cartridge is 1.9‑3.6g (recommended gauge pressure 3g).
Specification:
Item Type: Magnetic Cartridge
Material: ABS
Phono Type: MM Moving Magnet
Response Frequency: 10Hz～35kHz
Output Voltage: 3.5mV (1kHz, 33.3RPM.)
Channel Separation: >16dB (1kHz)
Output Balance: <1.5dB (1kHz)
Needle Pressure: Approx. 1.9g-3.6g / 0.06oz-0.12oz (3g/0.1oz Recommended)
Q Value: 2.75
Coil DC Resistance: 250Ω
Recommended Load Resistance: 47kΩ
Load Capacitance: 200pF
Coil Inductance: 200mH (1kHz)
Static Obedience: 19 x 10-6cm/Dyne
Dynamic Compliance: 6 x 10-6cm/Dyne(100Hz)
Tip Shape: Combined Diamond Tapered Tip
Needle Bar: Aluminum Alloy Tube
Vertical Tracking Angle: 22°-24°
Shape Size: Height: Approx. 18mm/0.7in, Width: Approx. 17.1mm/0.6in, Diameter：Approx. 32.3mm/1.2in
Package List:
1 x Magnetic Cartridge 1 x Protection Cover
Note:
Manual measurement, please allow some errors.
