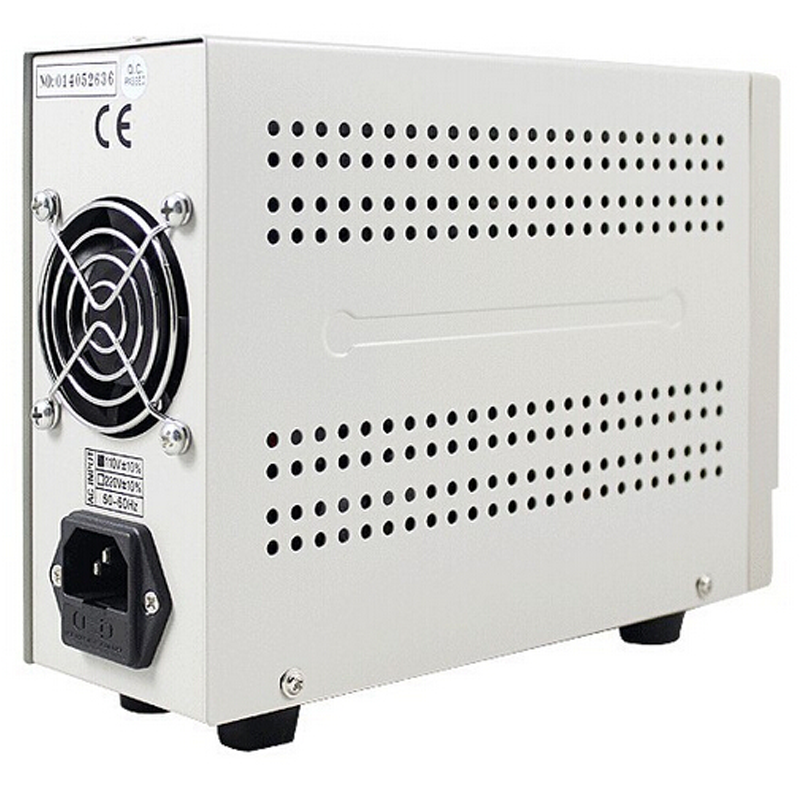

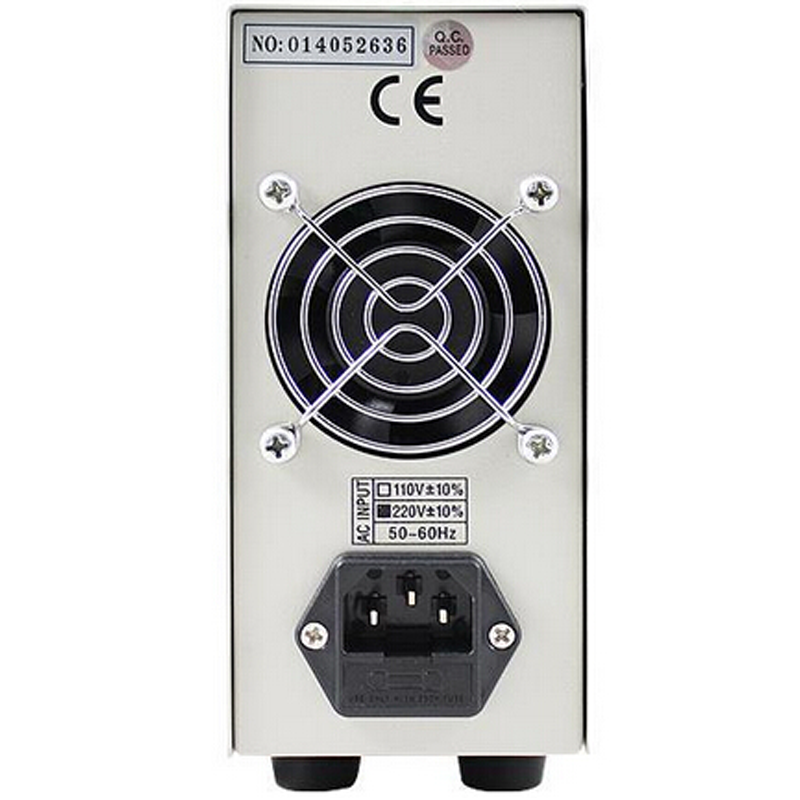

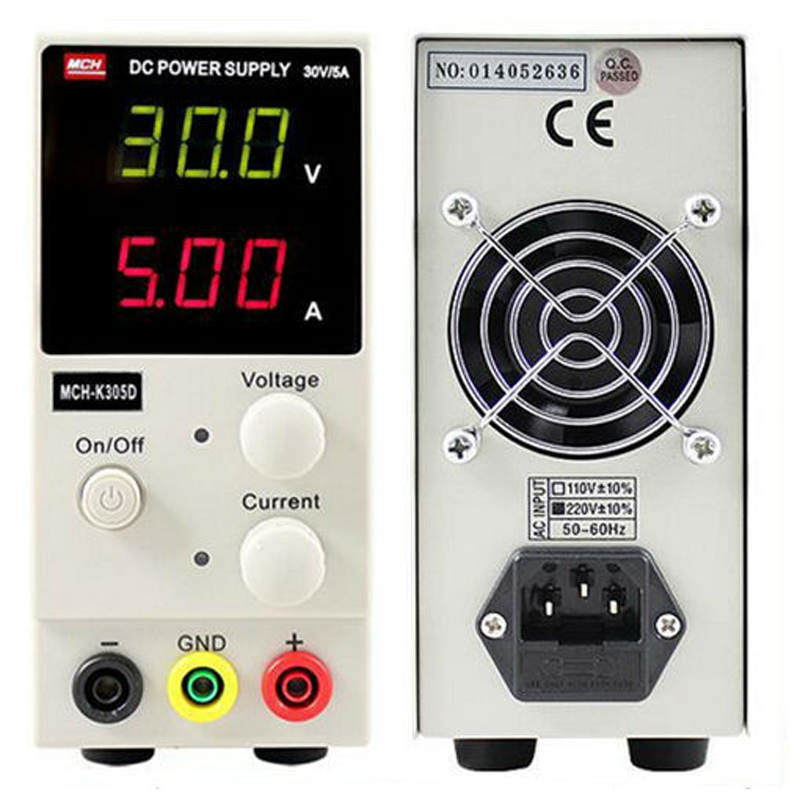

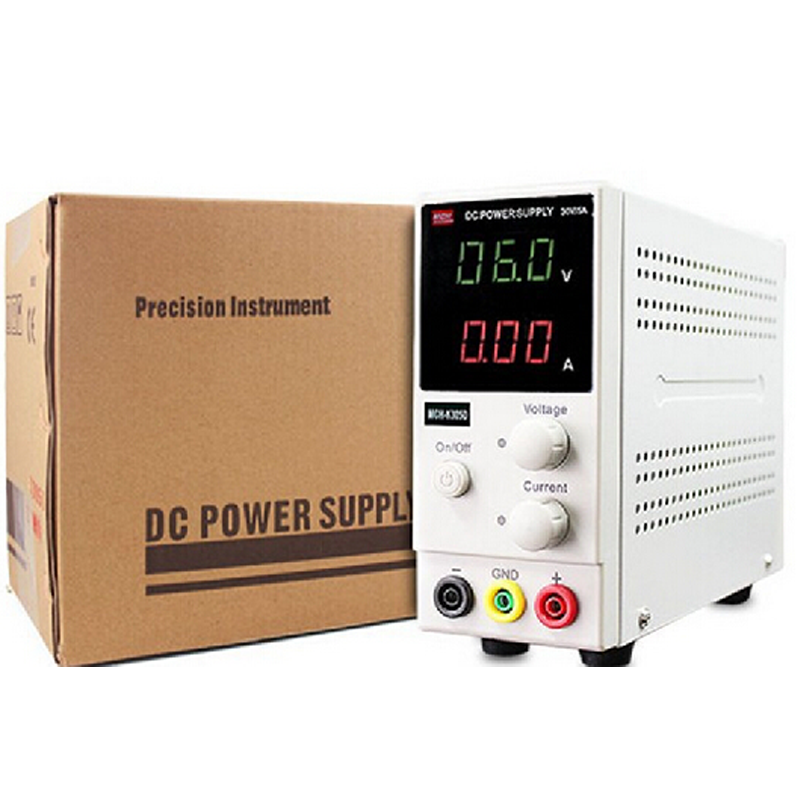

MCH-K305D New Mini Switching Regulated Adjustable DC Power Supply SMPS Single
Channel 30V 5A Variable MCH K305D
Specifications:
Model No.
MCH-K305D
Line Voltage
200-240VAC,50Hz-60Hz
Input Current (at 220VAC,full load)
0.9A
Output Voltage Range
0-30V
Output Current Range
0-5A
Voltage Display Accuracy
±0.5%
Current Display Accuracy
±0.5%
Efficiency
>85%
Voltage Regulation
Load Regulation(10-100%)
50mV
Line Regulation(200-240VAC)
20mV
Ripple & Noise(P-P)
50mV
Current Regulation
Load Regulation(10-100%)
20mA
Line Regulation(200-240VAC)
20mA
Ripple & Noise(p-p)
20mA
Others
Operating Ambient
-10°c to + 60°c, 30%RH to 90% RH
Size
7(W) x 16(H) x 22(D)cm
Weight
1.35kg
Packing Included:
Main Body x 1pcs
Power Line x 1pcs
Aligator Clips x 1 pair
