Measuring Range 1.2~ 220mm ( steel ) Glass Plastic Pipe Valve Thickness TECMAN

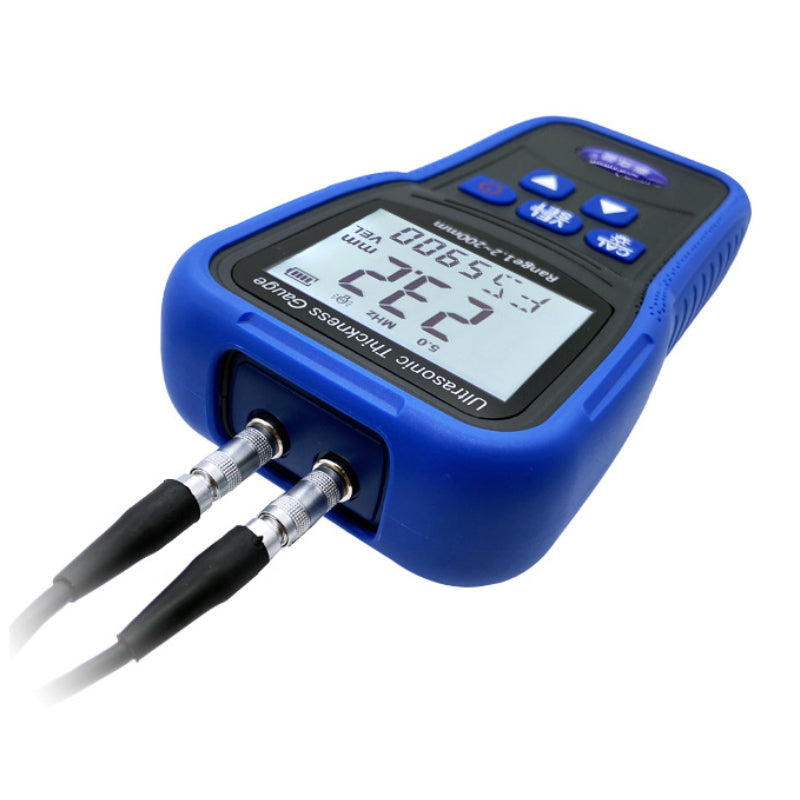

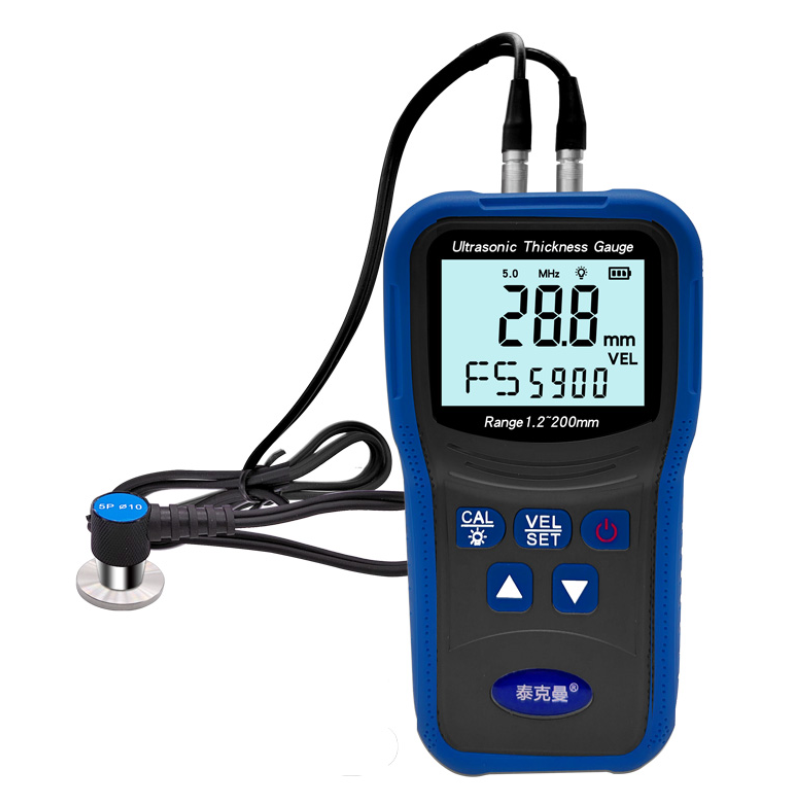

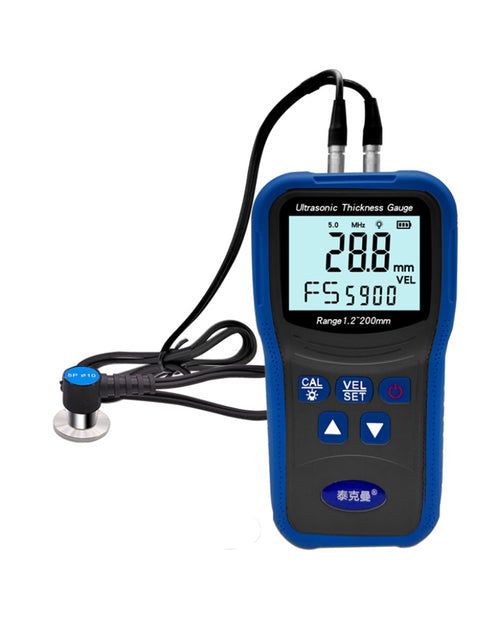

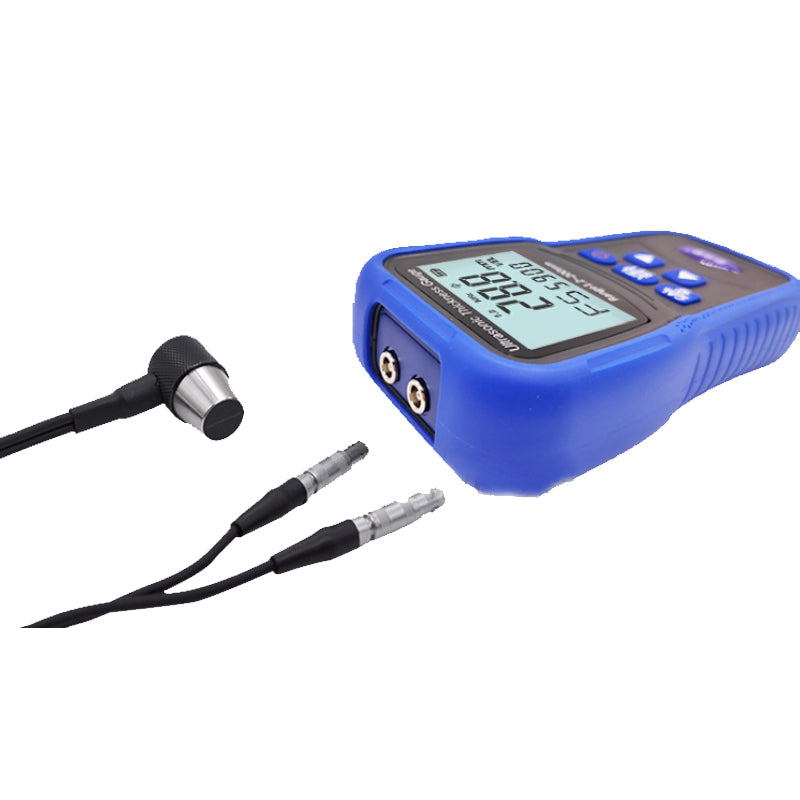

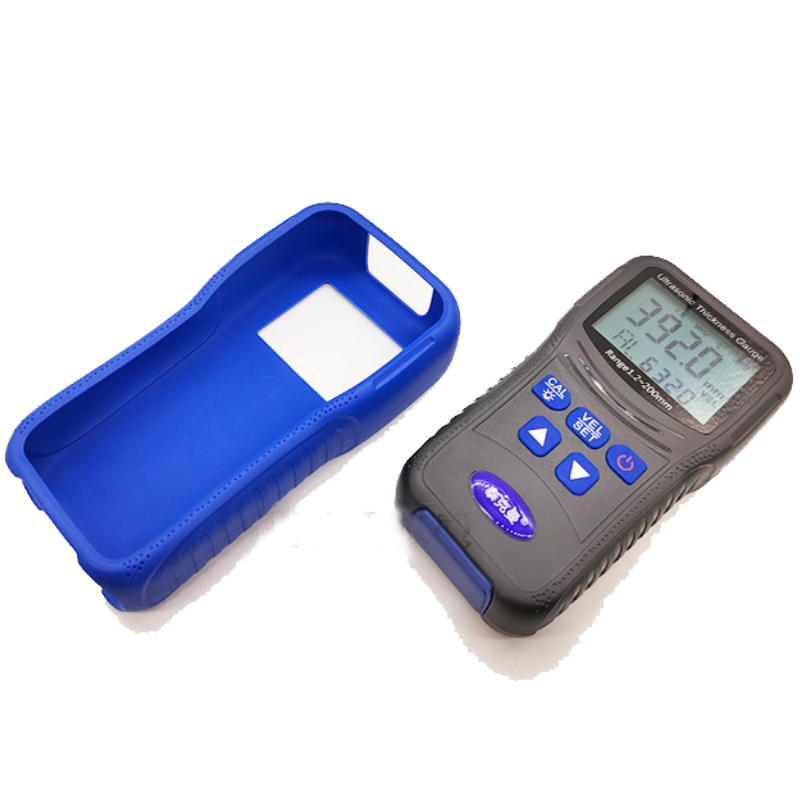

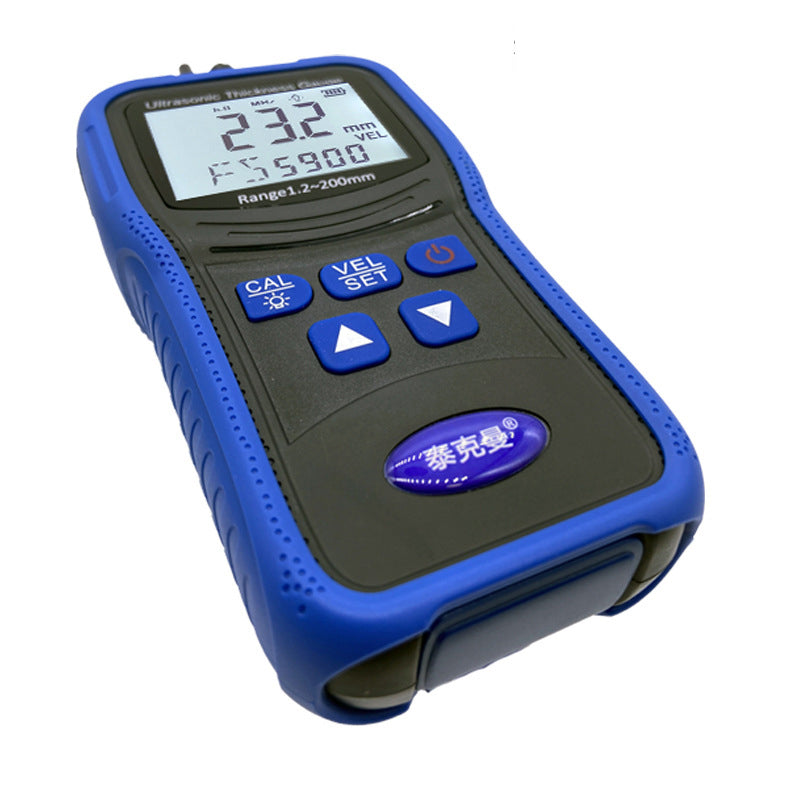

TM130D Ultrasonic Thickness Gauge

 Short Description

 Ultrasonic Thickness Gauge for a variety of high-density plates, parts and sealed pressure vessel , pipe wall thickness testing. Widely used in petroleum , chemical, metallurgy , shipbuilding , aviation, aluminum processing , and many other metal manufacturing and processing industries.

 TM130D is "TECMAN- Teichman " brand users in 2012 according to market demand , developed a new easy to use speed measuring ultrasonic thickness gauge products , TM130D comes standard with a universal 10mm probe , 5MHz frequency of the probe , the common industrial steel, iron, copper ( brass , copper , etc. ), glass , PVC, acrylic, aluminum and other 10 kinds of materials in the product preset velocity , can directly select the corresponding code to the fast and accurate measurement of the material thickness. Very suitable for standard sheet metal materials processing enterprise users.

      Basic parameters

       Model Specification

   TM130D

       Measuring range

   1.2~ 220mm ( steel )

       Measurement error

   (0.5% H +0.2) mm

       Resolution

   Less than 100mm thickness 0.1mm

       (<100mm) 0.1mm

       Velocity Range

   Built-in 10 groups used the speed of sound

       Steel Copper Glass PVC, etc.

       Probe configuration

   5MHzX1Branch

       Operating Frequency

   5MHz

       Operating temperature range

   0~ 45

       Probe temperature

   0~ 60

       Pipe measurement limit

   10mm probe : 20x3mm ( steel )

       Special Features

       Select the measured material mode

   Copper zinc aluminum stainless steel

       PVCAcrylic glass, tin-lead

       CALSelf-calibration function

       LCDBacklight

       Upper and lower limit alarm

       Low battery indication

       Automatic shutdown

      Product supply

   1.5V AAAlkaline batteries three(not included package)

       LCDSize

   56mmX42mm

       Colors

   Yellow + Black

       Dimensions

   135mmX71mmX35mm

       Product Weight

   210g

       Product Configuration

   Host warranty card manual industrial-type battery at room temperature couplant

       Packaging standards

   PP box + plastic tool box

       Standard Packing

   20Taiwan

       Standard package size

   52.5cmX34cmX47cm

       Standard Gross Weight

   18.5KG

Note:From our packing,you can find the bottle with liquid,which is couplant,but for air shipment,which is not allowed to ship out,please kindly buy the coupling agent at your local store,  if you can not find the coupling agent at your local store, you can use the detergent or oil to replace it, but please do not wash in water after using,  you can clean by cloth or paper  to avoid the rusty..
