Features:
1. Superior 14MP CMOS sensor, high resolution, clear images.
2. With USB2.0 and HDMI two video output interface.
3. It can be used with C-Mount or CS mounting camera and placed in a microscope to expand your field of sight.
4. Fit for all HDMI industry microscope.
5. Widely used in microelectronics, precision machinery, jewelry, watch, archaeology, biological anatomypathology, school teaching and other fields.
Specification:
Condition:100% Brand New
Item Type: Industrial Microscope Camera
Plug: EU, US(Optional)
Voltage: 100-240V
Mode: KP-1501
Digital Amplification: 100X
Working Distance: Approx.65-280mm
Column Height: 290mm / 11.4in
Focusing Range: 40mm
Column Diameter: Approx.22mm / 0.9in
Base Plate Size: Approx.255x155mm/10x6.1in
Output Interface: HDMI,USB
Sensor: 1/2.3 inch
Image Resolution: 6112*3440 (for TF Card),1920*1080(for TF Card)
Video recorder 1920*1080 30fps
Pixel 14 Million Pixels
Pixel Size 1.43μmx1.43μm
Frame Rate: 60fps
Digital Magnification: 7 times digital zoom
Brightness Control: Auto/manual
White Balance: Manual operation,automatic
Color: R/G/B adjustable
Image Freezing: Support
OSD: Support
intersect Cursor: Support multi-color, size adjustable
Transverse and Vertical Line: Support multi-color,4 pcs of transverse lines/vertical lines,movable
TF Card Interface: Maximum support 64G(TF card not included)
Lens: C/CS
USB Interface: Usb2.0
Power Supply: DC-12V/1A
LED Ring Light: Inside diameter size 60mm,The input voltage AC90-240V,The output power 4.5w, Light color white,Lamp bead 56

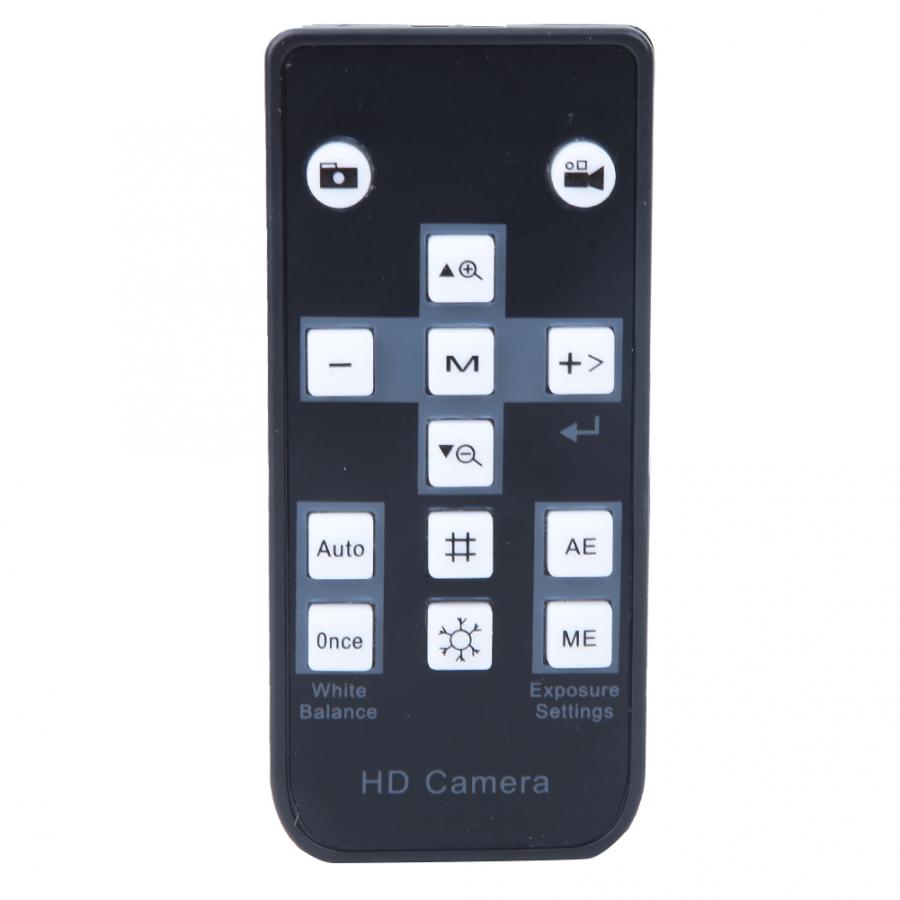

Remote Control:1 x CR2025 battery(Not included)
Package List :
1 x 14 mp Microscope Camera
1 x HDMI High Definition Line
1 x USB Data Line
1 x The Camera Power Adapter
1 x CD Drive
1 x Remote Control
1 x Microscope Bracket
1 x Microscope Lens
1 x LED Ring Light
1 x Pack Screw Fitting
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
