Feature:

   1. 34 Million PX: HD camera adopts 34 million PX CMOS sensor 1/2.3 inch, with HD multimedia interface USB interface.

2. 100,000 Hours Lifespan: LED lights with variable lighting direction, variable power control, powerful and concentrated shadowless lighting, 100,000 hours of lifespan.

3. High Safety Factor: Microscope camera has strict quality control and quality assurance, high safety factor and can be used with confidence.

4. Aluminum Alloy Material: Microscope camera adopts high quality aluminum alloy material, which is wear resistant and durable, and has a long service life.

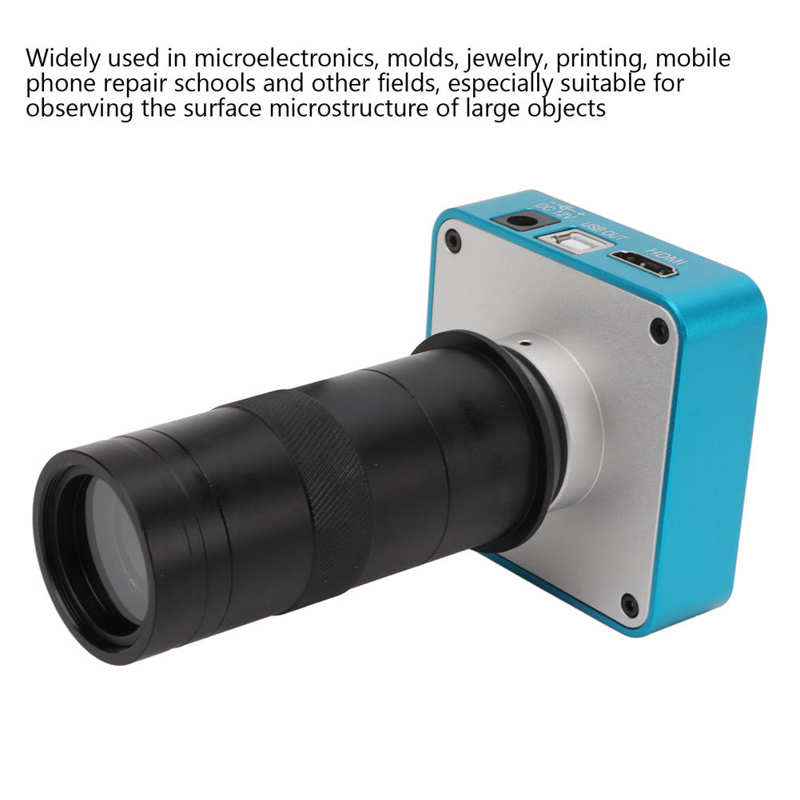

5. Wide Application: USB microscope is widely used in microelectronics, molds, jewelry, printing, mobile phone repair schools and other fields, especially for observing the appearance microstructure of large objects.

Specification:

Item Type: Microscope Camera

Material: Aluminum Alloy

Uses: Widely Used in Microelectronics, Molds, Jewelry, Printing, Mobile Phone Repair Schools and Other Fields

Model: HY-1139

Sensor: 34 Million PX CMOS

Optical Format: 1/2.3in

PX Size: 1.335μmx1.335μm

Interface: HD Multimedia Interface (Type A), USB (Type B), Compact Memory Card

HD Multimedia Interface Image Resolution: 34 Million PX

Video Resolution: 2K, 30FPS 1080p, 60FPS

HD Multimedia Interface Resolution: 1920 x 1080p 60FPS

HD Multimedia Interface Ratio: Support 4: 3, 16: 9, 16: 10 Screens

USB2.0 (Driverless): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 340 at 30FPS

AWB: AWB Color Correction/Auto/Manual, Independent R.G.B Value Setting

Exposure: Auto/Manual. AE Value Can be Set

Crosshairs: 8 Lines, color, width and position can be set

Tick Marks: 2 Lines

Dotted Line: 2 Lines, color, width and position can be set

Sharpness Contrast Color Gain: Yes

Mono Negative: Support

Mirror: Horizontal and Vertical Mirroring

Language: English/Simplified Chinese/French/Spanish/Japanese/German and Other Languages

Digital Zoom: Support

Infrared Remote Control: Support

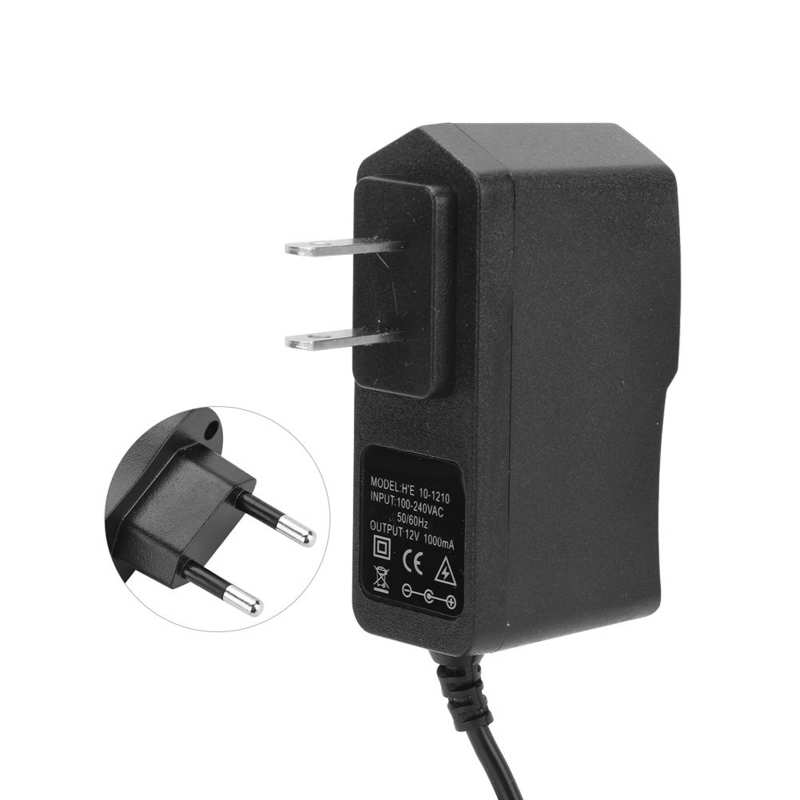

Voltage Input: DC 12V

Plug Voltage: Input AC100-240V

Output: DC 12V

Power Consumption: Maximum 0.15W 12V, 0.12A

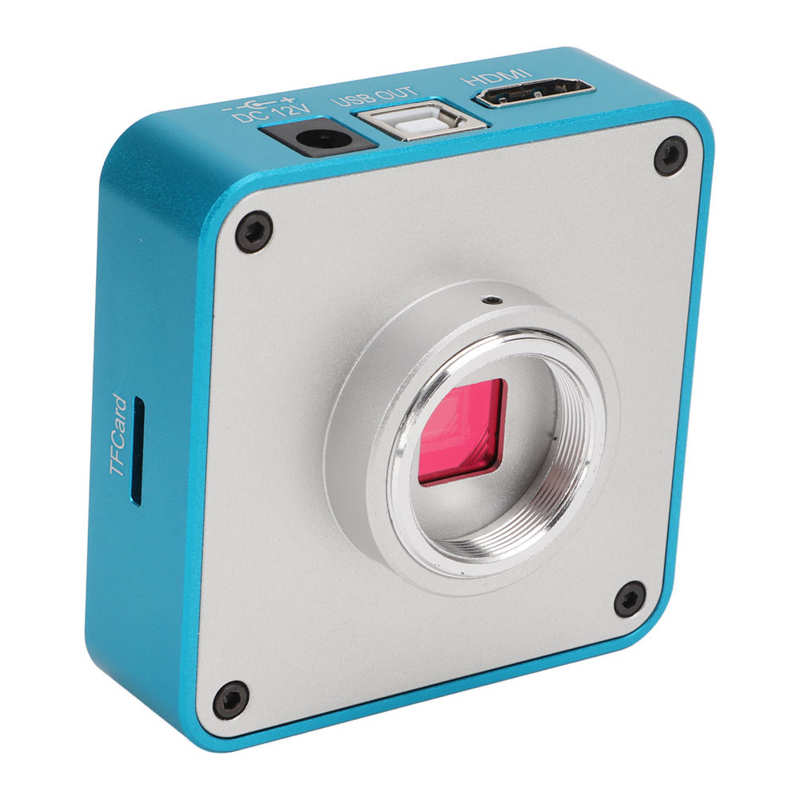

Lens Mount: C/CS Mount

Remote Control Battery: 1 x CR2025 Button Battery (Battery Not Included)

130x C Type Lens

Working Distance: Approx. 50-250mm / 2.0-9.8in

Zoom C Mount Lens

Scaling: 6.5:1

Objective Lens Magnification: About 10-130X On the Screen

LED Light Parameters:

Power Input: 100-240V, 50-60HZ

Minimum Diameter for Rings Light: Approx. 25mm / 1.0in

Maximum Diameter for Rings Light: Approx. 60mm / 2.4in

Working Distance: Approx. 27-120mm / 1.1-4.7in

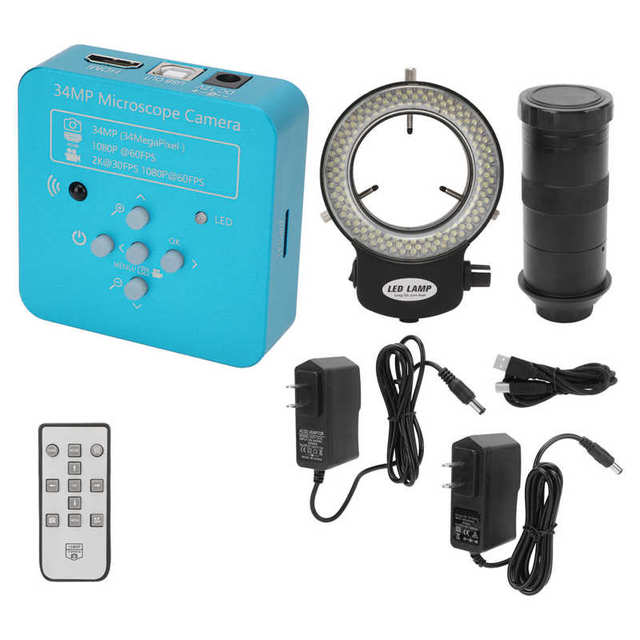

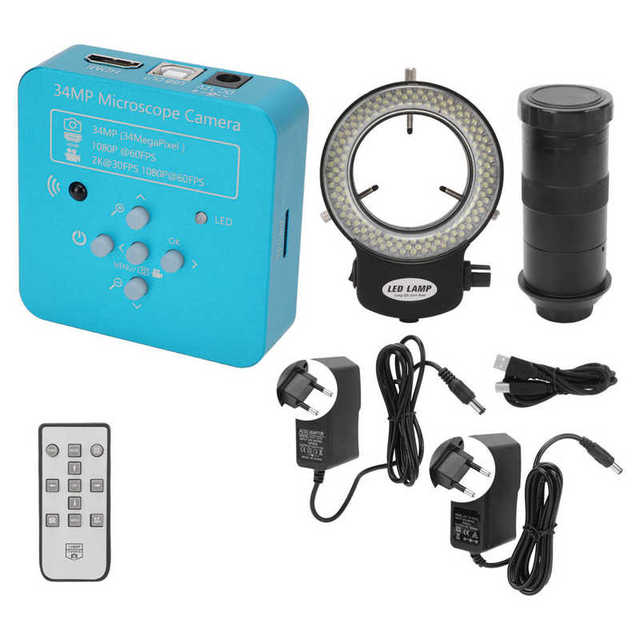

Package List:

1 x Camera

1 x Lens

2 x Power

1 x USB Cable

1 x Remote Control

1 x Software CD

1 x LED Light

1 x User Manual
