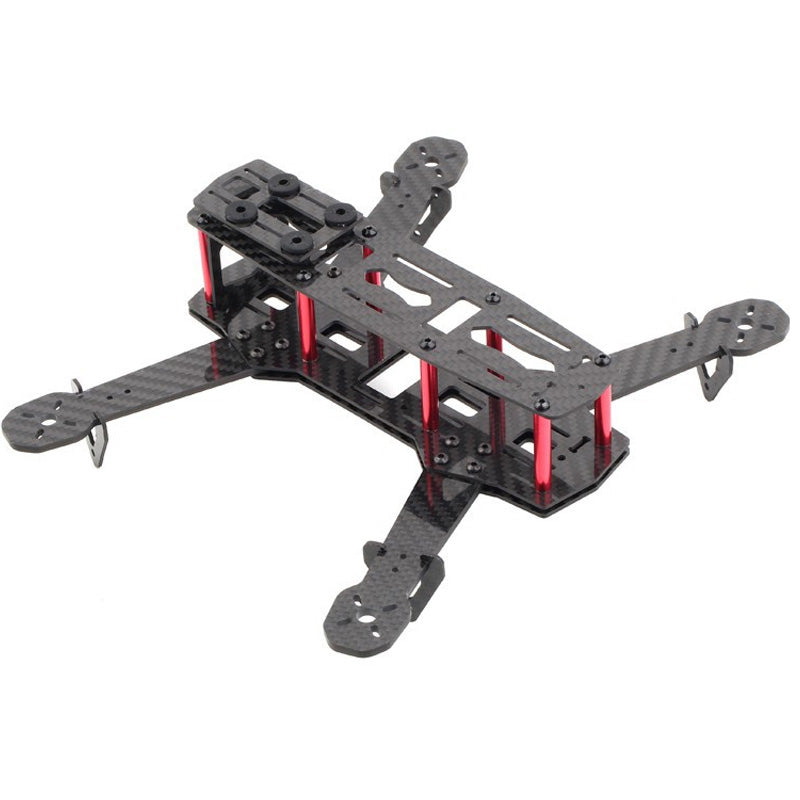

250 Carbon Kit:
Materials: Carbon Fiber
Fasteners: Stainless Steel & Red Metal 8/8
Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
Maximum Propeller: 5"
Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
Flight Controller Mount: 30.5mm x 30.5mm
Board Camera Mount: 32mm x 32mm

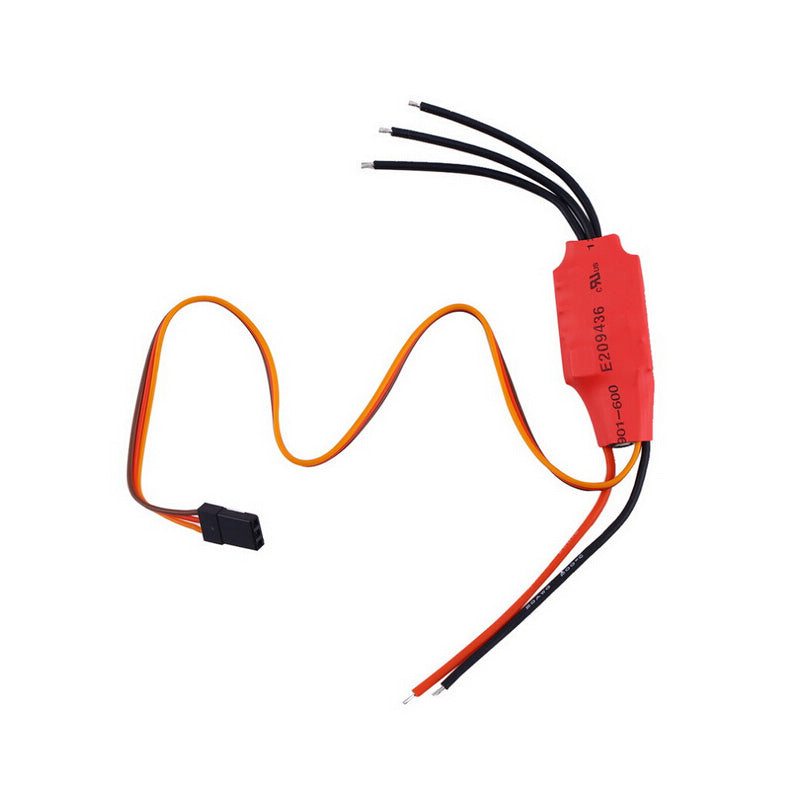

12A ESC:
Constant Current: 12A
Input Voltage: 1-3 cell Lipoly
BEC: Yes (linear) [Remove middle wire to dissable]
BEC Output: 5V/2A
PWM: 8 KHz
Max RPM: 240,000rpm for 2 Pole Brushless Motor
Total length: 34.5cm
Net Weight: 12g

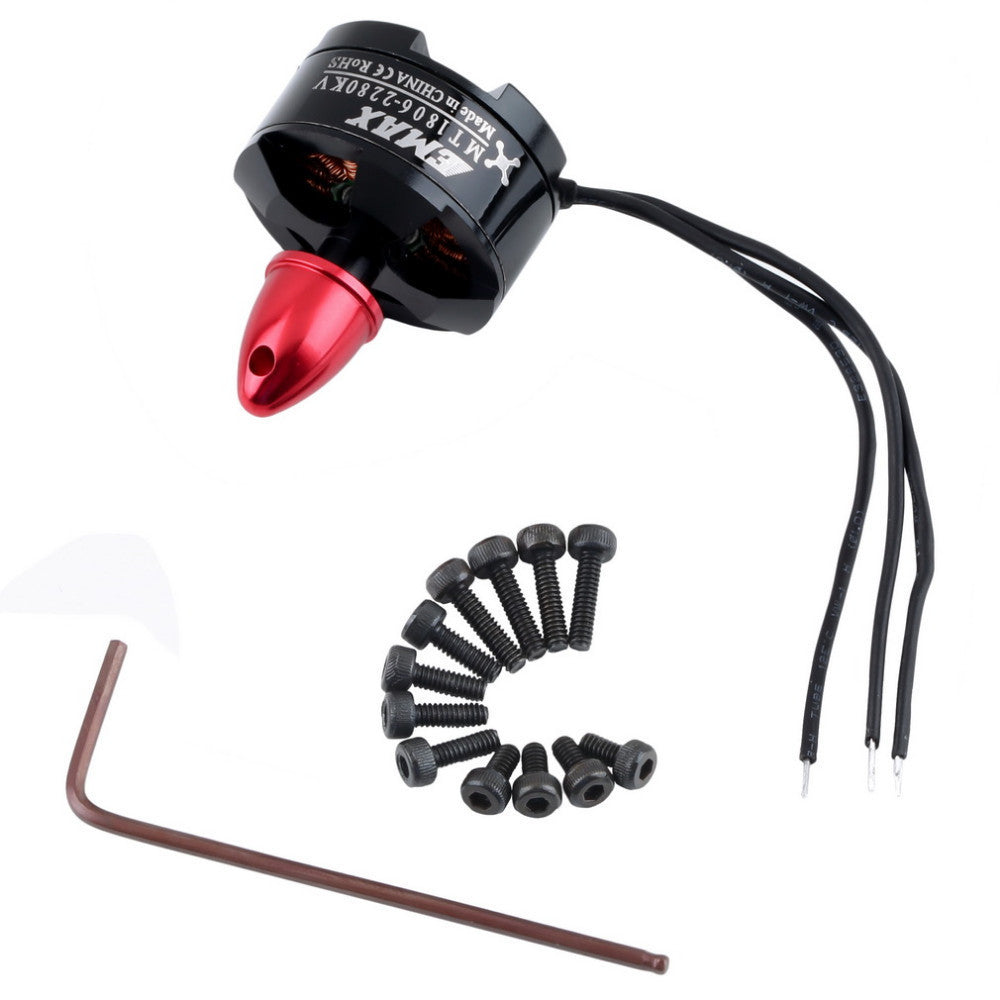

EMAX MT1806 2280KV Motor Specification:
- KV: 2280
- Max Trust: 460g
- No. of cell: 2-3S
- Framework: 12N14P
- Propeller: 5" ~ 6"
- Length: 26.7mm
- Shaft: 2mm
- Diameter: 23mm
- Weight: 18g
5030 propeller:
Model: 5030
Material: Plastic
Color: Black+Green
Shaft: 5mm
Weight: 7.2g
Package size: 20 * 15 * 1cm / 8 * 6 * 0.4 in
Package weight: 14g / 0.5 oz
ESC Connection Board:
- Special for MultiCopter battery connection
- Up to 8 ESC/Motor can be connect to the Board
- 100A maxium input
- Weight:6.7 gram
- Size:55mm*55mm
Note:Pls be kind note that this is not assembled frame.

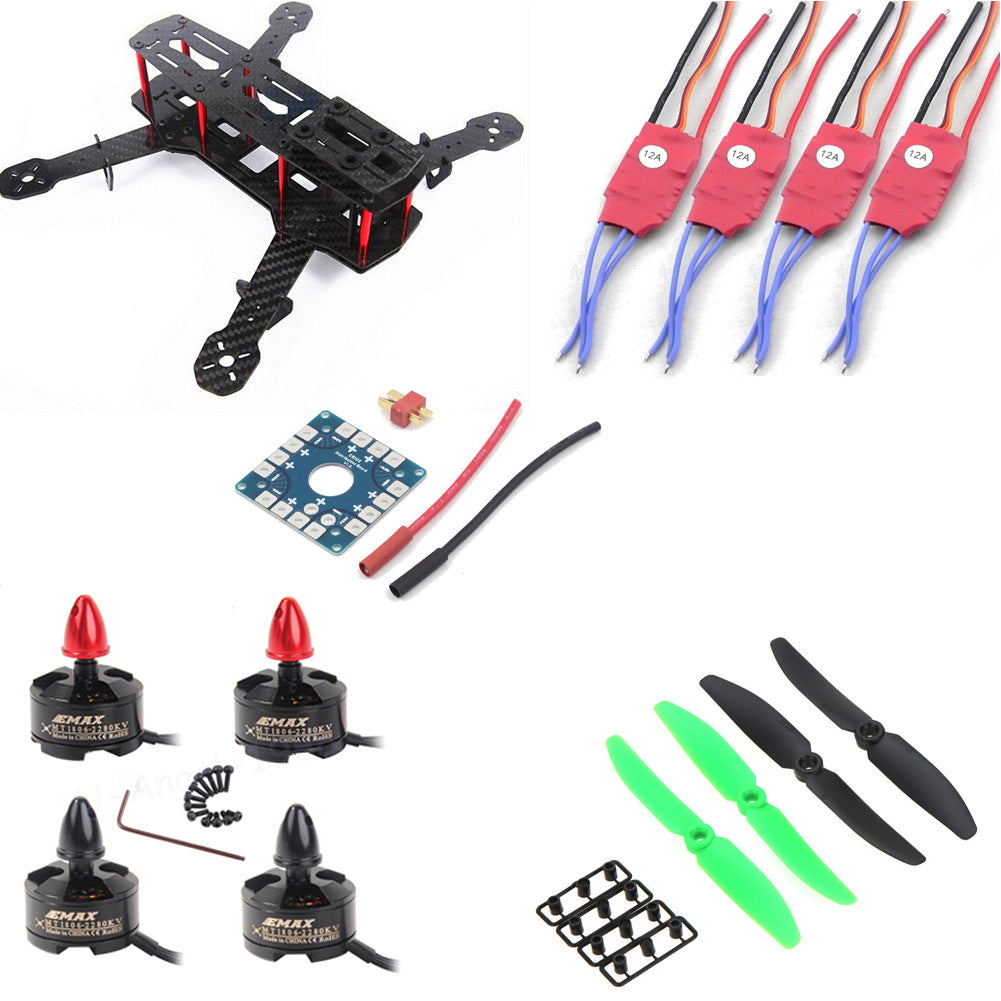

packing content:
100% Brand New
- Mni 250 FPV Quadcopter Frame x 1
- ESC Connection Board x 1
- MT1806 2280kv Brushless Motor x 4 (2cw 2ccw)
- 12A Simonk ESC x 4
- 5030 Propeller CW&CCW x4 (2 pair)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
