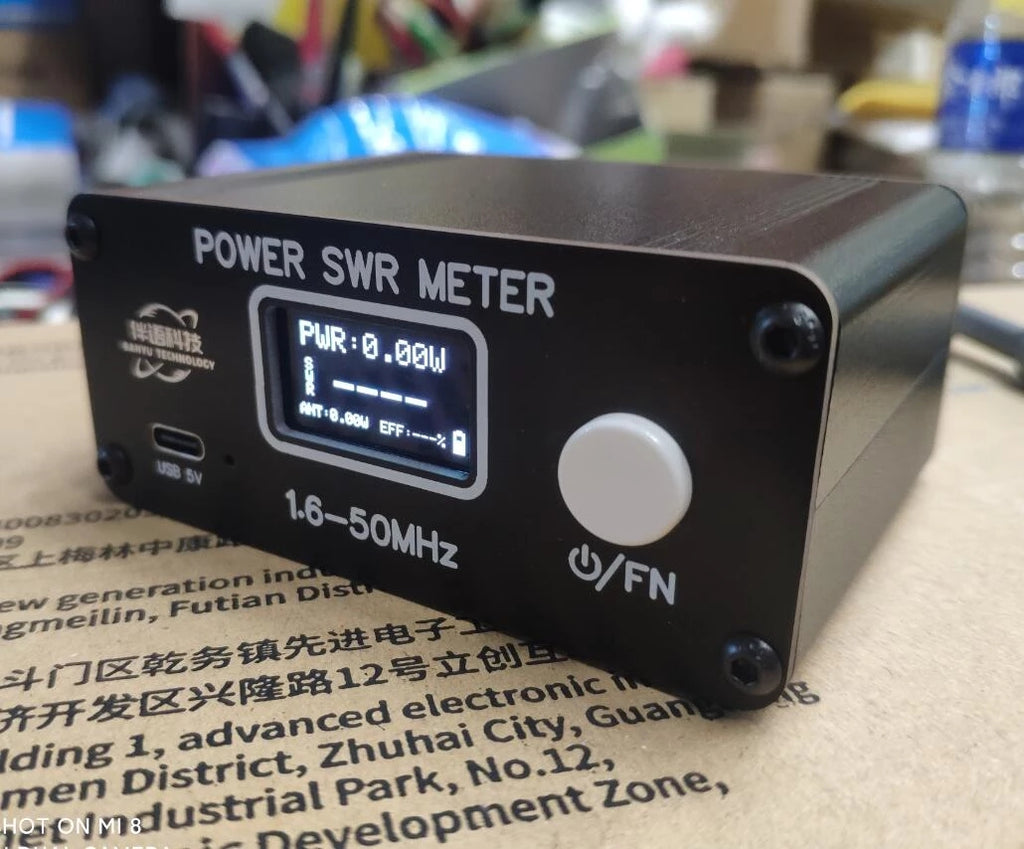

Mini QRP 150W 1.6-50MHz SWR HF Short Wave Standing Wave Meter SWR Power Meter FM/AM/CW/SSB
Advantage:
- According to the fitting algorithm of the characteristics of the detector diode, coupled with the dual-reference segment detection, the accuracy in the power range of 0.5W-150W is better than 5%.
- 5 kinds of interface display methods, choose according to your own preferences, one-click switching.
- High-speed average detection method, real-time efficiency display.
- Buzzer alarm when standing wave is greater than 2.0.
- Compatible with open source software code, freely modifying the code brings more fun.
- USB firmware upgrade does not require a dedicated programmer.
- Built-in lithium battery, can be used for more than 50 hours on a single charge.
- Multi-function buttons make it more fun to use, reserve space for adding functions in the future, and provide an additional interactive method.
Parameters:
Frequency range: 1.6-50MHz
Power measurement range: 0.5W-150W
Standing wave measurement range: 1.0-99.9
Insertion loss: <0.12dB
Insert standing wave: ≤1.02
Measurement accuracy: better than ±5%
Standing wave alarm: ≥2.0 (with close function)

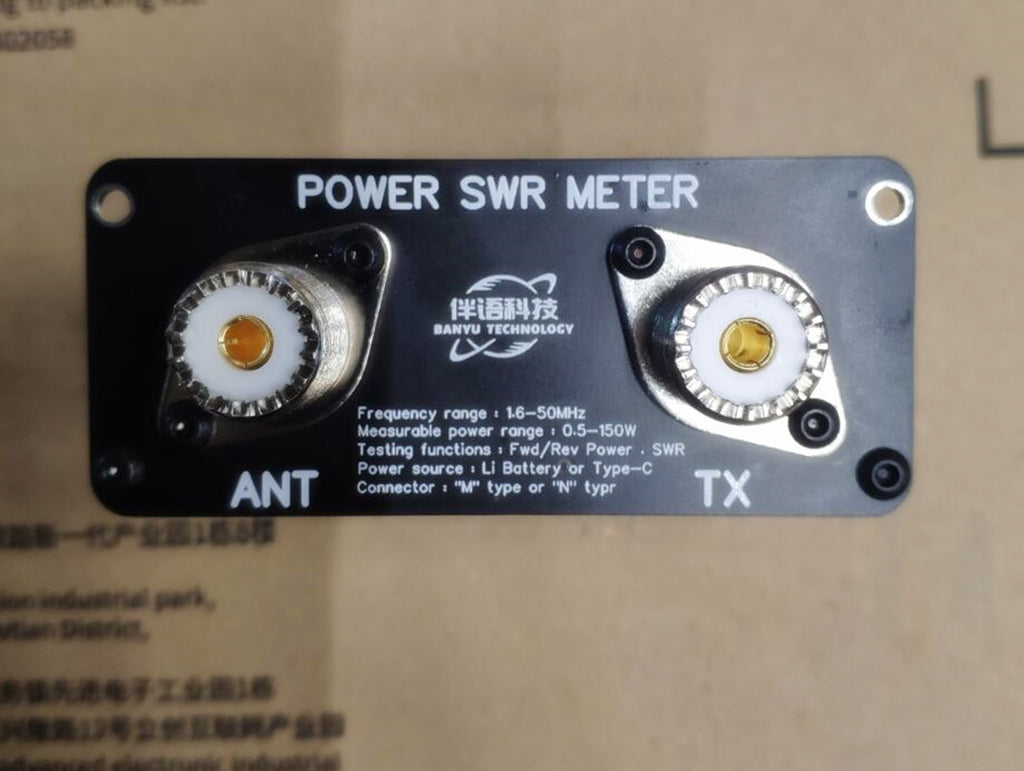

RF interface type: SL16-M or N (default M)

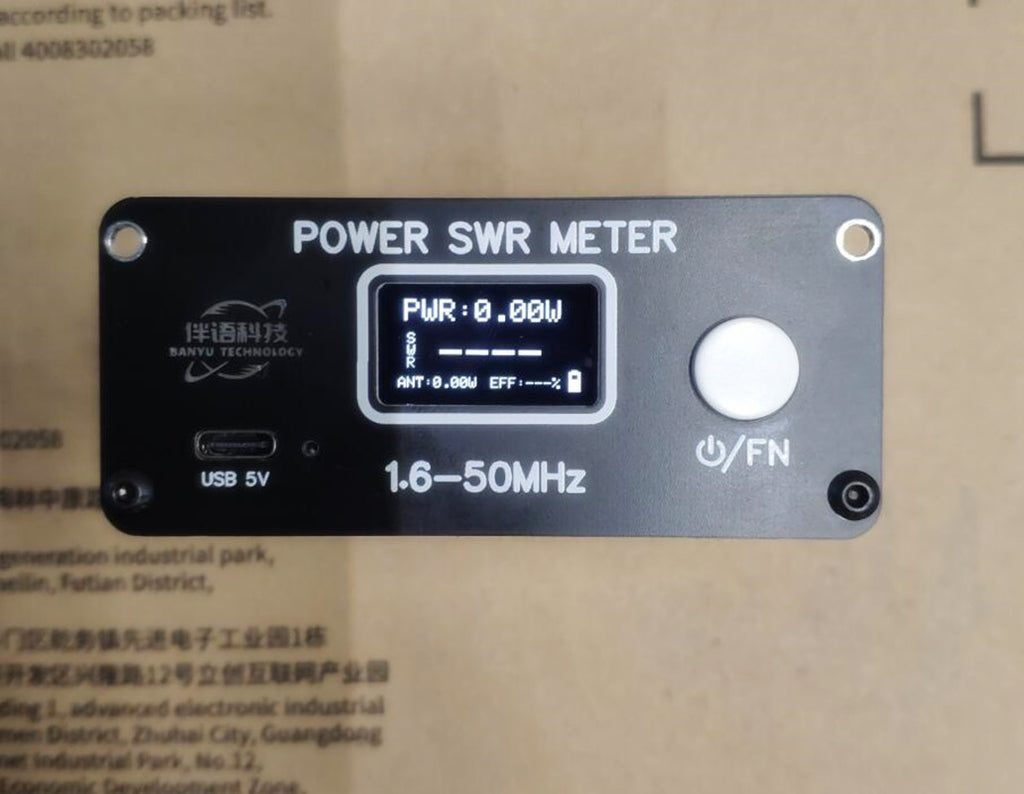

Display content: forward power; standing wave; antenna power; efficiency.

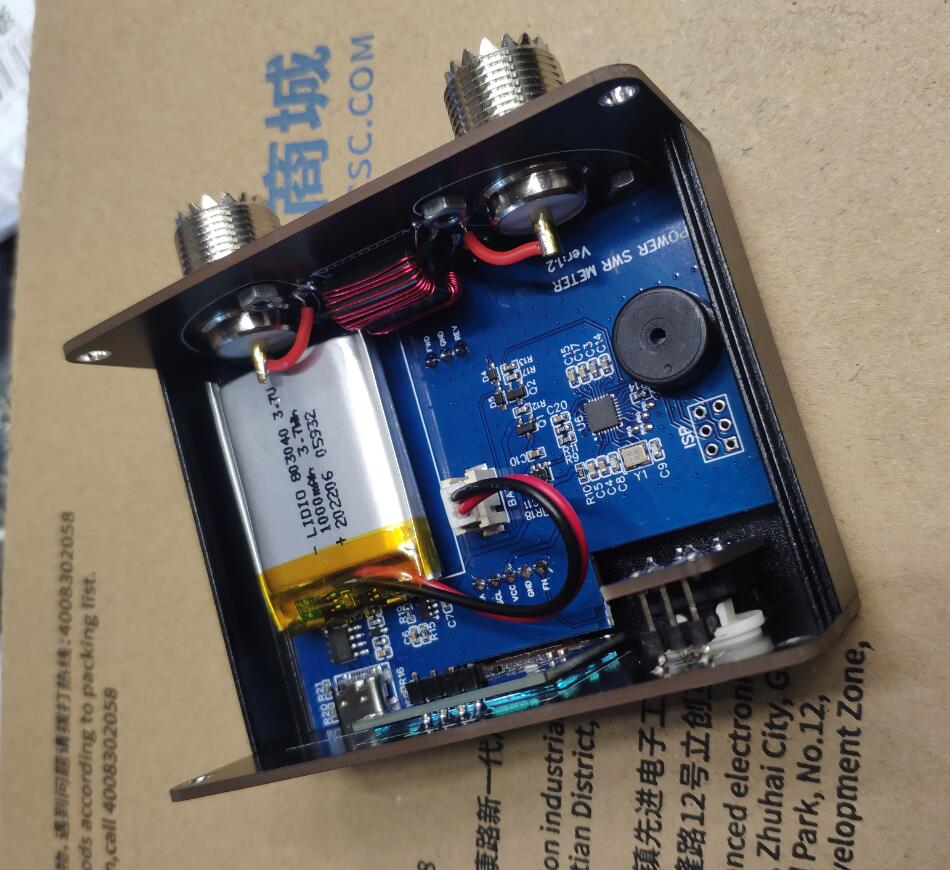

Power supply: built-in 3.7V/1000mAh rechargeable lithium battery or USB type-c
Power off power consumption: <0.1uA
Data communication: USB type-c
Firmware upgrade: support
Overall size: 88mm*38mm*64mm (excluding protruding parts)
Special reminder: FM or AM mode continuous transmission is recommended not to exceed 110W; SSB or CW can work under 200W for a long time; more than 500W will damage the detection components.
Simple introduction to use:

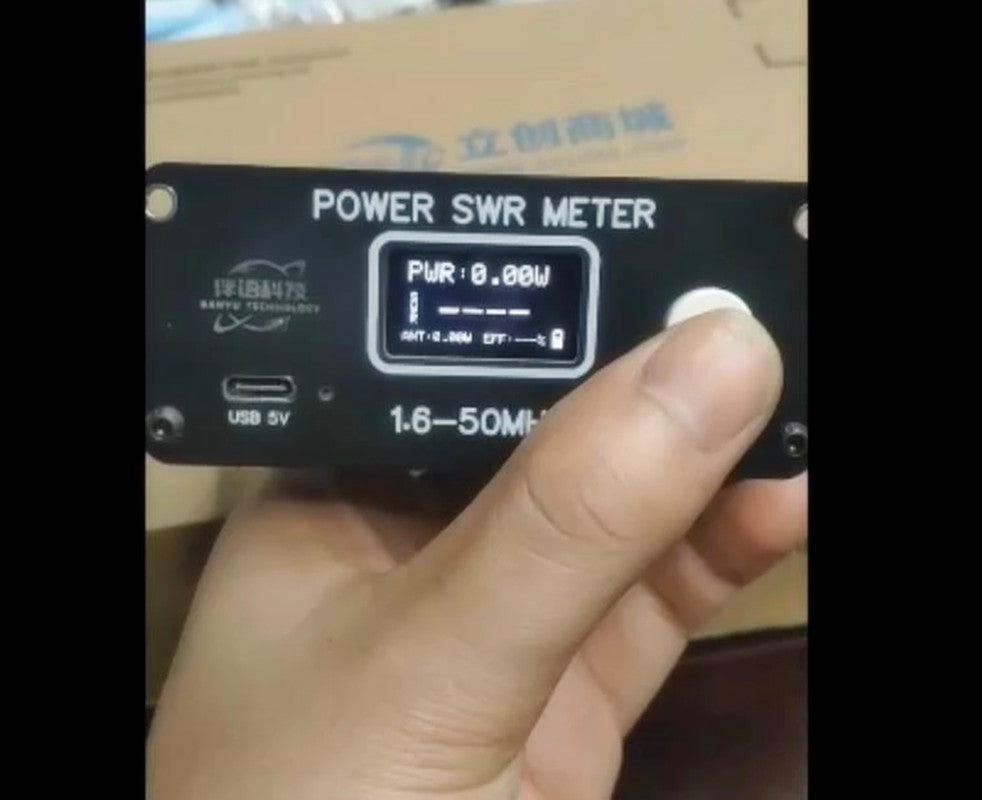

- Long press to switch the machine, short press to switch the display interface, double click to switch the standing wave alarm;
- There are 5 kinds of display interface in total, which are automatically saved and automatically recalled the next time you start up.
- The red light is displayed when charging, and the light is off when fully charged.
Package included:
1 x SWR standing wave meter
