* 12V/24V automatic recognition.
* Built-in overheat/short circuit protection, reverse polarity protection.

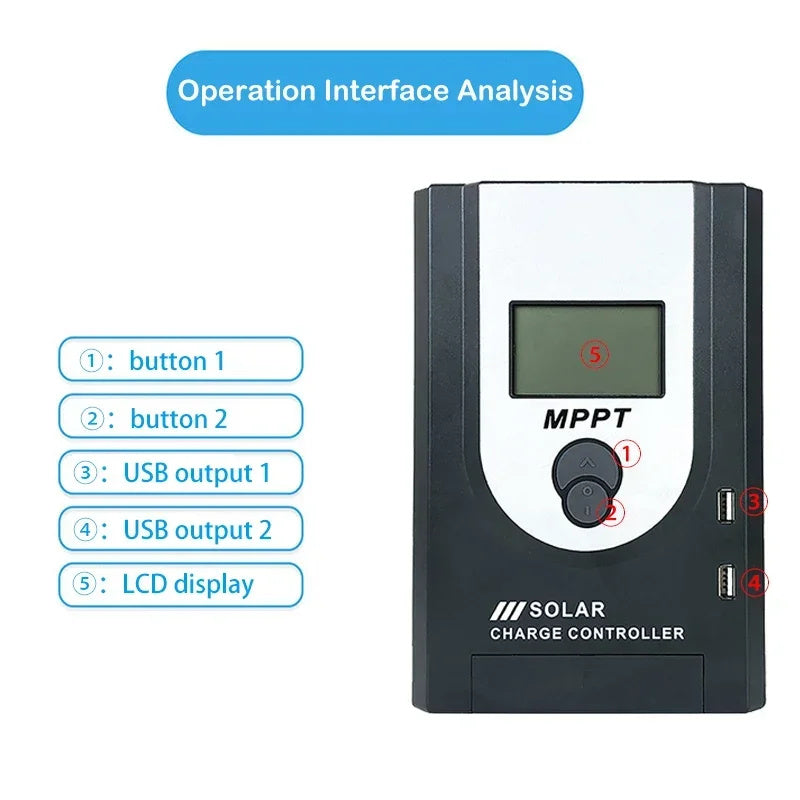

* LCD screen one-button to complete the operation of the battery, fully charged, automatic disconnection, automatic memory data storage.
* Four-stage mppt regulated charging, high-power multi-phase mppt charging module, high stability, charging efficiency up to 97%, multi-stage charging controller mode, control parameters can be set.

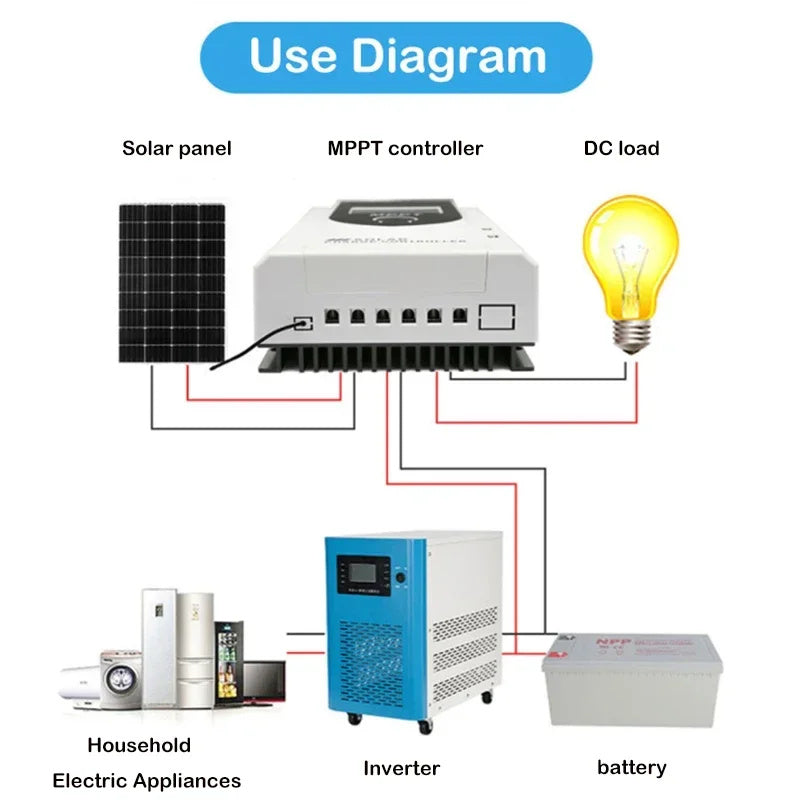

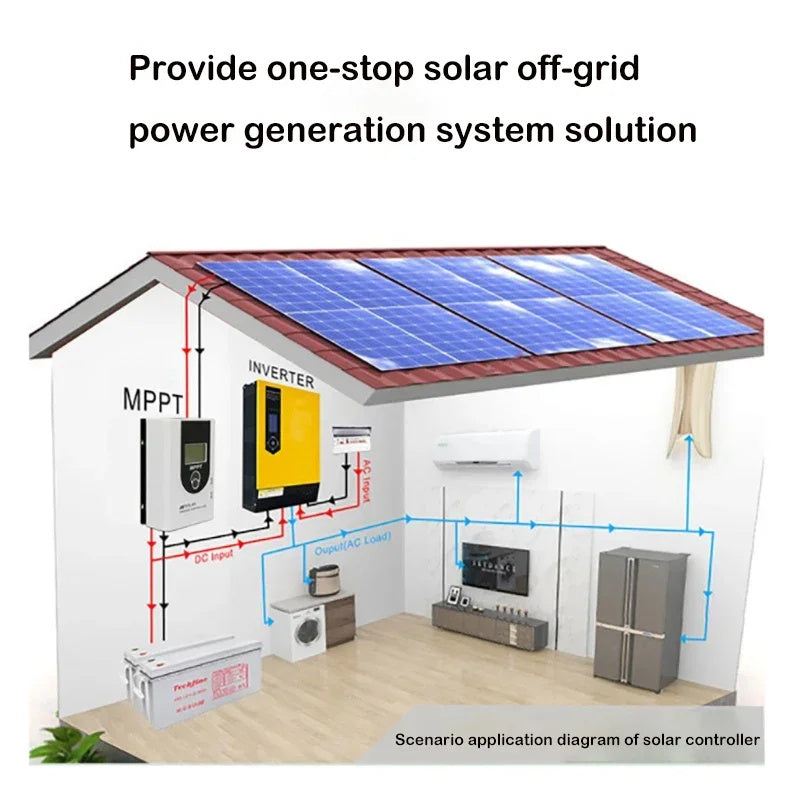

* Suitable for solar power systems, smart homes, solar chargers, solar monitoring systems, solar light boxes, solar billboards, solar warning lights, etc.
Specification:

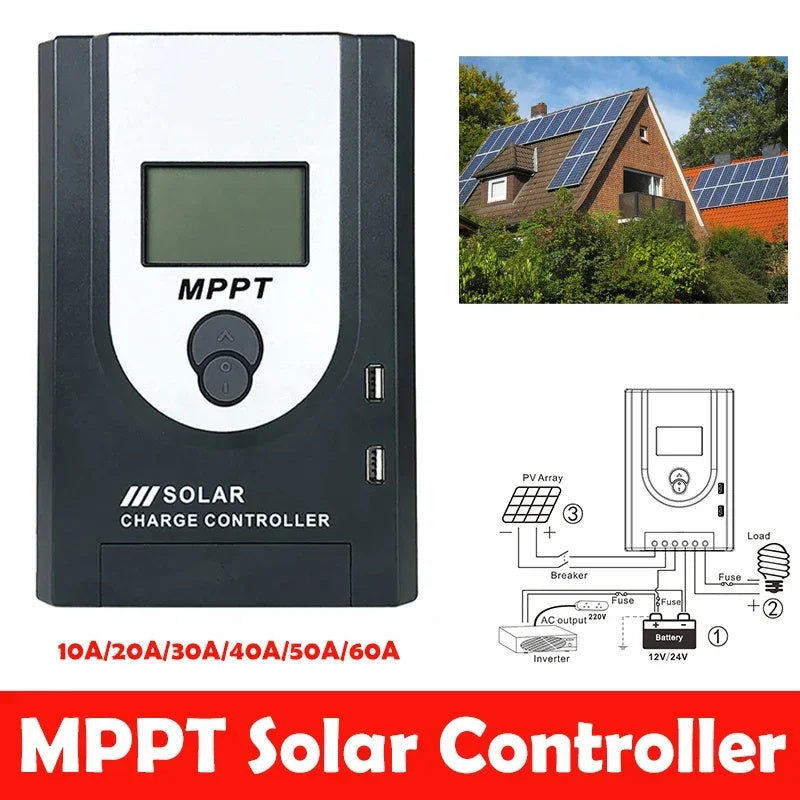

Name: Solar Controller
Rated charging current: 40A
Solar panel maximum open circuit voltage: 100V (at the lowest temperature), 92V (at the normal temperature of 25°)
System rated voltage: 12V/24V automatic identification
Maximum battery voltage: 8-32V
Photovoltaic panel maximum input function: 520W(12V), 1040(24V)
Static loss: ≤50mA
High voltage protection: lead-acid battery 16V
Light control point voltage: 5V/10V/15V/20V
Temperature compensation coefficient: -4mV/°/2V (25°C)
Discharge circuit pressure drop: ≤0.2V
Display temperature range: -20°C~+70°C
Working environment temperature range: -20℃~+55℃
Storage environment temperature: -30℃~+80℃
Working environment humidity: ≤90% without condensation
Protection class: IP30
Grounding Type: Positive Grounding
Installation size: 133*130mm
Installation hole diameter: 5mm
Terminal wire diameter: 16mm²/5AWG
Size: 215*145*75mm
Packing included:
1 * Solar Controller
Note:
1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.
2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
