Specification:
Name: Solar Controller
Solar panel photovoltaic input peak power: 1440W,1800W
Rated charging current: 120A,150A
Photovoltaic panel input voltage range: 15V-23V photovoltaic panel for 12V battery;30V-45V photovoltaic panel for 24V battery;45V-69V photovoltaic panel for 36V battery;60V-90V photovoltaic panel for 48V battery;
Rated output current: 40A,50A
Low voltage protection voltage: 10.7V * 2/3/4
High voltage protection voltage: 15.5V * 2/3/4

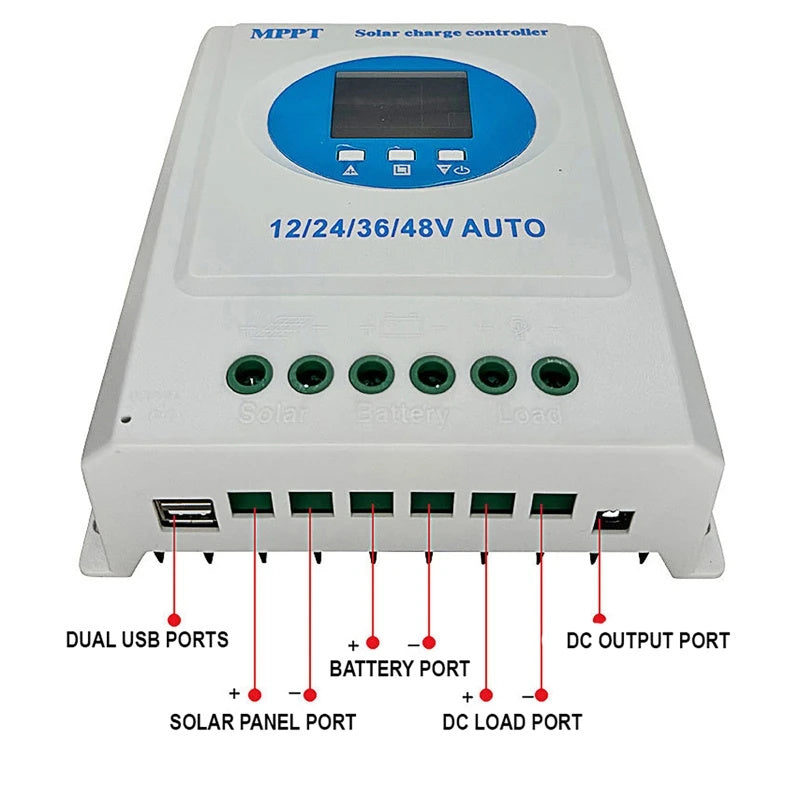

USB output interface: 5V/1A * 2
DC output interface: 2A * 1
Charging method: Focus MPPT pulse width modulation Charging
Protection function: Prevent overcharging, overvoltage, DC output low voltage, high voltage protection, reverse connection protection, etc.
Operating environment temperature: 0-60℃
Size: 195 * 183 * 68mm

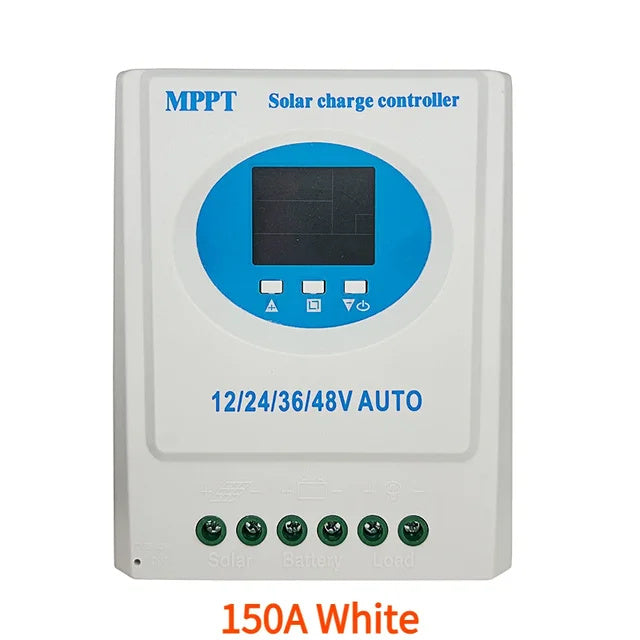

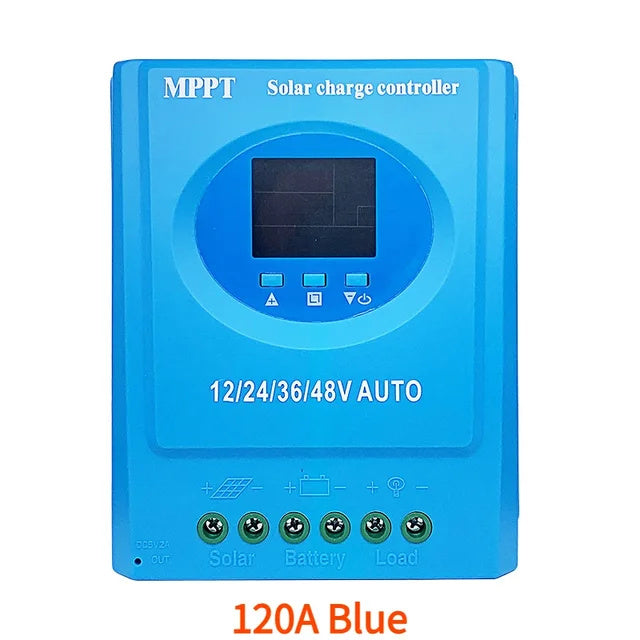

Color: White,Blue
Packing included:
1 * Solar Controller
1 * User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
