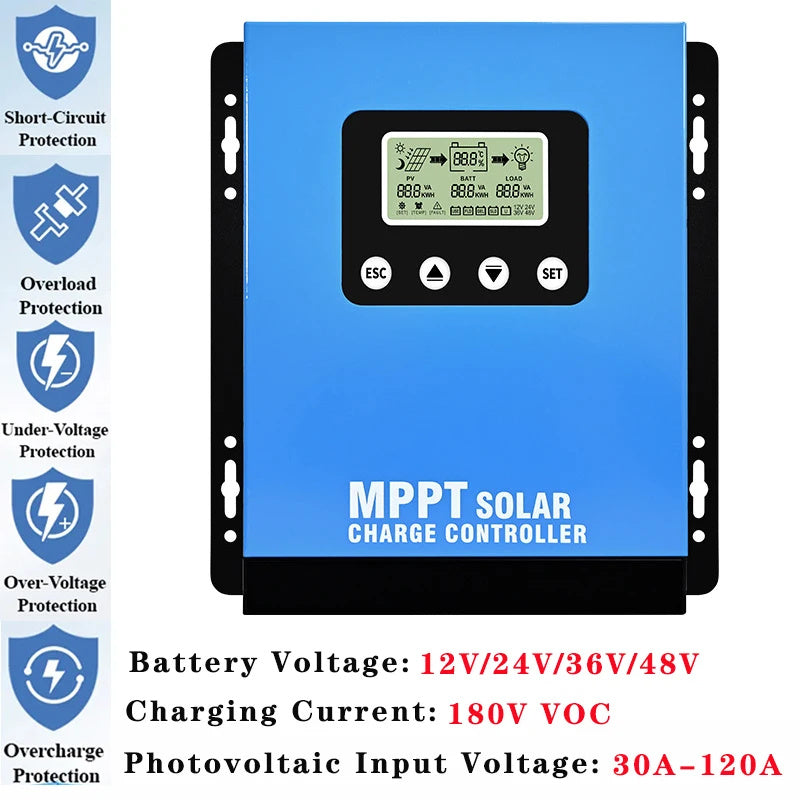

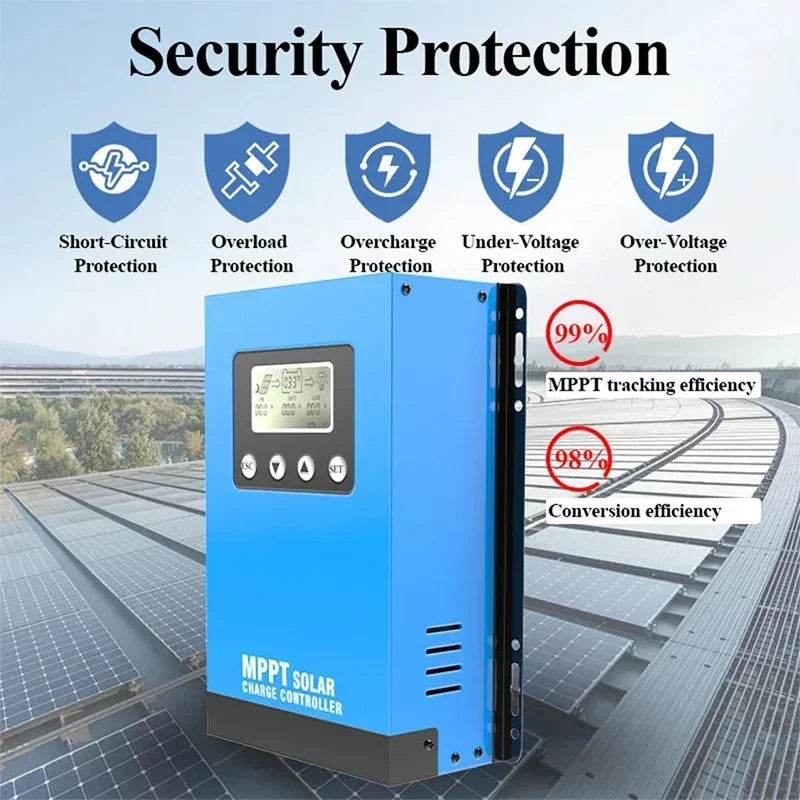

Feature:
* 100% MPPT controller!
* Automatic battery voltage detection 12V/24V/36V/48V
* Three-stage charging optimizes battery performance
* Multi-function LCD displays, Reverse polarity protection of solar panel
* Overcharge protection, Can be mounted easily
* Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
* PV input:190V max
MPPT technology:
Our machine uses MPPT point tracking technology, MPPT series solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed,dedicated to the soalr system,the charge controller conversion efficiency up to 98%

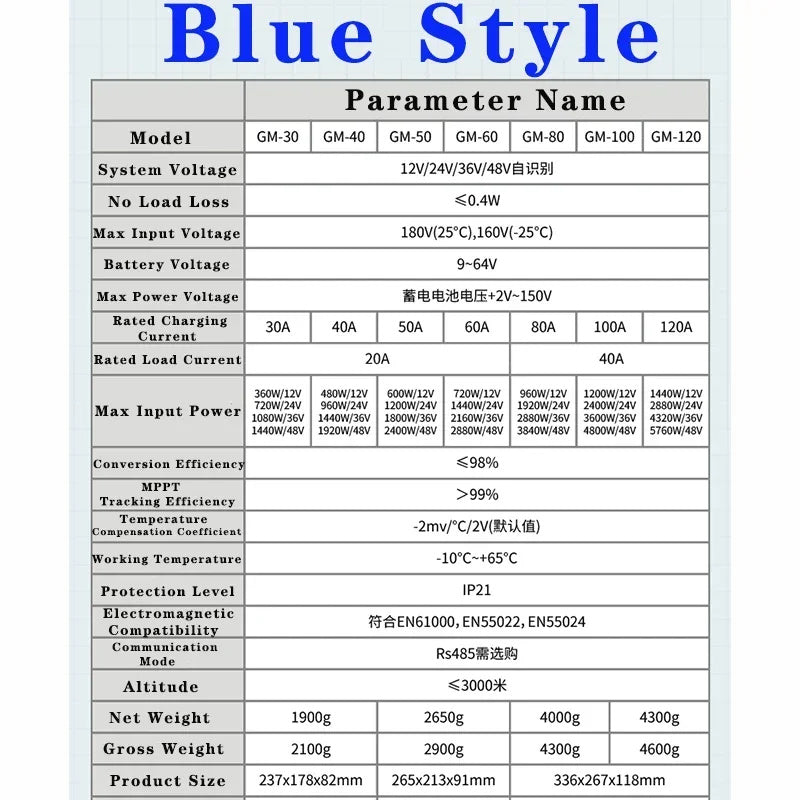

Product parameters:
|
Parameter |
Value |
|||||
|
Model |
GM-40 |
GM-50 |
GM-60 |
GM-80 |
GM-100 |
GM-120 |
|
System voltage |
12V/24V/36V/48V/Auto |
|||||
|
No-load loss |
≤ 0.4W |
|||||
|
Max.solar input voltage |
180V(25°C), 150V(-25°C) |
|||||
|
Battery voltage |
9~64V |
|||||
|
Max.Powerpointvoltagerange |
Battery voltage +2V~150V |
|||||
|
Rated charging current |
40A |
50A |
60A |
80A |
100A |
120A |
|
Rated load current |
20A |
40A |
||||
|
|
480W/12V |
600W/12V |
720W/12V |
960W/12V |
1200W/12V |
1440W/12V |
|
Max. photovoltaic system |
960W/24V |
1200W/24V |
1440W/24V |
1920W/24V |
2400W/24V |
2880W/24V |
|
input power |
1440W/36V |
1800W/36V |
2160W/36V |
2880W/36V |
3600W/36V |
4320W/36V |
|
|
1920W/48V |
2400W/48V |
2880W/48V |
3840W/48V |
4800W/48V |
5760W/48V |
|
Conversion efficiency |
98% |
|||||
|
MPPT tracking efficiency |
99% |
|||||
|
Temperaturecompensationfactor |
-2mv /°C/2V(default) |
|||||
|
Operating temperature |
-10°C~+65°C |
|||||
|
Waterproof level |
IP21 |
|||||
|
Net weight |
1.9kg |
2.65kg |
4kg |
4.3kg |
||
|
Gross weight |
2.1kg |
2.9kg |
4.3kg |
4.6kg |
||
|
Electromagnetic compatibility |
Accord to EN61000, EN55022, EN55024 |
|||||
|
Communication method |
Rs485(Need to choose and buy) |
|||||
|
Altitude |
≤3000m |
|||||
|
Product dimensions |
237x178x82mm |
265x231x91mm |
336x267x118mm |
|||

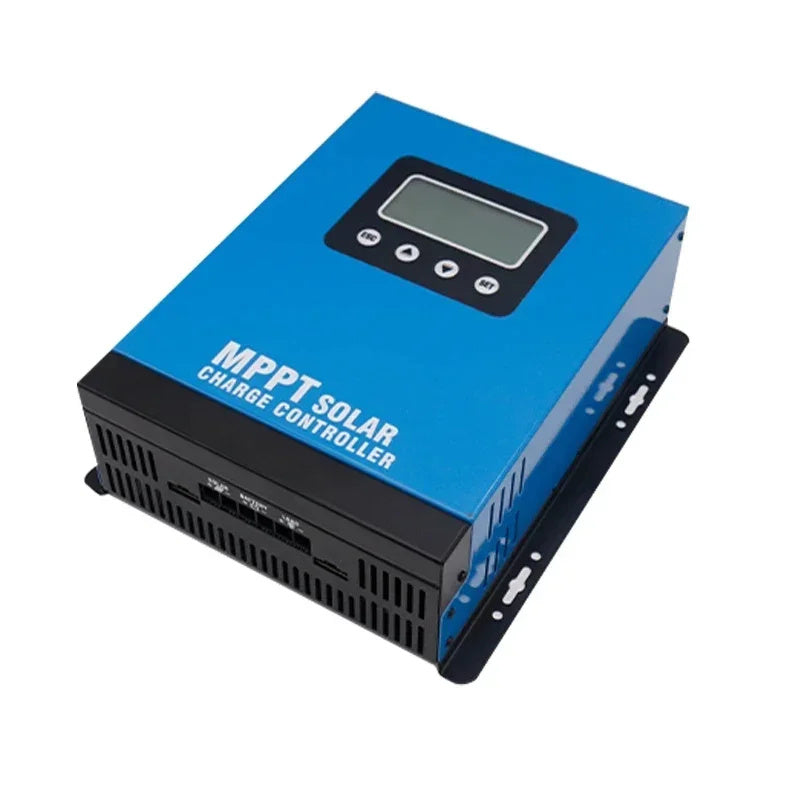

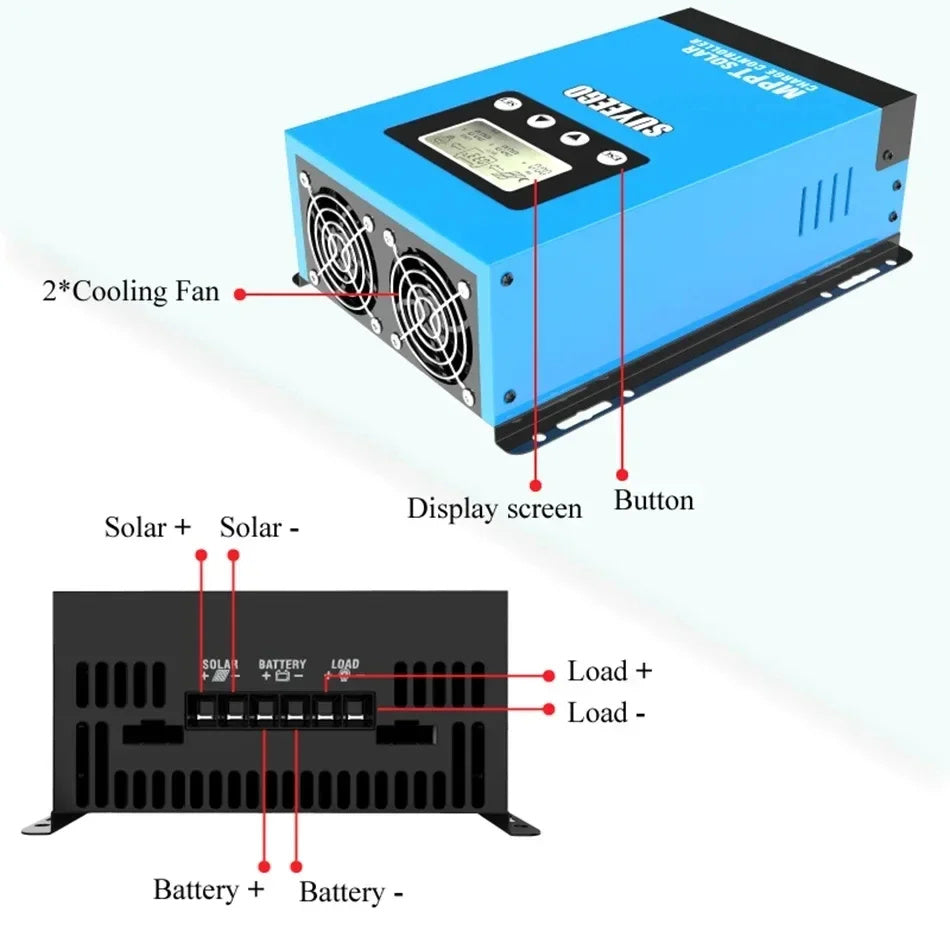

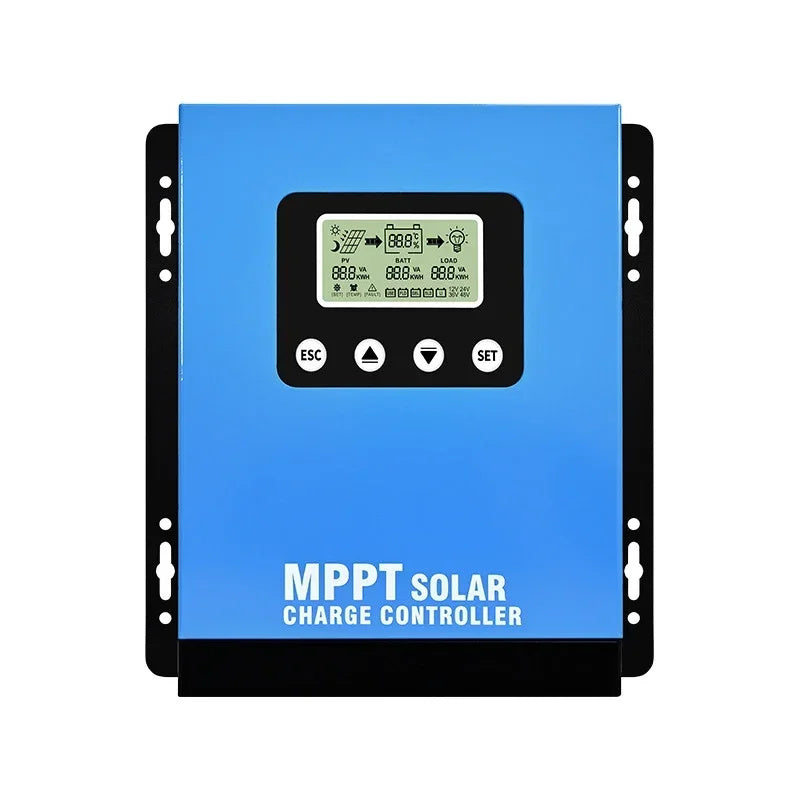

Image of Product
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
