Parameter:

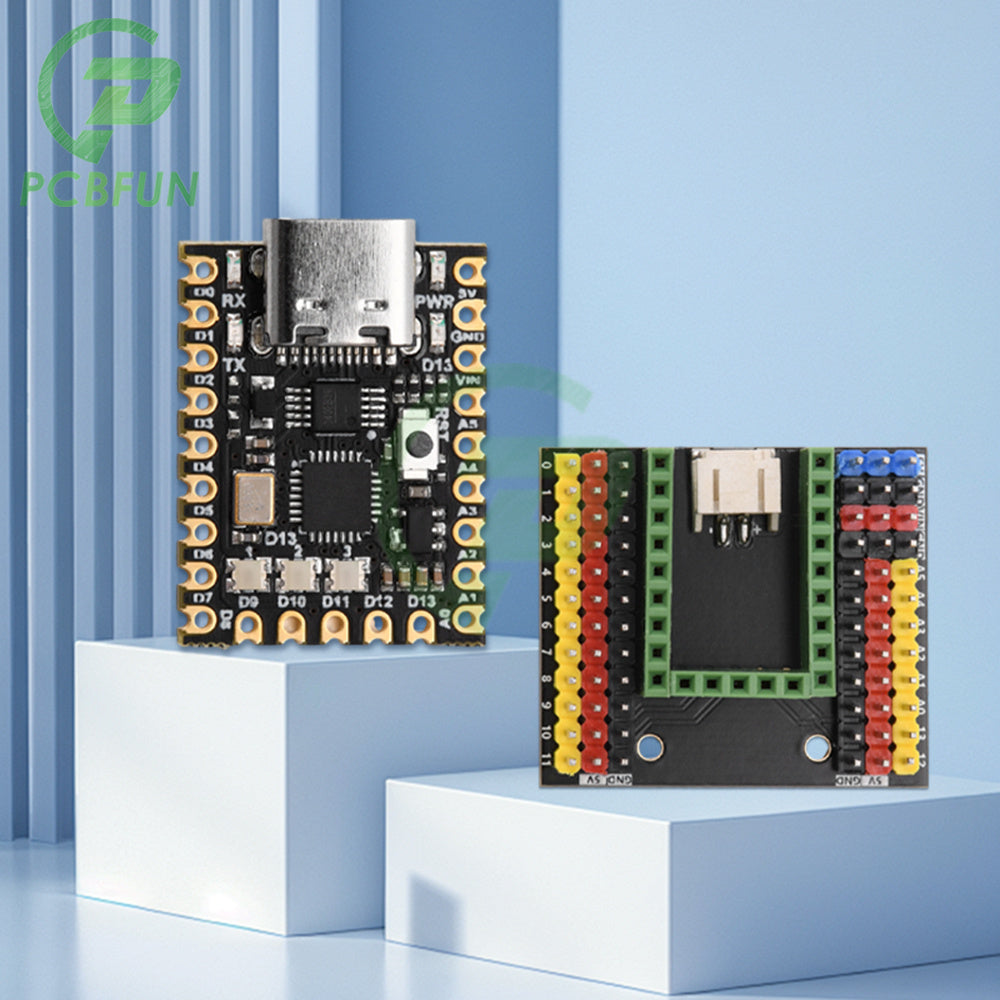

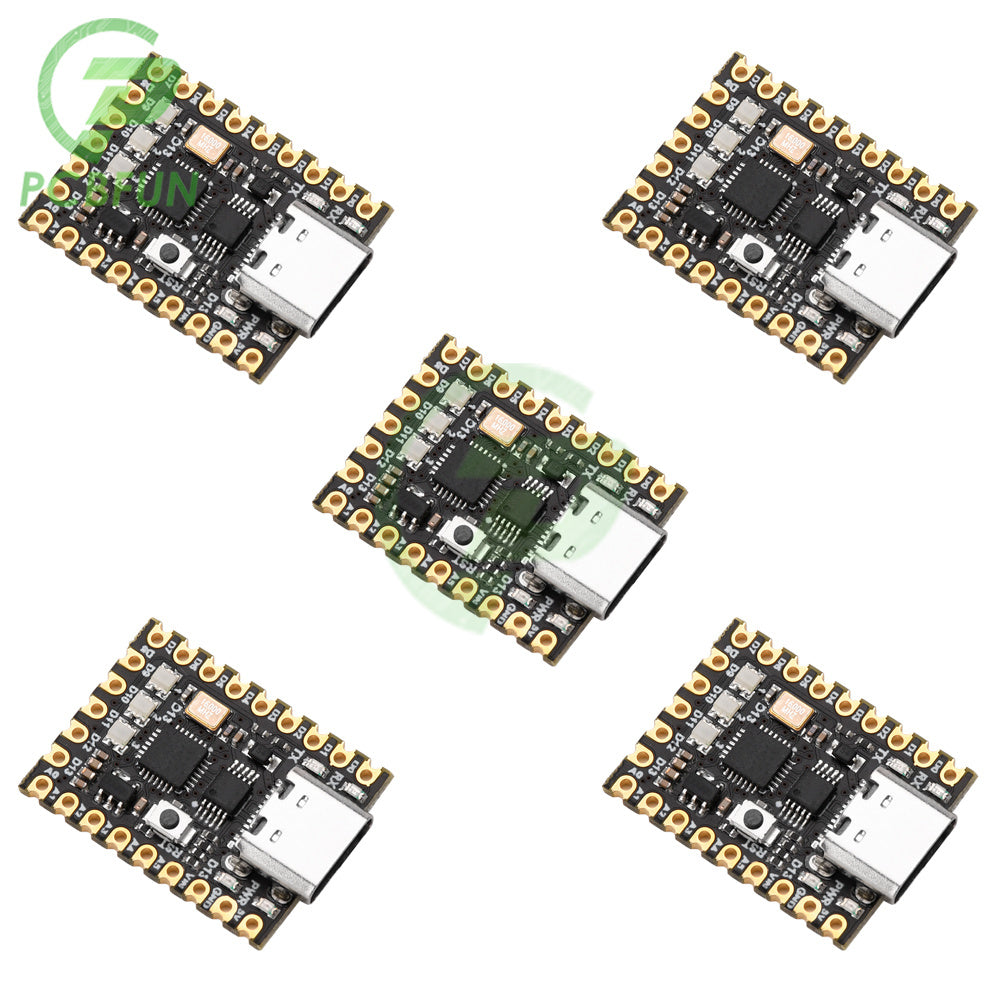

Development board:
Input voltage: USB 5V/DC6~12V
Output power supply: 3.3V~5V
5V maximum power supply current: 1A
Analog ports: 6 (A0-A5)
Digital ports: 14 (PWM interfaces: 3, 5, 6, 9, 10, 11)
EEPROM:1KB
SRAM:2KB
Flash:32KB

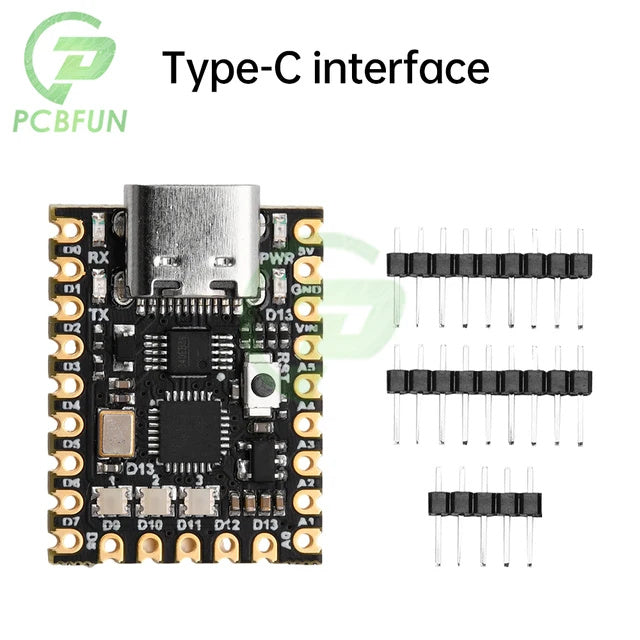

USB interface: Typec

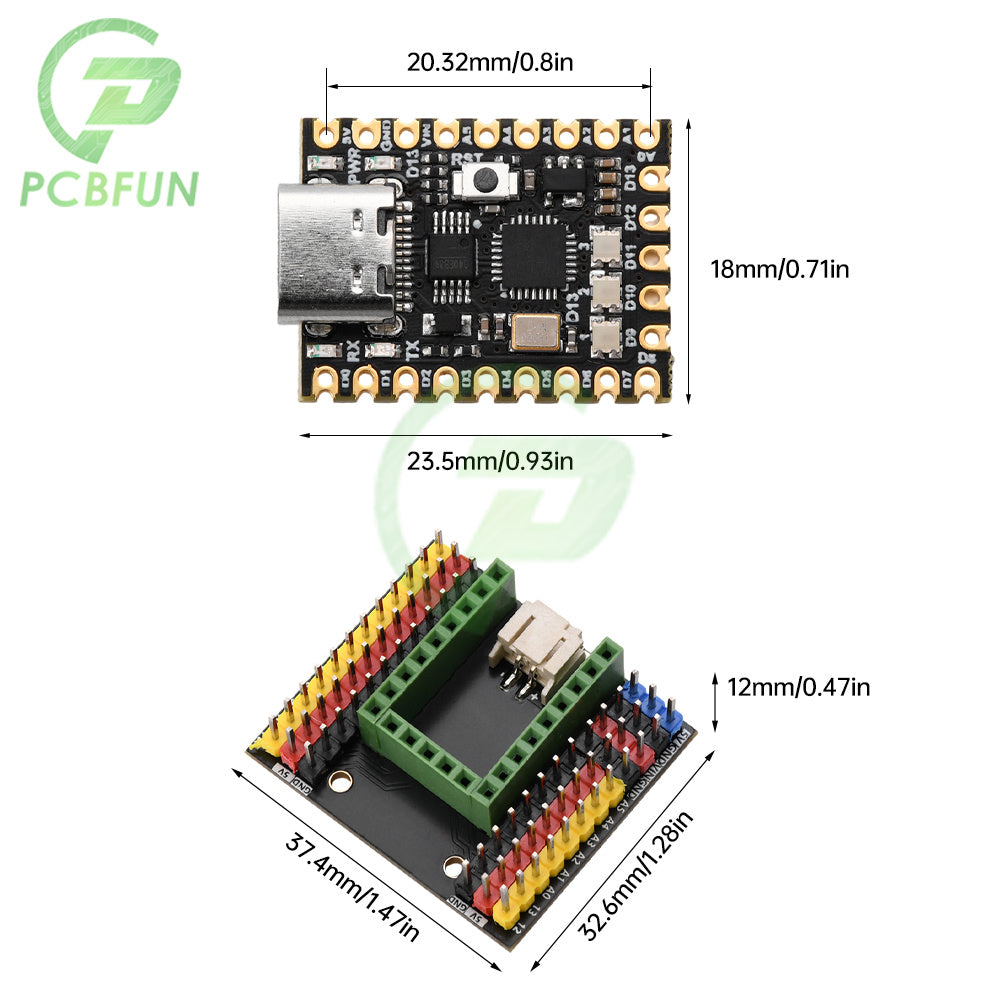

Size: 23.5 * 18mm

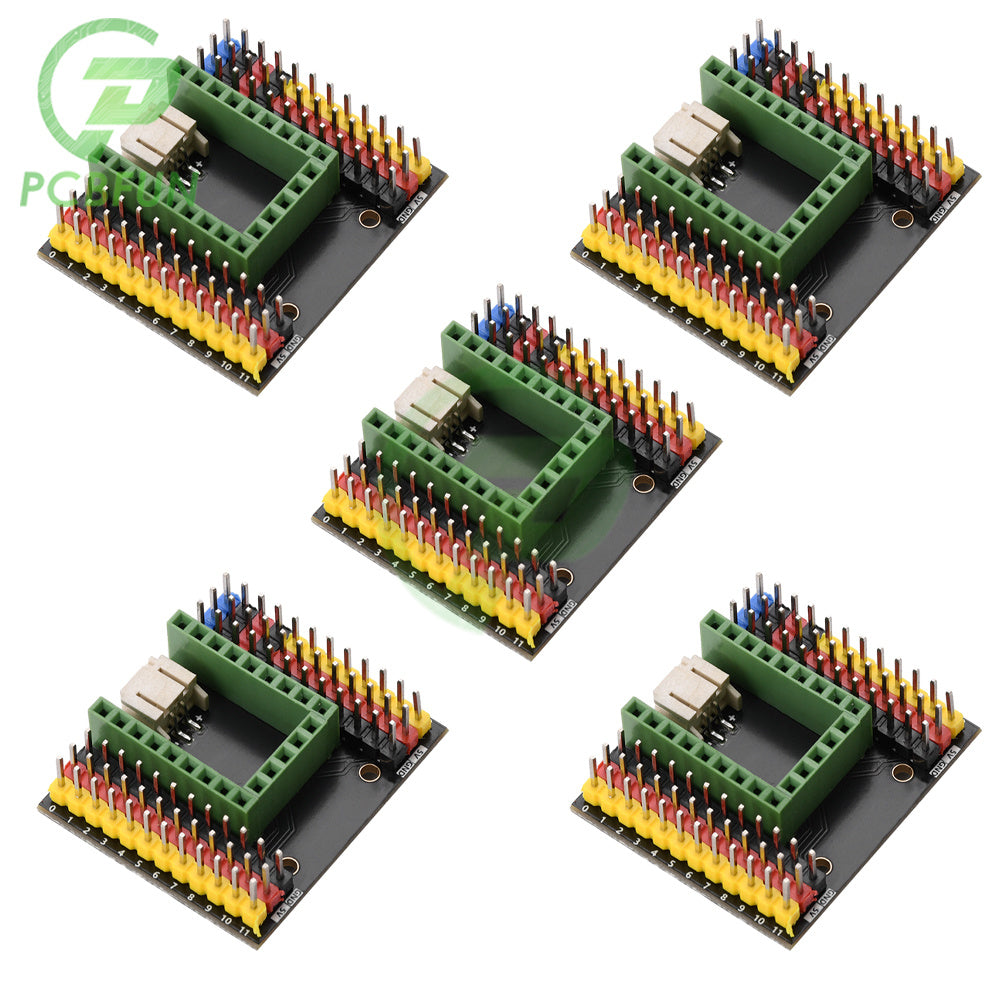

Expansion board:
Voltage: 5V

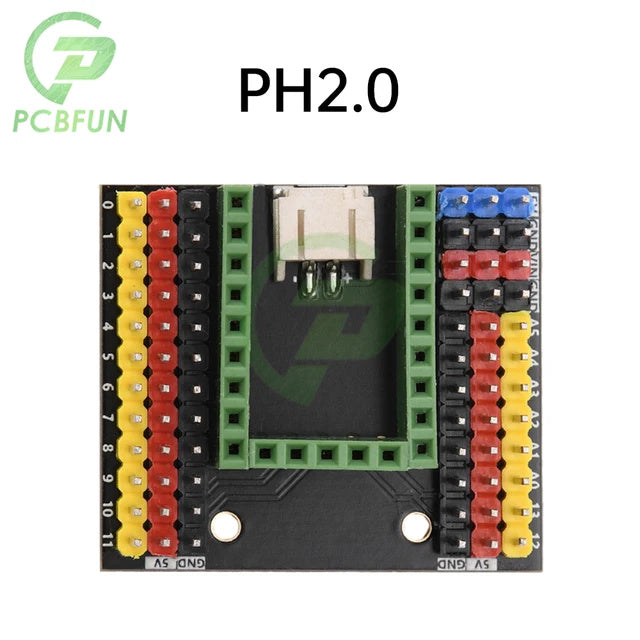

Terminal interface: PH2.0
Size: 37 * 32mm

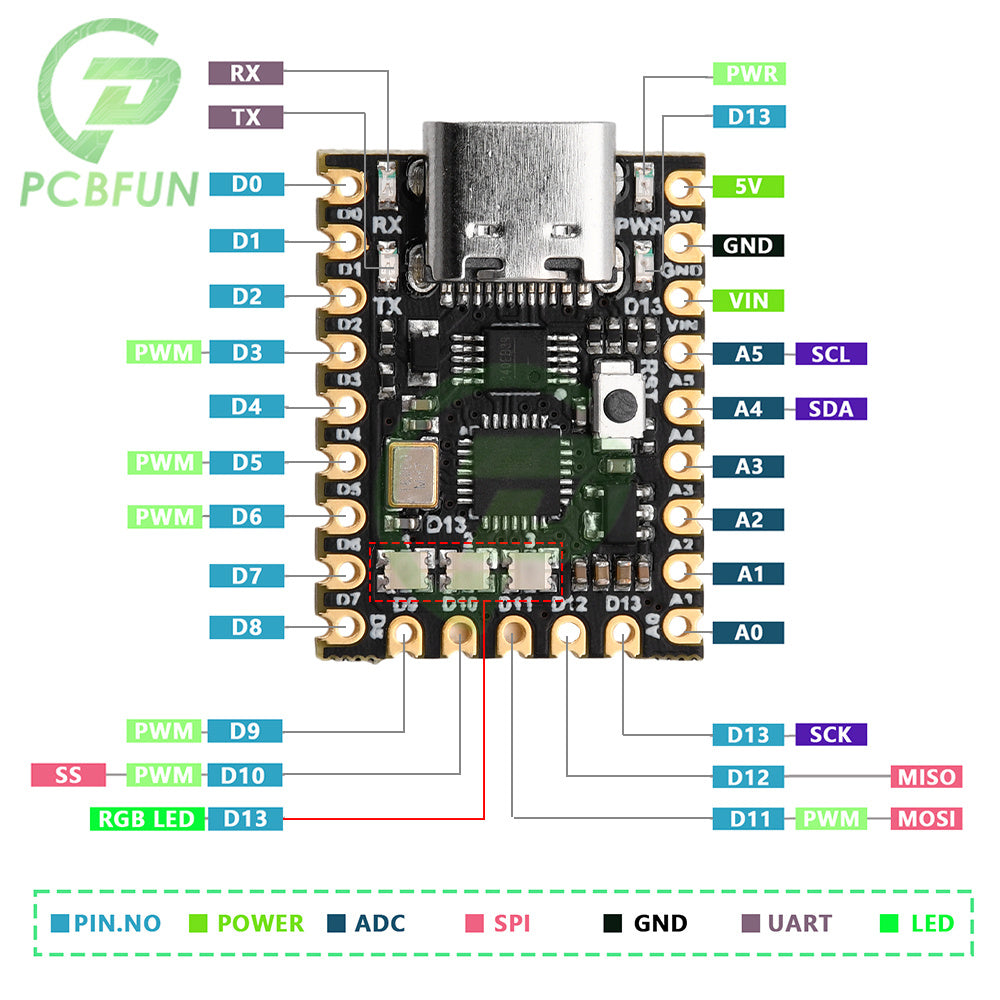

Pin Description:
Number Pin Description
1 D0 digital pin, RX (receive)
2 D1 digital pins, TX (transmit)
3 D2 digital pins
4 D3 digital pins, PWM
5 D4 digital pins
6 D5 digital pins, PWM
7 D6 digital pins, PWM
8 D7 digital pins
9 D8 digital pins
10 D9 digital pins, PWM
11 D10 digital pin, PWM
12 D11 digital pins, PWM
13 D12 digital pin
14 D13 digital pins, LED, RGB indicator lights
15 A0 analog input pin
16 A1 analog input pin
17 A2 analog input pin
18 A3 analog input pins
19 A4 analog input pin, SDA
20 A5 analog input pin, SCL
Package include:
