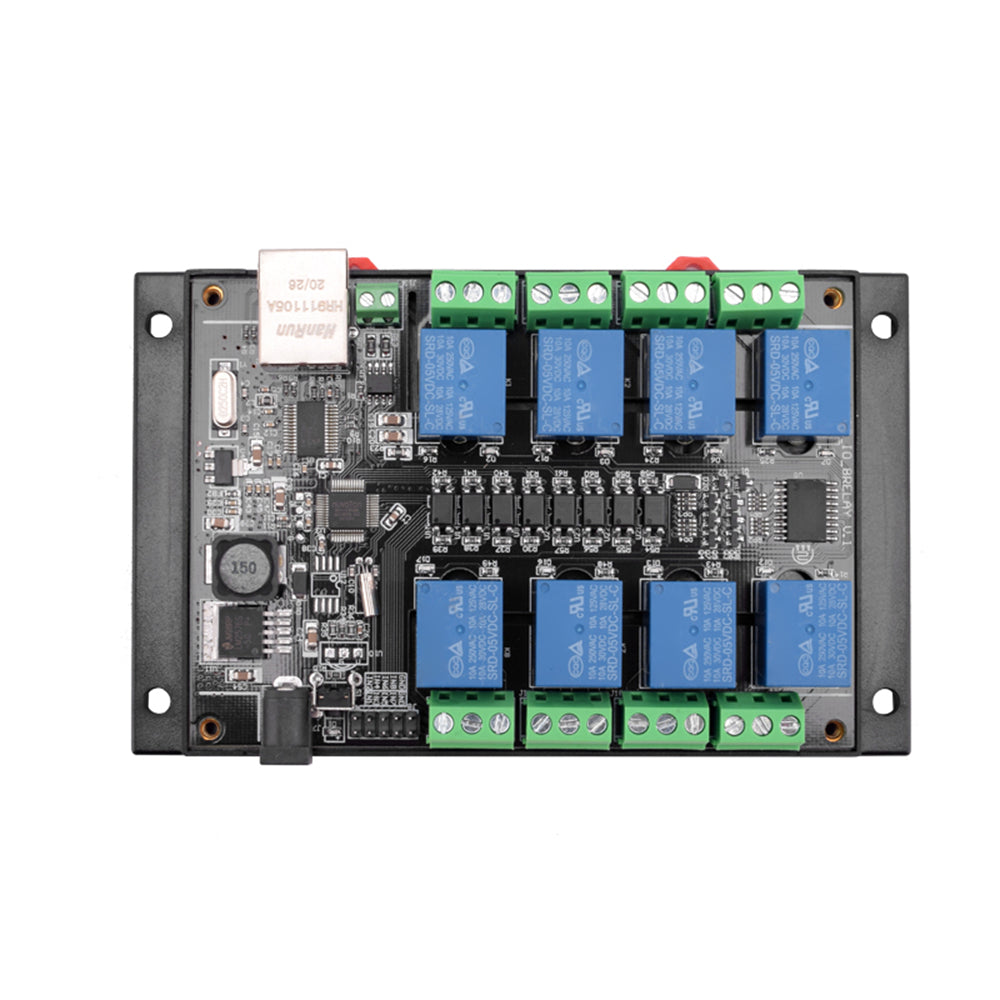

NC-1000 Ethernet RJ45 TCP/IP WEB Remote Control Board with Built-in 8 Channel Relays AC 250V 485 Networking Controller
Features:
1. Using high-quality materials, the quality is guaranteed
2. Ethernet TCP/IP RJ45 port
3.Onbacord WEB server allows you to access and control relays via WEB
4.8 250V/AC 10A independent control relays

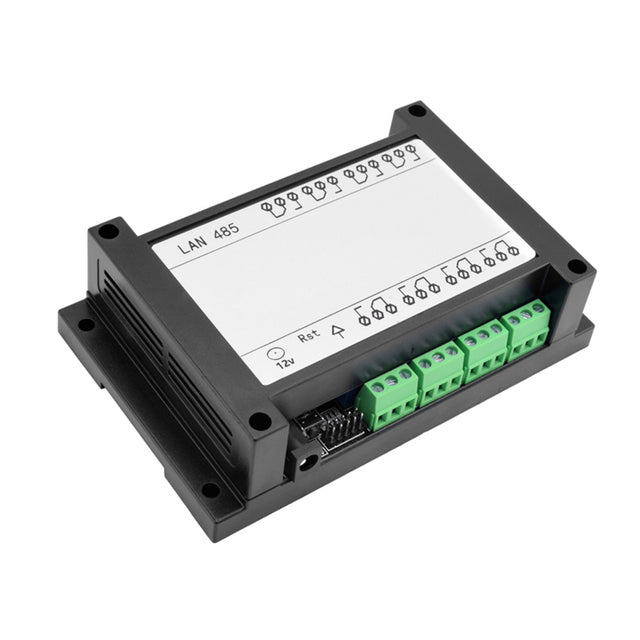

5. With plastic shell, it is safe and convenient to use
Instructions for Use:
1: Trigger signal input
There are two input methods for IN1-IN8: A: Non-contact signal, release after IN is grounded
B: Latch signal, IN grounding can control the corresponding relay switch
2: Serial communication protocol
1 way open: FD 02 20 01 01 5D
1 way off: FD 02 20 01 00 5D
2 way open: FD 02 20 02 01 5D
2 way off: FD 02 20 02 00 5D
3 way open: FD 02 20 03 01 5D
3 way off: FD 02 20 03 00 5D,
4 way open: FD 02 20 04 01 5D
4 way off: FD 02 20 04 00 5D
5 way open: FD 02 20 05 01 5D
5 way off: FD 02 20 05 00 5D
6 way open: FD 02 20 06 01 5D
6 way off: FD 02 20 06 00 5D
7 way open: FD 02 20 07 01 5D
7 way off: FD 02 20 07 00 5D
8 way open: FD 02 20 08 01 5D
8 way off: FD 02 20 08 00 5D
1-8 way open: FD 02 20 F8 88 5D
1-8 way off: FD 02 20 F8 80 5D
Back: FB 21 55 xx XX FF : xx XX eac byte means 1ch high byte corresponding to the 16ch, low byte corresponding to 1ch
3: Controller interface IP: 192.168.1.4 Port number: 30000
Enter http://192.168.1.4/30000 in the address bar of the browser, and then you can control the corresponding switch.
4 Press and hold "RESET" until the light goes out. Restore the factory default IP and port number.
Package Included:
8-channel integrated relay remote control board X1
