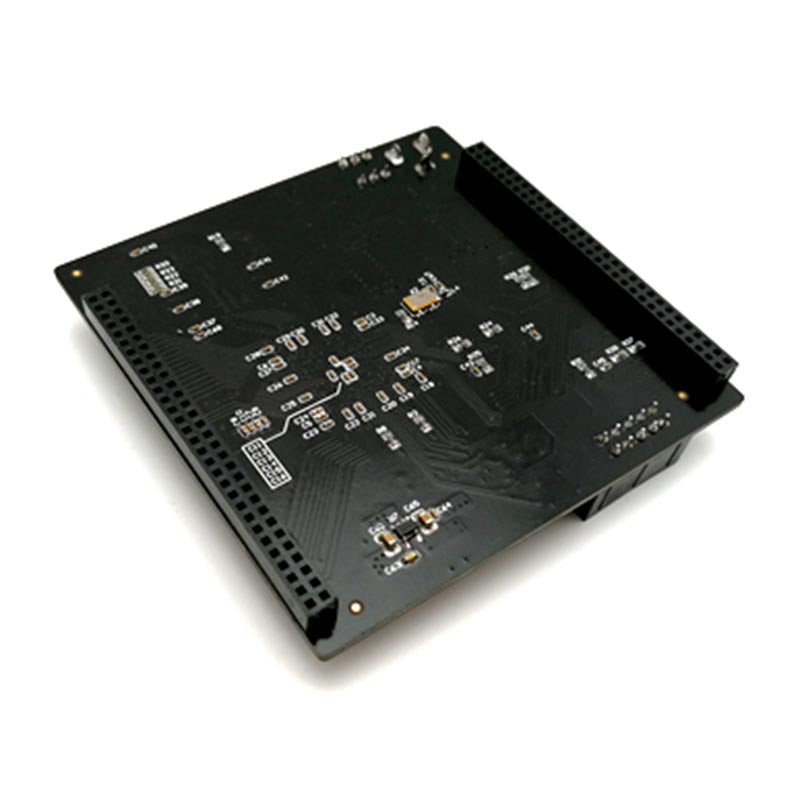

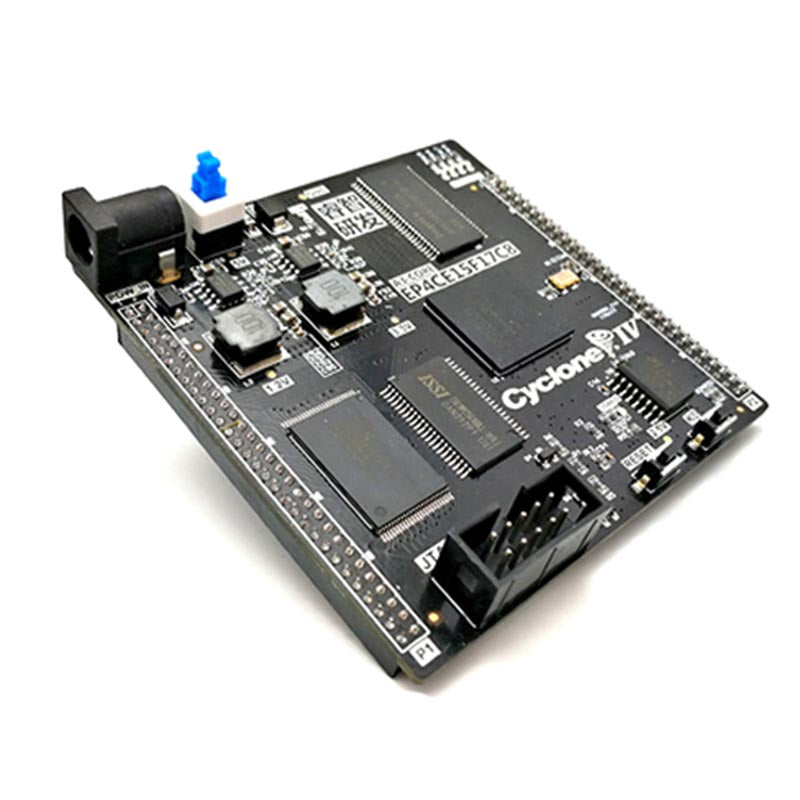

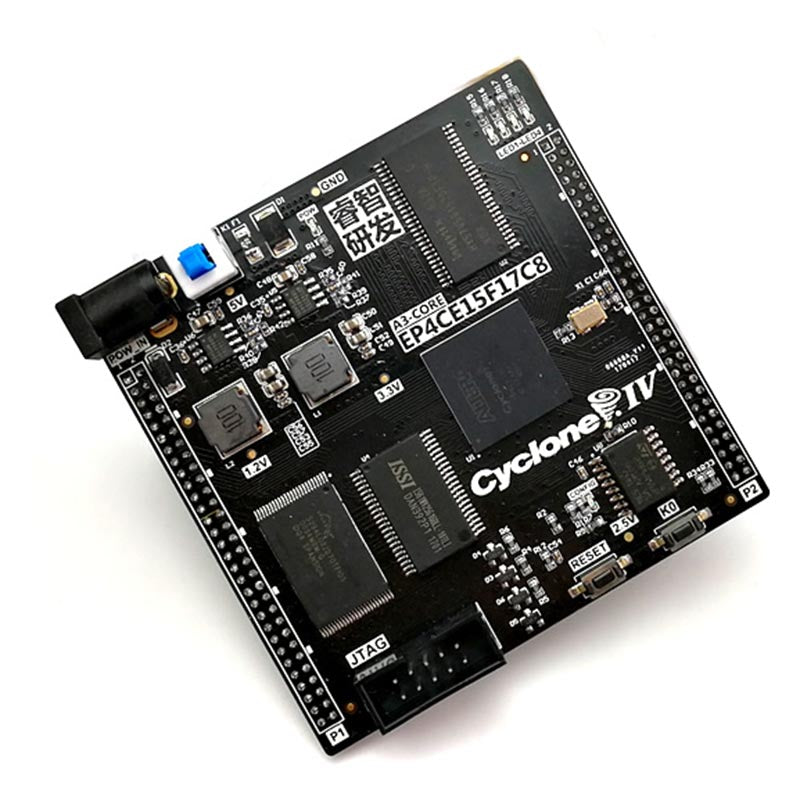

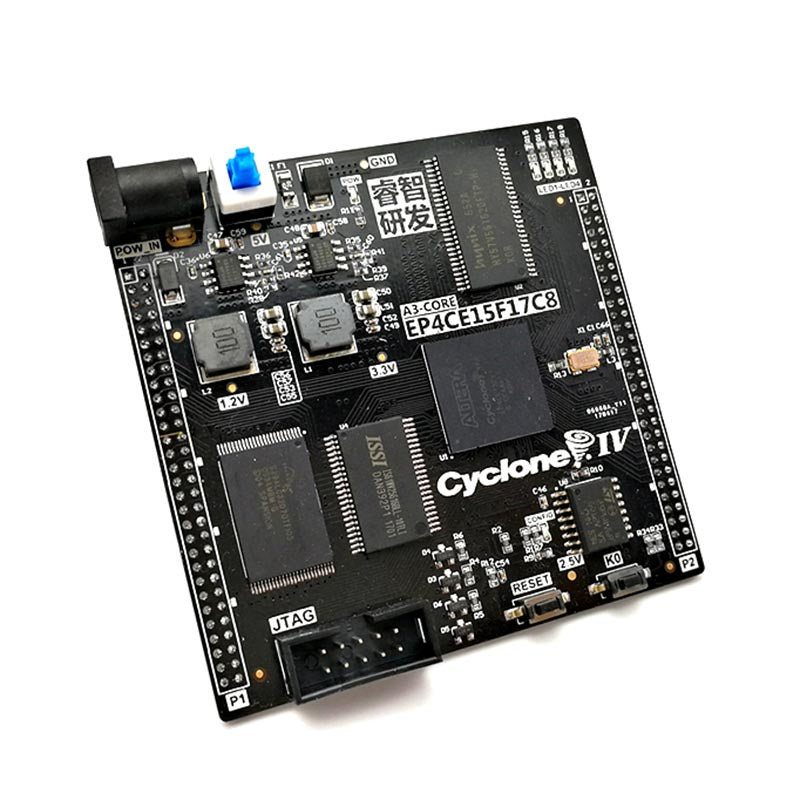

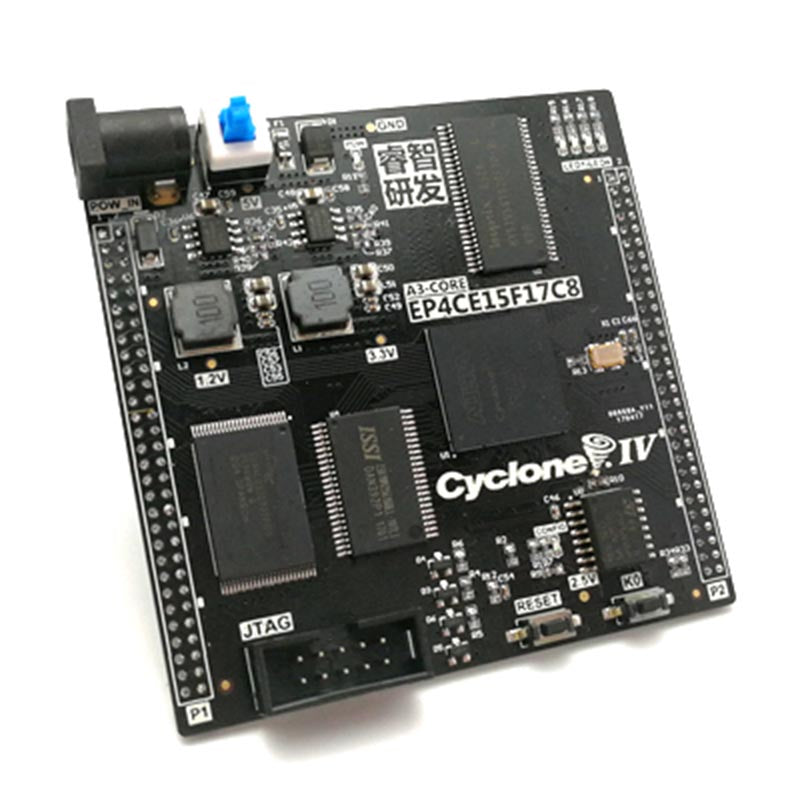

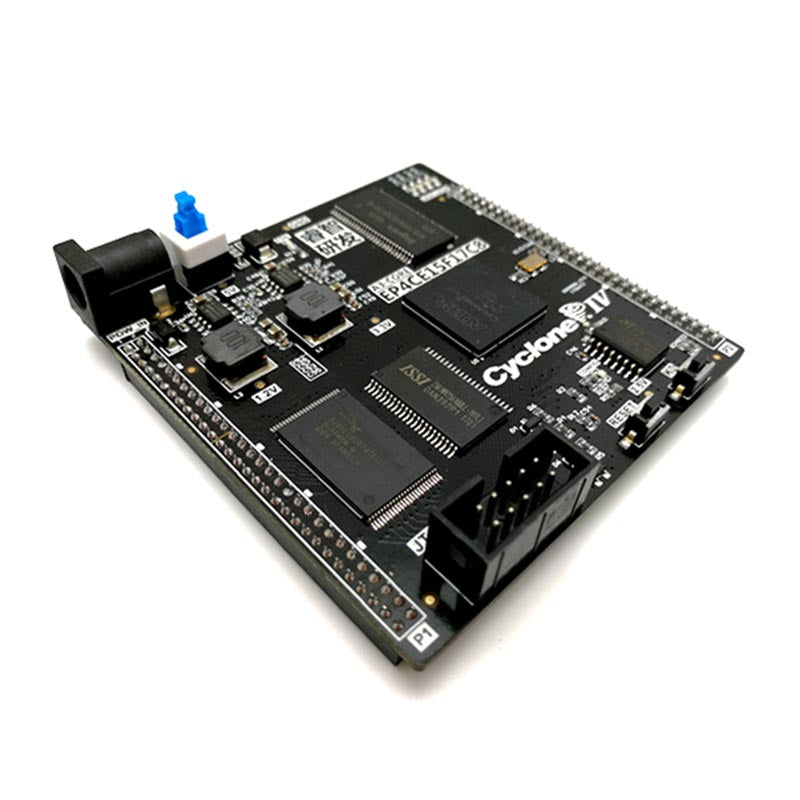

Altera EP4CE15F17C8N Core Board EP4CE15 CYCLONE IV Development Board
Hardware parameter:
SDRAM:256Mbit
SRAM:4Mbit
Parallel FLASH:32Mbit
Serial FLASH:64Mbit
Twin oscillation: 50MHz, 40MHz
Extended IO port: 110
DC/DC, IC:3.3V, 1.2V
Product features:
Onboard double crystal oscillation input, 50MHz and 40MHz active crystal oscillator
Power supply port 2A self recovery fuse, Download port JTAG anti-static protection
Onboard a variety of memory chips: SDRAM.SRAM, parallel / serial FLASH, all on-board memory chips can be used at the same time running without conflict.
Using DC/DC power IC MP1482, providing 3.3V and 1.2V power supply
The extension of the IO port has 110 roots, using the 2mm spacing extension port to extract, JTAG mode can be downloaded, configured to FPGA, debugger, FLASH programming, curing to EPCS.
Package include:
1*Altera EP4CE15F17C8N Core Board
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
