New Wireless Battery Tattoo Pen Supply

 Specification:

 1. 100% brand new and high quality

2. Type: Tattoo Rotary Machine Pen

3. Material: AluminumPen

4. Size: approx 145.5x33.5x33.5mm

5. Grip Size: 33.5mm

6. Working Voltage: 5-12V

7. Rpm Range Stitches: 8V-9000r/m

8. Switch Frequency: 55-165Hz

9. Needle Protrusion: 0-4.5mm

10. Stroke Length: 4.0mm

11. Motor: Japan Coreless Motor

12. Motor speed: 9V - 12000RPM

13. Motor Size: 20*16mm

 Feature:

 This cartrilage is CNC-Machined by aircraft Aluminium alloy and then anodized finish.

Non-slip handle design, lightweight and exquisite.

The motor parts can be disassembled and replaceable

The advanced gear system guarantees reliability and quiet operation

 Product parameters:

 1. Material: aluminum alloy + acrylic, laser engraving;

2. Charging time: fast charging, 1.5-2 hours can be fully charged;

3.Using time: Under normal 8V voltage, the voltage stable state can last for more than 5 hours,long time working the voltage is stable;

4. LCD display content: output voltage range + battery usage

5. Lithium battery capacity: 1650 mAh capacity, built-in 3pcs 550 mAh lithium batteries;

 Instructions for use:

 The device is a tattoo power supply, with input port, output port, built-in lithium battery, external switch button, voltage adjustment button, LCD screen, and specific functions are as follows:

1. Power on: press and hold the middle O key for 5 seconds to power on, and then press and hold for 5 seconds to power off;

2. Pause: during normal work, press the O key for a short time to pause the work, and then press to resume the work;

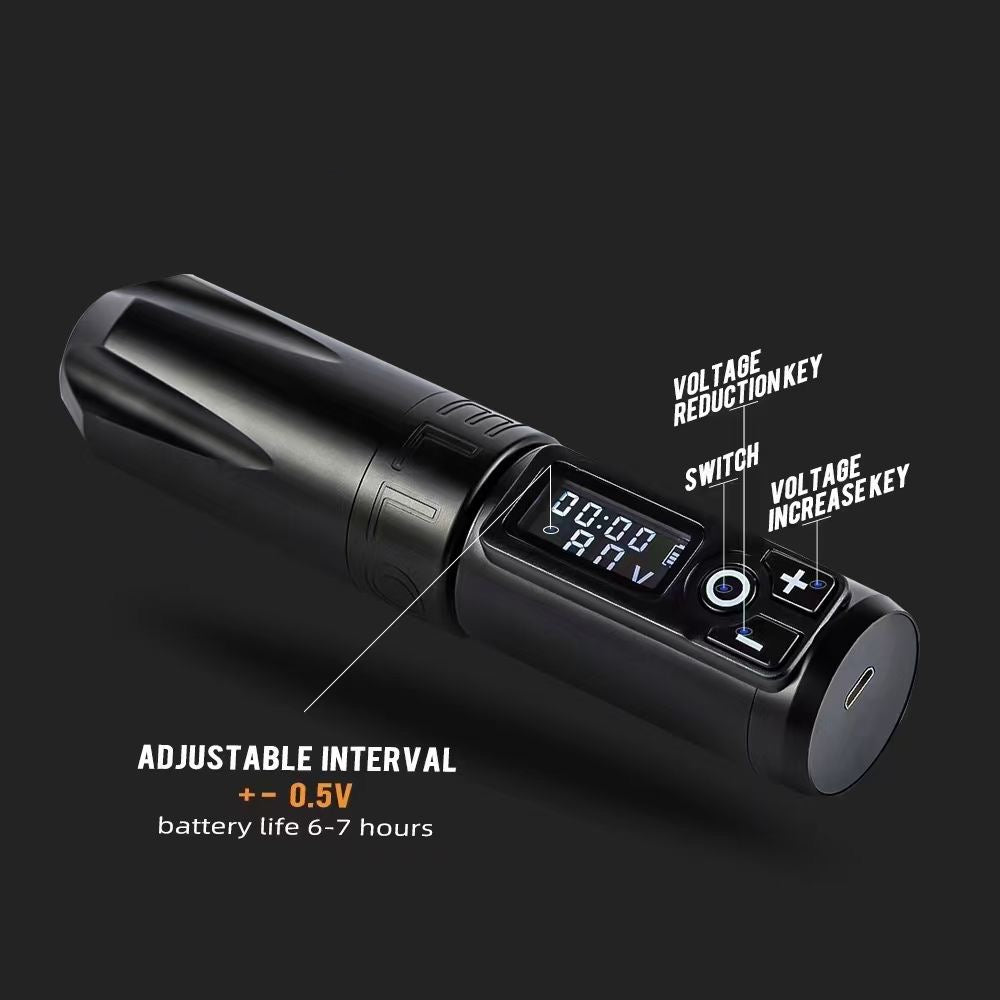

3. Adjust the voltage: pushing the “+” or “-” key to adjust the gear, corresponding to 1-8 gears respectively representing 5-12V;

4. Battery display: It is displayed on the LCD screen, it is full of 4 cells, and it needs to be charged when there is 1 cell remaining

 Power parameters:

 1. Input: The charging port is powered by a USB data cable. The built-in battery is 3 pcs, 550mA / block, 3.7V battery, and the output current is fixed at 1A;

2. Output: Voltage range: (1-8 range corresponds to 5-12V) pushing “+” or “ -” button to switch the voltage range, 5V is the lowest voltage, and 1 level corresponds 5V, 2nd gear corresponds to 6V, and so on 8th gear corresponds to 12V;

3. Power storage: fast charge through the matching fast charge USB data cable. Normally, it can be fully charged in 1.5-2 hours. It is fully charged with 4 grids. It can be used for about 5-6 hours when the 8V is turned on. The voltage is stable. The last battery charge needs to be recharged to ensure the use time.
