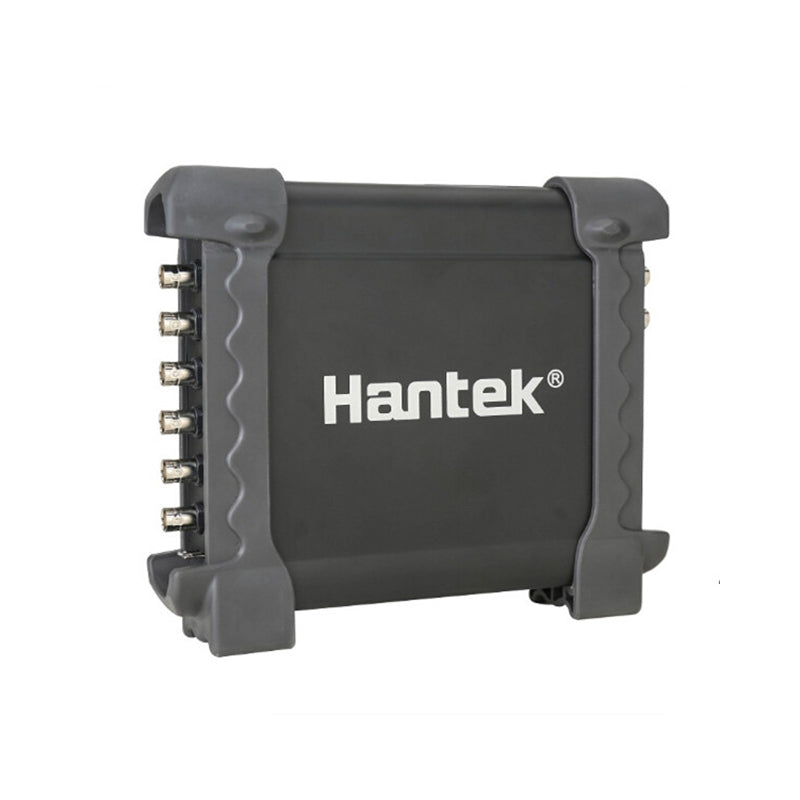

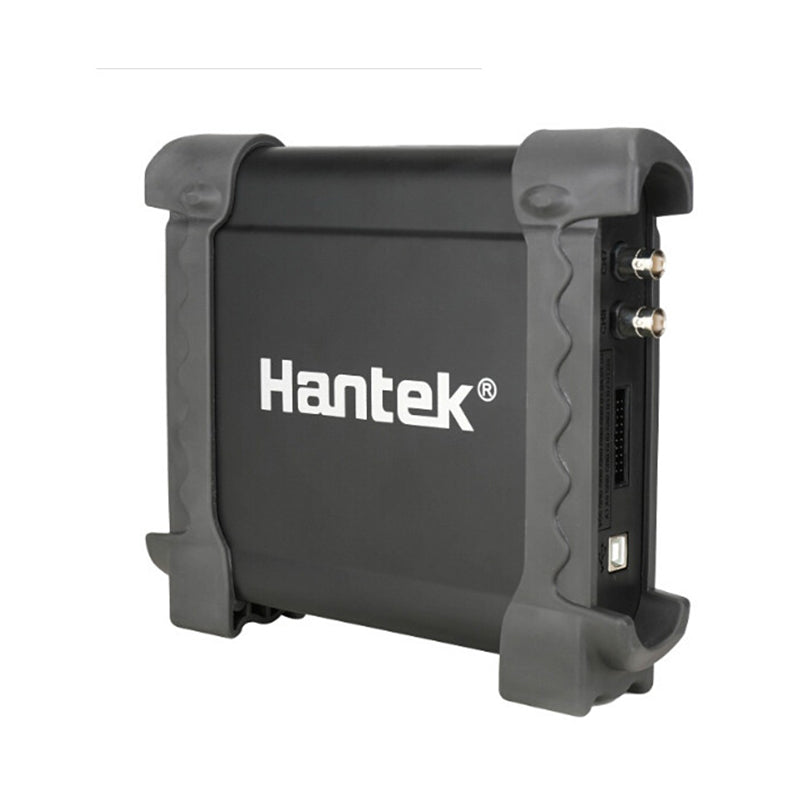

New Packing Updated Hantek1008C 8 Channels Oscilloscope Vehicle Testing Automotive

Diagnostic Equipment

 Feature:

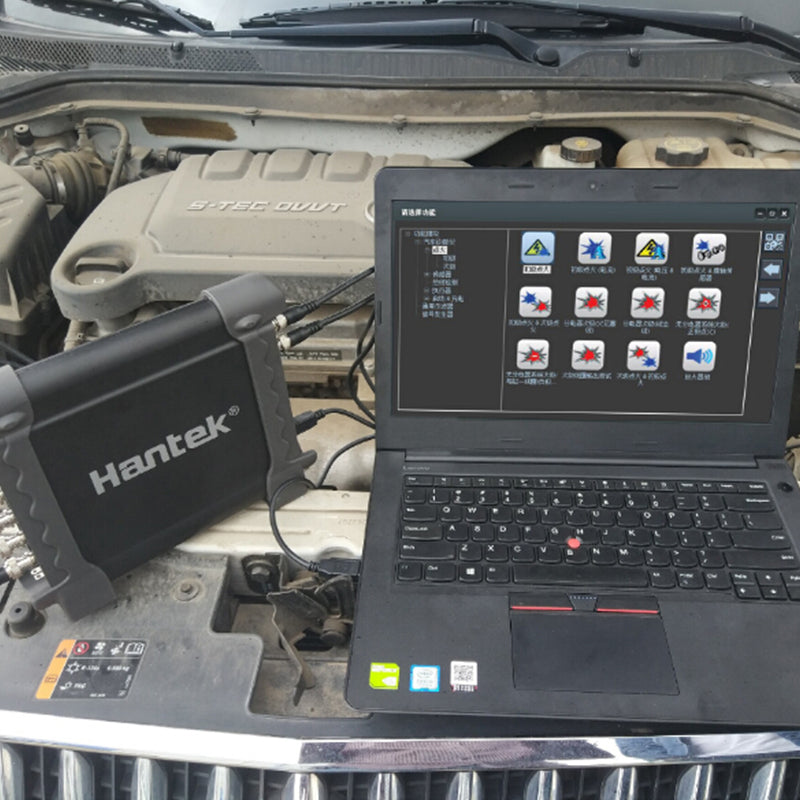

 8 channels oscilloscope for vehicle testing. Over 80 types of automotive diagnostic function (Ignition/Sensor/Bus detection/Performe/Starter and charging circuits etc.).

 Video Help Function, provides the video help of diagnostic which can be watching online,

 The diagnostic result can be generated diagnostic report., printed or taken screenshot by pushing one key, many methods to save the data.

 Supported to record waveform for a long time. It can simulate camshaft and crankshaft signal.

 Transmit signals through USB 2.0 interface plug and play, and no need extra power supply;

 Notes: Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7

 Specification

          Model

    Hantek1008C

          Oscilloscope Mode

          Vertical

    Analog Channel

    8

          Input Impedance

    Resistance: 1MΩ

          Input Sensitivity

    10mV/div to 5V/div

    Input Coupling

    DC

          Resolution

    12 bits

          Horizontal

    Memory Depth

    4K

          Max. Input

    400V (DC+AC Peak)

          Real-Time Sampling Rate

    2.4MSa/s

          Time Base Range

    1ns/div to 20000s/div(1-2-5 sequences)

          Time Base Precision

    ±50ppm

          Trigger

    Source

    CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

          Mode

    Edge

          X-Y Mode

    X-Axis Input

    CH1

          Y-Axis Input

    CH2

          Cursors and Measurement

    Voltage Measurement

    Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

          Time Measurement

    Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

          Cursors Measurement

    Horizontal ,Vertical, Track, Auto Measure Modes

          Waveform Signal Process

    +,- , x,÷, FFT, Invert

          Voltage Range

    10mV to 5V/div @ x 1 probe

          100mV to 50V/div @ x 10 probe

          10V to 5000V/div @ x 1000 probe

          100V to 50000V/div @ x 10000 probe

          200mV to 100V/div @ 20:1

          Current Range

    100mA to 50.0A/div @ CC65(20A)

          1000mA to 500.0A/div @ CC65(65A)

          1A to 100.0A/div @ CC650(60A)

          10A to 1000.0A/div @ CC650(650A)

          1A to 200.0A/div @CC1100(100A)

          10A to 2000.0A/div @CC1100(1100A)

          Cursor

    Time/frequency difference, voltage difference

          FFT

    Rectangular, Hanning, Hamming, Blackman Window

          Math

    Addition, subtraction, multiplication, division

          Programmable Generator

          Channel

    8

          Output Level

    LVTTL

          Frequency Range

    0-250kHz

          Interface

    USB  2.0

          Power

    No need extra power supply

          Measurement

    Size

    185 x 150 x 27 (mm)

          Weight

    0.35KG

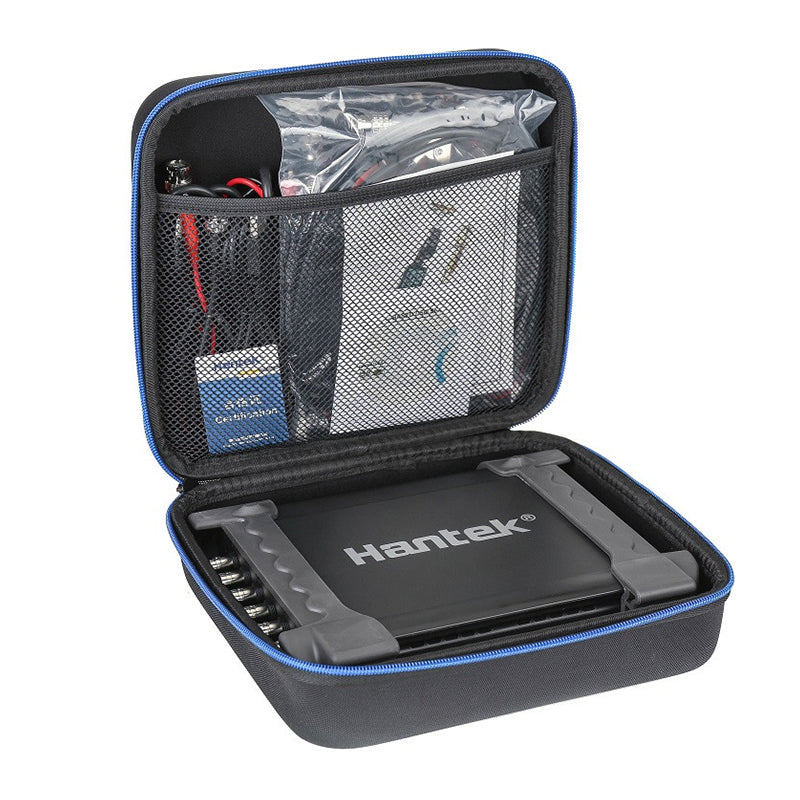

   Package

      1 x 1008C DAQ oscilloscope

   1 x Auto-probe

   4 x Crocodile probes/cable

   4 x BNC Connectors

   1 x USB Cable

   1 x CD (driver etc.)
