Model: EZ-300
Maximum output force: 6OKN
Crimping range copper: 300mm2/aluminum 240mm2
Working stroke: 17mm
Battery: DC 18V 4Ah lithium battery DC 18V 4Ah lithium battery
Crimping cycle: 3~6 seconds/time (depending on the diameter of the terminal)
Per saturated battery: about 310 times (Cu150mm2
Model: EZ-400
Maximum output force: 120KN
Crimping range copper copper: 400mm2/aluminum 300mm2
Working stroke: 42mm
Crimping cycle: 6~15 seconds/time (depending on the diameter of the terminal)
About each saturated battery: 110 times (Cu150mm2)
Battery: DC 18V 4Ah lithium battery DC 18V 4Ah lithium battery
Charging time about 2 hours
Charging power AC 100V~240V 50~60Hz
Hydraulic oil 15# low condensation anti-wear hydraulic oil about 65ml
Ambient temperature -10~40°C
EZ-300400 adopts high-performance anal battery power supply, motor drive, microcomputer (MCU) control, ultra-high pressure hydraulic system and other mechatronics technologies. It integrates ergonomic design and has beautiful appearance, easy operation and large output force. , Super safety, high work efficiency, is one of your tools for crimping wires and copper/aluminum terminals in power and lighting power construction.

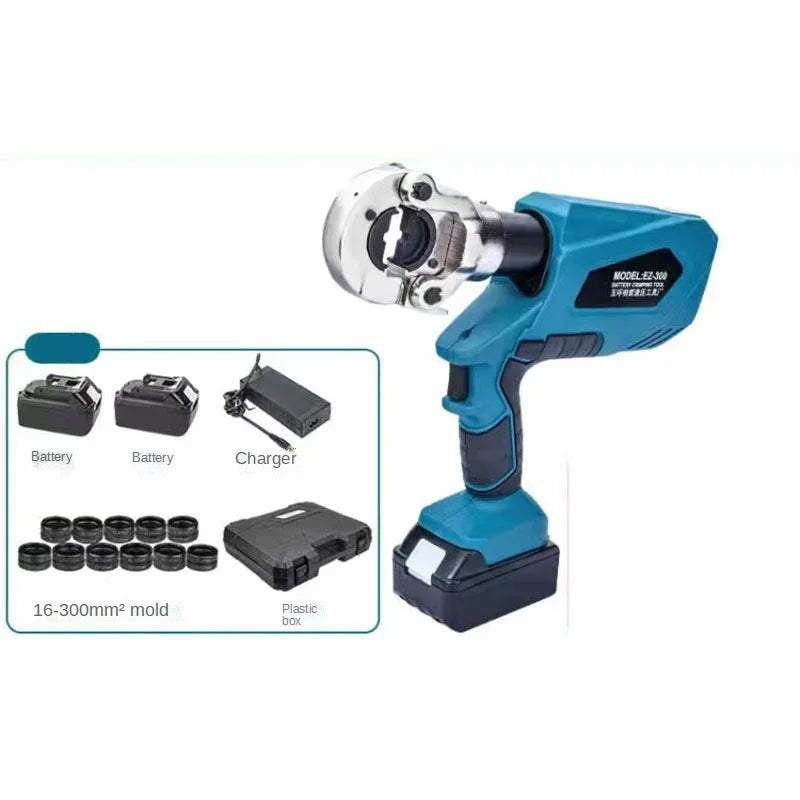

【EZ-300 mold configuration】:
16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2

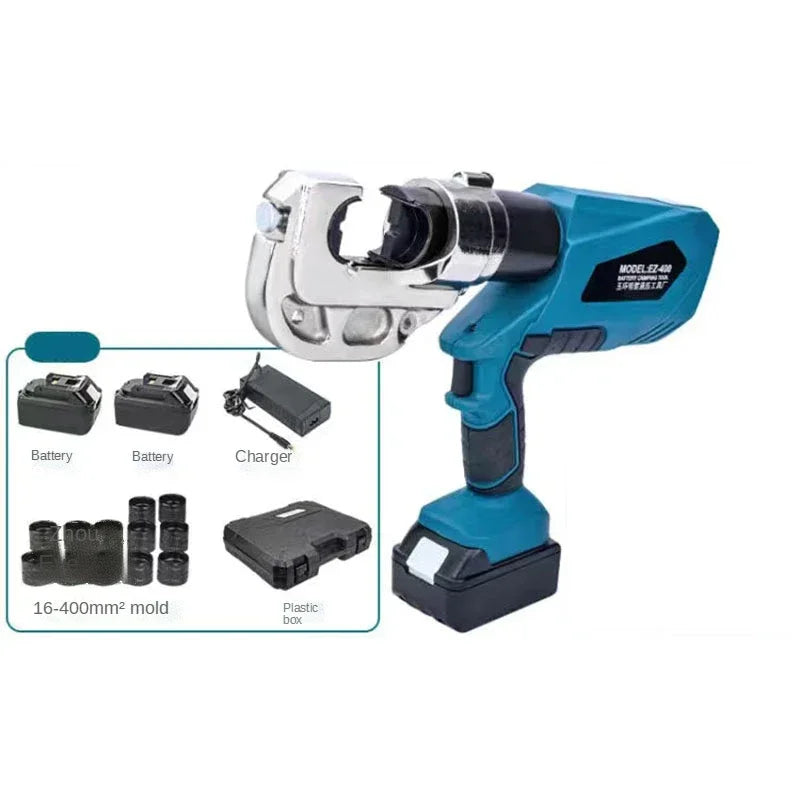

【EZ-400 mold configuration】:
16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
