Features:

 With advanced integrated parts and digital circuit technologies, it is characterized by highly stable and reliable electrical performance.

 The emitter is integrated with the function of alternating current or direct current voltmeter, which can measure 12 V to 400V voltage on a linear basis: alternating current: 12 V-400V (50 to 60 Hz) ± 2.5%; direct current: 12 V-400V ±2.5%.

 The screen of the emitter can display preset transmitting power, transmitted codes, its own battery energy, mains voltage detected, alternating current or direct current status of mains voltage detected, and warning symbols for mains voltage.

 The emitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference.

 The sensitivity of the receiver can be adjusted either manually or automatically.

 The receiver can scan frequency automatically.

 Both the emitter and the receiver can work under mute mode.

 The receiver is available with automatic shutdown (It is powered off automatically over 15 minutes of absence of keystroke).

 The receiver's LCD screen is provided with backlight for application in poor light.

 Both the emitter and the receiver is provided with flash light function when working in darkness.

 Additional emitters are available to extend or distinguish several signals.

 Applications:

 Detecting cables, electrical lines, water/gases pipelines buried in wall or earth;

 Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth;

 Detecting fuses and assigning current circuits;

 Tracing sockets and distribution sockets having accidentally been covered by plastering;

 Detecting interruptions and short-circuits in floor heating.

 Specifications:

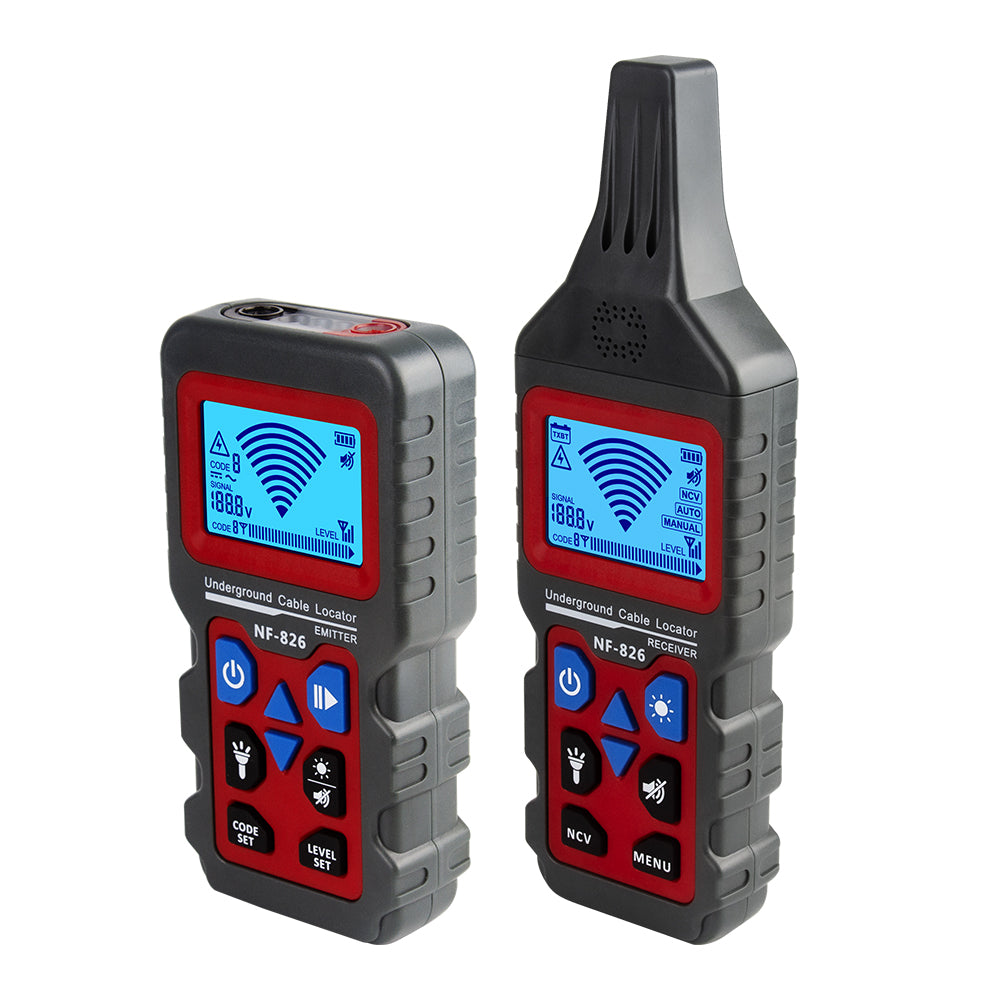

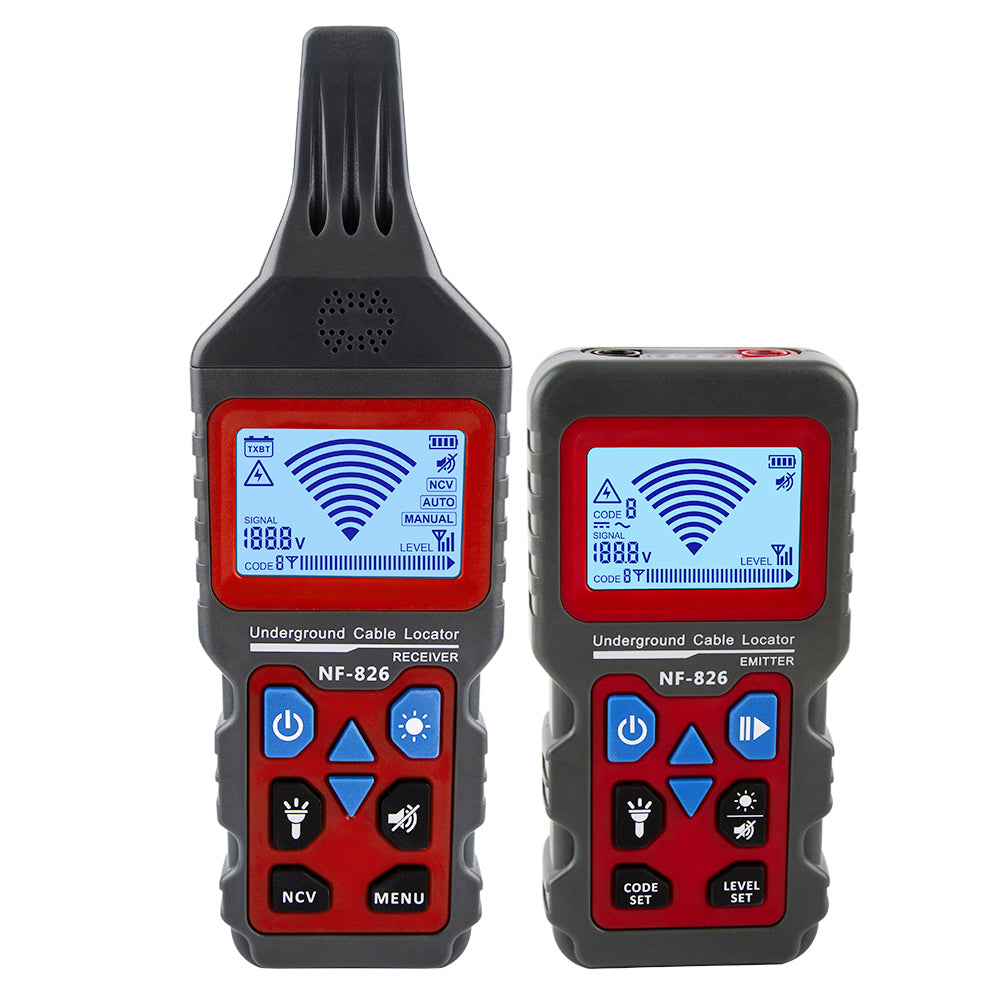

 Name: Wire Locator Set

 Model: NF-826

 Material: ABS

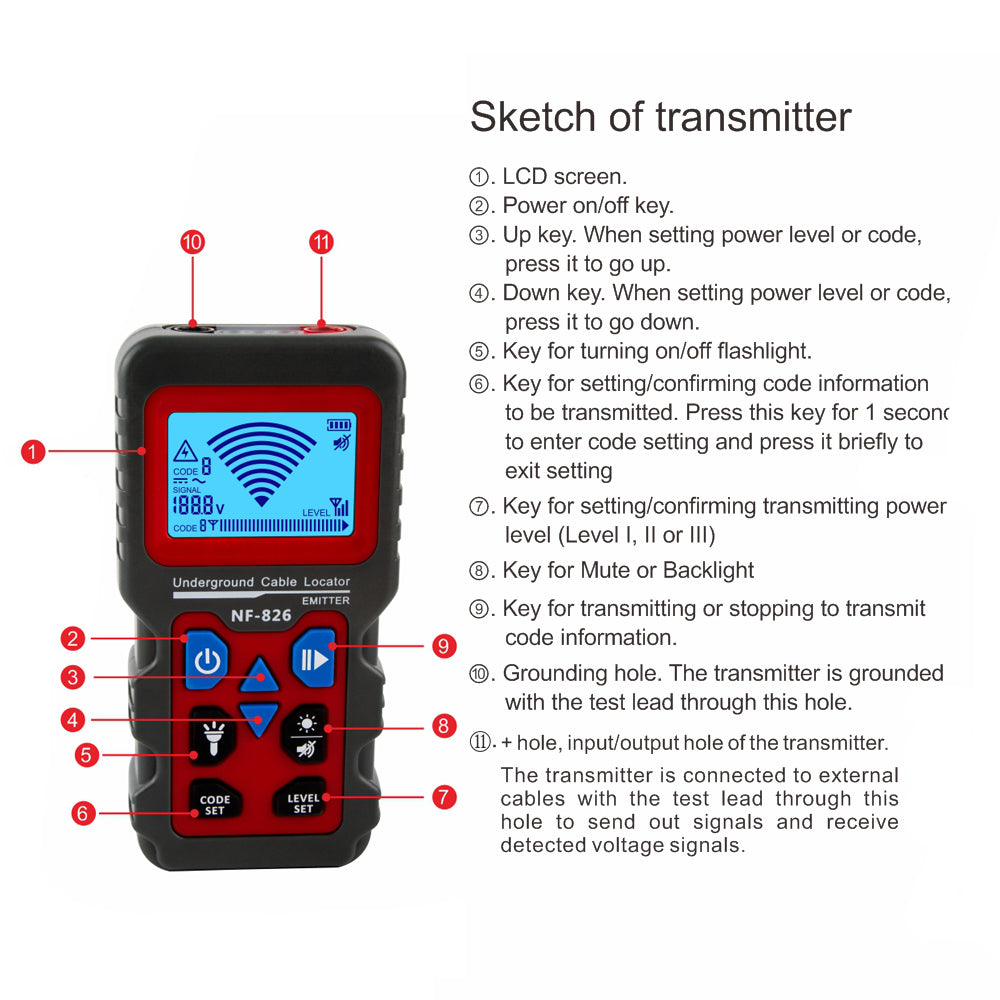

 Technical parameters of Emitter:

 Output signal: 125kHz

 External voltage: DC12-400V ±2.5%

 Identification range: AC12-400V(50-60Hz) ±2.5%

 Display: LCD, with function display and column chart

 External voltage's dielectric strength: Max. 400V alternating current or direct current

 Overvoltage type: C AT III 300V

 Pollution degree: 2

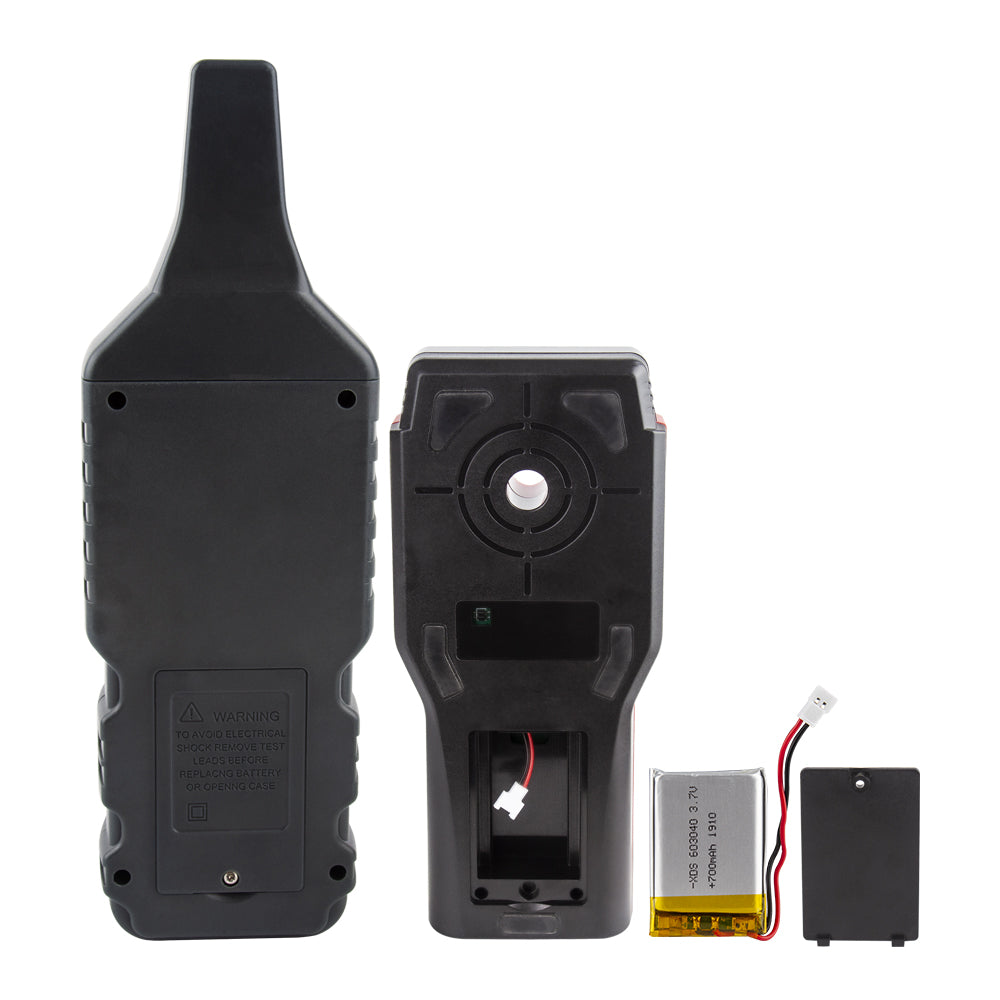

 Power supply: 3.7V 1400 mAh Lithium battary (included)

 Power consumption: MIN current 80mAh, MAX current 300mAh

 Fuse: F 0.5 A 500V, 6.3 * 32mm

 Range of temperature:

 In work: 0°C to 40°C, with maximum relative humidity of 80% (non-condensation)

 In storage: -20°C to 60°C, with maximum relative humidity of 80% (non-condensation)

 Altitude: Max. 2000m

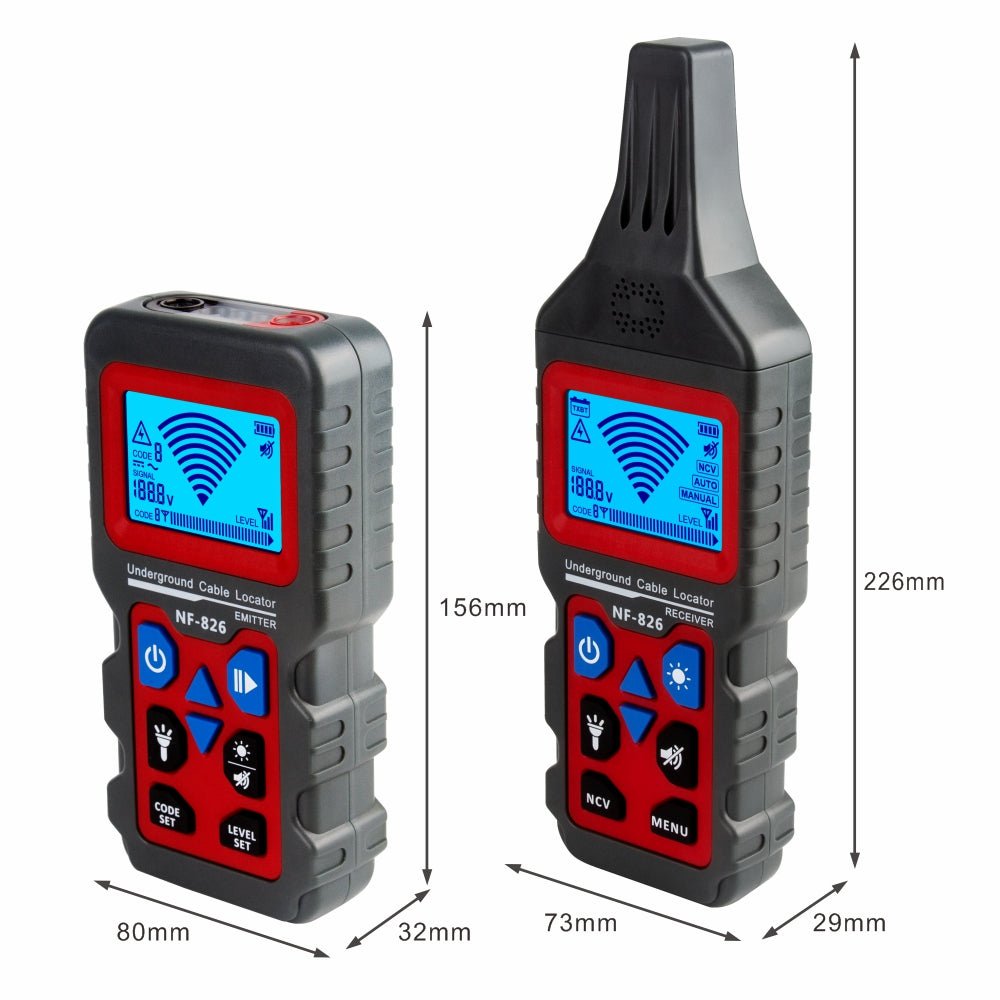

 Dimensions (H*W*D): 156 * 80 * 32mm / 6.14 * 3.15 * 1.26in

 Weight(with battary): 235g / 8.29ounce

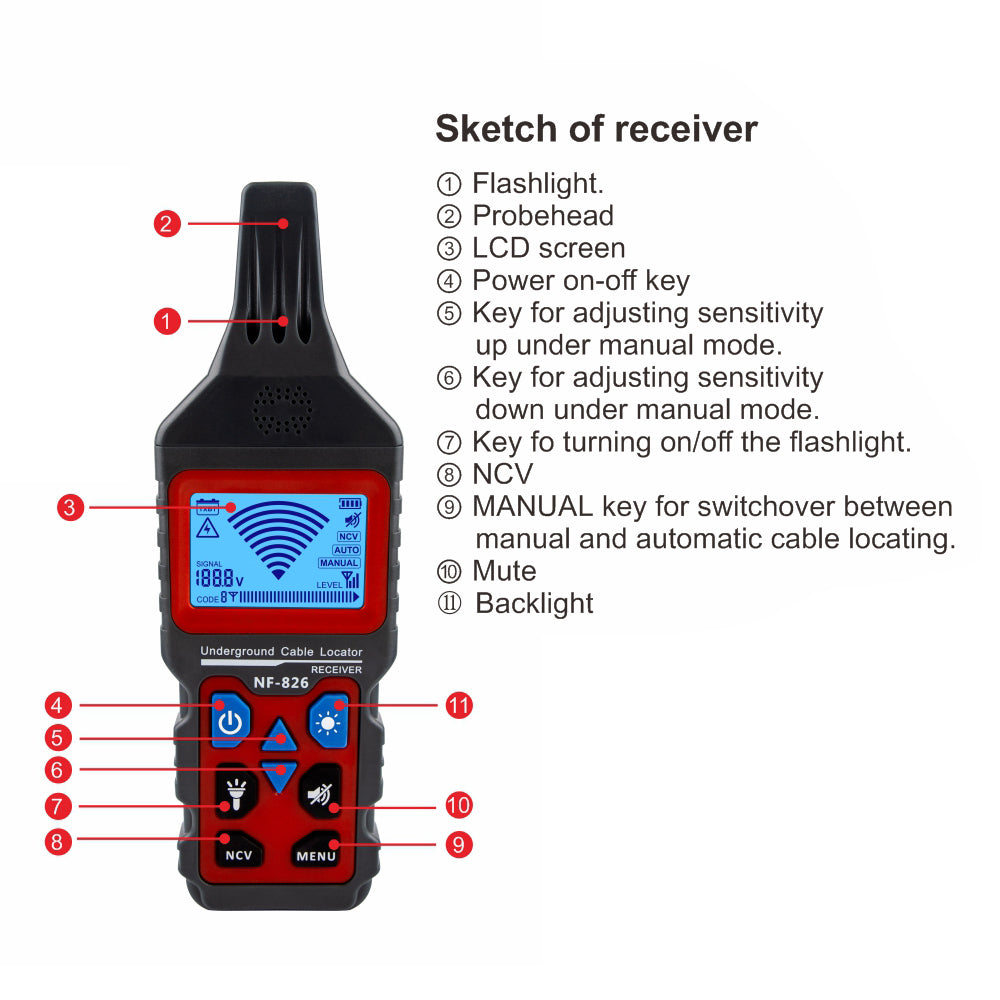

 Technical parameters of receiver:

 Depth of tracking: The depth of tracking depends on the material and specific applications

 Cable locating mode:

 Single pole application: About 0-1m

 Dual-pole application: About 0-0.5m

 Single loop line: Up to 2.5m

 voltage identification: About 0-0.4m

 Display: LCD, with function display and column chart

 Battery: 1 * 3.7V, 1400mAh lithium battary (included)

 Power consumption: MIN current 100mAh, MAX current 300mAh

 Range of temperature:

 In work: 0°C to 40°C, with maximum relative humidity of 80% (non-condensation)

 In storage: -20°C to +60°C, with maximum relative humidity of 80% (non-condensation)

 Altitude: Max. 2000m

 Dimensions (H*W*D): 226 * 73 * 29mm / 8.90 * 2.87 * 1.14in

 Weight (with battary): 235g / 8.29ounce

 Package size: 250 * 180 * 65mm / 9.84 * 7.09 * 2.56in

 Package weight: 1075g / 2.37lb

 Packing List:

 1 * Emitter (totally with 2 batteries)

 1 * Receiver

 2 * Alligator Clips (black, red)

 2 * Test Cables (black, red)

 1 * User Manual
