Features:
1. New appearance design, 3.5-inch large screen, 256x192 ultra-clear infrared resolution.
2. 720P HD resolution, making the image finer and clearer.
3. Athermalized fixed-focus lens, more accurate focusing.
4. Upgrade to 8G built-in large-capacity storage, which can store more than 20,000 pictures.
5. Type-C charging port, 2600mAh large capacity battery.

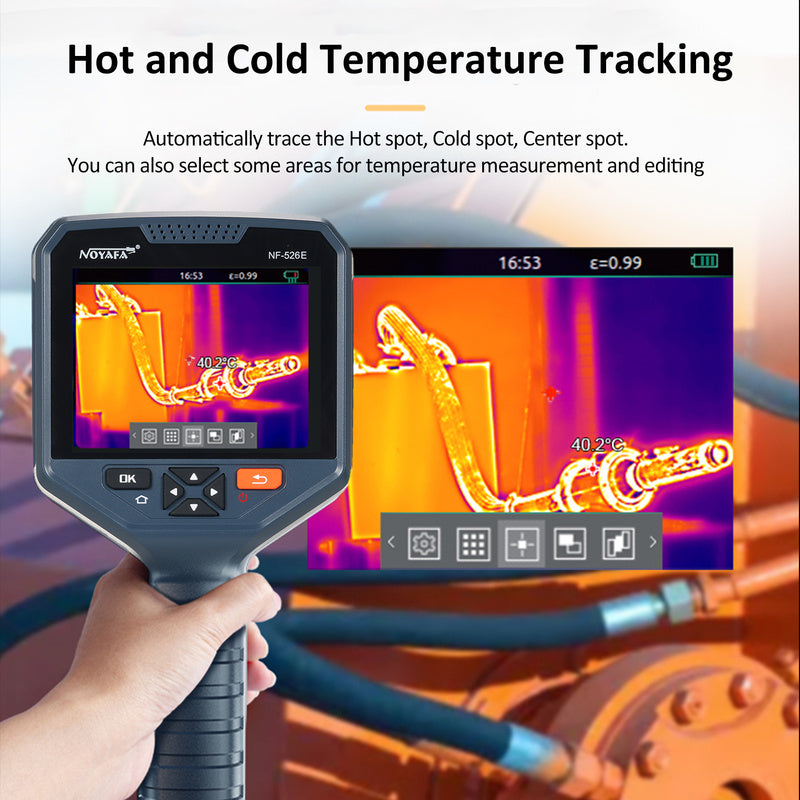

6. Support the hot spot, cold spot, center spot and zone temperature measurement.
8. It has the function of replaying temperature video, 25Hz frequency make the operate and replay smooth.
Specifications:
Resolution: 256 x 192
Infrared spectral bandwidth: 8~14um
Frame rate: 25HZ
NETD: 70mk@25℃
HFOV: 55.6°
Lens: Athermalized Fixed Focus Lens

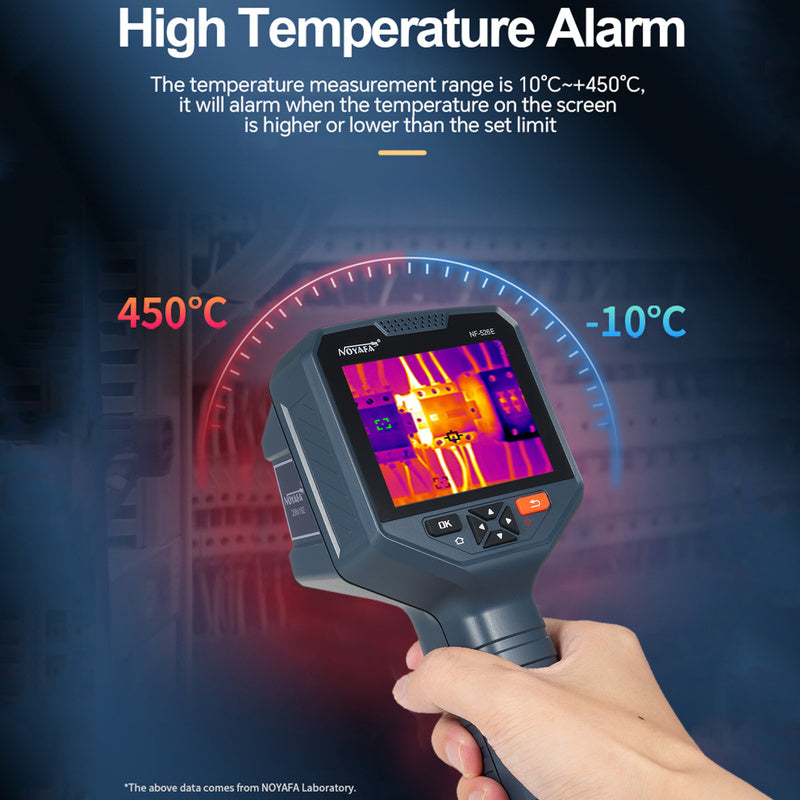

Temperature measurement range: Low temperature: -20~150℃, high temperature: 120~400℃
Measurement Accuracy: +/-2℃ or +/-2% of reading
Temperature Measurement: Support the highest point, the lowest point, the middle temperature measurement in the whole screen and the regional temperature measurement
Color palettes: Iron Red, Rainbow, Red hot, Black hot, White hot, High contrast, Green hot, Lava pattern
Visible light Resolution: 720P
Visible feld angle: 55°X83°
Image Display Size: 3.5 inches
Language: Chinese (Simplified), Chinese (Traditional) , English, French , German , Spanish, Dutch, Japanese, Korean, Arabic
Port: USB Type-C (support to charge and export data)
Battery: 2600mah lithium battery
Working time: 4 hours ( full power)
Working temperature: -10℃ ~ + 60℃
Storage temperature: -40℃ ~ + 85℃
Storage Capacity: 8G build-in memory
Storage Image Format: JPG
Storage Video Format: MP4
Material: ABS

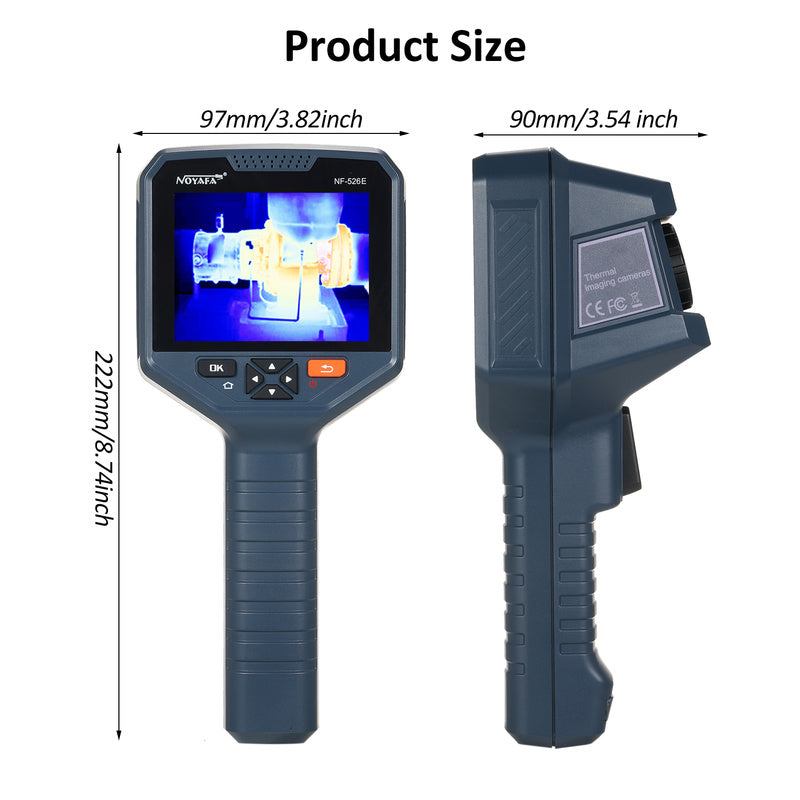

Item Size: 222 * 97 * 90 mm / 8.74 * 3.82 * 3.54 inch
Item Weight: 333g / 11.75oz
Package Size: 27 * 15.4 * 11.4 cm / 10.63 * 6.06 * 4.49 inch
Package Weight: 859g / 30.3oz
Package List:
1 * Thermal Imager
1 * Type-C Charging Cable
1 * Storage Box
1 * User Manual (English)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
