Note:
1. It does NOT read or reset non-OBD II systems (such as ABS, airbag, body control, TPMS, oil service light, etc.).
2. It does not work with hybrid or electric vehicles.
3. It does not check 24V batteries.
Feature:
1. read the error and clear the diagnostic code (usually and specified factory) and display its meaning
2. easily determine the reason for checking the engine light
3. freeze see information board
4. I / M ready status display
5. retrieve vehicle information
6. the data flow
7. Real-time curve
8. retrieve speed information
9. support for multiple languages: English, French, German, Chinese
10. Quickly test the cold start current, internal resistance,
battery life and remaining energy of the 12V start-up lead-acid battery
to determine whether the battery needs to be replaced by: real-time voltage detection, battery impedance detection,
and how much power is left after a full charge period (SOC) current battery charging value (SOH), current cold start detection (CCA);
Specification:
Main control chip: ST
Software Platform: for Android, for Windows
Operating voltage: 9V ~ 16V
Working current: 35mA
Standby current: 25mA
Working temperature: -40 ~ + 85 ℃
Working humidity: less than 60%
S
upported protocol:
1. For SAE J1850 PWM (41.6Kbaud)
2. For SAE J1850 VPW (10.4Kbaud)
3. For ISO9141-2 (5 baud init, 10.4Kbaud)
4. For ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. For ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. For ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. For ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. For ISO15765-4 CAN (29bit ID, 250 Kbaud)

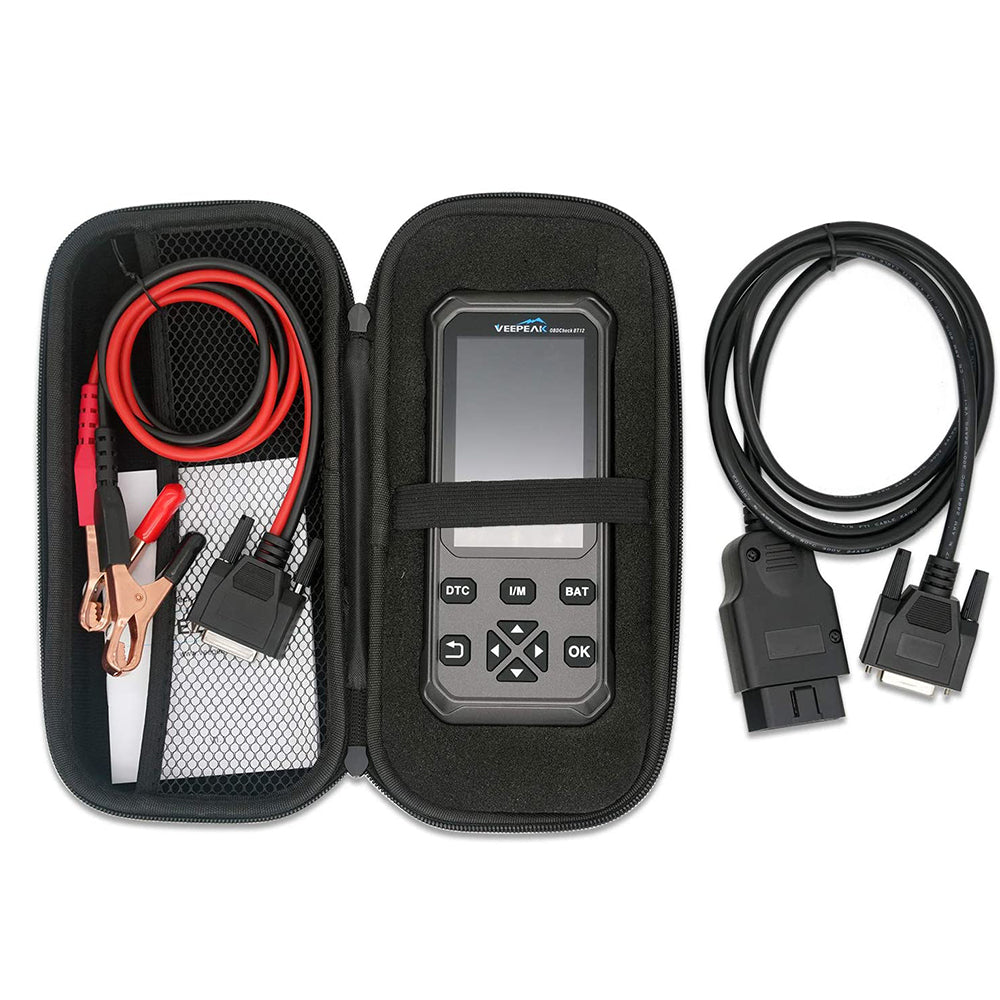

Packing list
1 set of X car diagnostic tools
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
