OCXO 10MHz 20M 30M 80M Frequency Reference Crystal Oscillator Clock Calibrator Multiplication Temperature Signal Module
Features:
1. Reference calibration function, high frequency accuracy
2. Frequency accuracy of output 10MHz signal (+/-200ppb)
3. There are two signal outputs, one is a standard 10MHz signal. The other is a 10MHz multiplied signal
4. The multiplier signal has 9 selection frequencies, which are 2X, 3X, 3.125X, 4X, 5X, 5.3125X, 6X, 6.25X, 8X
5. Different multipliers are selected by the JP1 jumper pin. Correct the deviation of 10Mhz output frequency (+/-2.0ppm) with RV1 potentiometer.
Product parameters:
1. P1: Power input interface; (7~9V).
2. P2: 10MHz signal output interface; (10Mhz amplitude: 3Vpp) SMA interface
3. P3: N-frequency output interface for 10MHz signal; (N*10Mhz amplitude: 5Vpp) SMA interface
4. RV1: Correct the deviation of 10Mhz output frequency (+/-2.0ppm)

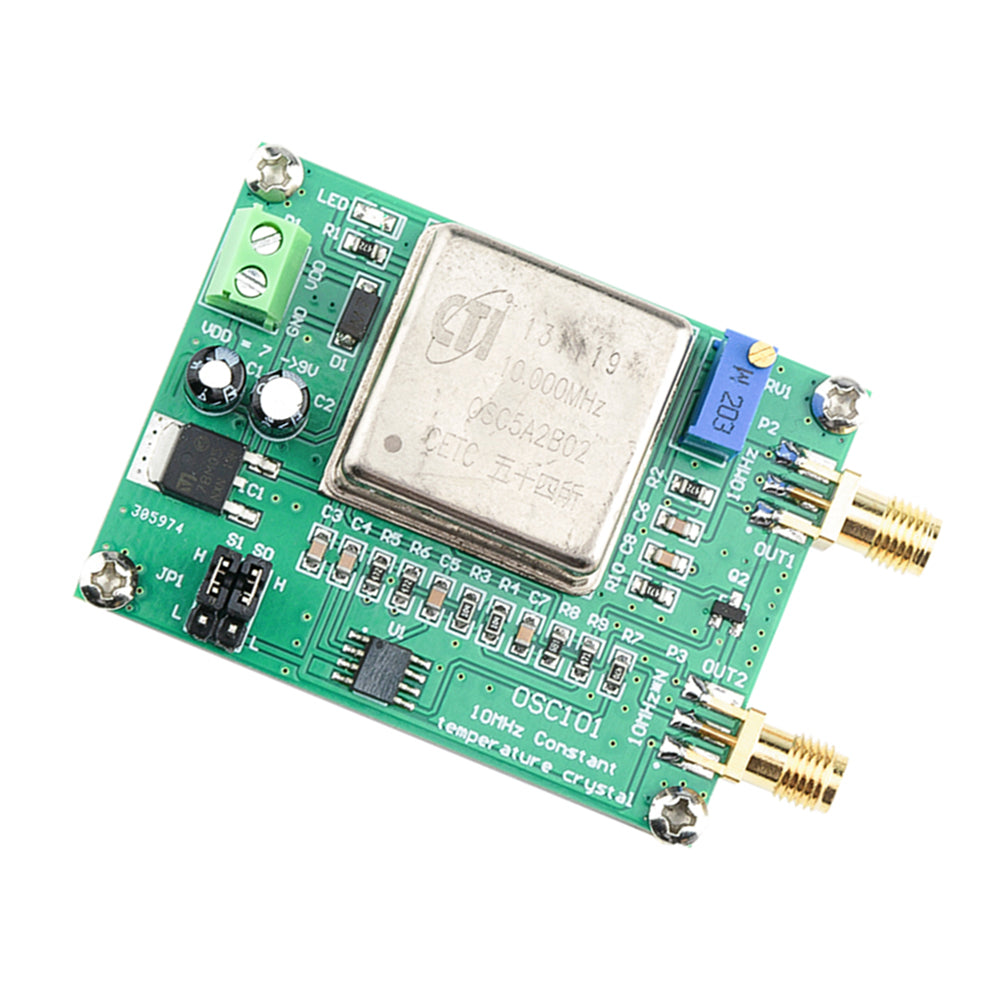

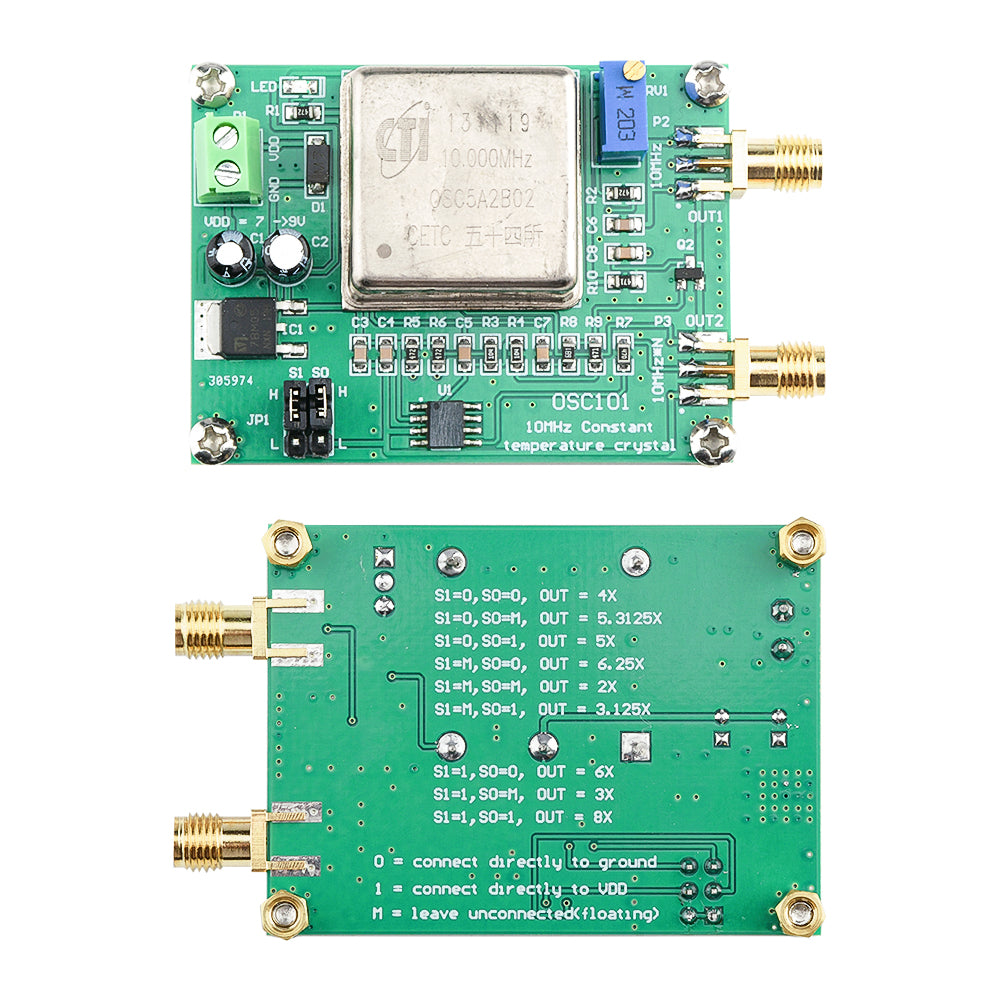

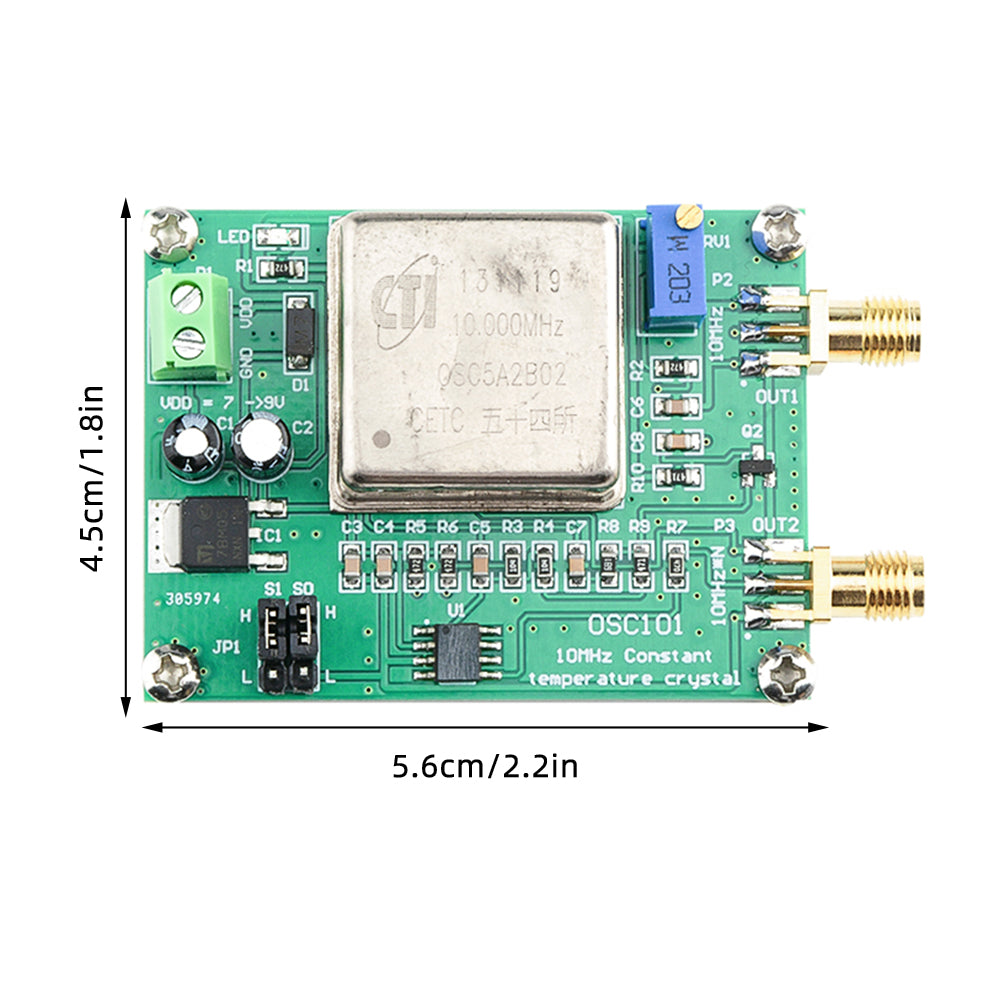

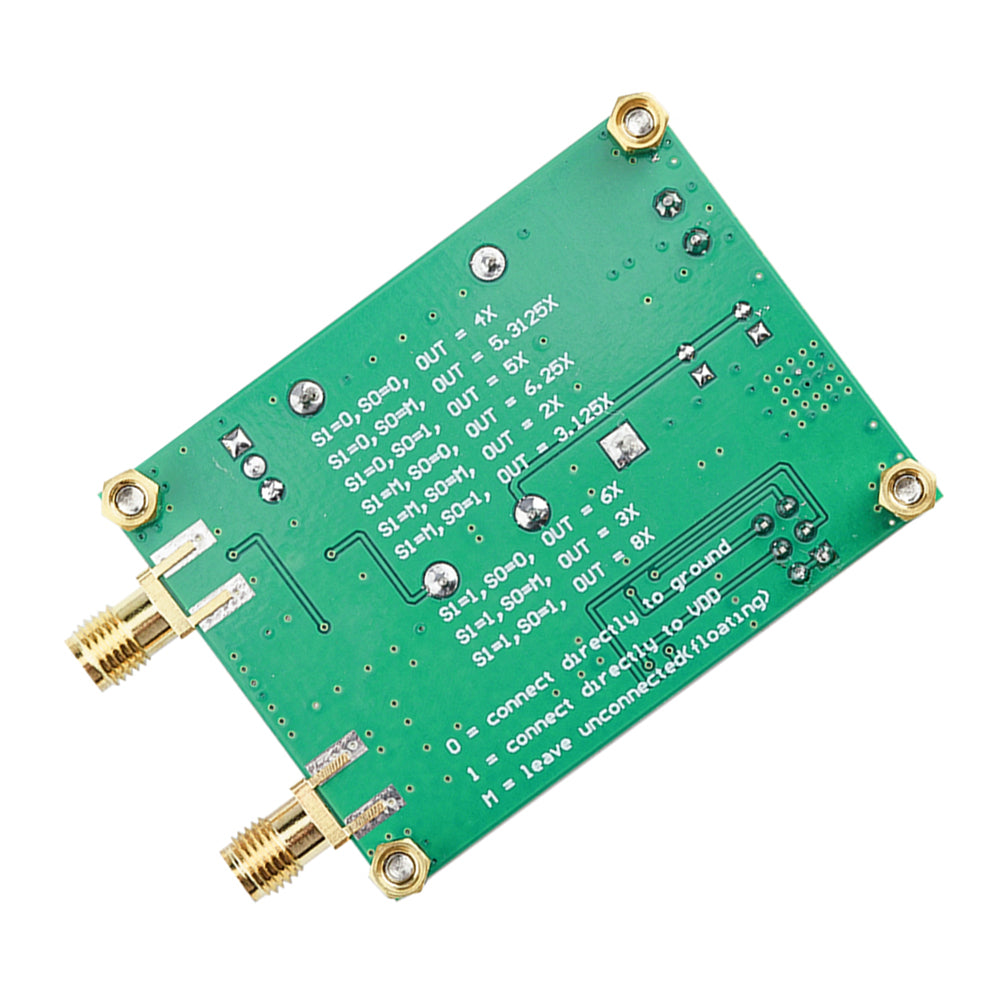

5.JP1 jumper selection:
S1=0, S0=0, OUT = 4X
S1=0,S0=M, output = 5.3125X
S1=0, S0=1, OUT = 5X
S1=M,S0=0, OUT = 6.25X
S1=M,S0=M, output = 2X
S1=M,S0=1, output = 3.125X
S1=1, S0=0, OUT = 6X
S1=1, S0=M, OUT = 3X
S1=1, S0=1, OUT = 8X
0 = direct ground (L)
1 = Connect directly to VDD(H)
M = leave unconnected (float)
Packing list:
OCXO Frequency reference 10MHz 20M 30M 80M OTC module *1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
