SPECIFICATION
UHF 600-952MHz frequency range (region dependant)
Digital wireless audio transmission
48KHz audio sampling mode
Pre-set 16 selectable frequencies
Digital ID code, completely solves frequency interference
IR sync downloading the frequency from receiver
Lithium battery power supply

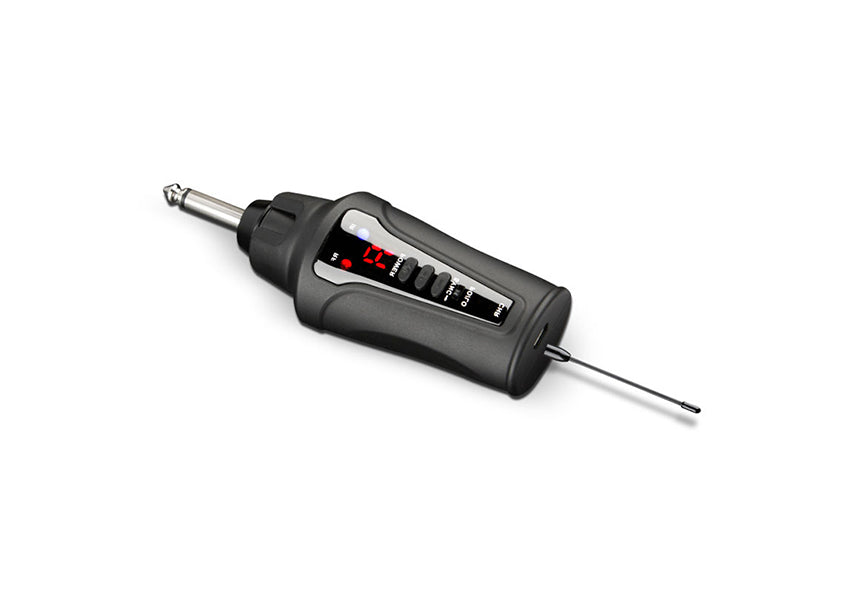

Portable plug-on receiver, plug in the mixer or active speaker directly

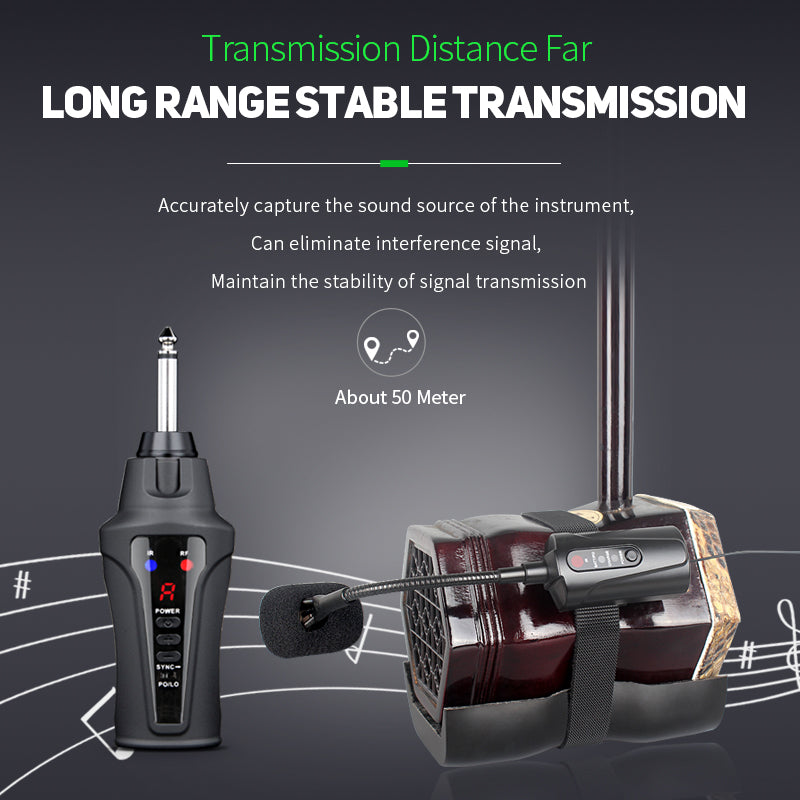

Up to 60m line-of-sight operating range

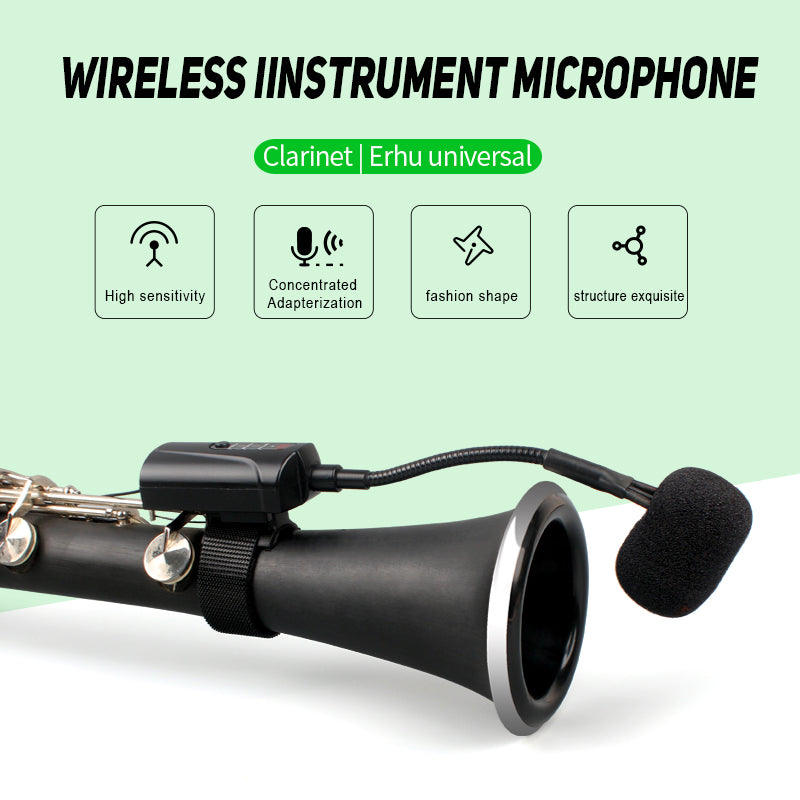

Suitable for clarinet / erhu stage performances, street performances, etc.
RECEIVER
Frequency range: 660-690MHz (region dependant)
Frequency: Pre-set 16 selectable channels
Modulation mode: pi/4 DQPSK
Latency: <6ms
Sampling: 48KHz
Frequency response: 60Hz - 15KHz ± 2dB
Total Harmonic Distortion: <0.8%(1KHz)
Signal/noise ratio: >92dB
Receiving sensitivity: -92dBm
Output: 6.35mm plug
Power supply: 3.7V Lithium battery
Power consumption: >6 hours continuosly using
Dimensions: 185*20*10mm
TRANSMITTER
Frequency range:660-690MHz (region dependant)
Modulation mode: pi/4 DQPSK
Transmitter power: 10mW
Sensitivity: -47 db±2dB
Frequency change: IR synch
Microphone type: Condenser
Microphone dimension: Φ14*5.0mm
Power supply: 3.7V lithium battery
Power consumption:>6 hours continuosly using
Dimension: 125*40*20mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
