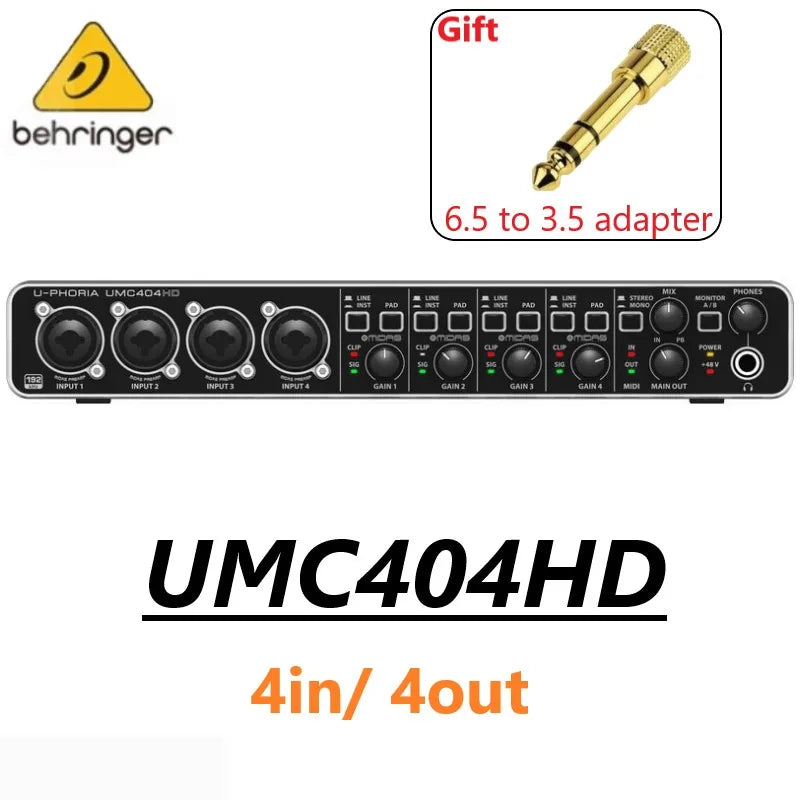

1. 4x4USB 2.0 audio/MIDI interface for recording microphones and musical instruments

2. 24-bit/192kHz resolution provides professional sound quality

3. Compatible with popular recording software, including Avid Pro Tools*, Ableton Live*, Steinberg Cubase*, etc.

4. Stream 4 inputs/4 outputs and 1 MIDI I/O, with ultra-low latency to your computer, support Mac OS X* and Windows XP* or higher

5. 4 microphone preamplifiers designed by Midas with +48 V phantom power

6. Analog plug-in, used to use external effects, such as compressors, etc.

7. Direct monitoring with zero delay during recording

8. Input/play mixing control and stereo/mono switch, direct monitoring

9. Powerful telephone output, with level control and monitoring AB signal source, DJ style prompts

10. Signal and editing instructions can achieve overview

11. Balance the main output on the XL R and 1/4" TRS connectors

12. Free audio recording, editing and podcasting software, and 150 instrument/effect plug-ins can be downloaded from behringer.com



Compatible system:

Windows 7/8/ 10 and mac os10.13/10.12/10.1 1

Android phones: Android phones that support TYPE-C transmission interface

Apple mobile phone: does not support separate recording, live broadcast can be used with live broadcast 1



UMC404HD sound card parameter/Parameter

UMC404HD external sound card input:

Preamplifier: 4xMIDAS design

Type: 4 XLR/TRS combination connectors (microphone/line/instrument)

Input level attenuation: 4xPad switch

Frequency response: 10Hz-50kHz (O/ -3dB)

Impedance: microphone input: 3kQ / instrument input: 1MR

Maximum input level: microphone: -4 dBu/line: +20 dBu/instrument: -3 dBu

Fantasy power supply: +48V, switchable

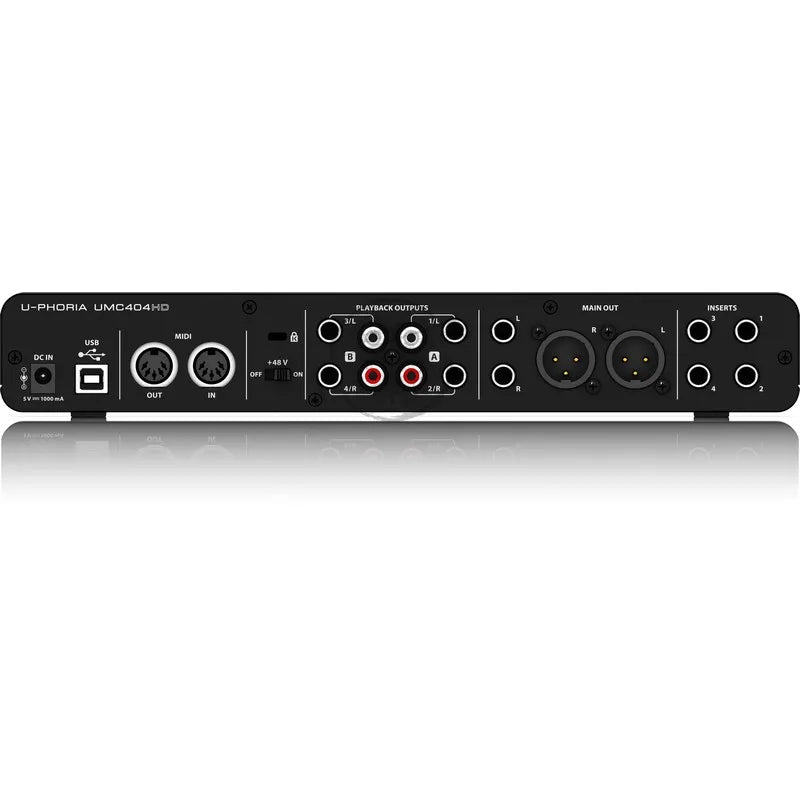

UMC404HD external sound card output:

Type: 1x1/4" inch stereo 2xTRS (main line output) 2x XLR (main line output) 4x 1/4" TRS&4xRCA (play line output)

Frequency response: 10 Hz -43 dry Hz (0/+0.3dB)

UMC404HD external sound card system data:

Insertion type: 4x 1/4"TRS

Insertion impedance: 100Ω send/10kΩ return

Insert maximum input level: +3 dBu

Dynamic range: 100 decibels, A weighted

Frequency response: 10 Hz-43 kHz (0/+0.3 dB)

MIDI /O type: 5-pin DIN; 1 in 1 out

Supported sampling rate: 44.1/48/88.2/96/176 4/192kHz

Computer bus connection type: USB 2.0, type B

Operating system Mac OS X*, Windows XP* or higher

Power consumption: 2.5 W max

Power supply: USB interface (bus powered by computer) and adapter

Dimensions (HxWxD): 45.81 X 292 X 130mm

Weight: 1.2 kg
